Convolution Operations on Coding Metasurface for RCS Reduction

Tingting Shang, Jianping Zhao, and Juan Xu

School of Cyber Science and Engineering

Qufu Normal University, Qufu 273165, People’s Republic of China

tingzi2046@163.com, zjp-wlx@163.com, xujuan125@163.com

Submitted On: April 12, 2021; Accepted On: July 25, 2021

Abstract

In this paper, a polarization conversion unit is designed as the coding unit. The units are arranged in a regular cross-arrangement. Convolution operation is composed of the Dirac-delta function and the principle of scattering-pattern shift. The Dirac-delta is optimized by generalized Snell’s law and addition theorem. According to the convolution operations, the cross-arrangement pattern is shifted to multiple directions to reduce the backscattering field. Compared with regularly arranged metasurface, this method can reduce the radar cross section (RCS) of single station by at least 10 dB. Compared with the traditional intelligent optimization algorithm, this method provides a new route to reduce RCS by random distribution of elements.

Index Terms: Convolution operations, cross-arrangement pattern, polarization conversion, metasurface, principle of scattering-pattern shift, radar cross section, the Dirac-delta function.

I. INTRODUCTION

The reduction of radar cross section (RCS) is obtained by redirecting the backscattering waves to multiple directions. The research focus is using the optimization algorithm to realize random cell placement and ultra-wideband RCS reduction. In 2011, the generalized Snell’s law was proposed by Yu. The abnormal reflection and refraction in the optical band were realized by introducing gradient phase into the metasurface. A “V” shaped element was designed and the gradient phase was adjusted by controlling its opening angle and rotation angle in [1]. In 2014, the concept of coding metasurface was first proposed by Professor Cui Tie Jun. He designed 1-bit and 2-bit coding metasurfaces in microwave band with rectangular patch structure, which can reduce RCS by more than 10 dB in 7.8–12 GHz and 7.5–15 GHz bands respectively in [2]. In 2017, Liu realized $π$ phase difference of broadband by AMC unit in [3]. However, Su achieved $π$ phase difference by adjusting size of square ring structure in ultra-wide frequency band. Particle swarm optimization (PSO) is used to optimize the arrangement sequence of cells, and finally multi-beam distribution with broadband RCS reduction is obtained in [4]. In 2020, the programmable metasurface for multi-beam control using deep learning technology was proposed by Shan to reduce RCS in [5]. The random distribution of metasurface elements is realized by the optimization algorithm, which is time-consuming in programming and slow in running. The metasurface can be transformed from a regular metasurface to a random metasurface by shifting the regular metasurface scattering pattern to multiple directions. This convolution operation can not only avoid programming and iteration problems, but also achieve RCS reduction.

In this paper, the cross-arrangement matrix is added by the Dirac-delta function to realize the shift of scattering pattern. The function is optimized by using generalized Snell’s law and addition theorem. The RCS is further reduced by shifting the cross-arrangement scattering pattern to multiple directions. Because the effect of RCS reduction by metal plate is poor, we choose to compare the metasurface which cross-arrangement scattering pattern is shifted to multiple directions with cross-arrangement metasurface with the same size. Finally, this metasurface achieves single station RCS reduction of more than 10 dB.

II. MATERIALS AND METHODS

A. Principle of scattering-pattern shift

The convolution theorem in Fourier transform describes the common multiplication of signals in time domain and the convolution of corresponding frequency spectrum in frequency domain.

f (t) \cdot g (t) \Leftrightarrow F (ω) * G (ω) .

(1)

Equation (1) can be simplified as frequency-shift function when $G (ω)$ becomes a Dirac-delta function, the equation (1) is rewritten as:

f (t) \cdot \exp (j ω_{0} t) \Leftrightarrow F (ω) * δ (ω - ω_{0}) = F (ω - ω_{0}) .

(2)

Referring to the theory in [6], the electric field distribution on the coding metasurface and the scattering pattern in the far-field region are Fourier transform pairs. Which can connect the coding-pattern domain (in analogy to the time domain) with the scattering-pattern domain (in analogy to the frequency domain). As is mathematically expressed as:

e (x_{λ}) \cdot g (x_{λ}) \Leftrightarrow E (\sin θ) * G (\sin θ),

(3)

where $x_{λ}$ is the electrical length, $θ$ is the angle with respect to the normal direction. Equation (3) is rewritten into the form of the equation (2):

e (x_{λ}) \cdot \exp (j x_{λ} \sin θ_{0}) \Leftrightarrow E (\sin θ_{0}) * δ (\sin θ - \sin θ_{0})

= E (\sin θ - \sin θ_{0}) .

(4)

The multiplication of $e (x_{λ})$ by a gradient sequence $\exp (j x_{λ} \sin θ_{0})$ is the multiplication of $\exp (j φ_{1})$ by $\exp (j φ_{2})$ .

\exp (j φ_{1}) \cdot \exp (j φ_{2}) = \exp (j (φ_{1} + φ_{2})) .

(5)

Taking $φ_{1} = 0$ and $φ_{2} = π$ in equation (5), it can be rewritten as equation (6). Selecting $φ$ of $\exp (j φ)$ in equation (6), it can be abbreviated as equation (7).

\exp (j 0) \cdot \exp (j π) = \exp (j (0 + π)) = \exp (j π) .

(6)

0 + π = π .

(7)

Because 0 in the coding matrix represents $φ = 0$ and 1 represents $φ = π$ , the coding matrix is associated with the phase of the unit.

0 + π = π \Leftrightarrow 0 + 1 = 1 .

(8)

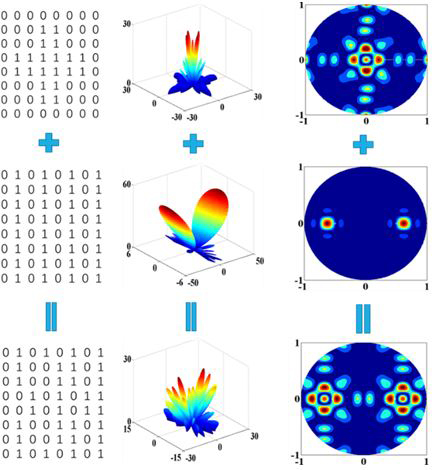

In fact the operation on the coding matrix is to operate on the phase distribution, so as to shift the scattering pattern. The above equations relate the coding matrix to the far-field pattern. As shown in Figure 1, the addition of coding matrix means the far-field pattern is shifted.

Fig. 1. Schematic diagram of scattering-pattern shift.

B. Optimization of dirac-delta function

To reduce RCS as much as possible, it is necessary to shift the cross-arrangement scattering pattern to more directions. In other words, the Dirac-delta function needs to be optimized. Beam steering is realized by generalized Snell’s law. Then, coding matrices are superimposed by addition theorem [7]. Therefore, a Dirac-delta function is generated that can be shifted to four directions, six directions, and more.

Taking Figure 2 as an example to introduce the generation of Dirac-delta function that shift the scatter pattern to four directions. When the coding sequence of the coding metasurface is 0101… / 0000… or 0000… / 0101…, it can be obtained that the metasurface has two scattering beams according to the generalized Snell’s law. Using the addition coding theorem, the coding sequence 0101… / 0101… can be obtained. It can integrate the far-field scattering characteristics of coding sequence 0101… / 0000… and coding sequence 0000… / 0101… to generate four scattering beams. To better visualize the direction of scattering beam, Figure 2 gives the corresponding 2D scattering pattern in a polar coordinate system. From the 2D scattering pattern, four lighter spots represent not only the four main lobes but also the four directional points of the Dirac-delta function that shift the scattering pattern to four directions.

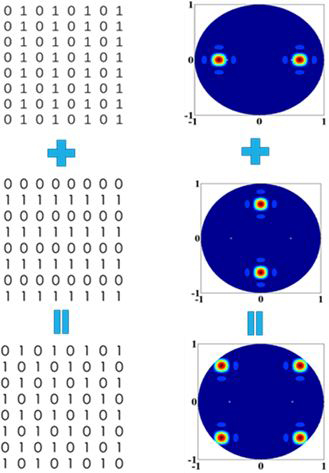

Fig. 2. Schematic diagram of addition theorem.

Based on the above theory, the Dirac-delta function is selected in Figure 2. The cross-arrangement scattering pattern is shifted to four directions by the principle of scattering-pattern shift. In an ideal situation, the cross-arrangement scattering pattern is shifted to four directions in 3D pattern in Figure 3 (a) and the energy distribution in 2D polar coordinates in Figure 3 (b).

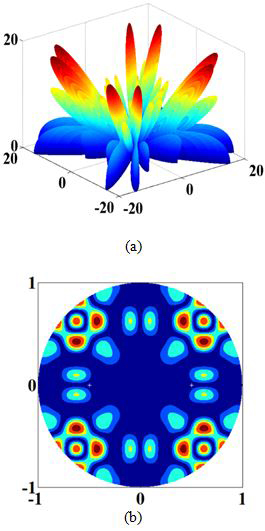

Fig. 3. Pattern of metasurface which cross-arrangement scattering pattern is shifted to four directions. (a) 3D view. (b) 2D polar view.

III. PERFORMANCE CHARACTERIZATION

A. Design of the metasurface unit

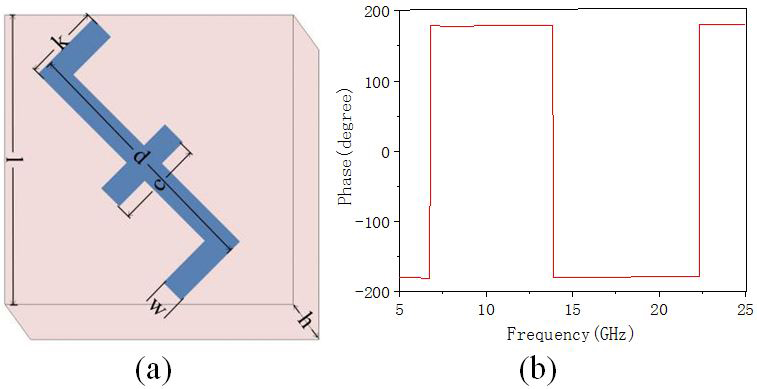

In order to better verify the above theory, a polarization conversion [8] metasurface element is proposed as shown in Figure 4 (a). The unit structure includes three layers, which are metal floor, dielectric substrate, and structural layer from bottom to top. Rogers 5880 substrate is used as the dielectric plate. The relative dielectric constant is 2.2 and the loss tangent angle is 0.0009. The size parameters are shown in Table 1.

Fig. 4. (a) Structure diagram of polarization conversion unit. (b) Cross-polarization phase difference.

Table 1 Size parameter of the unit

Variables	l	k	d	c	w	h
Size(mm)	4	0.52	4.3	0.9	0.3	1.75

The corresponding mirror unit can be obtained by mirroring the unit. The unit realizes wave cancellation by converting incident electromagnetic wave (EM) into cross-polarization component. As shown in Figure 4 (b), because the cross polarization [9] phase difference between polarization conversion unit and its mirror unit is $π$ , it is regarded as coding unit (“0” unit, “1” unit).

B. Optimization of unit arrangement

According to the coding matrix, the coding units are arranged in a cross-arrangement and metasurface which the cross-arrangement scattering pattern is shifted to two, four, or six directions. The metasurface is composed of 8 $\times$ 8 super-units with dimensions of 64 mm $\times$ 64 mm, where the super-unit is composed of 2 $\times$ 2 anisotropic unit cells. The metasurface is simulated and analyzed by commercial simulation software HFSS. Figures 5 and 6 show the scattering pattern at f = 32GHz when plane waves are incident vertically. The cross-arrangement scattering patterns is shown in Figure 5. The cross-arrangement scattering patterns are shifted to two directions in Figure 6 (a), four directions in Figure 6 (b), and six directions in Figure 6 (c). With the increase of shift direction, the energy distribution is more uniform. The incident electromagnetic energy is scattered in all directions after being reflected by the metasurface. According to the energy conservation theorem, the energy of each beam is very low, so the RCS in the vertical direction is obviously reduced. Figure 7 also proved that with the increase of the shift direction, the RCS in vertical direction decreases gradually.

Fig. 5. The cross-arrangement scattering pattern at f = 32GHz.

(a)

images

(b)

images

(c)

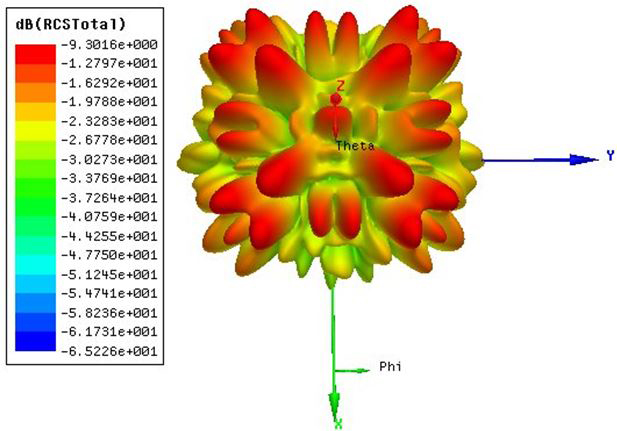

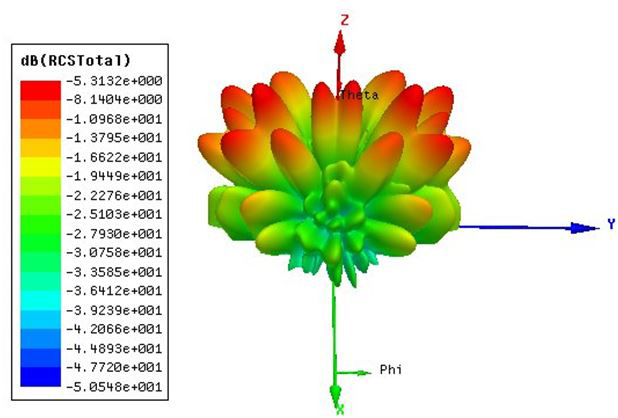

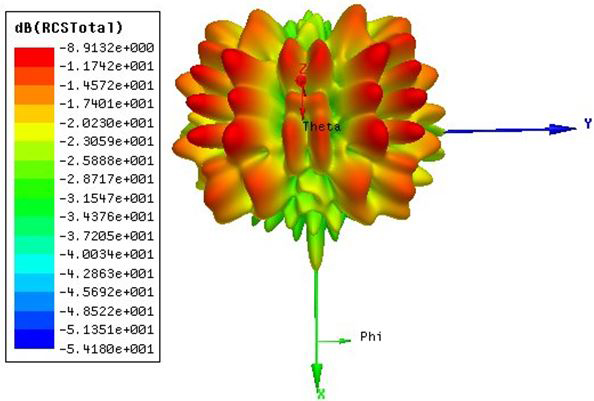

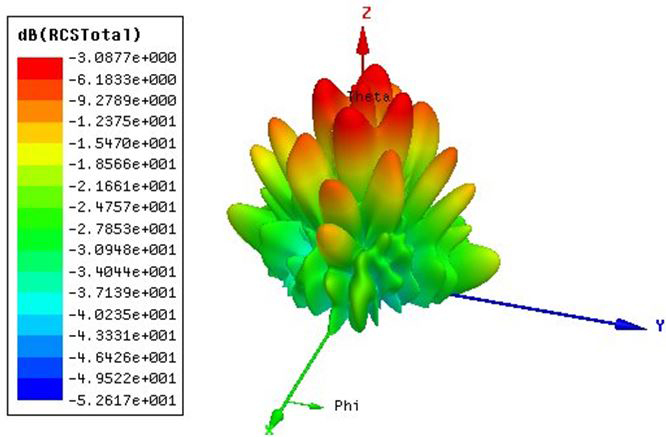

Fig. 6. The cross-arrangement scattering patterns are shifted to multiple directions at f = 32GHz.

Fig. 7. 2D far-field scattering pattern plotted in y-z plane.

In order to compare the RCS reduction of four electromagnetic metasurface more intuitively, Figure 8 shows the graph of single-station RCS change in 20–40 GHz band. The RCS of the metasurface which cross-arrangement scattering pattern is shifted to multiple directions is lower than the cross-arrangement metasurface. As the shift direction increases, so does the RCS reduction.

Fig. 8. The simulation results of RCS over a wide frequency range from 20 to 40 GHz.

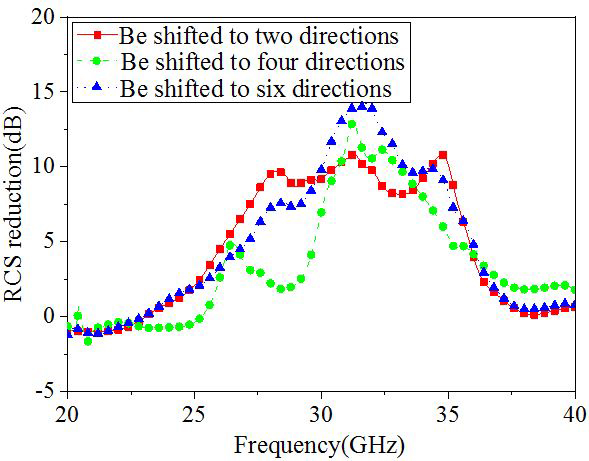

Compared with the cross-arrangement, the RCS reduction of the designed metasurfaces are illustrated in Figure 9. The metasurface is an array formed by the cross-arrangement scattering pattern shifting to multiple directions. It shows that RCS reduction increases with the increase of the shifted direction of scattering pattern. Therefore, RCS reduction can be realized by designing the metasurface which regular arrangement scattering pattern is shifted to multiple directions. The more the shift direction, the greater the degree of RCS reduction.

Fig. 9. Simulation results of RCS reduction.

IV. EXPERIMENTAL VERIFICATION

A prototype measuring 64 mm $\times$ 64 mm was fabricated using printed circuit board technology to verify the RCS reduction characteristics of the metasurface which regular arrangement scattering pattern is shifted to six directions, as shown in Figure 10.

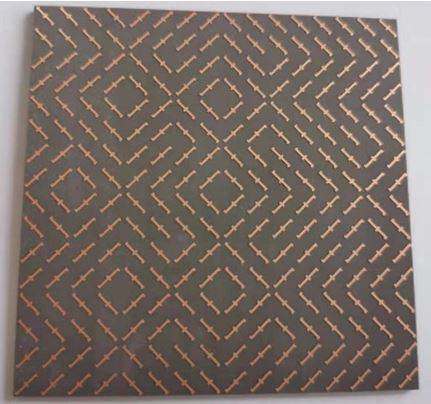

Fig. 10. Photographic view of fabricated sample.

The measurement was carried out in a microwave darkroom using the free space method. When the electromagnetic wave is normal incident, the characteristics of the single-station RCS of the metasurface changing with frequency are shown in Figure 11. As expected, the measured single-station RCS results matched well with the simulation results. And the measured RCS results in the vertical direction is also matched well with the simulation results in Figure 12. Of course, there are some errors within the acceptance range, which can be attributed to the following two reasons: (1) the incident wave in the simulation process is an ideal plane wave, while the plane incident wave in the actual measurement is approximately equivalent to the far-field radiation of the horn antenna; (2) manufacturing tolerances in physical processing and inevitable deviations of naked eyes in measurement.

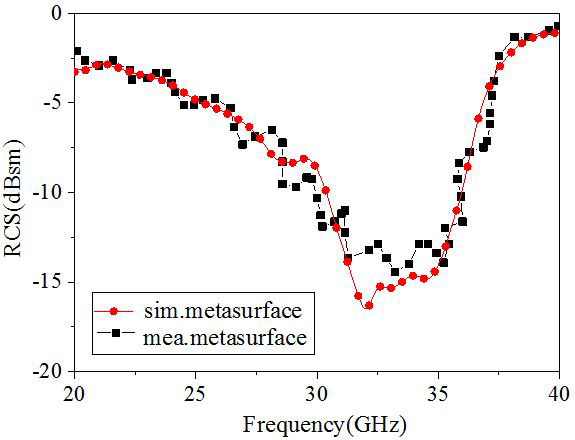

Fig. 11. Comparison of single-station RCS results of metasurface under normal incident of electromagnetic wave.

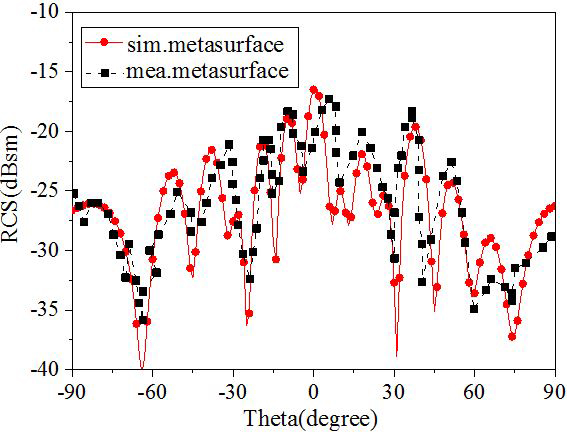

Fig. 12. Comparison of 2D far-field scattering pattern of metasurface under normal incident of electromagnetic wave.

V. CONCLUSION

In this paper, a polarization conversion unit is designed, which is used as the coding unit because the phase difference between the polarization conversion unit and its mirror unit is $π$ . Dirac-delta function is selected by using generalized Snell’s law and addition theorem. Then the pattern is shifted to different directions by convolution theorem of Fourier transform. Finally, the radar cross section is reduced. The simulation results show that the metasurface which regular cross-arrangement scattering pattern is shifted to multiple directions can reduce RCS more effectively.
