Gain-enhanced and Mechanical Reconfigurable Slot Antenna with Metasurface

Xueyan Song, Ang Dong, Xuping Li, Yunqi Zhang, Haoyuan Lin, Yapeng Li, and Hailong Yang

School of Electronic Engineering
Xi’an University of Posts & Telecommunications, Xi’an, 710121, China
xysong65@xupt.edu.cn, 1361580350@qq.com, lixuping@163.com, johnny_5@126.com
2806198782@qq.com, liyapengedu@163.com, yanghl68@163.com

Submitted On: May 17, 2023; Accepted On: October 22, 2023

ABSTRACT

A novel wideband slot antenna with metasurface is presented. In order to achieve broadband, high-gain, and mechanical reconfigurable performance, a metasurface is adopted and combined with a new-type planar slot antenna The antenna and metasurface are designed on F4B substrate, and the overall dimension of the antenna is 1.48 $λ$ $_{0}$ $\times$ 1.48 $λ$ $_{0}$ $\times$ 0.2 $λ$ $_{0}$ ( $λ$ $_{0}$ is the free space wavelength at center frequency). Different from the traditional square metasurface, a structure with different properties in the x and y directions is utilized in the proposed antenna, which can be reconstructed by adjusting the relative position between the slot antenna and the metasurface. By introducing the metasurface, the maximum gain of the whole antenna is improved. The antenna works in two states with respect to the two locations of the metasurface. The impedance bandwidth of the proposed antenna in state A is from 5.49 to 9.40 GHz (52.5%), and the impedance bandwidth of the proposed antenna in state B is from 5.83 to 6.01 GHz (3%) and 7.05 to 9.62 GHz (30.8%). The gain of the whole antenna in both states is higher than that of the original slot antenna (without metasurface), and the maximum gain is 9.1 dBi.

Index Terms: Metasurface, reconfigurable performance, slot antenna, wideband.

I. INTRODUCTION

Antennas with wideband, high-gain, and programmable properties have attracted significant attention from academics in the field of wireless communication due to the growing demand of wireless communication systems [1], [2]. Due to their ability to manipulate electromagnetic waves, metasurfaces have been designed to obtain various performances in antennas [3], [4]. Usually, the structure of reconfigurable antennas can be mechanical or electrical. Electrical reconfigurable antennas are popular, and their states can be switched by PIN-diode switches [5], [6]. However, there are some problems to be solved. For example, the addition of electronic components may affect the performance of the antenna. The operation of the antenna depends on the reliability of the electronic components and the DC power supply [7].

The metasurface has been demonstrated in the literatures [8–12]. When combined with metasurface, the antenna can achieve reconfigurable performance. In [8], a polarization and frequency-reconfigurable antenna with metasurface was proposed to reconfigure the performance of the antenna by changing the relative positions of the metasurface and antenna layer. The antenna proposed in [8] can achieve a bandwidth of 8 to 11.2 GHz (33.33%). In [9], two layers of metasurfaces are loaded above the slot antenna, and the frequency reconfigurable characteristic is achieved by rotating the top metasurface with respect to the center of the slot antenna. The operating frequency band ranges from 2.55 to 3.45 GHz (28%). And the gain curve of the antenna ranges from 5.3 dBi to 8.3 dBi. Because it does not require additional biasing circuits or switches, the physical rotation technique is attractive, which is adopted in this paper to achieve radiation pattern and impedance bandwidth reconfiguration. Therefore, the state of the proposed design in this paper can be freely switched in the communication system to achieve interference immunity. Methods to improve the overall antenna gain by incorporating metasurfaces have been used extensively, such as using the metasurface as a reflector [10],[11] and using the metasurface as a secondary radiation source to modulate the beam [12]. Nevertheless, the bandwidth and the gain of the designed antenna needs to be further improved.

In this letter, an antenna that can achieve mechanical reconfigurability, gain enhancement, and wideband is proposed. The antenna consists of a metasurface and a slot antenna, which are connected by a nylon column. In order to enhance the gain, a metasurface structure is utilized under a broadband slot antenna. The metasurface is composed of 66 units to achieve different responses to incident waves in x and y directions. To achieve broadband characteristic, some new structures such as gradual feeder line are introduced in the presented slot antenna. The proposed antenna operates in two radiation states by mechanical rotation, and gain of the proposed antenna can be enhanced in both states compared with the original slot antenna (without metasurface). The antenna in state A provides fractional bandwidths of 52.5% at 7.45 GHz, and the antenna in state B provides fractional bandwidths of 3% at 5.92 GHz and 30.8% at 8.34 GHz. And the maximum gain of proposed antenna can reach 9.1 dBi. All in all, the proposed antenna can achieve broadband, high-gain and mechanically reconfigurable characteristics.

II. ANTENNA DESIGN

A. Antenna configuration

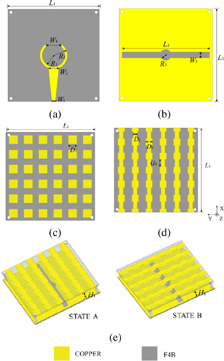

Figure 1: (a) Feeder line of slot antenna, (b) surface of slot antenna, (c) bottom view, (d) top view of the metasurface, and (e) 3D geometry of proposed structure in states A and B.

The proposed antenna consists of a new slot antenna and a metasurface, as shown in Fig. 1. The antenna and the metasurface are printed on a 1 mm substrate with a relative permittivity of 2.2 and loss tangent of 0.001. The antenna is on the top layer, and the metasurface is on the bottom layer. In order to improve the impedance bandwidth of the slot antenna, a new gradual feeder line, which splits at the end into a two-part circular arc and circular slot are designed, as shown in Figs. 1 (a) and (b). The metasurface is composed of 6 $\times$ 6 two-layer patch units, which are etched on the both sides of one substrate. The top patch layer is arranged by an inverted H-shaped patch unit in x and y directions and the bottom layer consists of a square patch. The units are designed as shown in Figs. 1 (c) and (d). By rotating the metasurface around the center with respect to the slot antenna, the reconfigurable characteristic of the proposed antenna can be achieved. The detailed operation of mechanical reconfiguration is achieved by manually adjusting the four nylon columns on the four corners of the substrates. When the four columns are unscrewed, the metasurface can be manually rotated by 90 degrees around the z-axis along the center, and then installed under the antenna, bringing in the switching between two states. The structure of the proposed antenna in two states is shown in Fig. 1 (e). The dimensions of the antenna are shown in Table 1.

Table 1: Dimensions of the proposed antenna (unit: mm)

Parameter	Value	Parameter	Value
L $_{1}$	60	L $_{2}$	56
R $_{1}$	7.5	R $_{2}$	9
R $_{3}$	3.5	W $_{1}$	2.4
W $_{2}$	6.95	W $_{3}$	1.9
W $_{4}$	10	D $_{1}$	6
D $_{2}$	3	D $_{3}$	5
G $_{1}$	5	H $_{1}$	8

B. Working mechanism

The characteristics of the proposed slot antenna and metasurface are simulated by using ANSYS HFSS. In order to obtain broadband characteristics of the slot antenna, the design of the feeder line is especially important. The impedance characteristics of the slot antenna can be greatly improved by the design of the tapering structure and the open ring. Therefore, of all the parameters, R $_{1}$ and W $_{1}$ make great contributions to the characteristics of the slot antenna. Figure 2 depicts the simulated S $_{11}$ of the proposed antenna with different values of R $_{1}$ and W $_{1}$ . From Fig. 2 (a), it can be seen that when R $_{1}$ decreases, the resonance characteristics of the low frequency band become worse, when R $_{1}$ increases, mainly the resonance characteristics of the high frequency part become worse. when R $_{1}$ = 7.5 mm, the impedance bandwidth is the best, From Fig. 2 (b), it can be seen that when W $_{1}$ changes, there will be two frequency points where the resonance performance becomes worse. When W $_{1}$ = 1.8 mm, the impedance bandwidth is optimal. To obtain good matching property, it reaches a compromise to choose the value R $_{1}$ as 7.5 mm and W $_{1}$ as 2.4 mm.

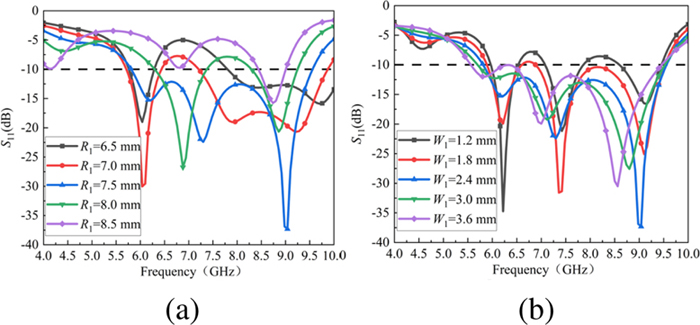

Figure 2: Simulated S $_{11}$ of the proposed slot antenna with different values of the main parameters including (a) R $_{1}$ , and (b) W $_{1}$ .

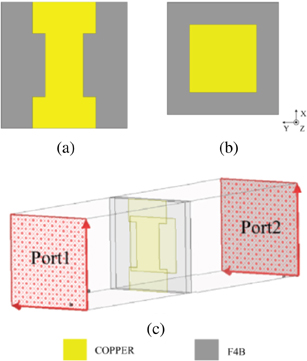

Figure 3: (a) Top view of the unit cell, (b) bottom view of the unit cell and (c) the simulation model of the proposed unit cell of the metasurface.

As mentioned above, the reconfigurability of the antenna results from the units of the metasurface. When the metasurface and the antenna are in two different relative positions, the metasurface can achieve transmission and reflection performance, respectively. The units of the metasurface are shown in Figs. 3 (a) and (b). In order to investigate properties of the metasurface, the unit cell is simulated by the simulation software ANSYS HFSS, and the simulation model is shown in Fig. 3 (c). The unit is imposed by the Master-Slaver boundary conditions and excited by the Floquet ports. With this electromagnetic simulation method, the response characteristics of the matasurface with infinitely large dimensions can be simulated and thus save computationalresources.

For different incident waves in x-polarized and y-polarized directions, the metasurface works in a different state. When the incident wave is x-polarized, the metasurface is reflective, which is defined as state A; and when the incident wave is y-polarized, the metasurface is transmissive, which is defined as state B. When in state A, electromagnetic energy is reflected from the metasurface and superimposed, which contributes to the improvement of the maximum gain. And when in state B, the aperture of the antenna is increased by the addition of a metasurface, which narrows the beam and raises maximum gain.

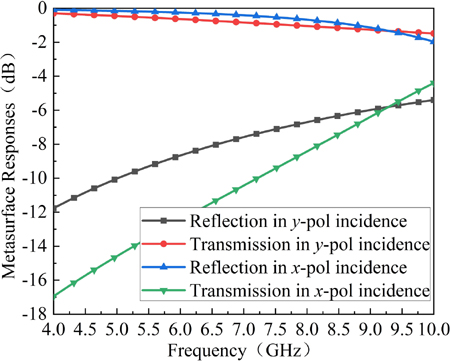

Figure 4: Simulated reflection and transmission coefficients of metasurface.

The response of the metasurface from the incident x-polarized wave and y-polarized wave is shown in Fig. 4. It can be seen from the blue curve in Fig. 4, when the incident electromagnetic wave is x-polarized, the metasurface reflects the majority of the energy. From the red curve in Fig. 4, it can be obtained that the metasurface transmits most of the energy when the incident electromagnetic wave is y-polarized. Due to the different performances of the metasurface in two states, the proposed antenna in this work can achieve various characteristics.

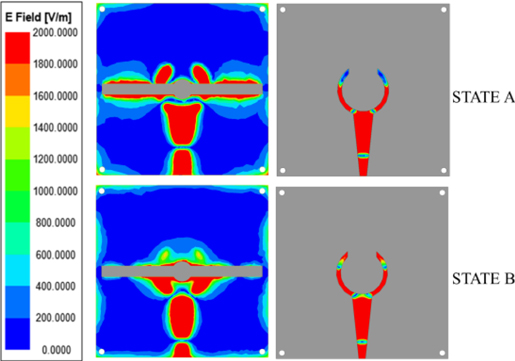

Figure 5: Electric field distributions in states A and B at 6.5 GHz.

In order to investigate the influence of the metasurface on the original slot antenna, the proposed combined antenna at 6.5 GHz in two states is taken as an example. And Fig. 5 depicts the electric field intensity distribution of the antenna in both states, from which it can be determined that the electric field intensity distribution the both sides of the slot and terminal feeder line are different. That is because the addition of the metasurface changes the electromagnetic environment around the slot antenna. When operating in state A, the slot antenna around the electromagnetic energy is scarcely affected because the metasurface is transmissive, bringing in the similar frequency response between the whole antenna in state A and the original slot antenna (without metasurface). In state B, the metasurface reflects the energy initially radiated in the +z direction. The reflected energy is then excited again on the terminal feeder line of the slot antenna, which results in the difference in reflection coefficient between the whole antenna in state B and the original slot antenna at 6.5 GHz.

III. SIMULATED RESULTS

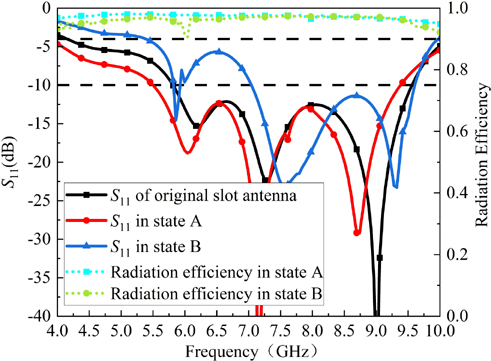

Figure 6: Simulated S $_{11}$ and radiation efficiency of the proposed original slot antenna and the slot antenna with metasurface in two states.

The simulated S $_{11}$ and radiation efficiency of the original proposed slot antenna (without metasurface) and the whole antenna in states A and B are shown in Fig. 6. It can be seen that the original slot antenna operates in the band between 5.81 GHz and 9.56 GHz (48.8%). The bandwidth of the whole antenna in state A is from 5.49 GHz to 9.40 GHz (52.5%). The bandwidth of the whole antenna in state B is 5.83 GHz to 6.01 GHz (3.0%) and 7.05 GHz to 9.62 GHz (30.8%). And the radiation efficiency of the proposed antenna is greater than 90% in two states.

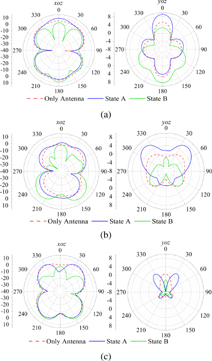

Figure 7: The simulated radiation patterns of the proposed slot antenna with and without metasurface at (a) 6 GHz, (b) 7.5 GHz, and (c) 9 GHz.

Figure 7 depicts the radiation patterns in xoz and yoz plane of the original slot antenna, and the whole antenna in state A and state B at 6 GHz, 7.5 GHz, and 9 GHz. As shown in Fig. 7, the maximum gain of the antenna in both state A and state B is higher than that of the original slot antenna. Moreover, it can also be seen that the addition of the metasurface makes the original slot antenna generate two radiation patterns, which brings in reconfigurable achievement. Table 2 demonstrates the increase in maximum gain of the proposed antenna at the three frequency points. It can be found that, with the metasurface, the proposed slot antenna can achieve significantly more gain improvement than the original slot antenna. The maximum gain of the slot antenna with metasurface can reach 9.1 dBi.

Table 2: Gain enhancement effect (unit: dBi)

Frequency (GHz)	Only Antenna	State A	State B	State A Enhance	State B Enhance
6	5.6	9.1	8.4	3.5	2.8
7.5	3.4	7.1	7.7	3.7	4.3
9	5.8	6.7	8.1	0.9	2.3

IV. EXPERIMENTAL RESULTS

To verify the antenna performance, a prototype of the same size as in Table 1 is fabricated and measured. The specific appearance is shown in Fig. 8. For easy switching between state A and state B, four nylon columns are fixed to connect the antenna and the metasurface. The reflection coefficient is measured by Keysight E5063A network analyzer.

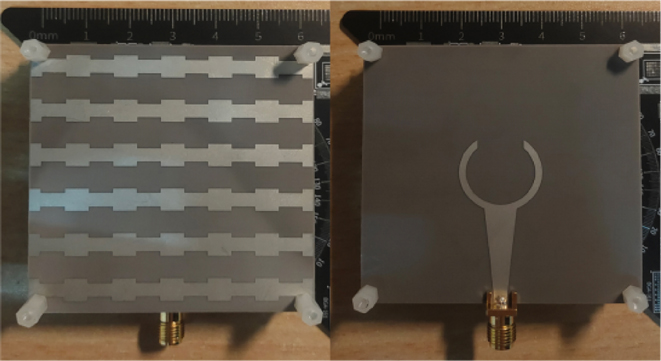

Figure 8: Front and back sides of the prototype.

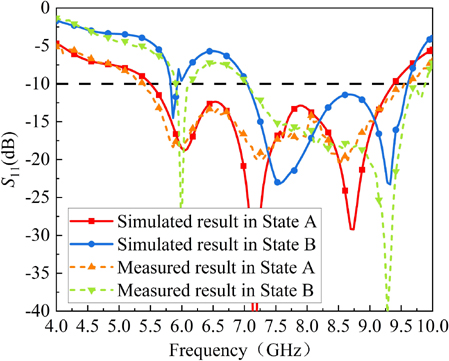

Figure 9: Simulated and measured S $_{11}$ of the proposed antenna in state A and state B.

The simulated and measured S $_{11}$ in state A and state B are depicted in Fig. 9. It can be seen that the measured results are in good accordance with the simulated ones except for small deviations in operating frequencies, which are mainly due to fabrication and experimental tolerances. The operating bandwidth of the antenna in state A is from 5.41 GHz to 9.55 GHz (55.35%). The operating band of the antenna in state B ranges from 5.95 GHz to 6.13 GHz (3%) and from 7.03 GHz to 9.87 GHz (33.6%). The radiation patterns are measured in the microwave lab. The simulated and measured radiation patterns of the proposed antenna in state A and B in xoz and yoz plane at 8 GHz are shown in Fig. 10. The proposed antenna exhibits different radiation characteristics in different states and realizes the reconfigurable characteristics in the radiation patterns. In the xoz plane, the cross-polarization is less than -30 dB. The cross-polarization level in the yoz plane is small in the direction of maximum radiation and does not affect communication. The little difference between the measured and the simulated results is mainly due to the measure environment and manufacturing errors.

The performances of the proposed antenna compared with that of antennas are illustrated by Table 3 in references. Compared with [4], [7], and [9–11], the proposed antenna has a wider bandwidth and high gain. Compared with [8], the dimension of the proposed antenna is smaller and the bandwidth is wider. In conclusion, the proposed antenna can achieve broadband, high-gain, and reconfigurable characteristics.

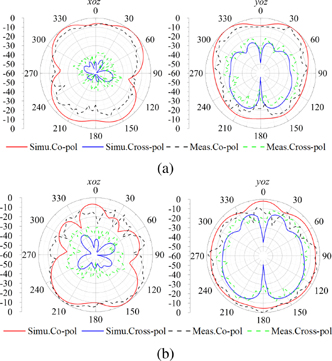

Figure 10: Simulated and measured radiation patterns of the proposed antenna at 8 GHz in (a) state A and (b) state B.

V. CONCLUSION

In this paper, a reconfigurable, high-gain, and wideband slot antenna with metasurface is designed and fabricated, and two radiation states can be realized by physically rotating the metasurface. The impedance bandwidth of the proposed antenna in state A is from 5.49 GHz to 9.40 GHz (52.5%), and the impedance bandwidth of the proposed antenna in state B is from 5.83 GHz to 6.01 GHz (3%) and from 7.05 GHz to 9.62 GHz (30.8%), and the maximum gain reaches 9.1 dBi. The measured results agree well with the simulated ones, which validates that the antenna has the advantages of large bandwidth, high gain, and reconfigurable performance. Therefore, the proposed antenna can be utilized in C and X bands for high-capacity microwave communication, such as satellite communication and medical service.

Table 3: Comparison of the proposed antenna and references

References	Bandwidth (%)	Gain (dBi)	Overall size ( $λ$ 0)	Whether Reconfigurable
[4]	23.6	8.1	0.78 $\times$ 0.78 $\times$ 0.038	no
[7]	14.6	5	0.67 $\times$ 0.67 $\times$ 0.05	yes
[8]	33.33	16.5	2.56 $\times$ 2.56 $\times$ 0.93	yes
[9]	28	8.3	1 $\times$ 1 $\times$ 0.07	yes
[10]	40	9.9	1.2 $\times$ 1.2 $\times$ 0.12	no
[11]	43.1	6.12	0.348 $\times$ 0.348 $\times$ 0.07	No
This work	52.5	9.1	1.48 $\times$ 1.48 $\times$ 0.2	yes
