A 4-Element UWB MIMO Antenna System with High Isolation Performance

Tongyu Ding $^{1}$ , Haobin Yang $^{1}$ , Zhiwei Chen $^{1}$ , Zhen Lin $^{2}$ , Bin He $^{2}$ , and Chong-Zhi Han $^{1*}$

¹School of Ocean Information Engineering
Jimei University, Xiamen, 361021, China
tyding@jmu.edu.cn, h.yang@jmu.edu.cn, chongzhi_han@jmu.edu.cn
²China Mobile Group Device Co., Ltd
Shenzhen, 518067, China

Submitted On: May 27, 2023; Accepted On: December 13, 2023

ABSTRACT

This paper proposes a 4-element multiple-input multiple-output (MIMO) antenna system, which is intended for ultra-wideband (UWB) applications. The antenna has a dimension of 92 $\times$ 70 $\times$ 1.6 mm $^{3}$ . It achieves element isolation via the defected ground structure (DGS) and symmetric E-shaped branch structures design. The realized operating bandwidth is from 3 GHz to 18 GHz, with 15 dB isolation within the whole wide band. The envelope correlation coefficient (ECC) is less than 0.01 with diversity gain (DG) greater than 9.95. The prototype is fabricated and measured to verify its potential applications for UWB MIMO communication.

Keywords: DG, ECC, isolation, MIMO, UWB.

I. INTRODUCTION

The ultra-wideband (UWB) technology has been highly committed for decades due to low power consumption and high-speed data transmission [1–3], making it continuously promising technology in versatile future fields including indoor positioning [4], radar detection [5], and wireless communications [6–8]. As the demand for UWB applications increases, research and developments of UWB technologies and devices have attracted considerable attention.

More recently, multiple input multiple output (MIMO) technology has become one key technology of future mobile and wireless communication systems. It is worth noting that MIMO significantly improves the spectral efficiency of the UWB system. As a result, combining MIMO technologies in UWB design has become the main trend in UWB studies [9–10]. In this sense, research on UWB MIMO antennas has emerged as a hotspot in wireless communication system research. The combined use of UWB and MIMO technologies is anticipated to bring about new opportunities and challenges for UWB antennas [11].

The main challenge of UWB MIMO antennas in mobile terminals is achieving high isolation between antenna elements [12]. In [13, 14], neutralization line structures are used between antenna elements to reduce mutual coupling, while in [15–19], polarization diversity technology is used to achieve natural isolation. In [20–24], mutual coupling is reduced by using defected ground structures (DGS). For instance, [23] etches two novel bent slits into the ground plane and achieves -10 dB S $_{11}$ and -18 dB S $_{21}$ from 2.4 to 6.55 GHz. In addition, antenna elements isolation can also be improved by loading parasitic elements [25–28]. For instance, a parasitic T-shaped strip is used as a decoupling structure between the radiating elements in [28], enabling the antenna to operate from 3.08 to 11.8 GHz with 15 dB isolation. Electromagnetic band gap (EBG) structures are also considered [29–31]. The proposed EBG structures employ two closely coupled arrays, one comprising linear conducting patches and the other comprising apertures (slits) in the ground plane, to reduce the S $_{12}$ to values lower than -20 dB from 3.44 to 6.13 GHz [31]. All these techniques have proven useful for constructing different resonant structures corresponding to different frequencies. Since DGS is preferably used for improving decoupling while parasitic structures are more often used to broaden the bandwidth, this work combines these two techniques to design a MIMO antenna system meeting both requirements.

In this paper, a 4-element UWB MIMO antenna is designed and fabricated. For the element design, the proposed tapered fed hexagon-shaped patch microstrip is simulated and verified to achieve a wide operating band from 3 GHz to 10.6 GHz. A dual-element MIMO antenna is then constructed, and 15 dB isolation performance is achieved through DGS and parasitic branch structure. Furthermore, a 4-element MIMO antenna is realized where decoupling of the compact MIMO antenna is achieved through the design of two E-shaped branch structures. Simulation results show that the overall operating bandwidth of the system is further broadened up to 18 GHz. The isolation of each two elements is greater than 15 dB. Section II describes the methodology of this work; it illustrates the design process from a single element to the 4-element array, as well as theoretical analysis and simulation verification. Section III shows the measured results as well as discussion, and Section IV concludes thepaper.

II. METHODOLOGY

A. Design of the single-element UWB antenna

The configuration of the proposed UWB antenna element is presented in Fig. 1. It uses 1.6 mm thick FR4 ( $ε$ $_{r}$ =4.4) as the substrate. On top of the substrate, a hexagon-shaped radiated patch and a tapered feedline form a hexagon-shape monopole. On the bottom of the substrate, the ground plane is half cut off to form a DGS, which effectively improves the impedance matching bandwidth of the antenna. Detailed dimensions of the single-element antenna are given in Table 1.

In the process of impedance matching design, the evolution of the proposed UWB antenna is exhibited in Fig. 2. Simulated results of each step (shape of element patch transferred from sample a to d) are illustrated in Fig. 3. The hexagon-shaped patch microstrip has better broadband characteristics (3 to 10.6 GHz) compared with other common microstrip patch shapes, such as rectangular, triangular, and circular shapes, because the hexagonal radiating patch owns more uniform electric field distribution at the edges of the antenna, which reduces edge effects and impedance changes.

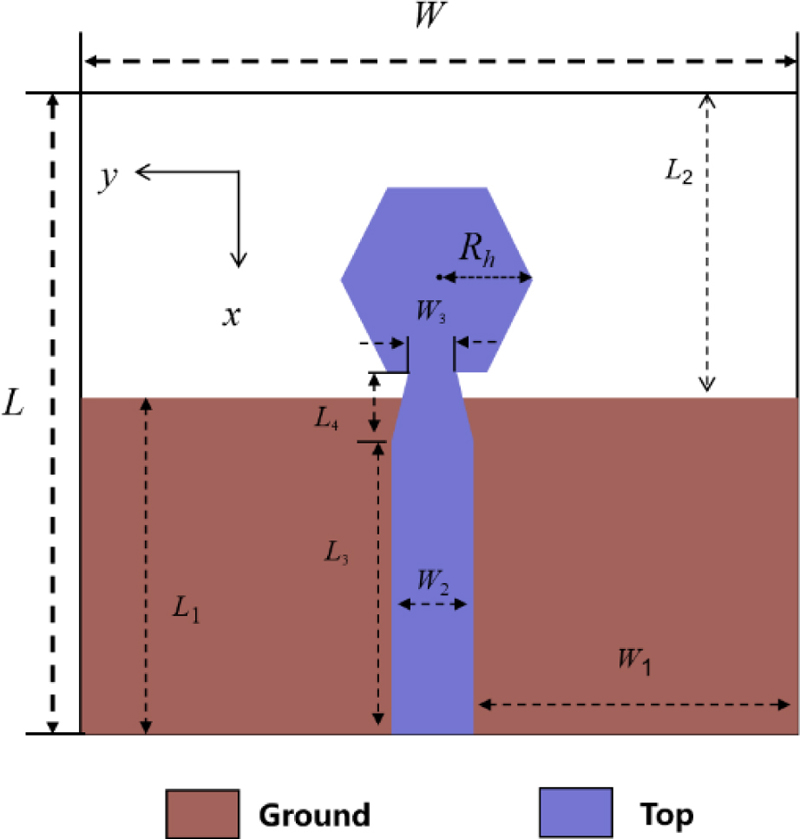

Figure 1: Structure of the proposed antenna element.

Table 1: Dimensions of the single-element antenna

Par.	Value (mm)	Par.	Value (mm)
L	17.5	L $_{4}$	5.77
W	46	W $_{1}$	10
L $_{1}$	18.1	W $_{2}$	3.01
L $_{2}$	16.9	W $_{3}$	2.01
L $_{3}$	13.26	R $_{h}$	7

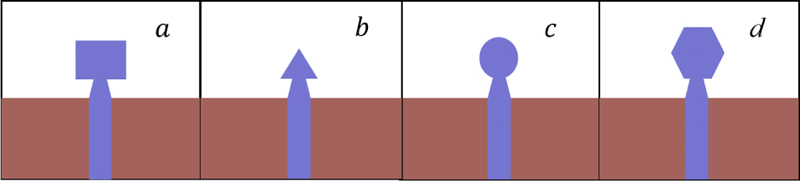

Figure 2: Evolution of a UWB antenna element.

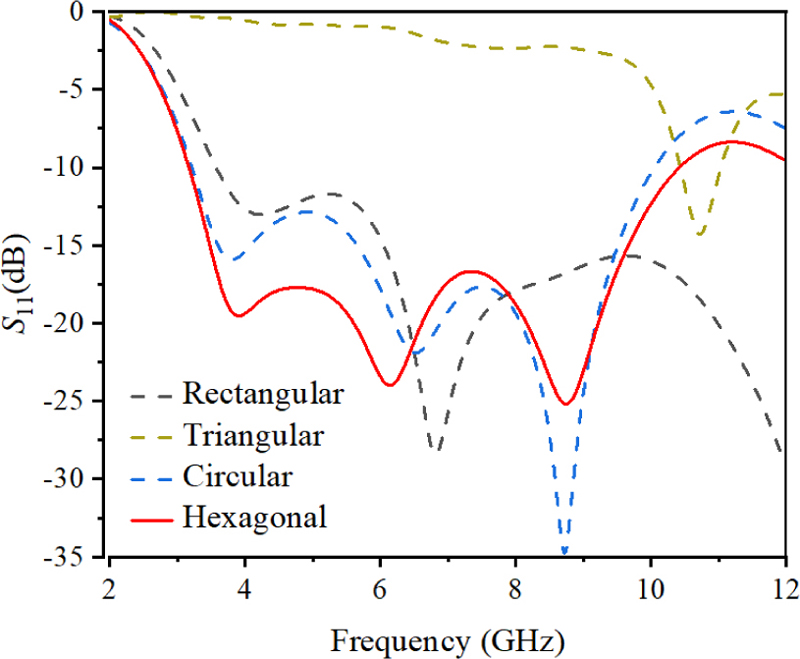

Figure 3: Simulated S-parameters of the four types of antenna element in Fig. 2.

B. Design of dual-element UWB MIMO antenna

Since the single-element antenna has achieved satisfying bandwidth, we make one step further to develop a dual-element MIMO system. The configuration of the dual-element UWB MIMO antenna element is presented in Fig. 4. It uses 1.6 mm thick FR4 ( $ε$ $_{r}$ =4.4) as the substrate. On top of the substrate, two tapered feeds and two hexagonal radiating patches are arranged in parallel. On the bottom of the substrate, the ground plane uses etched rectangular slots to improve the mutual decoupling. It is found that the effect between the two elements changes the surface current and the electromagnetic field distribution near the feeding point, and therefore changes the impedance bandwidth. This dual-element antenna operates within a wide frequency range of 3-18 GHz. The dimensions of the dual-element antenna are given in Table 2.

In [32], the mentioned antenna system achieves 15 dB isolation (3.1-11.8 GHz) using parasitic branch structures. This method provides good isolation over a wider bandwidth. On the other hand, in [36], the described antenna system achieves 19 dB isolation (2.4-6.55 GHz) using DGS. This method offers better isolation compared to the method in [32], but over a narrower bandwidth. The proposed dual-element UWB MIMO antenna system in this paper utilizes both DGS and parasitic branch structures.

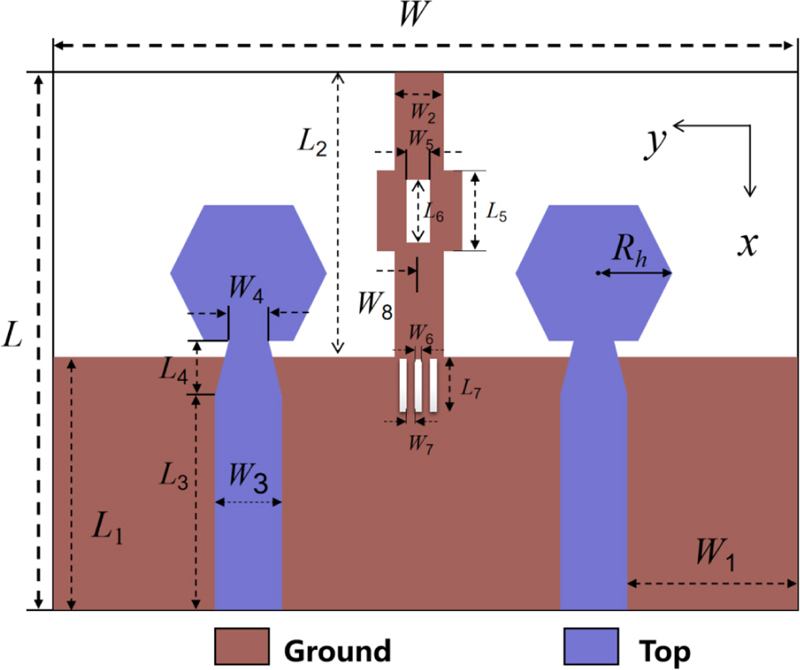

Figure 4: Dual-element UWB MIMO antenna.

Table 2: Dimensions of the dual-element antenna

Par.	Value (mm)	Par.	Value (mm)	Par.	Value (mm)
L	35	L $_{5}$	6	W $_{4}$	2.01
W	46	L $_{6}$	5	W $_{5}$	3
L $_{1}$	18.1	L $_{7}$	4	W $_{6}$	0.5
L $_{2}$	16.9	W $_{1}$	10	W $_{7}$	0.5
L $_{3}$	13.26	W $_{2}$	3.5	W $_{8}$	1.5
L $_{4}$	5.77	W $_{3}$	3.01	R $_{h}$	7

This design proposes a series of solutions to address the issue of mutual interference among multiple antennas in MIMO systems. Figure 5 illustrates the design process (from model a to d) and evolution of S-parameters of the dual-element UWB antenna. The operating frequency range of all these setups are 3-18 GHz. From model a to d, a loop structure was realized by etching a rectangular groove in the metal strip to guide the surface current into the ground plane. Further improvement was achieved by etching three rectangular slots into the ground of b, resulting in the isolation (S $_{12}$ ) of the antenna elements greater than 15 dB at high frequencies (14-18 GHz). To ensure the isolation of the elements depicted in c remained greater than 15 dB in the 7-10 GHz range, two rectangular metal stubs were added to the edge of the c metal strip. The final dual-element design is referred to as in d.

Table 3: The performance comparison of the 2-element antenna

Ref	Size (mm)	Isolation (dB)
[32]	38 $\times$ 38 $\times$ 1.6	$>$ 15 (3.1 $\sim$ 11.8 GHz)
[33]	90 $\times$ 40 $\times$ 0.79	$>$ 17 (2.4 $\sim$ 4.2 GHz)
[34]	50 $\times$ 40 $\times$ 1.6	$>$ 15 (2.5 $\sim$ 12 GHz)
[35]	48 $\times$ 48 $\times$ 0.8	$>$ 18 (2.5 $\sim$ 12 GHz)
[36]	78 $\times$ 40 $\times$ 1.6	$>$ 19 (2.4 $\sim$ 6.55 GHz)
Proposed	46 $\times$ 35 $\times$ 1.6	$>$ 15 (3 $\sim$ 18 GHz)

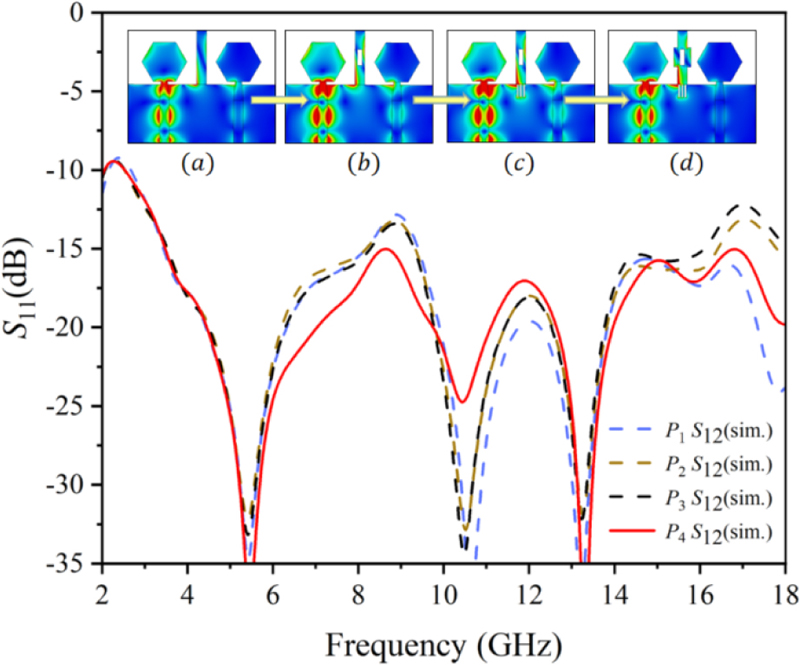

Figure 5: The evolution of structure and surface current in the dual-element MIMO antenna.

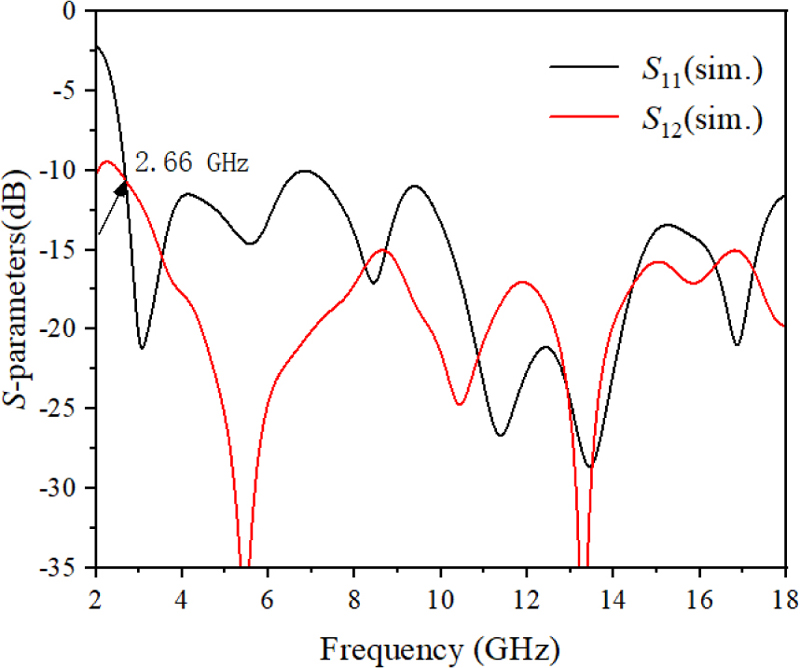

Figure 6: The S-parameters of the dual-element MIMO antenna.

The S-parameters for the dual-element UWB MIMO antenna are shown in Fig. 6. The operating frequency range of the antenna meets the requirement of being less than -10 dB from 3 GHz to 18 GHz. The S $_{12}$ of the antenna remains less than -15 dB across the UWB frequency range, meeting the requirement of antenna isolation for MIMO systems.

C. Design of 4-element UWB MIMO antenna

Based on the dual-element MIMO antenna, the final pattern of the proposed 4-element UWB MIMO system is realized and presented in Fig. 7. It has an overall size of 92 $\times$ 70 $\times$ $1.6 m m^{3}$ . On top of the FR4 substrate, the dual-element antenna pairs are placed symmetrically, while on the bottom, two E-shaped branch structures are designed to further improve the mutual decoupling. The operating bandwidth of the MIMO system is also 3-18 GHz, sufficiently meeting the wideband requirement. The dimensions of the quad-element antenna are given in Table 4.

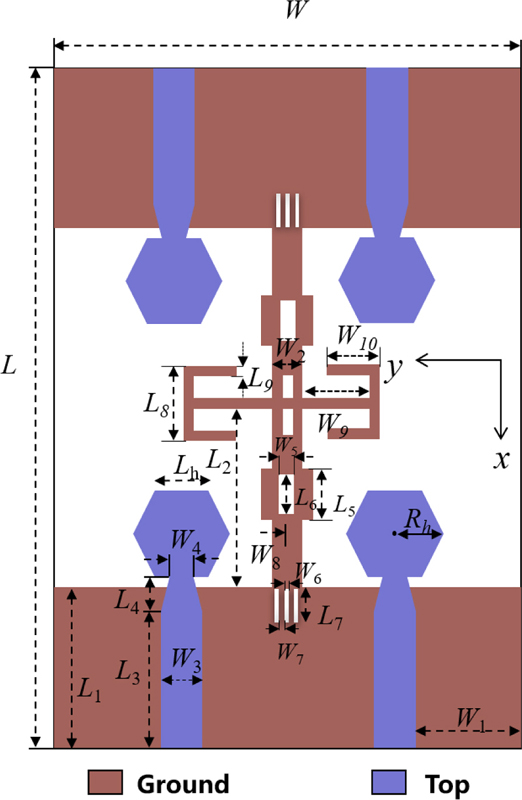

Figure 7: Configuration of the 4-element MIMO antenna.

Table 4: Dimensions of the 4-element antenna

Par.	Value (mm)	Par.	Value (mm)	Par.	Value (mm)
L	35	L $_{7}$	4	W $_{6}$	0.5
W	46	L $_{8}$	5	W $_{7}$	0.5
L $_{1}$	18.1	L $_{9}$	0.5	W $_{8}$	1.5
L $_{2}$	16.9	W $_{1}$	10	W $_{9}$	5
L $_{3}$	13.26	W $_{2}$	3.5	W $_{10}$	4
L $_{4}$	5.77	W $_{3}$	3.01	R $_{h}$	7
L $_{5}$	6	W $_{4}$	2.01
L $_{6}$	5	W $_{5}$	3

Through simulation of the proposed 4-element UWB MIMO antenna, the S-parameters in Fig. 8 are obtained and discussed. It is clear that S $_{11}$ is less than -10 dB from 3 GHz to 18 GHz. On the whole operating band, the isolation degree of arbitrary two elements reach more than 15 dB, indicating that the mutual coupling between the four elements is effectively suppressed. One of the key advantages of this system is its ability to achieve a 15 dB isolation range of operating (3-18 GHz)frequency.

When one port is excited and the other three ports are terminated, the surface current distribution is simulated at 5 GHz, 10 GHz, and 15 GHz, respectively, as shown in Fig. 9. The design of E-shaped branches between the two dual-element MIMO antenna pairs forms current loops, and the current generated by the radiation patch flows into the ground plane through the rectangular metal strip. This effectively reduces the coupling between the four antenna elements, resulting in good independence between the antenna elements and achieving the expected isolation.

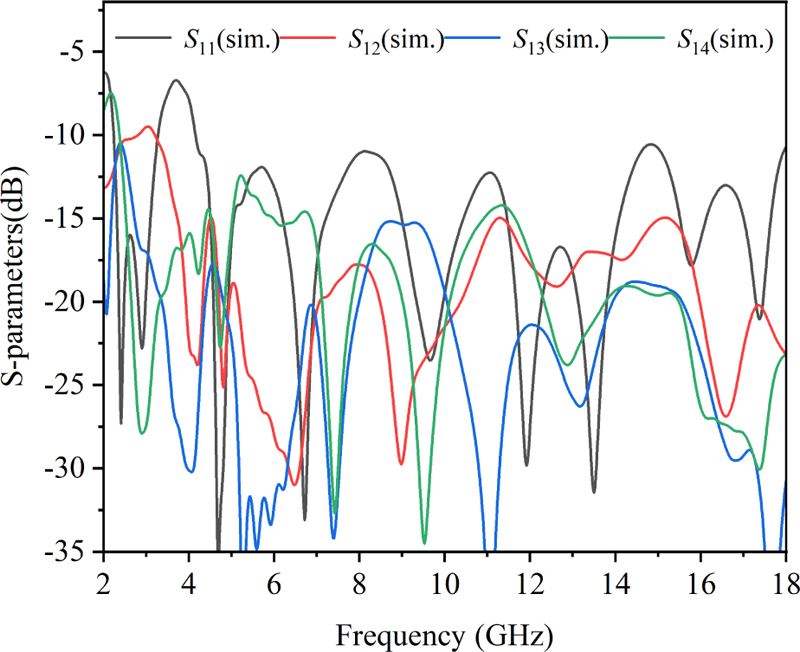

Figure 8: The selected simulated S-parameters for the quad-element UWB MIMO antenna.

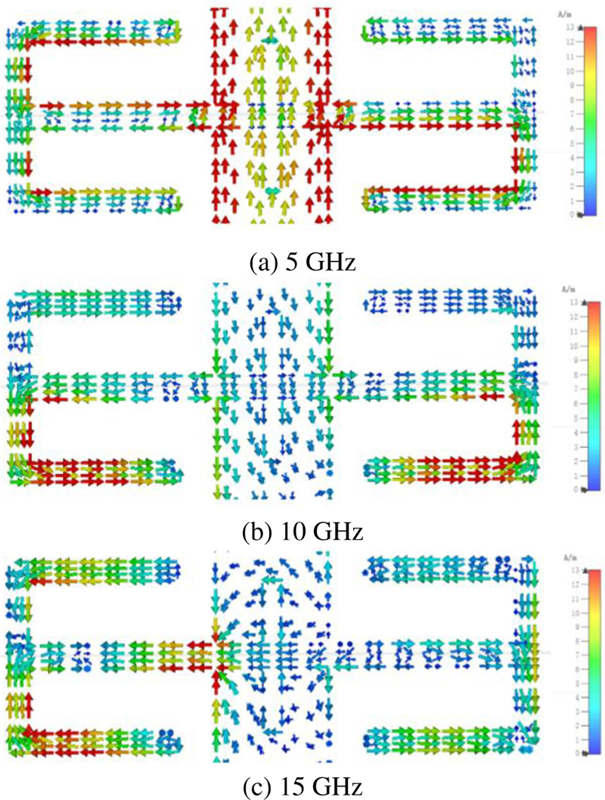

Figure 9: Surface current distribution of the 4-element UWB MIMO antenna at (a) 5 GHz, (b) 10 GHz, and (c) 15 GHz.

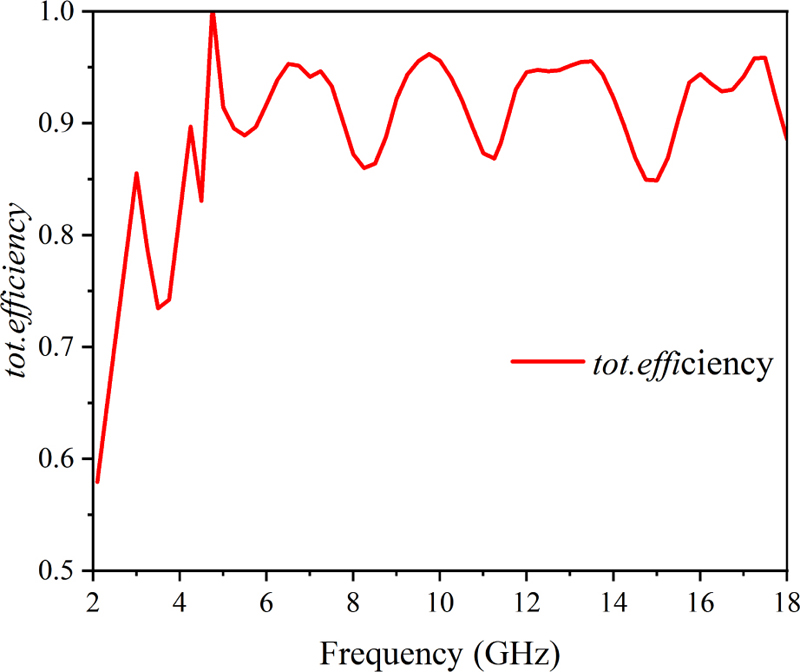

Figure 10: The total efficiency of the 4-element UWB MIMO antenna.

The total efficiency of the 4-element UWB MIMO antenna is shown in Fig. 10; the simulated efficiency value within the whole operating band testifies to the functionality and applicability of the proposed system.

The four-element MIMO antenna system can enhance the capacity and data rates of wireless communication systems. It enables improved signal quality, increased spectral efficiency, and enhanced coverage, making it suitable for applications such as 5G andbeyond.

III. MEASUREMENT AND DISCUSSION

Figure 11 shows a snapshot of the fabricated model of the proposed UWB MIMO antenna, with Fig. 11 (a) representing the front side view of the antenna and Fig. 11 (b) representing the back side view of the antenna. Through measurements of the fabricated prototype, Fig. 12 shows the comparison between simulated and measured data of the MIMO antenna’s S-parameters. The measurements demonstrate that the bandwidth and isolation of the proposed antenna closely match the simulations. The operating bandwidth is from 3 GHz to 18 GHz with a 15 dB isolation performance, indicating that the design of the MIMO system does not affect the radiation characteristics of the UWB antenna.

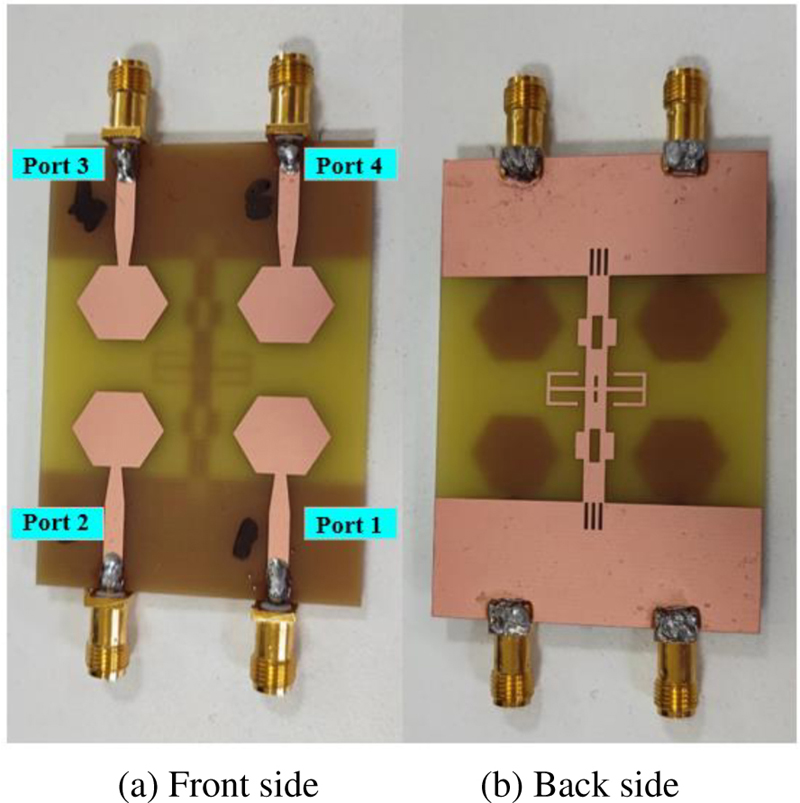

Figure 11: Snapshot of fabricated prototype of the 4-element UWB MIMO antenna: (a) Front view and (b) back view.

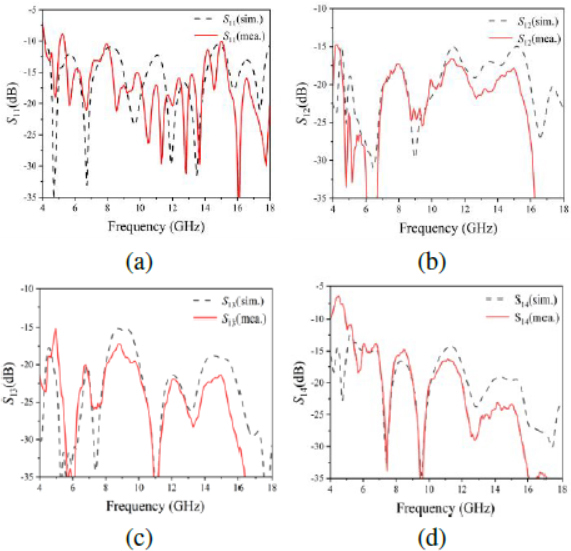

Figure 12: Measurement and simulation results of the S-parameter for this 4-element MIMO antenna: (a) S $_{1}$ $_{1}$ , (b) S $_{1}$ $_{2}$ , (c) S $_{1}$ $_{3}$ , and (d) S $_{1}$ $_{4}$ .

The envelope correlation coefficient (ECC) quantifies the correlation between signals transmitted from different wireless communication channels and received by antennas, reflecting the degree of coupling in MIMO antennas. A lower ECC value indicates less coupling between ports, which is desirable for achieving high diversity performance. ECC values below 0.5 are typically preferred. ECC can be calculated using the scattering S-parameter, with the formula

E C C = \frac{{| S_{i i}^{*} S_{i j} + S_{j i}^{*} S_{j j} |}^{2}}{| (1 - {| S_{i i} |}^{2} - {| S_{j i} |}^{2}) \cdot (1 - {| S_{j j} |}^{2} - {| S_{i j} |}^{2}) |} .

(1)

Diversity gain (DG) is a key metric for evaluating diversity performance. A higher diversity gain is achieved when there is less correlation among the antenna elements. The relationship between DG and ECC is illustrated in equation (2):

DG = 10 \times \sqrt{1 - | E C C |} .

(2)

These two parameters are calculated in this work according to (1) and (2), as shown in Fig. 13, where the ECC performance is less than 0.01 and DG is greater than 9.95.

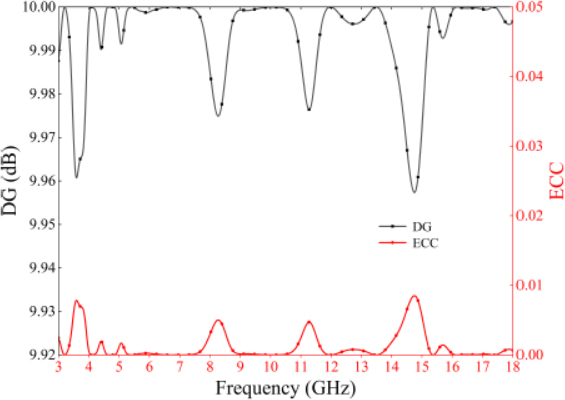

Figure 13: ECC and DG results of the MIMO antenna.

The overall data comparison shows excellent agreement between the measured results and the simulation results, indicating good isolation and high gain characteristics of the antenna. Furthermore, the ingenious and novel structure confirms the proposed antenna as a desirable candidate for UWB-MIMO applications.

IV. CONCLUSION

In this paper, a four element UWB-MIMO antenna with DGS and parasitic decoupling structures is proposed and analyzed. The antenna is operatable from 3 GHz to 18 GHz, which is a superior wide operating band. Design of decoupling structures such as multiple slots, stubs, and E-shaped symmetric strips achieves a 15 dB high isolation within the ultrawide operating band. Simulated total efficiency is greater than 0.8 and the ECC is less 0.01, whereas DG is greater than 9.95 across the frequency range. Simulations and measurements agree well and show that the proposed antenna is a good candidate for the UWB-MIMO applications.
