Performance Analysis and Design Considerations of the Near-Field-Focused Rotman Lens Antennas

Salem M. Otman, Mehmet Kuşaf, and Abdullah Y. Öztoprak

Department of Electrical and Electronic Engineering
Cyprus International University, Nicosia 99258, Northern Cyprus
22007405@student.ciu.edu.tr, mkusaf@ciu.edu.tr, aoztoprak@ciu.edu.tr

Submitted On: December 15, 2023; Accepted On: August 27, 2024

ABSTRACT

This study investigates the application of Rotman lens antennas in the near field. The design equations of these antennas have been derived in the near field and demonstrated to be highly effective. By considering specific examples, the shapes of the inner surfaces of these lens antennas have been analyzed and discussed, revealing how practically realizable lens surfaces can be designed. As these Rotman lenses are perfect at only three points in the near field, they exhibit phase errors at other points along a line connecting the three near-field focal points, resulting in deterioration of the near-field patterns. It has been shown that by selecting the lens parameters appropriately, these phase errors can be kept to a minimum, causing only minimal beam deterioration. Compared to far-field-focused Rotman lens antennas, near-field-focused Rotman lens antennas achieve significantly higher power levels, having 3.8 to 6.3 dB improvement for different beams of a 17-element array. The study has demonstrated the potential of Rotman lenses as multiple beamforming antennas for near-field applications.

Index Terms: Beamforming, near-field-focusing, Rotman lenses.

I. INTRODUCTION

Near-field-focused antennas have been extensively used for applications requiring high concentrations of electromagnetic fields in the nearby regions of the antennas [1–9] some applications such as radio frequency identification (RFID) [10–12] and industrial inspection systems [13]. In the case of hyperthermia applications [4, 14–16], concentrating the power on the unhealthy tissues avoids heating and damaging healthy tissues.

On the other hand, only a limited region can be covered with a single focused beam. To increase the coverage area the focused beam should be scanned or multi-beam antenna techniques should be used. Although beam scanning and multiple beamforming is well known and widely published for far-field-focused beams [17–25], there has been a limited number of publications for near-field-focused beams. In [22] the near-field-focused beam is scanned by changing the frequency by introducing progressively increasing multiple additional transmission lines into the system. In [26] the authors compare an electronic scanning antenna using phase shifters and power dividers, with multiple beamforming antennas using Butler matrix and Rotman lens for near-field-focused fields. Butler matrixes are well established beam forming networks using phase shifters and power dividers [27], feeding linear array antennas. Rotman lens beamforming antennas are two dimensional multi-focal constrained lens antennas using a parallel plate region, with several input and output ports, and different lengths of transmission lines.

In this paper we establish the design equations of the Rotman lens beamforming antenna when focusing at three points in the near field instead of three far-field directions. The shape and feasibility of the lens curves have been investigated for different lens parameters. The near-field performance of the near-field-focused lens has been studied for different parameters and compared with the far-field-focused lens.

II. LENS DESIGN

The mathematical model of the near-field-focused Rotman lens is given in Fig. 1. The two-dimensional coordinate system $(x, y)$ centered at $O_{1}$ and the coordinate system $(X, Y)$ centered at $O_{2}$ are independent of each other. The feed array curve and the inner array curve are represented by the coordinate system centered at $O_{1}$ and the radiating array and the target points are represented by the coordinate system centered at $O_{2}$ . In this study, all lengths are expressed in terms of wavelengths to have frequency independent equations.

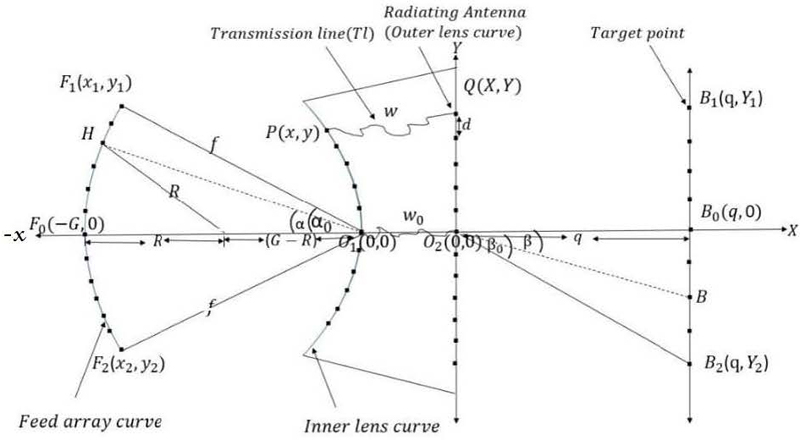

Figure 1: Geometry of near-field-focused Rotman lens.

The Rotman lens is a two-dimensional lens characterized by constrained paths, or transmission lines, connecting its two surfaces. These surfaces are represented by two curves - the inner lens curve and the outer lens curve - which forms the radiating array. In this study, a linear radiating array is employed, but curved arrays can also be utilized. The Rotman lens’s focal points are located at $F_{1}$ , $F_{0}$ , and $F_{2}$ along the feed array curve, where all feed antenna elements are situated. Points $B_{1}$ , $B_{0}$ , and $B_{2}$ in the radiating array’s near field represent the locations where the antenna elements at the three lens focal points focus their fields. Element $F_{1}$ focuses at $B_{2}$ , element $F_{0}$ focuses at $B_{0}$ , and element $F_{2}$ focuses at $B_{1}$ . $G$ is the distance from $O_{1}$ to the central focal point at $F_{0}$ .

A general point on the lens’s inner curve is denoted by $P (x, y)$ , and its corresponding point on the radiating array is represented by $Q (X, Y)$ . An antenna element at $P$ receives the field from the feed array elements and relays it to the corresponding element $Q$ at the radiating array via a transmission line of length $w$ .

For a field launched at focal point $F_{1}$ to focus at $B_{2}$ :

(\overset{⇀}{F_{1} P}) + w + (\overset{⇀}{Q B_{2}}) = {(F_{1} O_{1})}^{⇀} + w_{0} + (\overset{⇀}{O_{2} B_{2}}) .

(1)

For a field launched at focal point $F_{2}$ to focus at $B_{1}$ :

(\overset{⇀}{F_{2} P}) + w + (\overset{⇀}{Q B_{1}}) = (\overset{⇀}{F_{2} O_{1})} + w_{0} + (\overset{⇀}{O_{2} B_{1}}) .

(2)

For a field launched at focal point $F_{0}$ to focus at $B_{0} :$

(\overset{⇀}{F_{0} P}) + w + (\overset{⇀}{Q B_{0}}) = G + w_{0} + (\overset{⇀}{O_{2} B_{0}}),

(3)

where $w_{0}$ is the transmission line length for the center element.

	$(\vec{F_{1} P}) = \sqrt{{(x - x_{1})}^{2} + {(y - y_{1})}^{2}},$		(4)
	$(\bar{F_{2} P}) = \sqrt{{(x - y_{2})}^{2} + {(y - y_{2})}^{2}},$		(5)
	$(\bar{F_{0} P}) = \sqrt{{(x + G)}^{2} + y^{2}},$		(6)
	$(\bar{Q B_{2}}) = \sqrt{{(q - X)}^{2} + {(Y_{2} - Y)}^{2}},$		(7)
	$(\bar{O_{2} B_{2}}) = \sqrt{{(q)}^{2} + {(Y_{2})}^{2}},$		(8)
	$(\bar{Q B_{1}}) = \sqrt{{(q - X)}^{2} + {(Y_{1} - Y)}^{2}},$		(9)
	$(\bar{O_{2} B_{1}}) = \sqrt{{(q)}^{2} + {(Y_{1})}^{2}},$		(10)
	$(\bar{Q B_{0}}) = \sqrt{{(q - X)}^{2} + {(Y)}^{2}},$		(11)
	$(\bar{O_{2} B_{0}}) = \sqrt{{(q)}^{2}},$		(12)

where $x_{1} = x_{2} = - f \cos α_{0}$ , $y_{1} = f \cos α_{0}$ , $y_{2} = - f \cos α_{0}$ . Here, $f$ is the distance from $O_{1}$ to the off-center focal point at $F_{1}$ , and $α_{0}$ is the angle subtended by off axis lens focal points from $O_{1}$ .

Equations 1, 2, and 3 are solved simultaneously to determine the variables $x$ , $y$ , and $w$ for each position of $Q$ on the radiating array. The $Q$ positions correspond to the locations of the radiating array antenna elements. The values of $x$ and $y$ define the inner lens curve of the lens, and each point on the inner curve is associated with a corresponding value of $w$ .

In practice the region between feed array and inner lens is a parallel plate region and a TEM wave propagates in this region. The Rotman lenses are usually implemented on microstrip substrates for low power applications and air-filled parallel conducting plates for high power applications. The varying length transmission lines between the inner lens curve elements and radiating elements are usually microstrip lines for the microstrip implementation and co-axial transmission lines for the conducting plate implementation. Usually small V- shaped or stepped transitions [28] are used between the transmission lines and parallel plate region. The transitions act as two-dimensional aperture antennas into the parallel plate region. The field at the target point is obtained by summing the fields of each element at this point.

III. SHAPE OF THE INNER LENS CURVES

The lens design principles outlined above utilize optical principles to generate inner lens curves. Not all inner lens curves obtained in this manner are suitable for practical applications. Given that Rotman lenses operate at microwave frequencies, the shape of the inner lens curves must facilitate efficient power transfer between antenna elements on the feed array curve and those on the inner lens curve. Sample inner lens curves are presented in this section to illustrate the significance of their shapes.

The positions of the lens focal points $F_{1}$ , $F_{2}$ , and $F_{0}$ , the focusing points in the near field $B_{1}$ , $B_{2}$ , and $B_{0}$ , and the length of the radiating array are parameters selected in advance according to the specific application requirements. The parameters for this lens shape study are as follows: the lens focal points are located at $F_{1} (x_{1}, y_{1})$ , $F_{2} (x_{2}, y_{2})$ , and $F_{0} (- G, 0)$ . $F_{1}$ and $F_{2}$ subtend an angle of 25 $^{\circ}$ ( $α_{0}$ ) degrees from the origin $O_{1}$ . The linear radiating array comprises 17 elements with a separation ( $d$ ) of $0.5$ between them.

The three focusing points in the near field are positioned on a line perpendicular to the $X -$ axis and passing through $B_{0} (q, 0)$ . The near-field-focusing points are located at $B_{1} (q, Y_{1})$ , $B_{0} (q, 0),$ and $B_{2} (q, Y_{2})$ , where $q = 10$ and $Y_{1} = - Y_{2} = q * \tan (β_{o})$ . The angle of the off-axis near-field-focusing point is defined as $β_{o}$ . Here, $β_{0}$ is chosen to be $35$ $^{\circ}$ . All lens parameters were selected such that the lens is symmetric around thex-axis.

Examples of the inner lens curves, obtained through numerical solutions to equations 1, 2, and 3, have been generated for different values of $g$ , where $g = G / f$ . Table 1 shows the G, $g,$ and f values used to obtain the inner lens curves. Figure 2 depicts the shapes of the inner curves for $g = 1.0$ , 1.05, 1.10, 1.15, 1.20, 1.25, 1.30, and 1.35 respectively.

The shape of the inner lens curve significantly impacts the illumination of antenna elements and the overall effectiveness of the lens antenna. As shown in Fig. 2 ( $g =$ 1.35), the inner lens curve bends backward at both the upper and lower end points. This positioning blocks any antenna elements at these locations by those placed before them. Consequently, the antenna elements at the upper end of the inner curve receive very low illumination from the lower end feed elements, and the elements at the lower end of the inner curve receive incomplete illumination from the upper end feed elements.

Table 1: Parameters of the lens design

G	g	f
10.5	1.00	10.5
10.5	1.05	9.52
10.5	1.10	9.09
10.5	1.15	8.69
10.5	1.20	8.33
10.5	1.25	8.00
10.5	1.30	7.69
10.5	1.35	6.66

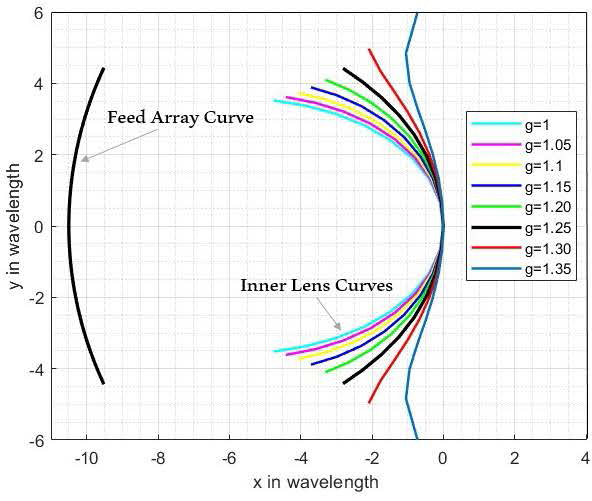

Figure 2: Lens curves for g=1, 1.05, …, 1.35.

Conversely, in Fig. 2 ( $g =$ 1.0), the end elements of the inner curve are bent forward, so the inner curve’s lower endpoints will not be illuminated by the lower elements of the feed array curve. Similarly, the inner curve’s upper elements will not be illuminated by the upper elements of the feed array curve.

In contrast, Fig. 2 ( $g =$ 1.25) demonstrates a design where the antenna elements on the feed array curve and inner curve directly face each other without any blockage. This alignment ensures efficient power transfer and maximizes the lens antenna’s performance.

The lens antenna shapes presented in Fig. 2 highlight the criticality of selecting appropriate lens parameters for optimal design. Factors such as the positions of the near-field-focusing points and the spacing between radiating array elements can significantly alter the shape of the inner lens curve. Therefore, careful selection of lens parameters is essential for each design to achieve practical realization of these lens antennas.

In summary, the shape of the inner lens curve and the selection of appropriate lens parameters are crucial aspects in designing efficient and high-performance lens antennas. Careful consideration of these factors can optimize power transfer and minimize blockage, leading to enhanced lens antenna performance.

Achieving the strongest possible near-field intensity with a given amount of power requires careful planning of the radiating array. First, the size of the array needs to be estimated based on the target intensity and available input power. This initial design consideration ensures efficient use of the available energy. Next, the spacing between elements within the array must be carefully calculated to eliminate unwanted interference patterns known as grating lobes. These lobes can significantly reduce the intensity at the target point, so their elimination is crucial. Finally, a realizable lens is designed, as discussed above, to achieve the required phase distribution for each radiating element. Since lens design relies on principles of optics, the dimensions for the lens, $(G, f)$ are typically no smaller than four to five wavelengths.

IV. PATH LENGTH ERROR AND RADIATION PATTERNS OF FEED ELEMENTS AT NON-FOCAL POSITIONS ON THE FEED ARRAY CURVE

Since the path length from each of the lens focal points to the corresponding focusing points in the near field is equal for all radiating array elements, the phases are identical at these points. This means that maximum possible power is achieved at $B_{1}$ , $B_{2}$ , and $B_{0}$ for feed antenna elements at $F_{2}$ , $F_{0}$ , and $F_{1}$ , respectively. In practice, we may need to focus the field at other points in the near field, which requires placing feed antennas at non-focal positions on the feed array curve.

Any antenna placed at a non-focal point will concentrate the field at specific points but, due to phase errors caused by path length discrepancies, there will be some degradation in the focused field, resulting in lower gain, a wider beam, and higher sidelobes. By carefully selecting the parameters of the Rotman lens, these phase errors can be minimized.

The path length error for a point on the feed array curve can be calculated for each radiating array element relative to the center radiating array element using the following formula:

	$P a t h l e n g t h e r r o r (Δ L) = (\overset{⇀}{H P}) + w + (\overset{⇀}{Q B}) -$
	$(\overset{⇀}{H O_{1}}) - w_{0} - (\overset{⇀}{O_{2} B}) .$		(13)

Figure 3 illustrates the path length errors for the lens design given in Fig. 2 ( $g =$ 1.25) for various values of $α$ , including 0 $^{\circ}$ , 5 $^{\circ}$ , 10 $^{\circ}$ , 15 $^{\circ}$ , 20 $^{\circ}$ , and 25 $^{\circ}$ , where $α$ represents the angle subtended by points on the feed array curve from $O_{1}$ . The errors for each feed element were determined at the maximum power point along the line connecting $B_{1}$ and $B_{2}$ .

As evident from Fig. 3, the phase errors for the focal points, as anticipated, are zero for all radiating elements. Conversely, path length errors increase as the distance of the feed element from the focal points increases, reaching a maximum path length error of 0.0512 for the feed element located at $α =$ 15 $^{\circ}$ . The phase errors can be minimized by selecting the appropriate parameters for a Rotman lens based on the specific design requirements.

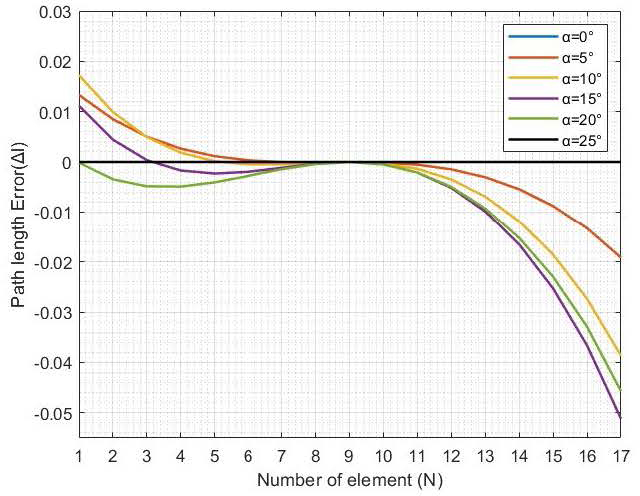

Figure 3: Path length errors along the radiating array for six points on the feed array curve.

An optical method was employed first to determine the patterns along the line connecting B1 and B2 for the lens design ( $g =$ 1.25) in Fig. 2. Figure 4 presents these results for various feed port angles ( $α$ ): 0 $^{\circ}$ (port6), 5 $^{\circ}$ (port7), and so on, up to 25 $^{\circ}$ (port11). Notably, isotropic radiating elements were assumed for this analysis. Due to parameter selection minimizing phase errors, the patterns exhibit minimal degradation.

Next, the design was implemented as a microstrip circuit and simulated using the commercial software CST. Figure 5 depicts the CST implementation of the lens. The design parameters are detailed in Table 2. The radiation patterns of the microstrip lens were then obtained using CST, with the results presented in Fig. 6.

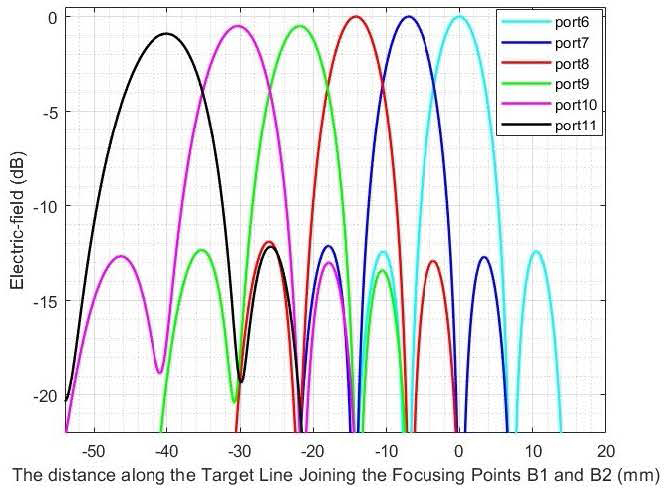

Figure 4: Radiation patterns for the lens design in Fig. 2 ( $g =$ 1.25) using optical method.

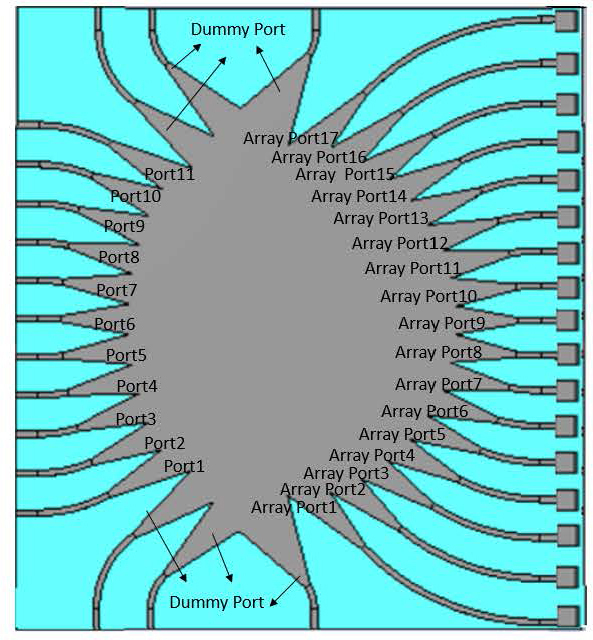

Figure 5: CST implementation of the lens design.

Table 2: Parameters of the CST lens design

Central frequency	27.5 GHz
$ϵ$ $_{r}$	6.15
Substrate thickness	1.5 mm
Length of feed port and array port tapered lines	18.8 mm
Radiating elements	8 mm $\times$ 8 mm
G	60.58 mm
F	48 mm
q	57.70 mm

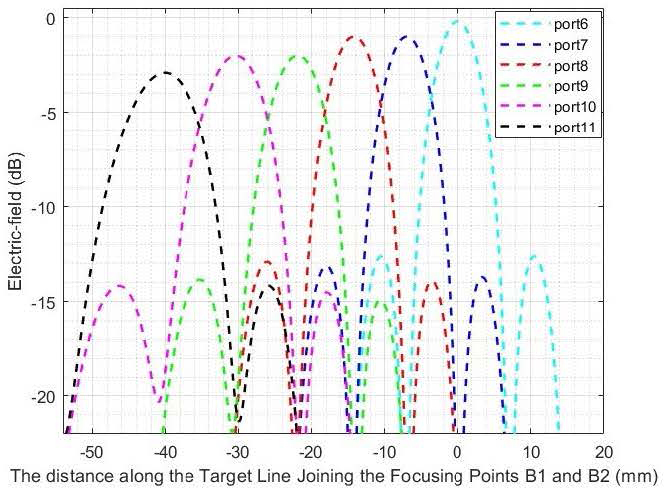

Figure 6: Radiation patterns for the lens design in Fig. 2 ( $g =$ 1.25) using CST method.

A comparison of Figs. 4 and 6 reveals a high degree of similarity between the radiation patterns obtained through the optical and CST methods. However, a key difference exists: the peak electric field strength of the outer feed elements is lower in the CST implementation. This discrepancy arises because the optical analysis assumed isotropic elements for both the feed array and inner lens elements, while the actual CST implementation utilizes aperture elements with directional patterns.

V. COMPARISON OF NEAR-FIELD PERFORMANCES OF ROTMAN LENSES DESIGNED FOR NEAR FIELD AND FAR FIELD

As has already been stated, achieving the highest field intensity is essential when using electromagnetic fields in the near field for a given input power, therefore a study was conducted to compare the field intensities of two Rotman lens antenna types in the near field. For this comparison, the design of Fig. 2 ( $g =$ 1.25) was utilized for the near-field-focusing Rotman lens. The far-field-focusing Rotman lens, while maintaining the same parameters, is focused at angles of -35 $^{\circ}$ , 0 $^{\circ}$ , and +35 $^{\circ}$ , corresponding to the angles subtended by the near-field-focusing points $B_{2}$ , $B_{0}$ , and $B_{1}$ .

To calculate total field intensity at a target point, we first determine the phase distribution of each radiating element using lens calculations. Then, we account for the varying distances between the elements and the target point by incorporating a 1/r factor when summing the individual field intensities. Although the design of the far-field-focusing lens was carried out for far-field focal points, for fair comparison the field intensity of this lens is also calculated at the same near-field target points.

Figure 7 depicts the electric field intensity for both lenses under identical input power conditions. The fields are positioned along the line joining $B_{1}$ and $B_{2}$ at the peak points of the near-field-focused Rotman lens, with $α$ values ranging from 0 $^{\circ}$ to 25 $^{\circ}$ . It is clear that the power density of the near-field-focusing lens is 3.8 to 6.3 dB higher. These results indicate that the near-field-focusing Rotman lens offers a substantial advantage over the far-field-focusing lens in the near field.

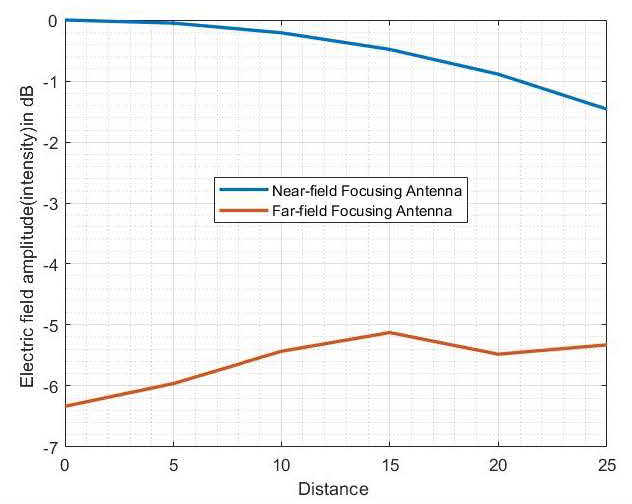

Figure 7: Maximum electric field intensity along X=q for different positions of feed angle.

VI. CONCLUSION

Rotman lenses have been demonstrated to be effective multiple beamforming antennas for near-field applications. The design equations for these lenses have been derived, and the inner lens curves and transmission line path lengths have been determined for sample design parameters. These results provide a foundation for the practical realization of Rotman lenses with desired performance characteristics.

The study has shown that by selecting the lens parameters appropriately, the phase errors can be minimized for non-focal points, resulting in only minimal beam deterioration. This is a significant advantage for near-field applications, as it ensures that the Rotman lens can achieve the desired beamforming performance even when the target is not located at the focal point.

A comparison of the power density in the near field has been made for far-field- and near-field-focusing Rotman lenses having the same lens parameters. The results indicate that the power densities of the near-field-focused lens are 3.8 to 6.3 dB higher. This is a significant improvement and makes the near-field-focusing Rotman lens a promising candidate for a wide range of near-field applications.
