Optimization of Multilayer Microwave Absorbers using Multi-strategy Improved Gold Rush Optimizer

Yi Ming Zong $^{1}$ , Wei Bin Kong $^{1}$ , Jia Pan Li $^{2}$ , Lei Wang $^{1}$ , Hao Nan Zhang $^{1}$ , Feng Zhou $^{1}$ , and Zi Yao Cheng $^{1}$

¹College of Information Engineering
Yancheng Optical Fiber Sensing and Application Engineering Technology Research Center,
Yancheng Institute of Technology, Jiangsu Yancheng 224051, China
949650915@qq.com, kongweibin@ycit.cn, wanglei0324@ycit.edu.cn,
zhanghn0628@163.com, zfycit@163.com, chengziyao041017@163.com

²School of Information Science and Engineering
Southeast University, Jiangsu Nanjing 211189s, China
2106815946@qq.com

Submitted On: April 29, 2024; Accepted On: October 2, 2024

ABSTRACT

In this study, a multi-strategy improved gold rush optimizer (MIGRO) is proposed for the design of multilayer broadband microwave absorbers (for normal incidence). The purpose of this optimization process is to minimize the maximum reflection coefficient of the absorber by selecting appropriate material layers from existing literature databases within the desired frequency range. To enhance the performance of a gold rush optimizer (GRO), three improvement strategies are proposed. This paper demonstrates the effectiveness of the improved strategy and the superior reflection coefficient of the MIGRO compared to other heuristic algorithms used for the design of microwave absorbers through two different simulation examples.

Index Terms: Absorbing material, gold rush optimizer, multilayer microwave absorber, reflection coefficient.

I. INTRODUCTION

Microwave absorbing materials are widely applied in fields such as aerospace, construction, and healthcare [1–4]. These materials interact with electromagnetic waves through various mechanisms, including reflection, absorption, transmission, and secondary reflection. By converting electromagnetic energy into thermal energy or other forms of energy, these materials attenuate and absorb electromagnetic waves, thereby reducing their reflection and transmission [5]. With the increasingly complex electromagnetic environment, there is a growing demand for lightweight, high-performance microwave absorbing materials. However, absorbers composed of a single absorbing material have limitations, including narrow absorption bandwidth, lower absorption efficiency, and larger size and weight. In contrast, multilayer structured absorbing materials offer design flexibility and the ability to compensate for these material defects [6].

In the case of normal incidence, the reflection coefficient of multilayer microwave absorbers depends on various factors such as the frequency of the electromagnetic waves, the electromagnetic parameters, and thickness of each layer of materials. Determining the type of material and adjusting its thickness to reduce the reflection coefficient within the desired frequency range can be considered as an optimization challenge.

Michielssen et al. proposed a physical model for multilayer microwave absorber structures. They provided a set of predefined materials with frequency-dependent electrical permittivity and magnetic permeability, and utilized a genetic algorithm (GA) to determine the optimal material selection and thickness for each layer [7]. Subsequently, various heuristic algorithms have been introduced and successfully applied in designing multilayer microwave absorbers, such as particle swarm optimization (PSO) and its derivatives [8, 9], differential evolution (DE) [10, 11], central force optimization (CFO) [12], a hybrid algorithm of binary lightning search algorithm and simulated annealing (BLSA-SA) [13], and bald eagle search optimization algorithm (BESOA) [14]. A comparative analysis of particle swarm optimization (PSO), bat algorithm (BAT), and cuckoo search algorithm (CSA) was conducted in [15]. With the emergence of new heuristic algorithms, there is still room for further optimization of multilayer microwave absorbers.

In this study, a multi-strategy improved gold rush optimizer (MIGRO) which determines the optimal layer sequence and corresponding thicknesses for the multilayer microwave absorbers design is proposed. To enhance the convergence speed and global search capability of MIGRO, three improvement strategies were introduced, including quasi-reverse learning, sigmoid convergence weight, and golden sine algorithm. Through two design examples, it was demonstrated that, compared to other heuristic algorithms, MIGRO generated superior reflection coefficients when designing multilayer microwave absorbers.

II. PHYSICAL MODEL OF MULTILAYER ABSORBER

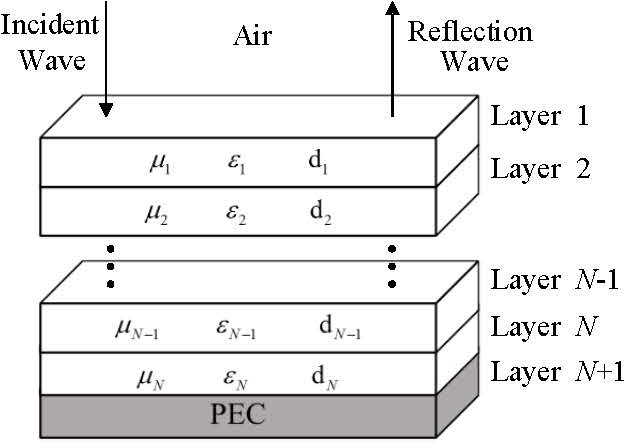

The physical model of a multilayer microwave absorber is shown in Fig. 1, where a uniform plane wave is incident normally on the surface of the absorber. The absorber consists of $N$ planar layers and is supported by a perfect electric conductor (PEC). Each layer in the absorber varies in thickness and possesses magnetic/electrical properties that are dependent on frequency. The thickness of each layer is represented by $d_{i}$ , while the dielectric constant and magnetic permeability are denoted as $ε_{i}$ and $μ_{i}$ , respectively. By applying the equivalent transmission line theory of electromagnetic waves, the structure can be represented as a circuit model consisting of cascaded $N$ segment uniform transmission lines [16], as shown in Fig. 2.

Figure 1: Physical model of multilayer microwave absorber.

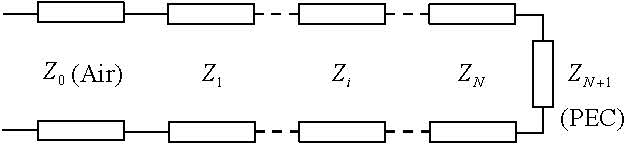

Figure 2: Equivalent circuit of multilayer microwave absorber.

The electromagnetic wave absorption performance of multilayer absorbers is evaluated by calculating the return loss value, expressed as equation (1), and used as the objective function for optimization:

F_{o b j} = 20 \log_{10} (\max | R |) .

(1)

The reflection coefficient at the interface between free space and the medium is denoted as $R$ , and can be formulated as:

R = \frac{Z_{1} - η_{0}}{Z_{1} + η_{0}},

(2)

where $η_{0}$ is the intrinsic impedance of free space. The total impedance of the absorber is denoted as $Z_{1}$ . In the case of normal incidence, the input impedance $Z_{i}$ of the $i - t h$ layer is described as follows:

Z_{i} = η_{i} \frac{Z_{i + 1} + j η_{i} \tan (β_{i} d_{i})}{η_{i} + j Z_{i + 1} \tan (β_{i} d_{i})}, i < N .

(3)

The input impedance of the $N - t h$ layer can be considered as the input impedance of the transmission line with a terminal short circuit, which is expressed as follows:

Z_{i} = j η_{i} \tan (β_{i} d_{i}), i = N,

(4)

where $β_{i}$ , $d_{i}$ , and $η_{i}$ are the phase constant, thickness, and wave impedance of the $i - t h$ layer, respectively. $η_{i}$ and $β_{i}$ are defined as follows:

η_{i} =

\sqrt{\frac{μ_{i}}{ε_{i}}},

(5)

β_{i} =

\frac{2 π f}{c} \sqrt{μ_{r, i} ε_{r, i}},

(6)

where $μ_{i}$ and $ε_{i}$ are the magnetic permeability and dielectric constant of the material, $μ_{r, i}$ and $ε_{r, i}$ are the relative magnetic permeability and relative dielectric constant of the material, $f$ is the frequency, and $c$ is the speed of light.

III. GOLD RUSH OPTIMZER

A. Basic gold rush optimizer

A gold rush optimizer (GRO) is a metaheuristic algorithm based on population that incorporates three fundamental principles of gold exploration: migration, panning, and collaboration [17]. It has been successfully applied to engineering optimization problems [18, 19].

(1) Migration of prospectors

The mathematical expressions for simulating the process of gold prospectors approaching the gold mine are as follows:

D_{1} = C_{1} \cdot X^{b e s t} (t) - X_{i} (t),

(7)

X_{n e w, i} (t + 1) = X_{i} (t) + A_{1} \cdot D_{1},

(8)

where $X^{b e s t}$ , $X_{i}$ , and $t$ represent the values of the optimal solution, the current solution $i$ , and the number of iterations, respectively. $X_{n e w, i}$ denotes the new position of feasible solutions, and the expressions for $A_{1}$ and $C_{1}$ are as follows:

A_{1} = 1 + l_{1} (k_{1} - \frac{1}{2}),

(9)

C_{1} = 2 k_{2},

(10)

where $k_{1}$ and $k_{2}$ are uniformly distributed random numbers in the range [0, 1]. $l_{1}$ is the convergence factor, defined as follows:

l_{1} = 2 + (\frac{1 - t}{t_{\max} - 1}) (2 - \frac{1}{t_{\max}}) .

(11)

(2) Gold mining

In pursuit of the golden dream, gold prospectors continuously adjust their positions to obtain more gold, and the expression of the gold mining process is as follows:

D_{2} =

X_{i} (t) - X_{r} (t),

(12)

X_{n e w, i} (t + 1) =

X_{r} (t) + A_{2} \cdot D_{2},

(13)

where $X_{r}$ represents the position of the gold prospector $r$ randomly selected from the feasible solution space, and $A_{2}$ is the vector coefficient, as shown in the following equation:

A_{2} = l_{2} (2 k_{1} - 1),

(14)

where $l_{2}$ is defined as follows:

l_{2} = {(\frac{t_{\max} - t}{t_{\max} - 1})}^{2} (2 - \frac{1}{t_{\max}}) + \frac{1}{t_{\max}} .

(15)

(3) Collaboration

At times, gold prospectors may collaborate with each other to increase the probability of discovering gold, and this collaborative behavior can be represented by the following equation:

D_{3} =

X_{g 2} (t) - X_{g 1} (t),

(16)

X_{n e w, i} (t + 1) =

X_{i} (t) + k_{1} \cdot D_{3},

(17)

where $X_{g 1}$ and $X_{g 2}$ are two prospectors randomly selected from the expected gold-seeking region, and $D_{3}$ is the collaboration vector.

B. Improved gold rush optimizer

A high-quality initial population can improve the solution accuracy and convergence speed of the algorithm. However, the basic GRO employs a random initialization method, which does not guarantee diversity within the initial population. Therefore, the quasi-reverse learning is utilized for the population initialization of GRO. Previous studies have already demonstrated that the utilization of quasi-reverse numbers has been found to be more effective in locating the global optimal solution compared to the use of opposite numbers [20].

Assuming that the value of the $i - t h$ gold prospector is represented as $X_{i}$ , where $u b_{i}$ is the upper bound of the independent variable $X_{i}$ and $l b_{i}$ is the lower bound of the independent variable $X_{i}$ . The corresponding opposite point $X_{_{i}}^{o}$ and quasi-reverse point $X_{_{i}}^{q o}$ are shown as follows:

X_{i} {}^{o}=

l b_{i} + u b_{i} - X_{i},

(18)

X_{i} {}^{q o}=

\frac{l b_{i} + u b_{i}}{2} + | X_{i}^{o} - \frac{l b_{i} + u b_{i}}{2} | \cdot r a n d (0, 1) .

(19)

The GRO employs linear inertia weights, with the value of $l_{1}$ decreasing linearly from 2 to 0 as the number of iterations increases. Although this linear inertia weight can partially balance global and local search efforts, the actual search process is highly complex and nonlinear. Consequently, linear weights may diminish the optimization performance of the algorithm.

In this study, MIGRO utilizes the sigmoid function as the nonlinear convergence factor $S$ , replacing the original convergence factor $l_{1}$ . The value of $S$ nonlinearly decreases from approximately 2 to nearly 0, as illustrated in Fig. 3, with its corresponding expression defined as follows:

S = \frac{2}{(1 + \exp (\frac{10 t}{t_{\max}} - 5))} .

(20)

The sigmoid function is a nonlinear convergence factor that effectively balances global and local search. It improves the accuracy of population optimization and accelerates optimization speed [21].

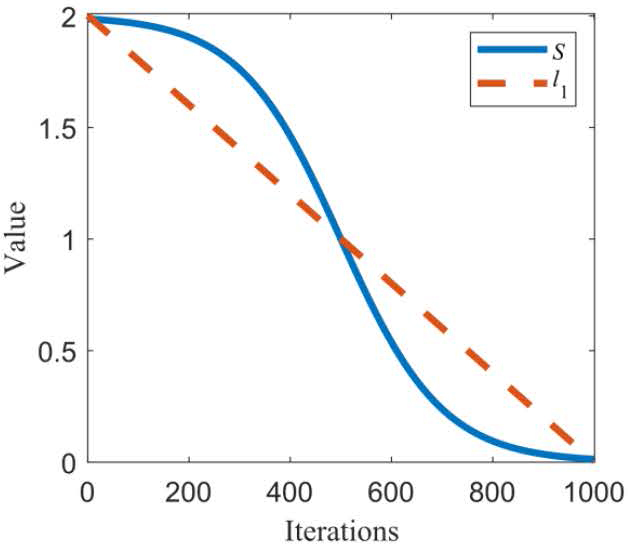

Figure 3: Graph for values of $S$ during algorithm iteration.

The golden sine algorithm is inspired by the sine function and the golden ratio, where individuals explore the search space based on the golden ratio for approximate optimal solutions. By combining the sine function and the golden ratio, the algorithm can quickly locate the region where the optimal value lies and escape local optima. As a result, the algorithm’s performance is improved [22].

Building upon the gold mining and cooperation stages of the GRO, this paper enhances the migration stage of prospectors by incorporating the golden sine algorithm. The position update formula for this process, after integrating the golden sine algorithm, can be expressed as follows:

X_{n e w, i} (t + 1) =

X_{i} (t) \cdot | \sin (R_{1}) | + R_{2} \cdot \sin (R_{1}) \cdot D^{*},

(21)

D^{*} =

d_{1} \cdot X^{*} (t) - d_{2} \cdot X_{i} (t),

(22)

where $R_{1}$ is a random number in the range $[0, 2 π]$ , $R_{2}$ is a random number between $[0, π]$ . $d_{1}$ and $d_{2}$ are coefficient factors, which can be obtained from the following equation:

d_{1} =

a \cdot τ + b \cdot (1 - τ),

(23)

d_{2} =

a \cdot (1 - τ) + b \cdot τ,

(24)

where $a$ and $b$ are the search interval, which are $- π$ and $π$ . $τ$ denotes the golden ratio, which is $(\sqrt{5} - 1) / 2$ .

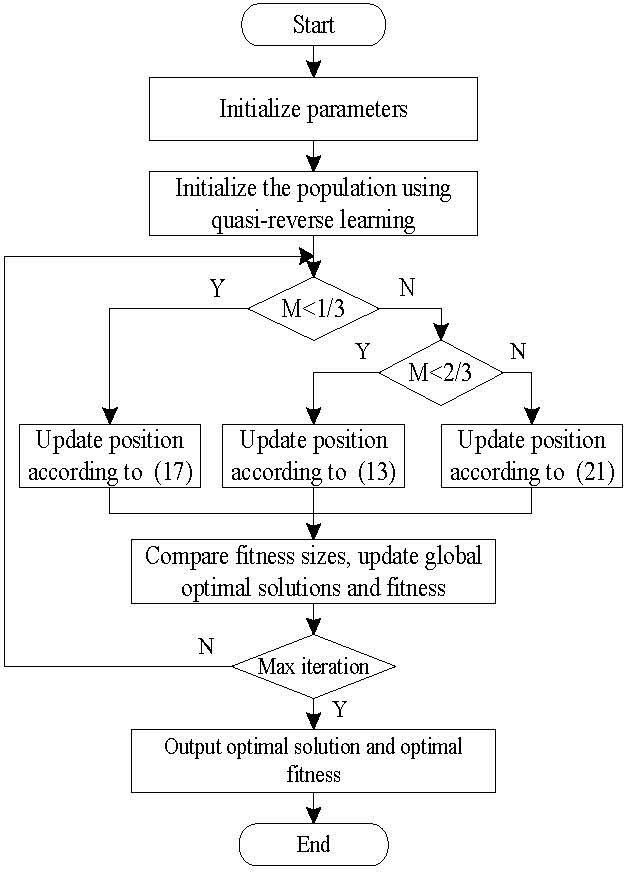

The flow chart of MIGRO is shown in Fig. 4.

Figure 4: Flow chart of MIGRO.

IV. SIMULATION EXPERIMENT AND RESULT ANALYSIS

A. Simulation process

In this simulation experiment, the reflection coefficient of the multilayer absorber physical model is determined by the electromagnetic parameters of each layer material, layer thickness, layer arrangement order, and the incident frequency of electromagnetic waves. During the initialization phase, the thickness and material of each layer are randomly assigned, with constraints on the number of layers, maximum thickness, and bandwidth. As a result, the number of variables is twice the number of layers. The purpose of optimization is to determine the thickness and type of materials for each layer in order to reduce the maximum reflection coefficient.

Table 1: Database of absorbing materials

Table 2: The best optimization results of 5-layer microwave absorber

Algorithm	MIGRO	GRO	BESOA [14]	BLSA-SA [13]	CFO [12]
Layers	Type and Thickness
1	16	0.3771	16	0.4097	16	0.41701	16	0.3682	16	0.377
2	6	0.8308	6	1.0306	6	1.10903	6	1.9580	6	1.572
3	6	1.3524	6	1.2394	6	1.78825	6	1.1016	6	0.991
4	6	1.0659	11	0.8852	3	0.21456	14	0.4834	6	0.377
5	14	1.3550	13	1.0732	15	1.27113	15	0.9424	15	1.425
Total thickness (mm)	4.9812	4.6381	4.79998	4.8536	4.744
Max. reflection coefficient (dB)	$-$ 25.8852	$-$ 24.2055	$-$ 25.765	$-$ 25.8528	$-$ 25.698
Avg. reflection coefficient (dB)	$-$ 28.7024	$-$ 25.3212	$-$ 27.7014	$-$ 27.8752	$-$ 27.4246

This database consists of 16 materials, which are categorized into four groups: lossless dielectric materials, lossy magnetic materials, lossy dielectric materials, and relaxation magnetic materials. The relative dielectric constant and magnetic permeability of these materials are summarized in Table 1. These materials arepre-defined and also used in [7–15]. The selection of these materials is made in order to maintain consistency in the comparison.

The mathematical modeling and optimization process of multilayer microwave absorbers was implemented using MATLAB R2022A software. CST Studio Suite is a powerful 3D electromagnetic field simulation software. The optimal material types and layer thickness obtained through numerical calculations will be imported into CST for electromagnetic simulation, ensuring the accuracy of the optimization results.

B. Results and analysis

This section introduces two design examples to demonstrate the advantages of MIGRO in designing multilayer microwave absorbers. The results obtained from the MIGRO and the basic GRO are compared with those of other heuristic algorithms published in the literature.

(1) First example: 5-layer absorber

This 5-layer absorber is designed to operate within the frequency range 2-8 GHz, with a frequency step of 0.1 GHz and a total thickness constraint of 5 mm. For this experiment, the population size for both MIGRO and GRO is set to 50, with a maximum iteration limit of 1000 iterations. Each algorithm is independently run 20 times. The optimization results obtained from the BESOA [14], BLSA-SA [13], and CFO [12] methods are compared with the results of the present experiment, as shown in Table 2.

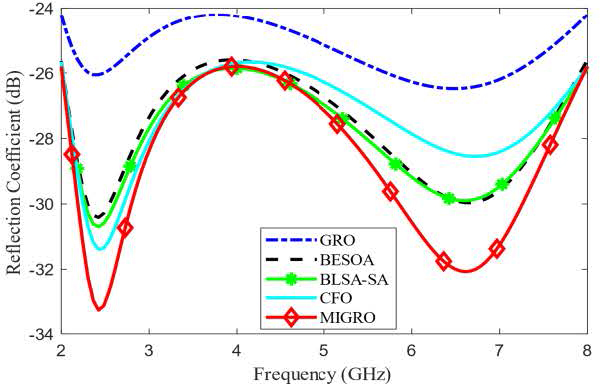

Figure 5: Comparison of reflection coefficients for 5-layer designs in the 2-8 GHz.

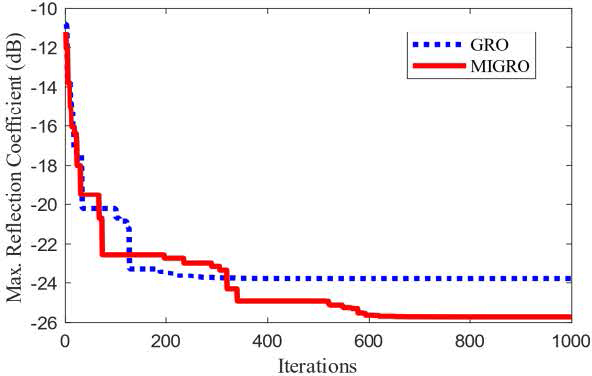

Figure 6: Comparison of convergence curves for 5-layer designs over 1000 iterations.

MIGRO achieves the best maximum reflection coefficient within the frequency range 2-8 GHz, while also maintaining the lowest average reflection coefficient. The corresponding reflection coefficients are shown in Fig. 5, with MIGRO reaching a peak of $-$ 33.2748 dB at 2.4 GHz. Figure 6 displays the convergence curves of MIGRO and GRO.

MIGRO demonstrates higher convergence accuracy in the later stages than GRO, indicating that the improved strategies of the algorithm effectively prevent MIGRO from getting trapped in local optima.

Table 3: The best optimization results of 7-layer microwave absorber

Algorithm	MIGRO	GRO	BLSA-SA [14]	CAS [15]	DE [11]
Layers	Type and Thickness
1	16	0.2131	16	0.2114	16	0.2080	16	0.2107	14	0.2064
2	6	2.0127	6	1.7644	6	1.7490	6	1.1066	6	1.8762
3	14	0.5994	14	0.5457	16	0.0850	6	0.7916	16	0.5391
4	6	0.9139	3	1.9669	6	0.0820	14	0.5482	6	0.9499
5	5	1.6448	6	2.2745	14	0.4922	5	1.3785	5	1.9596
6	4	0.6706	4	1.6528	5	1.5020	6	0.5570	4	0.7817
7	5	0.9627	6	0.2784	4	1.6602	4	1.7450	5	0.4864
Total thickness (mm)	7.0172	8.6941	5.7784	6.3376	6.7993
Max. reflection coefficient (dB)	$-$ 18.3183	$-$ 18.0175	$-$ 18.0406	$-$ 18.0879	$-$ 17.9
Avg. reflection coefficient (dB)	$-$ 19.6811	$-$ 18.8682	$-$ 19.2074	$-$ 19.5157	$-$ 19.1169

(2) Second example: 7-layer absorber

In this instance, the 7-layer absorber was optimized with a maximum total thickness constraint of 10 mm. To investigate the optimization results across a broader frequency range, the absorption bandwidth was extended to 0.1-20 GHz. The remaining experimental parameters remain consistent with the initialexample.

The design results of MIGRO were compared with the results of BLSA-SA [14], CAS [15], and DE [11]. As shown in Table 3, the maximum reflection coefficients of MIGRO, GRO, [14], [15], and [11] are $-$ 18.3183, $-$ 18.0175, $-$ 18.0406, $-$ 18.0879, and $-$ 17.9 dB, respectively. MIGRO exhibits the lowest maximum reflection coefficient. Additionally, MIGRO also has the lowest average reflection coefficient of $-$ 19.6811 dB. In Fig. 7, the reflection coefficients in the frequency range 0.1-20 GHz are calculated using five intelligent algorithms. From Fig. 8, it can be seen that, compared to GRO, MIGRO exhibits higher convergence accuracy initerations.

C. Verify simulation results with CST

Computer Simulation Technology (CST) Microwave Studio Suite (MWS) is a commonly utilized electromagnetic simulation software that has been employed to validate the efficacy of numerous multilayer microwave absorbers designs [23, 24]. For this research, all simulations were carried out using the Finite Element Method (FEM) and Frequency Domain Solver (FDS) modules within CST.

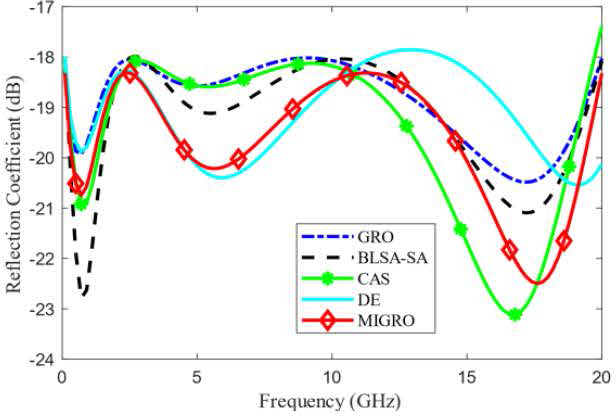

Figure 7: Comparison of reflection coefficients for 7-layer designs in the 0.1-20 GHz range.

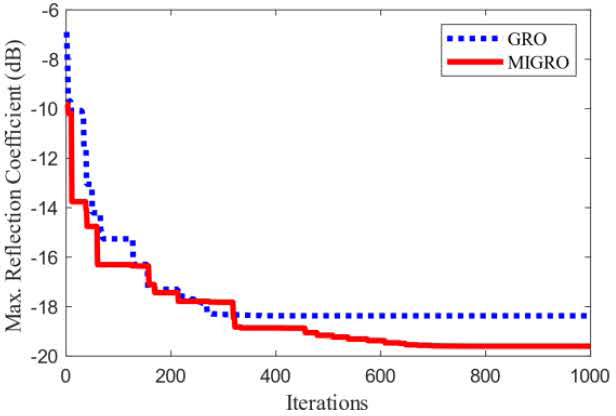

Figure 8: Comparison of convergence curves for 7-layer designs over 1000 iterations.

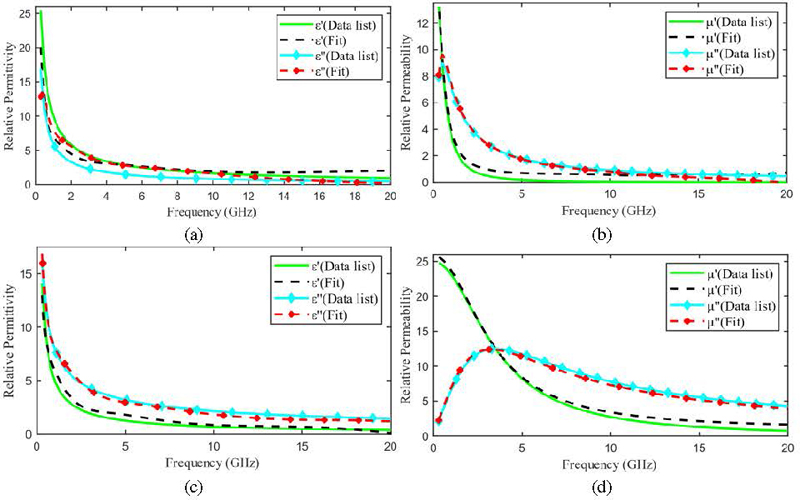

Figure 9: Comparison of supplied and fitted material dispersion curves in CST: (a) Material 8, (b) Material 12, (c) Material 6, and (d) Material 16.

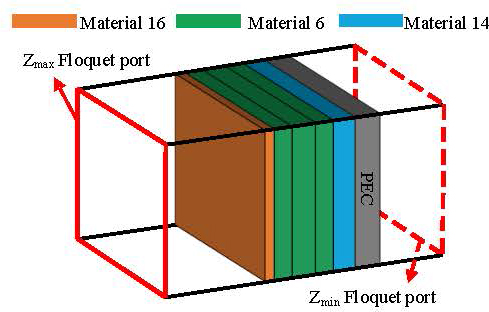

Figure 10: Model of the 5-layer absorber and the two Floquet ports used to excite the plane waves.

Materials 3 to 16 from Table 1 were imported into the CST material library. To incorporate the material property parameters provided externally, CST Studio utilized fitting techniques internally to store the provided data. The fitting error between the original provided data and the fitted data will result in deviations between the simulated results in CST and the calculated results [25]. Among all these materials, Materials 8 and 12 exhibit relatively large fitting errors. For comparison, Figs. 9 (a)-(d) illustrate the fitting data for Materials 8, 12, 6, and 16, respectively.

Using the 5-layer optimal design as an example, a multilayer microwave absorber model is constructed in CST where the material type and thickness of each layer align with the MIGRO data presented in Table 2. The absorber structure is simulated as an infinite periodic repetition (unit cell) along the $x$ and $y$ axes. Two Floquet ports are defined at both the maximum ( $Z_{\max}$ ) and minimum ( $Z_{\min}$ ) of the $z - a x i s$ , with a plane wave incidence angle set to 0 degrees and a frequency range 2-8 GHz, feasibly generating the plane wave model, as illustrated in Fig. 10.

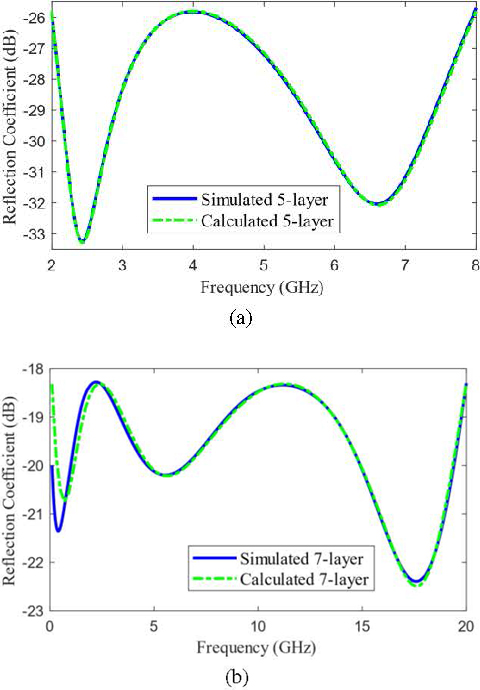

Figure 11: Comparison of reflectance coefficients calculated by MIGRO and simulated by CST: (a) 5-layer at 2-8 GHz and (b) 7-layer at 0.1-20 GHz.

In the CST simulation results, the reflection coefficient curves for the 5-layer and 7-layer optimized designs are shown in Figs. 11 (a)-(b). The numerical calculation results and the electromagnetic simulation results exhibit no significant discrepancies, thereby validating the accuracy of the mathematical modeling and algorithm optimization process for the multilayer microwave absorber.

V. CONCLUSION

This paper presents MIGRO that combines three strategies for the optimization design of the multilayer microwave absorbers under normal incident conditions. This method can be used to obtain a set of coatings with the minimum reflection coefficients within a specific frequency and thickness range. Two multilayer absorbers were designed for 2-8 GHz, 5-layer, and 0.1-20 GHz, 7-layer scenarios, and their design results were compared with those of other algorithms published in the literature. In both cases, MIGRO exhibits lower maximum and average reflection coefficients compared to other algorithms. Therefore, the effectiveness of the improvement strategy has been validated, indicating that MIGRO have stronger optimization capabilities.
