Multi-Objective Optimal Economic Dispatch of a Fuel Cell and Combined Heat and Power Based Renewable Integrated Grid Tied Micro-grid Using Whale Optimization Algorithm
S. Naveen Prakash* and N. Kumarappan
Dept. of Electrical Engineering, FEAT, Annamalai University, Annamalai Nagar, India
E-mail: snaveenprakasheee@gmail.com; kumarappann@gmail.com
*Corresponding Author
Received 02 November 2021; Accepted 19 December 2021; Publication 24 June 2022
Micro-grids are practical solution for combining distributed energy resources and combined heat and power units in order to satisfy the system power and heat demands. Nowadays, in order to integrate both renewable and non-renewable energy resources like photovoltaic, wind turbine, combined heat and power systems and fuel-cell unit; micro-grid seems to be a good idea. The aim of this paper is to obtain optimal scheduling of proposed generating units and to reduce the total operational cost and net emission of the system through economic/environmental power dispatch, while considering the impact of grid tied and autonomous mode of operation and satisfying the operational constraints. In this paper, a novel whale optimization algorithm is employed to solve this multi-objective problem. The obtained optimal results through this proposed whale optimization algorithm represents the efficiency, feasibility and capability of handling non-linear optimization problems in an efficient way compared to other optimization techniques. The proposed system is studied in a 24-h time horizon. The results obtained from this proposed technique are compared with other techniques which are recently employed.
Keywords: Combined heat and power scheduling, fuel cell, micro-grid, multi-objective, whale optimization algorithm.
In recent days, micro-grids are effective solution for combining both renewable and non-renewable energy resources and several types of energy sources including CHP [1, 2]. This proposed multi-objective economic /environmental dispatch problem of micro-grid plays an important role for smart grid management or micro-grid central control in which the optimized scheduling of all integrated sources are determined while considering the impact of RES’s, CHP and satisfying all operational constraints, to reduce the total operation cost and net emission of MG. Nowadays, the researchers are focused towards the integration of RES with CHP in micro-grid system. Because of the micro-grid as reasonable practical solutions for combining DER’s for satisfying heat and power demands of load, either it can be operated in autonomous or grid-connected modes of operation. For taking into account a micro-grid integrating with DER’s, such as RES, conventional plants and CHP units, therefore considerable improvements in savings of cost and reduced amount of pollutant gas can be attained [3]. This will shows a significant improvement in cost saving 10–40% [4], and emission reduced by 13–18% [5]. In [6] described a residential energy management operation considering of CHP, energy storage and fuel cell in order to optimized scheduling of the proposed units for satisfying both heat and electrical demands. In reference [7, 8] used renewable sources can reduce the total emission of the power system. The authors was explained short term scheduling of CHP units, it increase total system efficiency [9]. In [10] described economic dispatch of combined heat and power units is a non-convex, non-linear problem, integration of these units with other units are challenging one. In Refs. [11, 12] benders decomposition approach, lagrangian relaxation and branch and bound techniques are used to solve these non-convex problems.
The proposed model of micro-grid studied in this paper consisting of RES’s (like photovoltaic system, wind generation systems, fuel cell, power only unit and CHP units are under the operation of grid connected and autonomous mode. The main contribution of this paper is, to optimize the total operation cost and emission of proposed micro-grid in a way that both RES’s and CHP’s contribute to reduce the total operation cost of micro-grid as well as the emission minimized by integrated CHP units and other system constraints are met. A recently developed whale optimization algorithm (WOA) is used in this paper to solve this proposed multi-objective problem. So this paper is formulated as a multi-objective framework and economic/environmental scheduling of a micro-grid has been solved in this paper.
The remaining of this paper is categorized as follows:
Economic/environmental dispatch problem is formulated in Section 2 and Section 3 includes the brief description of proposed whale optimization algorithm. Section 4 shows the data’s utilized in this system. Section 5 presents the simulation results obtained with detailed discussion. Finally, the conclusions are provided in Section 6.
A renewable integrated CHP based MG including photovoltaic system, wind turbine, fuel cell, conventional power generation unit and combined heat and power units. The total operation cost and emission of above mentioned units as formulated as two objectives of this proposed problem can be modeled as below mentioned:
(1) | ||
(2) |
where, F – Operation cost of generation units; F – Amount of emission emitted by generation units; x, y, z – Conventional power unit, combined heat and power units and fuel-cell unit indices, respectively; N, N, N – Total number of available conventional power generation unit, CHP and fuel-cell units respectively; , , – Cost functions of PO, CHP and FC unit respectively; , , – Emission functions of PO, CHP and FC unit respectively; , – Generated output power of th conventional power generation unit and th CHP unit, respectively; – Output heat produced by th CHP unit.
Due to the integration of Renewable energy resources into micro-grid the cost of fuel and amount of emission emitted can be reduced [14]. The inclusion of maximum available renewable generated power reduced the other generating units demand and increase the system efficiency. Because the renewable resources are very clean and inexhaustible power of nature, so it is increase the total system efficiency. It neither incurs any fuel cost and nor does it emits any harmful pollutants in atmosphere. In this proposed work will explain and used wind and solar energy. This can be extended with some other algorithm for further research.
Conventional power plant is the overall term applied to the production of electrical energy from coal, oil, or petroleum gas utilizing the delegate of steam. The generator is typically a synchronous machine having small shafts and running at high rates (1500–3600 rpm). The power plant itself should be helpful financially and natural amicable to the general public. The general productivity of energy change from fuel to electrical is extraordinarily impacted by the proficiency of the turbine and condenser. Regular in general effectiveness goes from 30% to 40%. The fundamental elements of these traditional plants are their low capital expense per kilowatt introduced when contrasted with different plants and for all intents and purposes no restriction on their size. The generation cost function of the proposed conventional power generation unit x at time t is considered as follows [15]:
(3) |
where, , , , – Cost coefficients of th conventional power generation unit.
Cogeneration or combined heat and power is the use of a heat engine or power station to produce electricity and useful heat at the same time. Cogeneration is a more efficient use of fuel or heat, because otherwise-wasted heat from electricity generation is put to some productive use. CHP plants recover the wasted thermal energy for heating. This is also called combined heat and power district heating. Small plants are an example of decentralized energy. By-product thermal heat energy at moderate temperatures (100–180C, 212–356F) can also be used in absorption refrigeration system for cooling. The supply of high-temperature heat initially drives a gas or steam turbine-powered generator. The resulting low-temperature waste heat is then used for water or space heating. At smaller scales a gas engine or diesel engine may be used. CHP is one of the most cost-efficient methods of reducing carbon emissions from heating systems. CHP plants based on a combined cycle power unit can have thermal efficiencies above 80%. The cost functions of proposed three combined heat and power units are described as follows [15]:
Fuel cell is an electrochemical device that produces electrical energy from the conversion process of chemical energy, through a pair of redox reaction. It produces electrical energy, heat energy and water when it’s reacted hydrogen with oxygen. For continuous production of electrical energy fuel cell required a continuous source of input fuel and oxygen. For it is continuous operation, usually oxygen taken from air. It produces continuous electricity as long as input fuel and oxygen are provided. Fuel cell is one of the efficient systems for producing electrical energy, compared with other fossil-fuel energy sources.
(5) |
where, – Cost coefficients of th fuel-cell unit; – Emission coefficients of th fuel-cell unit.
A fundamental issue in regards to the present electrical generation strategies being used today is the critical negative environmental impacts that a considerable lot of the generation processes have like fossil fuels, coal and gas not only discharge carbon dioxide as they combust, yet their extraction from the beginning effects the environment. The corresponding emission functions of the proposed conventional power generation unit, combined heat and power units and fuel-cell unit can be expressed as follows:
(6) | |
(7) | |
(8) |
In this formulation the total summation of produced electrical and heat energy should be satisfy the electrical and heat demand constraints as in (9) and (10) respectively.
(9) | |
(10) |
P, P and P – Generated output power of photovoltaic, wind turbine and fuel cell unit at time t; P, H – Total load demand and heat demand of the system in time t. The minimum and maximum limit functions of electrical and heat energy related to conventional power generation unit, photovoltaic system, wind turbine, fuel cell and combined heat and power units should be considered as follows:
(11) | ||
(12) | ||
(13) | ||
(14) | ||
(15) | ||
(16) |
Where, P, P, P, P, P, P, P, P and P, P Minimum and maximum power output of th conventional power generation unit, th CHP unit, photovoltaic, wind turbine and th fuel cell unit respectively; , – Minimum and maximum amount of heat produced by th CHP unit.
In this proposed nature inspired algorithm are used to solve the non-linear optimization problem by physical phenomenon of humpback whales [13]. In this present work explains a recently proposed algorithm, named as WOA. The proposed nature inspired algorithm characteristics are depend upon the behavior of hunting approach of whales. The most interesting characteristics of humpback whales are special way of hunting the prey.
The nature that has the whales to locate the place of targeting prey and surrounds the prey. Hence the placement of the feasible output is in given solution is unknown priori. So the proposed WOA is consider the present suitable carrier solution as achievement prey, otherwise it is very nearer to optimal solution. After the suitable carrier is identified, the remaining all other carrier will become tries to upgrade myself in such a way of that suitable carrier. The below equations are represents the strategy stated here,
(17) | |
(18) |
where t indicates present iteration; A and C are coefficients; Y location of the better solution obtained so far; Y is the present position of whale. Therefore A and C values are obtained from:
(19) | |
(20) |
The bubble-net attacking strategy inspires this proposed optimization procedures. This is the special interesting hunting strategy of humpback whales. school of krill or tiny fishes nearer the place is selected by whales to be hunted, where it seems to be created a circle shape or nine shaped route. This is an unique way for treatment assess by whales. This proposed technique is based on this strategy is summarized as below as follows. There are two ways are used to represents the model of air bubble net treatment of whales is mentioned here below:
Equation (19) simply represents this proposed concept. The value of A should be reduced from 2 to 0. According the above value of A, the change in value of A is to be reduced. The values are randomly selected between [a, a]. These intervals and between [1, 1] the better location of search agent has to be selected.
The distance between the humpback whales and the prey located is and respectively. The position between the whale and prey represents the spiral path. This is shown in below Equation (21).
(21) |
where, b is a constant for represent the position of the logarithmic spiral, l denotes a random value between [1,1]. There is a 50% probability is assumed to select the two approaches as are shown below:
(22) |
where, the random number of p is between [0, 1]. In sum of this bubble-net method, whales are randomly found out for their prey.
Humpback whales pursue their preys without any definite aim, as per the place of each other’s. The difference of the value of vector A is 1 or less than 1 it makes the search agents to move away from reference whale. The location of search agent has been upgraded in the investigation stage as per a randomly picked search agent rather than the better pursuit agent discovered in this way. This scheme and highlight investigation and tolerate the WOA calculation to perform a global pursuit.
(23) | |
(24) |

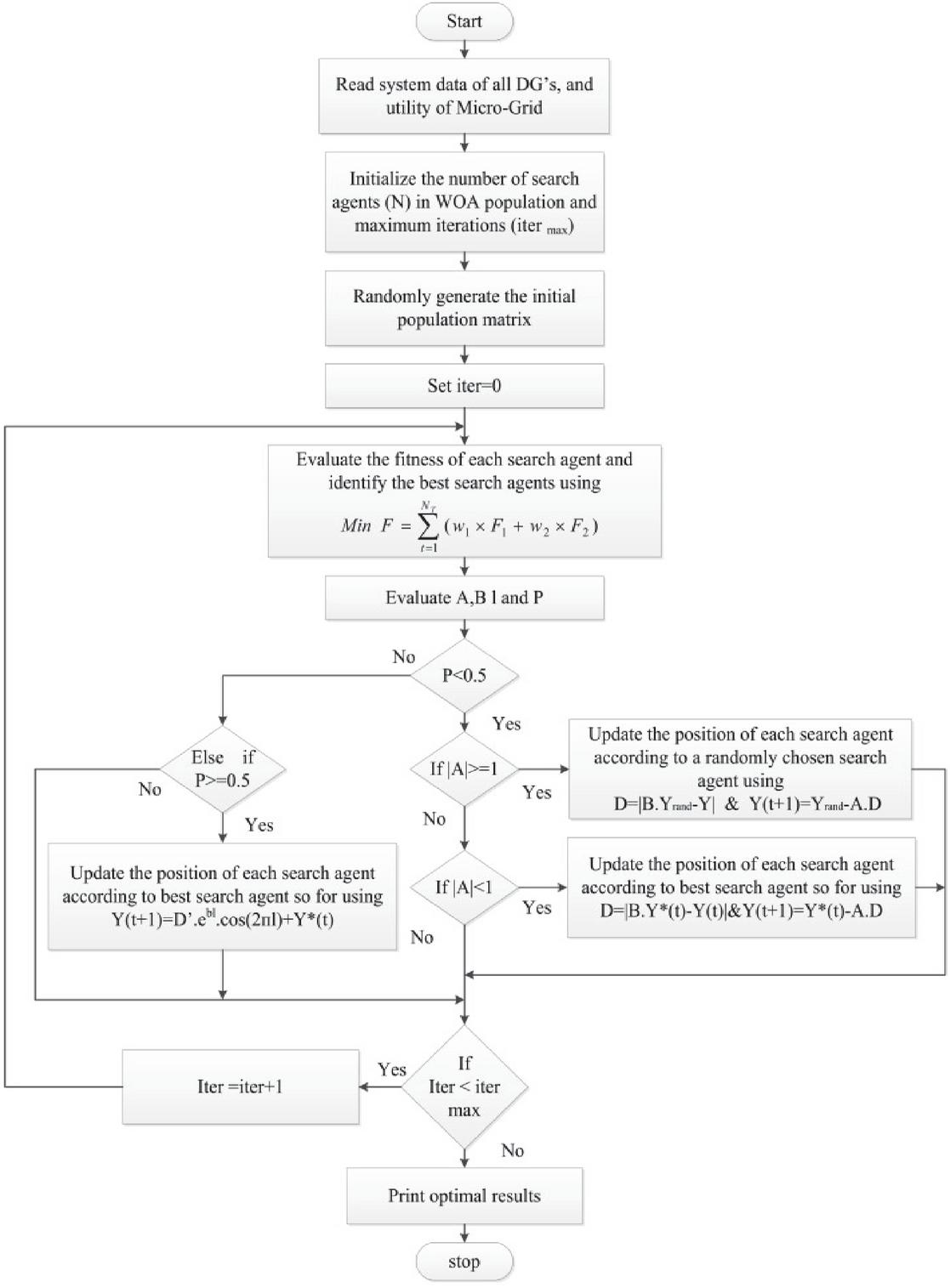

The flowchart describing various computational steps involved in WOA for environmental based economic dispatch of typical MG arrangements are shown in Figure 1.
The proposed test system of this paper is including photovoltaic system, wind turbine, fuel cell, conventional power generation unit and combined heat and power units. Data’s utilized in conventional power generation unit, power and heat limits, coefficients of the proposed combined heat and power units and data’s utilized in fuel cell unit is presented in Table 1. The day ahead forecasted output data of photovoltaic and wind systems are from [16]. The cost of upstream power from utility grid is presented in Table 2. Finally, the electrical and heat demand of renewable integrated combined heat and power based MG system is presented in Table 3.
In this section, the numerical simulation results obtained in combined economic/environmental dispatch of renewable integrated CHP based MG test system have been presented. In this paper, three case studies are investigated, namely operation of renewable integrated CHP based MG in connected mode is presented in case 1, operation of renewable integrated CHP based MG in autonomous mode is presented in case 2 and operation of renewable integrated CHP based MG in autonomous mode of operation with weighting factor is presented in case 3. To solve the proposed problem, MATLAB environment has been used and installed in a personal computer with 2.53 GHz core i7 processor 5th generation and 8 GB of RAM in addition with 250 GB of SSD. The program is run with 100 iterations for 30 repeated trials and the same will do for all the other technique used.
Table 1 Parameters of installed DG sources
Power Only Units | ||||||
Unit | ||||||
1 | 0.000115 | 0.00172 | 7.6997 | 2.5489 | 35 | 135 |
CHP Units | ||||||
a | b | c | d | e | f | |
2 | 0.0435 | 36 | 1250 | 0.027 | 0.6 | 0.011 |
3 | 0.1035 | 34.5 | 2650 | 0.025 | 2.203 | 0.051 |
4 | 0.072 | 20 | 1565 | 0.02 | 2.3 | 0.04 |
Fuel Cell | ||||||
b($/MWh) | P (MW) | P (MW) | ||||
5 | 0.0848 | 0.000001814 | 0.000004536 | 0.393264585 | 0 | 6 |
Table 2 The real-time market prices
Time(h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
($/hr) | 78 | 90 | 92 | 94 | 99 | 96 | 94 | 94 |
Time(h) | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
($/hr) | 92 | 91 | 90.5 | 95 | 96 | 120 | 96 | 95 |
Time(h) | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
($/hr) | 90.5 | 78 | 77 | 90.5 | 76 | 90.5 | 76 | 75 |
Table 3 Power and heat demand of micro-grid
Time (h) | Power Demand (MW) | Heat Demand (MWth) |
1 | 260 | 78 |
2 | 250 | 90 |
3 | 250 | 92 |
4 | 255 | 94 |
5 | 280 | 99 |
6 | 315 | 96 |
7 | 350 | 94 |
8 | 375 | 94 |
9 | 380 | 92 |
10 | 400 | 91 |
11 | 300 | 90.5 |
12 | 370 | 95 |
13 | 360 | 96 |
14 | 360 | 120 |
15 | 380 | 96 |
16 | 400 | 95 |
17 | 350 | 90.5 |
18 | 400 | 78 |
19 | 400 | 77 |
20 | 400 | 90.5 |
21 | 390 | 76 |
22 | 355 | 90.5 |
23 | 325 | 76 |
24 | 280 | 75 |
In case 1 of operation discusses the renewable integrated CHP based micro-grid in grid tied mode. In this mode of operation consists photovoltaic systems, wind turbines, fuel cell, conventional power generation unit, CHP units and electrical power provided by the grid network, this can be used to satisfy the electrical and heat demand of the proposed test system. The operation cost and total emission of the renewable integrated combined heat and power based MG of this mode is 318733.35$/day and 324.51kg/day respectively. It includes 32516.63$ cost of generating power from power only unit, 286054.01$ cost of generating heat and power by combined heat and power units, 80.59$ cost of electrical energy produced by fuel cell unit and 82.10$ cost of purchased power from utility grid.
Table 4 Multi-objective economic/environmental dispatch using WOA (case 1: Total cost 318733.35 $/day, Total emission 324.51 kg/day)
DG Units | ||||||
Output power(MW) | ||||||
Time(h) | PO | CHP1 | CHP2 | CHP3 | Grid | FC |
1 | 135 | 42 | 18 | 62.702 | 0 | 0.6 |
2 | 134.98 | 47.643 | 19.142 | 38.69 | 0 | 1.0441 |
3 | 135 | 41.6 | 18 | 45.531 | 0 | 0.6 |
4 | 135 | 44 | 18 | 40.741 | 0 | 0.6 |
5 | 135 | 44 | 18 | 75.182 | 0 | 0.6 |
6 | 135 | 63.262 | 17.997 | 93.203 | 0 | 0.6 |
7 | 135 | 95.146 | 14.808 | 78.114 | 0.00122 | 6 |
8 | 134.99 | 75.725 | 38.599 | 77.95 | 0 | 5.9931 |
9 | 134.38 | 68.237 | 23.95 | 102.97 | 0 | 5.8364 |
10 | 135 | 79.609 | 21.901 | 100.26 | 0.017885 | 5.9984 |
11 | 133.93 | 59.986 | 17 | 68.278 | 0 | 0.6 |
12 | 134.95 | 96.891 | 25.984 | 83.935 | 0 | 5.9402 |
13 | 134.92 | 47.362 | 31.44 | 99.011 | 0 | 0.9807 |
14 | 135 | 66.15 | 29.198 | 91.893 | 0.000299 | 0.6003 |
15 | 134.93 | 84.895 | 46.525 | 89.51 | 0 | 5.797 |
16 | 134.97 | 98.485 | 42.818 | 98.806 | 0 | 5.9074 |
17 | 134.59 | 86.637 | 31.129 | 81.341 | 0.0234 | 3.2729 |
18 | 135 | 117.38 | 46.5 | 90 | 0.94 | 6 |
19 | 135 | 111.47 | 53.784 | 93 | 0.000724 | 6 |
20 | 135 | 104.33 | 57 | 97.5 | 0.002701 | 6 |
21 | 135 | 109.04 | 46.953 | 92.851 | 0.011304 | 5.9954 |
22 | 135 | 72.675 | 46.5 | 94.507 | 0.007322 | 6 |
23 | 135 | 75.783 | 19.053 | 88.054 | 0.040356 | 6 |
24 | 134.98 | 60.132 | 16.619 | 61.693 | 0 | 5.9927 |
Table 5 Output heat scheduling of combined heat and power units
DG Units | |||
Output Heat (MWth) | |||
Time(h) | CHP1 | CHP2 | CHP3 |
1 | 40 | 0 | 0 |
2 | 45 | 0 | 0 |
3 | 42 | 0 | 0 |
4 | 0 | 0 | 50 |
5 | 8.0411 | 0 | 56.959 |
6 | 50.301 | 6.1983 | 13.5007 |
7 | 5.4263 | 23.125 | 46.448 |
8 | 17.585 | 12.447 | 59.968 |
9 | 78.496 | 6.8306 | 6.6737 |
10 | 29.435 | 1.9053 | 63.6596 |
11 | 74.889 | 8.1274 | 16.9838 |
12 | 83.524 | 2.8126 | 5.6635 |
13 | 90 | 0 | 0 |
14 | 88 | 0 | 0 |
15 | 9.8326 | 33.824 | 46.34 |
16 | 59.11 | 0 | 35.89 |
17 | 19.584 | 24.814 | 65.6 |
18 | 3.2048 | 48.007 | 63.788 |
19 | 19.778 | 27.412 | 64.81 |
20 | 48.733 | 15.836 | 30.431 |
21 | 22.251 | 24.381 | 43.369 |
22 | 14.658 | 47.012 | 23.33 |
23 | 70.583 | 1.4724 | 2.9448 |
24 | 3.6491 | 39.879 | 26.472 |
Table 6 Cost values of economic/environmental dispatch for 24 hrs using WOA
DG Units | ||||||
Cost ($/MW) | ||||||
Time(h) | PO | CHP1 | CHP2 | CHP3 | Grid | FC |
1 | 1356.3 | 2924.4 | 3304.5 | 3102.1 | 0 | 0.5202 |
2 | 1356 | 3169.1 | 3348.3 | 2446.6 | 0 | 0.90527 |
3 | 1356.3 | 2914.9 | 3304.5 | 2624.9 | 0 | 0.5202 |
4 | 1356.3 | 2918.2 | 3304.5 | 2499.3 | 0 | 0.5202 |
5 | 1356.3 | 2928.7 | 3304.5 | 3475.6 | 0 | 0.5202 |
6 | 1356.3 | 3835 | 3324.7 | 4094.5 | 0 | 0.5202 |
7 | 1356.3 | 5078.8 | 3265.4 | 3727 | 0.11463 | 5.202 |
8 | 1356.2 | 4259.1 | 4191.7 | 3731.3 | 0 | 5.196 |
9 | 1347.3 | 4181.5 | 3560.2 | 4413.3 | 0 | 5.0602 |
10 | 1356.3 | 4458.4 | 3461.7 | 4319.6 | 1.6276 | 5.2006 |
11 | 1340.8 | 3811.8 | 3293 | 3310.1 | 0 | 0.5202 |
12 | 1355.6 | 5473.9 | 3626.4 | 3767 | 0 | 5.1502 |
13 | 1355.1 | 3372.2 | 3837 | 4251.1 | 0 | 0.85026 |
14 | 1356.3 | 4147.6 | 3745.6 | 4010.8 | 0.035853 | 0.52046 |
15 | 1355.3 | 4637.4 | 4662.5 | 3932.1 | 0 | 5.026 |
16 | 1355.9 | 5411.2 | 4317 | 4244 | 0 | 5.1217 |
17 | 1350.3 | 4736.2 | 3933.7 | 3703.1 | 2.1177 | 2.8376 |
18 | 1356.3 | 6081.4 | 4755.3 | 4135.3 | 73.32 | 5.202 |
19 | 1356.3 | 5849.9 | 4959.3 | 4181.6 | 0.055732 | 5.202 |
20 | 1356.3 | 5628.5 | 5040 | 4298.1 | 0.24443 | 5.202 |
21 | 1356.2 | 5746.3 | 4625 | 4186.4 | 0.85911 | 5.198 |
22 | 1356.3 | 4122.4 | 4748.4 | 4177.3 | 0.66261 | 5.202 |
23 | 1356.3 | 4463.7 | 3349.6 | 3893 | 3.067 | 5.202 |
24 | 1356.1 | 3577 | 3413.4 | 3125.9 | 0 | 5.1957 |
The output power of utility grid, photovoltaic system, wind turbines, fuel cell, conventional power generation unit and combined heat and power units; and the output heat energy produced by proposed combined heat and power units and its corresponding cost and emissions is presented in Tables 4, 5 and 6, 7 respectively. The dispatch results of RES are presented in Table 8.
Table 7 Emission values of economic/environmental dispatch for 24 hrs using WOA
DG Units | |||||
Emission (Kg/MW) | |||||
Time(h) | PO | CHP1 | CHP2 | CHP3 | FC |
1 | 11.913 | 0.0693 | 0.0396 | 0.068972 | 0.20881 |
2 | 11.909 | 0.078611 | 0.042113 | 0.042559 | 0.36337 |
3 | 11.913 | 0.06864 | 0.0396 | 0.050084 | 0.20881 |
4 | 11.913 | 0.0726 | 0.0396 | 0.044815 | 0.20881 |
5 | 11.913 | 0.0726 | 0.0396 | 0.0827 | 0.20881 |
6 | 11.912 | 0.10438 | 0.039594 | 0.10252 | 0.20881 |
7 | 11.913 | 0.15699 | 0.032578 | 0.085925 | 2.0881 |
8 | 11.912 | 0.12495 | 0.084919 | 0.085745 | 2.0857 |
9 | 11.804 | 0.11259 | 0.052691 | 0.11327 | 2.0311 |
10 | 11.913 | 0.13135 | 0.048183 | 0.11028 | 2.0875 |
11 | 11.725 | 0.098977 | 0.0374 | 0.075106 | 0.20881 |
12 | 11.904 | 0.15987 | 0.057164 | 0.092329 | 2.0672 |
13 | 11.898 | 0.078148 | 0.069167 | 0.10891 | 0.34129 |
14 | 11.913 | 0.10915 | 0.064235 | 0.10108 | 0.20891 |
15 | 11.901 | 0.14008 | 0.10236 | 0.098461 | 2.0174 |
16 | 11.908 | 0.1625 | 0.094199 | 0.10869 | 2.0558 |
17 | 11.84 | 0.14295 | 0.068484 | 0.089476 | 1.139 |
18 | 11.913 | 0.19368 | 0.1023 | 0.099 | 2.0881 |
19 | 11.913 | 0.18392 | 0.11833 | 0.1023 | 2.0881 |
20 | 11.913 | 0.17214 | 0.1254 | 0.10725 | 2.0881 |
21 | 11.912 | 0.17992 | 0.1033 | 0.10214 | 2.0864 |
22 | 11.913 | 0.11991 | 0.1023 | 0.10396 | 2.0881 |
23 | 11.913 | 0.12504 | 0.041916 | 0.09686 | 2.0881 |
24 | 11.91 | 0.099217 | 0.036562 | 0.067862 | 2.0855 |
Table 8 Dispatch results of WT and PV
Time(h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
PV (MW) | 0 | 0 | 0 | 0 | 0 | 0.03 | 6.27 | 16.18 |
WT(MW) | 1.7 | 8.5 | 9.27 | 16.66 | 7.22 | 4.91 | 14.66 | 25.56 |
Time(h) | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
PV (MW) | 24.05 | 39.37 | 7.41 | 3.65 | 31.94 | 26.81 | 10.08 | 5.3 |
WT (MW) | 20.58 | 17.85 | 12.8 | 18.65 | 14.35 | 10.35 | 8.26 | 13.71 |
Time(h) | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
PV (MW) | 9.57 | 2.31 | 0 | 0 | 0 | 0 | 0 | 0 |
WT (MW) | 3.44 | 1.87 | 0.75 | 0.17 | 0.15 | 0.31 | 1.07 | 0.58 |
In this case 2 of operation discuss the renewable integrated combined heat and power based MG in autonomous mode of operation. In autonomous mode of operation consists photovoltaic systems, wind turbines, conventional power generation unit, combined heat and power generation units and fuel cell unit, this can be used to satisfy the electrical and heat demand of the proposed test system.
The total operation cost and net emission of the renewable integrated CHP based MG of this mode is 313952.75$/day and 339.35 kg/day respectively. It includes 32550.53$ cost of generating power from power only units, 281285.58$ cost of generating heat and power by combined heat and power units, 116.64$ cost of electrical energy produced by fuel cell unit.
Table 9 Multi-objective economic/environmental dispatch using WOA (case 2: Total cost 313952.75 $/day, Total emission 339.35 kg/day)
DG Units | |||||
Output power(MW) | |||||
Time(h) | PO | CHP1 | CHP2 | CHP3 | FC |
1 | 135 | 44.202 | 22.783 | 50.316 | 6 |
2 | 134.98 | 41.602 | 18 | 45.681 | 1.2323 |
3 | 134.97 | 44.006 | 18.006 | 42.443 | 1.304 |
4 | 135 | 44.07 | 13.041 | 40.229 | 6 |
5 | 135 | 42.54 | 20.131 | 69.109 | 6 |
6 | 135 | 40.915 | 51.65 | 76.495 | 6 |
7 | 135 | 55.926 | 34.688 | 97.456 | 6 |
8 | 135 | 58.316 | 28.944 | 105 | 6 |
9 | 135 | 44.229 | 53.964 | 96.177 | 6 |
10 | 135 | 54.375 | 51.891 | 95.514 | 6 |
11 | 135 | 41.201 | 18.859 | 78.73 | 6 |
12 | 135 | 46.667 | 55.267 | 104.77 | 6 |
13 | 135 | 54.712 | 27.998 | 90 | 6 |
14 | 135 | 52.755 | 24.085 | 105 | 6 |
15 | 135 | 67.907 | 47.753 | 105 | 6 |
16 | 135 | 86.756 | 48.234 | 105 | 6 |
17 | 135 | 56.316 | 40.674 | 99 | 6 |
18 | 135 | 94.32 | 55.5 | 105 | 6 |
19 | 135 | 99.25 | 54 | 105 | 6 |
20 | 135 | 103.22 | 50.613 | 105 | 6 |
21 | 135 | 83.85 | 60 | 105 | 6 |
22 | 135 | 56.19 | 57 | 100.5 | 6 |
23 | 135 | 45.216 | 37.366 | 100.35 | 6 |
24 | 135 | 43.215 | 23.556 | 71.649 | 6 |
Table 10 Output heat scheduling of combined heat and power units
DG Units | |||
Output Heat (MWth) | |||
Time(h) | CHP1 | CHP2 | CHP3 |
1 | 5.2798 | 24.328 | 10.3921 |
2 | 45 | 0 | 0 |
3 | 0 | 0 | 42 |
4 | 1.4198 | 28.013 | 20.5676 |
5 | 36.735 | 9.6703 | 18.595 |
6 | 55.516 | 4.8154 | 9.6688 |
7 | 13.515 | 11.747 | 49.738 |
8 | 35.294 | 27.057 | 27.64833 |
9 | 15.019 | 16.637 | 60.344 |
10 | 44.645 | 5.2642 | 45.091 |
11 | 68.178 | 11.146 | 20.6763 |
12 | 47.375 | 0.00002397 | 44.625 |
13 | 19.176 | 11.604 | 59.22 |
14 | 41.392 | 38.977 | 7.63147 |
15 | 43.843 | 0.63059 | 45.52559 |
16 | 47.248 | 2.2543 | 45.4977 |
17 | 30.382 | 8.2905 | 71.327 |
18 | 33.36 | 19.465 | 62.1741 |
19 | 24.353 | 26.393 | 61.2545 |
20 | 12.75 | 22.233 | 60.01751 |
21 | 45.674 | 0.15014 | 44.17614 |
22 | 9.6587 | 12.031 | 63.3104 |
23 | 35.974 | 7.9379 | 31.088 |
24 | 25.002 | 12.876 | 32.121 |
Table 11 Corresponding cost values of economic/environmental dispatch for 24 hrs using WOA
DG Units | |||||
Cost ($/MW) | |||||
Time (h) | PO | CHP1 | CHP2 | CHP3 | FC |
1 | 1356.3 | 2932.7 | 3586.4 | 2776.7 | 5.202 |
2 | 1356.1 | 2925.2 | 3304.5 | 2628.9 | 1.0684 |
3 | 1355.9 | 2918.4 | 3304.7 | 2543.5 | 1.1305 |
4 | 1356.3 | 2922.6 | 3217.5 | 2491.7 | 5.202 |
5 | 1356.3 | 2935.8 | 3420 | 3337.5 | 5.202 |
6 | 1356.3 | 2937.3 | 4731.9 | 3542.5 | 5.202 |
7 | 1356.3 | 3420.7 | 4021.4 | 4283.7 | 5.202 |
8 | 1356.3 | 3574.8 | 3853.1 | 4458.9 | 5.202 |
9 | 1356.3 | 2949.8 | 4902.5 | 4232.8 | 5.202 |
10 | 1356.3 | 3443.4 | 4745.2 | 4240.4 | 5.202 |
11 | 1356.3 | 3004.4 | 3375.8 | 3637.5 | 5.202 |
12 | 1356.3 | 3138.1 | 4872.8 | 4450.6 | 5.202 |
13 | 1356.3 | 3382.8 | 3742.6 | 4123.9 | 5.202 |
14 | 1356.3 | 3365.4 | 3712.7 | 4460.4 | 5.202 |
15 | 1356.3 | 4006.2 | 4536.4 | 4462.9 | 5.202 |
16 | 1356.3 | 4834.3 | 4565.5 | 4472.7 | 5.202 |
17 | 1356.3 | 3477.3 | 4261.7 | 4324.1 | 5.202 |
18 | 1356.3 | 5117.2 | 4991 | 4474.1 | 5.202 |
19 | 1356.3 | 5308.7 | 4963 | 4467.3 | 5.202 |
20 | 1356.3 | 5455.8 | 4780 | 4458.9 | 5.202 |
21 | 1356.3 | 4700.3 | 5093.4 | 4459.8 | 5.202 |
22 | 1356.3 | 3424.5 | 5017.9 | 4363 | 5.202 |
23 | 1356.3 | 3041.1 | 4117.8 | 4312.4 | 5.202 |
24 | 1356.3 | 2930.7 | 3568.1 | 3447.6 | 5.202 |
Table 12 Corresponding emission values of economic/environmental dispatch for 24 hrs using WOA
DG Units | |||||
Emission (Kg/MW) | |||||
Time (h) | PO | CHP1 | CHP2 | CHP3 | FC |
1 | 11.913 | 0.072933 | 0.050122 | 0.055348 | 2.0881 |
2 | 11.91 | 0.068644 | 0.0396 | 0.050249 | 0.42885 |
3 | 11.908 | 0.072609 | 0.039612 | 0.046687 | 0.45379 |
4 | 11.913 | 0.072716 | 0.02869 | 0.044252 | 2.0881 |
5 | 11.913 | 0.070192 | 0.044288 | 0.07602 | 2.0881 |
6 | 11.913 | 0.06751 | 0.11363 | 0.084144 | 2.0881 |
7 | 11.913 | 0.092278 | 0.076315 | 0.1072 | 2.0881 |
8 | 11.913 | 0.096222 | 0.063677 | 0.1155 | 2.0881 |
9 | 11.913 | 0.072978 | 0.11872 | 0.10579 | 2.0881 |
10 | 11.913 | 0.089718 | 0.11416 | 0.10507 | 2.0881 |
11 | 11.913 | 0.067981 | 0.04149 | 0.086603 | 2.0881 |
12 | 11.913 | 0.077 | 0.12159 | 0.11524 | 2.0881 |
13 | 11.913 | 0.090275 | 0.061596 | 0.099 | 2.0881 |
14 | 11.913 | 0.087046 | 0.052986 | 0.1155 | 2.0881 |
15 | 11.913 | 0.11205 | 0.10506 | 0.1155 | 2.0881 |
16 | 11.913 | 0.14315 | 0.10612 | 0.1155 | 2.0881 |
17 | 11.913 | 0.092921 | 0.089483 | 0.1089 | 2.0881 |
18 | 11.913 | 0.15563 | 0.1221 | 0.1155 | 2.0881 |
19 | 11.913 | 0.16376 | 0.1188 | 0.1155 | 2.0881 |
20 | 11.913 | 0.17031 | 0.11135 | 0.1155 | 2.0881 |
21 | 11.913 | 0.13835 | 0.132 | 0.1155 | 2.0881 |
22 | 11.913 | 0.092713 | 0.1254 | 0.11055 | 2.0881 |
23 | 11.913 | 0.074607 | 0.082206 | 0.11038 | 2.0881 |
24 | 11.913 | 0.071304 | 0.051823 | 0.078814 | 2.0881 |
The output power of photovoltaic system, wind turbines, conventional power generation unit, combined heat and power units, fuel cell unit and the output heat energy produced by proposed CHP units and its corresponding cost values are presented in Tables 9, 10 and 11 respectively. Table 12 shows the emission values of corresponding units. In autonomous mode of operation the proposed test system electrical demand are satisfied without considering the support of utility grid. From the obtained results of autonomous mode of operation the total cost and emission of renewable integrated CHP based MG is reduced 313952.75$ which is compared to connected mode of operation. It is mainly, the system operated in autonomous mode of operation. In this mode of operation the electrical energy are satisfied by renewable units. Due to fuel free and zero emission operation renewables are produced more power and considered as maximum utilization mode.

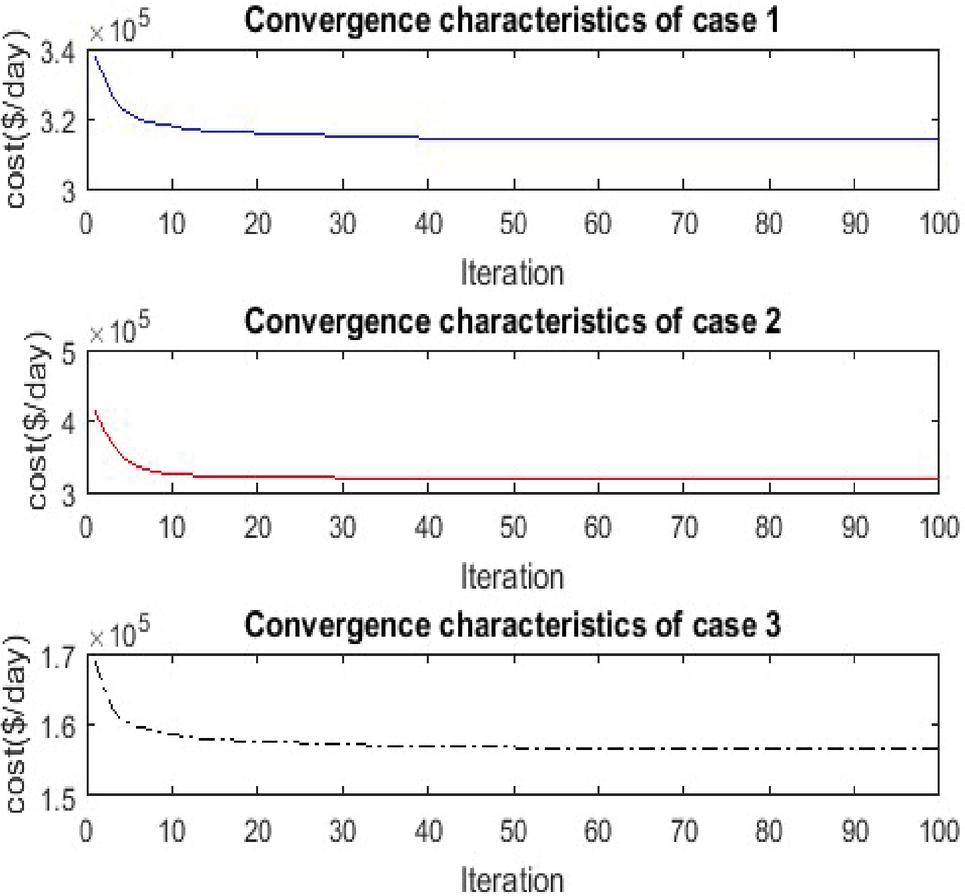

The scope of this case is to obtain the impact of reduction in operation cost and net emission of proposed multi objective problem of RES integrated combined heat and power based MG using weighted sum method. In this mode of operation the obtained total operation cost and emission are 312712.51$/day and 341.82 kg/day respectively. Figure 2 show the convergence characteristics of three different cases. Table 13 shows the optimal results of power and heat obtained using weighting factors. Also, the Tables 14 and 15 show the cost and emission obtaining after 30 trials. The best trade off obtained between the two objective functions, while considering W1 0.5 and W2 0.5 as weighting factors. Table 16 shows the comparison results with other optimization methods. In Figure 3 represents the best convergence characteristics comparison of proposed algorithm with other optimization technique.
Table 13 Multi-objective economic/environmental dispatch using WOA (case 3: Total cost 312712.51$/day, Total emission 341.82 kg/day)
DG Units | ||||||||
Output Power (MW) | Output Heat (MWth) | |||||||
Time(h) | PO | CHP1 | CHP2 | CHP3 | FC | CHP1 | CHP2 | CHP3 |
1 | 135 | 43.629 | 18.519 | 55.152 | 6 | 22.341 | 6.9362 | 10.723 |
2 | 135 | 44.106 | 18.069 | 38.326 | 6 | 3.792 | 1.7427 | 39.465 |
3 | 134.9 | 43.2 | 17.963 | 38.707 | 5.963 | 25.59 | 6.2556 | 10.155 |
4 | 132.44 | 44 | 17 | 39.702 | 5.2006 | 13.27 | 6.9393 | 29.79 |
5 | 135 | 44.051 | 18.929 | 68.799 | 6 | 18.912 | 6.6013 | 39.486 |
6 | 135 | 47.428 | 21.132 | 100.5 | 6 | 5.5362 | 28.408 | 36.055 |
7 | 135 | 54.909 | 29.661 | 103.5 | 6 | 16.623 | 14.366 | 44.01 |
8 | 135 | 52.187 | 35.291 | 104.78 | 6 | 24.387 | 5.2052 | 60.407 |
9 | 135 | 56.671 | 39.135 | 98.563 | 6 | 10.186 | 18.902 | 62.912 |
10 | 135 | 54.032 | 42.748 | 105 | 6 | 38.552 | 1.8728 | 54.575 |
11 | 135 | 44.225 | 14.715 | 79.849 | 6 | 19.705 | 26.12 | 54.175 |
12 | 135 | 54.368 | 47.332 | 105 | 6 | 46.287 | 2.3919 | 43.321 |
13 | 135 | 46.541 | 28.669 | 97.5 | 6 | 31.183 | 23.662 | 35.155 |
14 | 135 | 41.253 | 55.705 | 84.882 | 6 | 49.704 | 10.57 | 27.725 |
15 | 135 | 63.301 | 52.359 | 105 | 6 | 40.829 | 0.14722 | 49.023 |
16 | 135 | 84.245 | 50.745 | 105 | 6 | 35.986 | 1.3178 | 57.696 |
17 | 135 | 62.11 | 28.88 | 105 | 6 | 29.864 | 18.604 | 61.531 |
18 | 135 | 94.32 | 55.5 | 105 | 6 | 37.175 | 17.153 | 60.672 |
19 | 135 | 100.83 | 52.419 | 105 | 6 | 43.039 | 8.8693 | 60.091 |
20 | 135 | 101.33 | 52.5 | 105 | 6 | 31.92 | 30.82 | 32.261 |
21 | 135 | 92.833 | 51.017 | 105 | 6 | 30.159 | 0.002645 | 59.838 |
22 | 135 | 67.148 | 43.042 | 103.5 | 6 | 18.496 | 3.943 | 62.561 |
23 | 135 | 57.524 | 25.878 | 99.528 | 6 | 11.619 | 19.474 | 43.907 |
24 | 135 | 42.924 | 19.323 | 76.173 | 6 | 30.393 | 15.765 | 23.841 |
Table 14 Corresponding cost values of economic/environmental dispatch for 24 hrs using WOA
DG Units | |||||
Cost ($/MW) | |||||
Time(h) | PO | CHP1 | CHP2 | CHP3 | FC |
1 | 1356.3 | 2941.1 | 3347.4 | 2913.9 | 5.202 |
2 | 1356.3 | 2926.9 | 3312.7 | 2452.2 | 5.202 |
3 | 1354.8 | 2931.6 | 3323.6 | 2465.3 | 5.1699 |
4 | 1319.6 | 2937.4 | 3288.9 | 2574.3 | 4.5089 |
5 | 1356.3 | 2950.4 | 3362.2 | 3318.5 | 5.202 |
6 | 1356.3 | 3062.3 | 3538.6 | 4350.9 | 5.202 |
7 | 1356.3 | 3385.3 | 3822.9 | 4429.6 | 5.202 |
8 | 1356.3 | 3291.9 | 4018 | 4459.3 | 5.202 |
9 | 1356.3 | 3445.1 | 4247 | 4311.2 | 5.202 |
10 | 1356.3 | 3408.3 | 4322.2 | 4471 | 5.202 |
11 | 1356.3 | 2959.1 | 3274.3 | 3796.2 | 5.202 |
12 | 1356.3 | 3449.1 | 4526 | 4474.5 | 5.202 |
13 | 1356.3 | 3080.6 | 3824.9 | 4281.8 | 5.202 |
14 | 1356.3 | 2928.2 | 4949.1 | 3861.8 | 5.202 |
15 | 1356.3 | 3801.1 | 4740.8 | 4459.8 | 5.202 |
16 | 1356.3 | 4681.5 | 4673.6 | 4467.4 | 5.202 |
17 | 1356.3 | 3716.2 | 3809.7 | 4468.8 | 5.202 |
18 | 1356.3 | 5130.7 | 4977.3 | 4463.2 | 5.202 |
19 | 1356.3 | 5445.8 | 4788 | 4459.4 | 5.202 |
20 | 1356.3 | 5426.8 | 4920.7 | 4459.7 | 5.202 |
21 | 1356.3 | 5040.3 | 4679.5 | 4458.8 | 5.202 |
22 | 1356.3 | 3897.4 | 4344.4 | 4429.7 | 5.202 |
23 | 1356.3 | 3482.8 | 3690.2 | 4281.3 | 5.202 |
24 | 1356.3 | 2932.9 | 3411.8 | 3520.2 | 5.202 |
Table 15 Emission values of economic/environmental dispatch for 24 hrs using WOA
DG Units | |||||
Emission (Kg/MW) | |||||
Time(h) | PO | CHP1 | CHP2 | CHP3 | FC |
1 | 11.913 | 0.071988 | 0.040741 | 0.060667 | 2.0881 |
2 | 11.913 | 0.072774 | 0.039751 | 0.042158 | 2.0881 |
3 | 11.895 | 0.07128 | 0.039519 | 0.042578 | 2.0752 |
4 | 11.466 | 0.0726 | 0.0374 | 0.043672 | 1.8098 |
5 | 11.913 | 0.072684 | 0.041645 | 0.075679 | 2.0881 |
6 | 11.913 | 0.078257 | 0.046489 | 0.11055 | 2.0881 |
7 | 11.913 | 0.090599 | 0.065255 | 0.11385 | 2.0881 |
8 | 11.913 | 0.086108 | 0.077641 | 0.11526 | 2.0881 |
9 | 11.913 | 0.093508 | 0.086098 | 0.10842 | 2.0881 |
10 | 11.913 | 0.089153 | 0.094046 | 0.1155 | 2.0881 |
11 | 11.913 | 0.072972 | 0.032373 | 0.087834 | 2.0881 |
12 | 11.913 | 0.089706 | 0.10413 | 0.1155 | 2.0881 |
13 | 11.913 | 0.076792 | 0.063072 | 0.10725 | 2.0881 |
14 | 11.913 | 0.068067 | 0.12255 | 0.09337 | 2.0881 |
15 | 11.913 | 0.10445 | 0.11519 | 0.1155 | 2.0881 |
16 | 11.913 | 0.139 | 0.11164 | 0.1155 | 2.0881 |
17 | 11.913 | 0.10248 | 0.063536 | 0.1155 | 2.0881 |
18 | 11.913 | 0.15563 | 0.1221 | 0.1155 | 2.0881 |
19 | 11.913 | 0.16637 | 0.11532 | 0.1155 | 2.0881 |
20 | 11.913 | 0.16719 | 0.1155 | 0.1155 | 2.0881 |
21 | 11.913 | 0.15317 | 0.11224 | 0.1155 | 2.0881 |
22 | 11.913 | 0.11079 | 0.094693 | 0.11385 | 2.0881 |
23 | 11.913 | 0.094914 | 0.056931 | 0.10948 | 2.0881 |
24 | 11.913 | 0.070825 | 0.04251 | 0.08379 | 2.0881 |

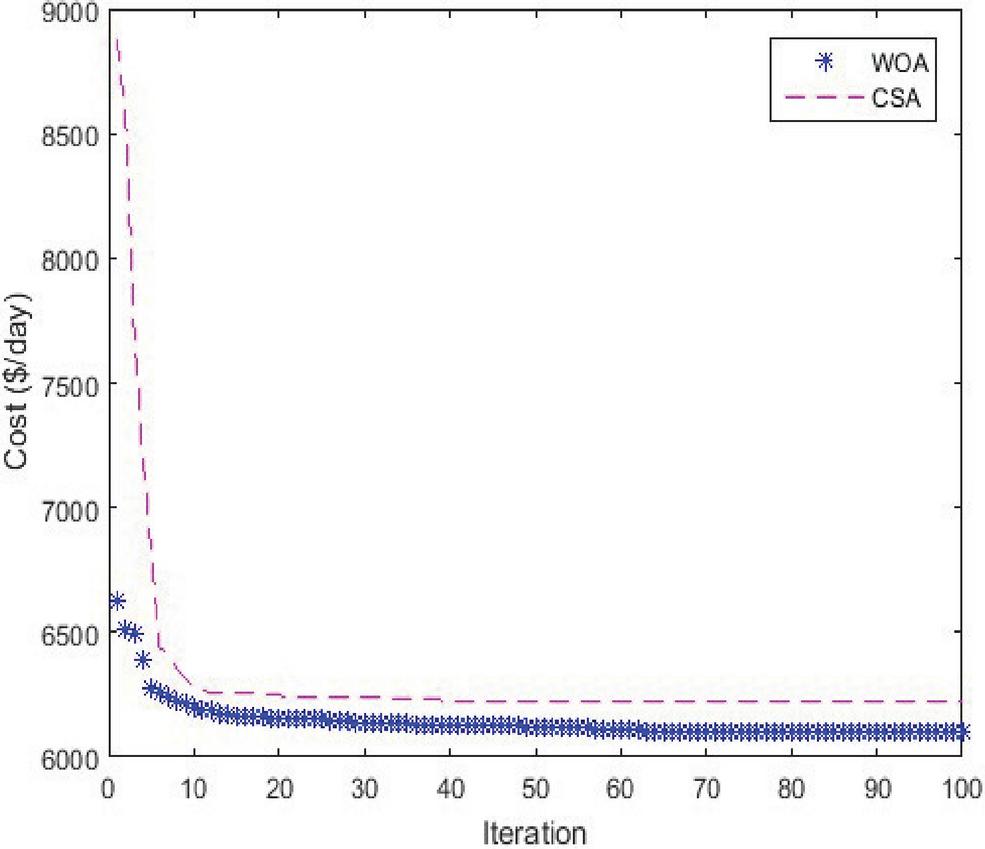

Table 16 Comparison of results with other optimization technique
Proposed Method | CSA | |||
Cost | Emission | Cost | Emission | |
Mode of Operations | ($/day) | (kg/day) | ($/day) | (kg/day) |
Autonomous mode | 313952.75 | 339.35 | 314218.44 | 340.55 |
Grid Tied mode | 318733.35 | 324.51 | 319245.98 | 327.19 |
Using weighting factors in | 312712.51 | 341.82 | 312726.65 | 342.56 |
autonomous mode |
In this paper, an optimal allocation of RES integrated CHP based micro-grid is considered and two main objective functions are investigated. The proposed objective functions are economic/environmental scheduling of the proposed micro-grid. The considered test system can be operated in both grid connected and autonomous mode. The considered test system consists of renewable and non-renewable sources such as one conventional power only unit, three combined heat and power units, one fuel cell unit and renewable units. Due to the problem complexity, non-convexity and non-linearity a novel optimization approach is used to find the optimum solution for this proposed problem. Simulation results obtained in autonomous mode including RES cost is 313952.75$/day compared with grid connected mode. The operation cost of RES integrated CHP based micro-grid in 318733.35$/day in comparison with autonomous mode. From the above conclusion the RES integrated CHP based MG in autonomous mode by integrating both RES and DER’s, electrical and heat demands are satisfied by RES, PO, CHP and FC units, this can lead to better scheduling of MG. The preference are given to RES is reduced both economic and environmental concerns. It is concluded, that the optimal scheduling of RES integrated CHP based micro-grid can be obtained in autonomous mode of operation. Similarly the better trade-off between the two objectives are achieved by using weighting factors w 0.5 and w 0.5 and the total operation cost and emission obtained in autonomous mode is 312712.51$/day and 341.82 kg/day respectively. Finally, the comparison of results obtained with Cuckoo Search Algorithm shows, the proposed WOA gives optimal results for multi-objective problems.
CSA | Cuckoo Search Algorithm |
CHP | Combined Heat and Power |
DER | Distributed Energy Resources |
FC | Fuel Cell |
MG | Micro-Grid |
PO | Power Only Unit |
PV | Photovoltaic |
RES | Renewable Energy Sources |
WOA | Whale Optimization Algorithm |
WT | Wind Turbine |
[1] M. Alipour, B. Mohammadi-Ivatloo and K. Zare, “Stochastic Scheduling of Renewable and CHP-based Microgrids”, IEEE Trans Ind Inf., vol. 11, no. 5, 2015, pp. 1049–1058.
[2] S. Abu-Sharkh, “Can Microgrids Make a Major Contribution to UK Energy Supply?”, Renew Sustain Energy Rev., 10(2), 2006, pp. 78–127.
[3] Y. Zhang, N. Gatsis and G.B. Giannakis, “Robust energy management for microgrids with high-penetration renewables”. IEEE Trans. Sustain. Energy 4(4), 2013, pp. 944–953.
[4] A. Rong, H. Hakonen and R. Lahdelma, “A Dynamic Regrouping Based Sequential Dynamic Programming Algorithm for Unit Commitment of Combined Heat and Power Systems”, Energy Convers. Manage, 50, 2009, pp. 1108–1115.
[5] Y. Wu, X. Wang, Y. Fu and Y. Xu, “Difference Brain Storm Optimization for Combined Heat and power Economic Dispatch”, International Conference in Swarm Intelligence, 2017, pp. 519–527.
[6] H.G. Karami, M.J. Sanjari, S.H. Hosseinian and G.B. Gharehpetian, “An Optimal Dispatch Algorithm for Managing Residential Distributed Energy Resources”, IEEE Trans., Smart Grid 5, 2014, pp. 2360–2367.
[7] E. Barklund, “Energy Management in Autonomous Microgrid using Stability-Constrained Droop Control of Inverters”, IEEE Trans Power Electron, 23(5), 2008, pp. 2346–2352.
[8] H. Kanchev, “Energy Management and Operational Planning of a Microgrid with a PV-based Active Generator for Smart Grid Applications”, IEEE Trans Ind Electron, 58(10), 2011, pp. 4583–4592.
[9] M. Alipour, K. Zare and B. Mohammadi-Ivatloo, “Short-term Scheduling of Combined Heat and Power Generation Units in the Presence of Demand Response Programs”, Energy, 71, 2014, pp. 289–301.
[10] M. Nazari-Heris, S. Abapour and B. Mohammadi-Ivatloo, “Optimal Economic Dispatch of FC-CHP Based Heat and Power Micro-grids”, Appl Therm Eng, 114, 2017a, pp. 756–769.
[11] HR. Abdolmohammadi and K. Ahad, “A Benders Decomposition Approach for a Combined Heat and Power Economic Dispatch”, Energy Convers Manag., 71, 2013, pp. 21–31.
[12] A. Rong and R. Lahdelma,“An Efficient Envelope-Based Branch and Bound Algorithm for Non-Convex Combined Heat and Power Production Planning”, Eur J Oper Re., 183(1), 2007, pp. 412–431.
[13] S. Mirjalili and A. Lewis,“The whale optimization algorithm”, Adv Eng Softw., 95, 2016, pp. 51–67.
[14] N. Augustine, S. Suresh, P. Moghe and K. Sheikh, “Economic Dispatch for a Microgrid Considering Renewable Energy Cost Functions”, IEEE PES innovative smart grid technologies (ISGT), Washington DC, 2012, pp. 1–7.
[15] M. Nazari-Heris, B. Mohammadi-Ivatloo and G. Gharehpetian, “A Comprehensive Review of Heuristic Optimization Algorithms for Optimal Combined Heat and Power Dispatch from Economic and Environmental Perspectives”, Renew. Sustain. Energy Rev., 81(2), 2018, pp. 2128–2143.
[16] A. Rezvani, “Environmental/Economic Scheduling of a Microgrid with Renewable Energy Resources”, J Clean Prod., 87, 2015, pp. 216–226.
S. Naveen Prakash was born in Thirukkalachery, Tamil Nadu, India, in 1995. He received his B.E. degree in Electrical and Electronics Engineering from Sir Issac Newton College of Engineering and Technology,Nagapattinam, Tamil Nadu, India, in 2016 and his M.E. degree in Power System Engineering from the Annamalai University, Annamalai Nagar, India, in 2018. He is the former IEEE Student Branch Vice-Chairman of Annamalai University, FEAT, Annamalai Nagar, India, during the academic year 2017–2018. He is currently pursuing his Ph.D. degree in Electrical Engineering at the Annamalai University, Annamalai Nagar, India. He has published 2 papers in International Conferences. His current research interests include distributed generation, microgrid, evolutionary algorithms and renewable energy systems.
N. Kumarappan received the Graduate degree from Madurai Kamaraj University, Tamil Nadu, India in 1982, the Post-Graduate degree from Annamalai University, Annamalai Nagar, India in 1989 and the Ph.D. degree from CEG Anna University, Tamil Nadu, India in 2004 under QIP fellowship AICTE, India. He is the former head of the department and currently a Professor with the Department of Electrical Engineering, Faculty of Engineering and Technology, Annamalai University. He is having 33 years of experience to his credit as an educator and researcher. He has published more than 130 international journal and conference papers. He was the outstanding reviewer for the Elsevier international journal of electric power and energy system 2015. He is an IEEE Madras Section Chairman, IEEE CIS Madras Chapter Chair and a Coordinator for more than 100 IEEE Madras Section organized FDP, Workshop, tech meet and TISP programs etc. He was the recipient of the IEEE-NNS Outstanding Paper Travel Grant Award, Australia 2002, IEEE-WCCI Outstanding Paper Travel Grant Award, Canada 2016, the IEEE PES Student Program Award, USA 2003 and IEEE CIS Madras Chapter Best Chapter Award 2017. He was also a recipient of best researcher award, Annamalai University, 2018. His current research interests include power system operation and control, electricity price forecasting, EHV transmission fault diagnosis, FACTS devices, power system reliability, artificial intelligence techniques, micro grid, distributed generation and smart grid. Dr. Kumarappan is a Life Fellow of the Institution of Engineer’s (India) and a Life Member of the Indian Society of Technical Education.
Distributed Generation & Alternative Energy Journal, Vol. 37_5, 1433–1460.
doi: 10.13052/dgaej2156-3306.3757
© 2022 River Publishers
