Magnetic Coupling Characteristics and Efficiency Analysis of Spiral Magnetic Power Pads for Inductive WPT System

Dharavath Kishan

E-mobility research laboratory, Dept. of Electrical and Electronics Engineering, National Institute of Technology Karnataka, Surathkal, India
E-mail: kishand@nitk.edu.in

Received 18 October 2021; Accepted 02 April 2022; Publication 24 June 2022

Abstract

The inductive wireless power transfer system (IWPT) for electric vehicle battery charging works based on the principle of mutual induction (MI). The amount of power transfer from source to vehicle battery be contingent on the mutual inductance (MI) within the inductively coupled pads. This mutual inductance depends on the type of the inductive power pads, the distance among them, their positioning etc. This paper develops and study the inductive coupling characteristics of identical spiral circular and square inductive power pads. The coupling characteristics at various misalignments with different vertical distance between the coils is presented. In this work, the inductive power pads without using ferrite bars, and with ferrite bars are considered. The coupling characteristics of the spiral circular and square are computed using FEM simulations and validated with experimental results. This paper also investigated the power loss and efficiency analysis of the spiral inductive pads of the resonant IWPT system.

Keywords: Electric vehicles, inductive wireless power transfer, magnetic power pads, mutual inductance.

1 Introduction

The popularity of electric vehicles (EVs) have increased since last decade due to their environmental friendliness, efficiency and reduced noise [1, 2]. Battery pack are crucial components in these vehicles and the battery packs can be charged using on-board or off board chargers that can be powered by wired/ and wireless connections. Wired connection chargers known as conductive chargers require heavy gauge cables which may be inconvenient and has potential risk hazards [3, 4]. In wireless battery charger based on inductive coupling, the energy can transfer without any physical connection over medium range distances. This type of chargers are convenient, safe and finds it use in automotive, robotics, medical implantable devices and aerospace [2–4].

In the IWPT system, the power transfer takes place between the source to load through high frequency magnetic field. The magnetic field is generated with the help of magnetic power pads which are called as transmitter (TxP) and receiver Pad (RxP). The magnitude of power transfer capability will depend on mutual inductance between magnetic power pads [5–8]. The MI will be affected due to shape and alignment of the inductive power pads of the IWPT systems. Hence, the estimation of MI is important factor in the design of IWPT system. In this perception, few authors have established a mathematical equation [8–10] and Grover’s equation [11–14] to compute the MI between the inductive power pads with all type of alignments. In [15], the author has anticipated an integral equation for estimation of MI. In [16] roman et al. proposed a mathematical method to compute magnetic flux produced by the inductive power pads in the IWPT system. In [17, 18], vector potential method is developed to compute MI between inductive pad with alignments. Furthermore, in [19–21], used 3-D field method with arbitrary spatial distribution is used to compute MI flanked by inductive power pads.

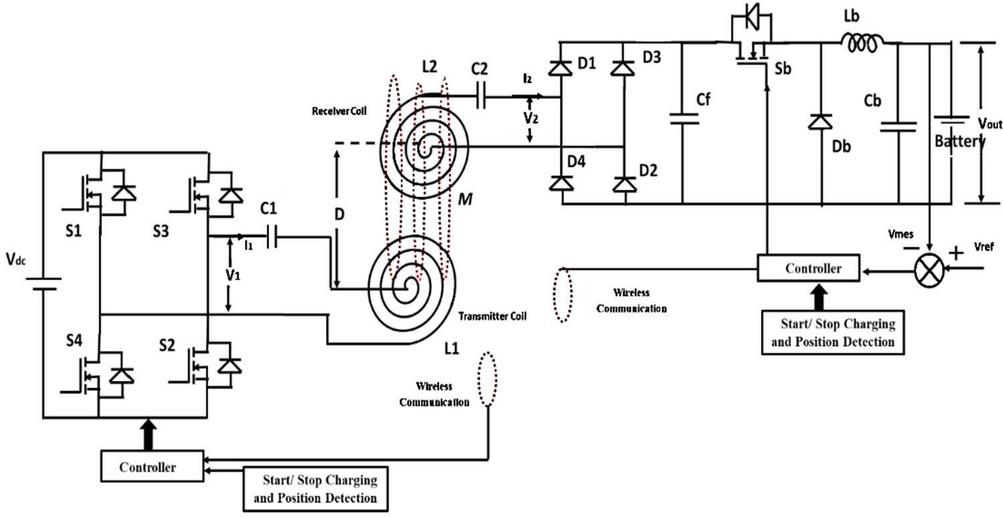

Figure 1 Graphical representation of resonant inductive WPT system.

The mutual inductance estimation between the square type inductive pads, assumes that square inductive pads as circular ones whose dimensions is equal to the sides of the equivalent square inductive pads. The MI for square structure is derived by multiplying MI of circular coil with (4/ $π$ ) $^{2}$ [17]. When EV is at zero misalignment position i.e., receiver and transmitter inductive power pads are at same axis position, the circular structure provides good MI results, but in case of misalignment as the planar (horizontal movement of any pad) and angular (tilted angle movement of receiver pad) it will give reduced MI. The square inductive pads provide good MI results than circular inductive pads [22–24]. All these literatures require complex computations and time-consuming process. Hence, this paper investigates the mutual inductance analysis for spiral circular and square inductive pads using FEM simulations and computed results are compared with experimental results. The schematic diagram of the IWPT of the system is shown in Figure 1.

This paper is organized as follows: the essential characteristics and mathematical modeling of the resonant IWPT system are described in Section 2. Section 3 gives FEM modelling of the IWPT inductive pads and Results obtained of mutual inductance are elaborated. Section 4 provides the analytical equations for the computation of the losses in IWPT system and experimental implementation losses, power transfer efficiency analysis is presented. Finally, the conclusion is given in Section 5.

2 Modeling of the Resonant IPT Inductive Pads

The circuit model of the IWPT system is like to the conservative transformer. Using the corresponding circuit model, as shown in Figure 2, the mathematical modelling equations of IWPT can be obtained. Assume that the transmitter is energised with alternating voltage and current under the steady-state condition. The transmitter inductive power pad parameters are R $_{1}$ (resistance), L $_{1}$ (inductance), and V $_{1}$ (inverter output voltage), I $_{1}$ (current) and of the transmitter inductive power pad parameters are R $_{2}$ (resistance), L $_{2}$ (inductance), and I $_{2}$ (current). The induced voltages in the transmitter and receiver power pads are given by

$V_{1} = j ω L_{1} I_{1} + R_{1} I_{1} - j ω M I_{2}$	(1)
$j ω M I_{1} = j ω L_{2} I_{2} + R_{2} I_{2} + R_{L} I_{2}$	(2)

The receiver coil current ( $I_{2}$ ) obtained as

I_{2} = \frac{j ω M I_{1}}{Z_{2}}

(3)

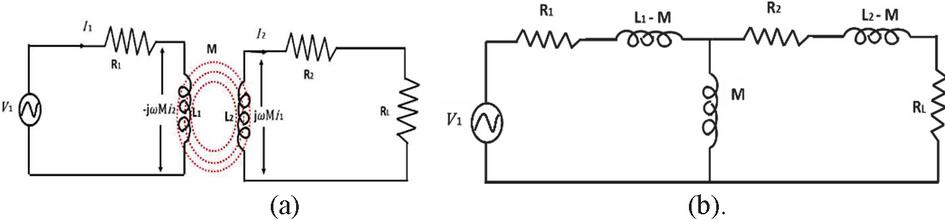

Figure 2 The IWPT system’s equivalent circuit model (a). Circuit with coupled coils (b). T corresponding circuit.

Where Z ${}_{2}= j ω L_{2} + R_{2} + R_{L}$ , which is the total impedance of the receiver coil and load.

$V_{1} = j ω L_{1} I_{1} + R_{1} I_{1} + I_{1} (\frac{ω^{2} M^{2}}{Z_{2}})$	(4)
$Load power = R_{L} \| I_{2}^{2} \| = R_{L} {(\frac{j ω M I_{1}}{Z_{2}})}^{2}$	(5)
$Apparent input power = {\| j ω L_{1} + R_{1} \| + (\frac{ω^{2} M^{2}}{Z_{2}})} \| I_{1}^{2} \|$	(6)
$η = (\frac{ω^{2} M^{2} R_{L}}{ω^{2} M^{2} (R_{L} + R_{2}) + R_{1} {(R_{L} + R_{2})}^{2} + {(ω L_{2})}^{2}})$	(7)

From the above efficiency Equation (7) it is clear that, it will higher if the mutual inductance is high and hence, the MI play a key role.

2.1 Inductive Coil Modelling for IWPT System

The design and modelling of the inductive power pads is important because the inductive pad structures are difficult to modify once built and the typical representation of the spiral coils are shown in Figure 3. This section contains systematic equations for estimating electrical parameters inductive coils such as self-inductance and resistance. The coil design process begins with identifying the internal diameter of the coil (D $_{in}$ ). The number of turns and inner radius of the inductive pads are randomly chosen in this work.

2.2 Self-Inductance and Resistance Computation

Inductance is a proportion of the magnetic field’s circulation nearby a current carrying conductor. The inductors come in a diversity of shapes and sizes. Spiral coils were used in this work for the IWPT system. The self-inductance [14–16] is calculated using the following equations.

$L_{c} (μ H) = \frac{N^{2} R 2}{(8 R + 11 W)}$	(8)
$L_{s q} = \frac{2 μ N^{2} P}{π} (\ln (\frac{2.067}{Q}) + 0.17 Q + 0.125 Q^{2})$	(9)

Where,

R $=$ P $=$ 0.5 $(r_{o u t} + r_{i n})$ $=$ Mean radius of the spiral circular inductive power pad,

Q $=$ $\frac{(r_{o u t} - r_{i n})}{(r_{o u t} + r_{i n})}$ $=$ Mean radius of the spiral square inductive power pad,

W $=$ $(r_{o u t} - r_{i n})$ $=$ Depth of the spiral inductive power pad.

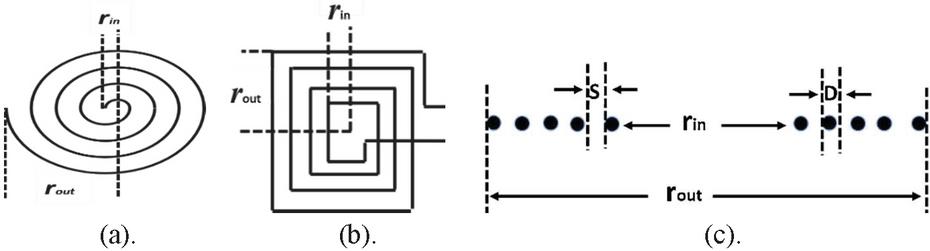

Figure 3 Depiction of a circular spiral inductive power pads, (a). Circular spiral inductive power pad, (b) Spiral square inductive power pad, (c). A cross-sectional view of inductive power pad.

The inner resistance of the inductive power pad is the cause of losses in the IWPT system’s inductive power pads. When a conductor is provided through a high-frequency excitation, it causes the eddy current effect, skin and, proximity effects which introduces DC and AC resistance. The DC and AC resistance of the inductive power pad can be calculated by the following equations [18, 19].

$R_{d c} = \frac{4 ρ_{c} l_{t o t}}{π n d_{s}^{2}}$	(10)
$R_{a c} = \frac{384 (8 π f 10^{- 7}) R_{d c}^{3}}{{({(8 π f 10^{- 7})}^{2} + R_{d c}^{2})}^{2}}$	(11)

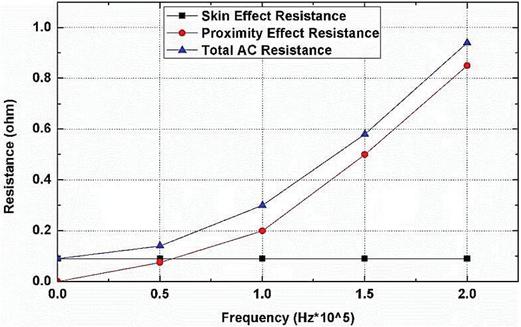

Figure 4 Litz wire AC resistance, skin effect, and proximity effect [14].

The circular spiral coil’s total length is given by $1 = π N (r_{o u t} + r_{i n})$ . Where r $_{in}$ and r $_{o}$ are the inner and outer radius of the spiral circular inductive power pad.

$r_{o u t} (\max)$	$= r_{i n} + N * (D + S)$	(12)
$r_{o u t} (\min)$	$= r_{i n} + N * D$	(13)

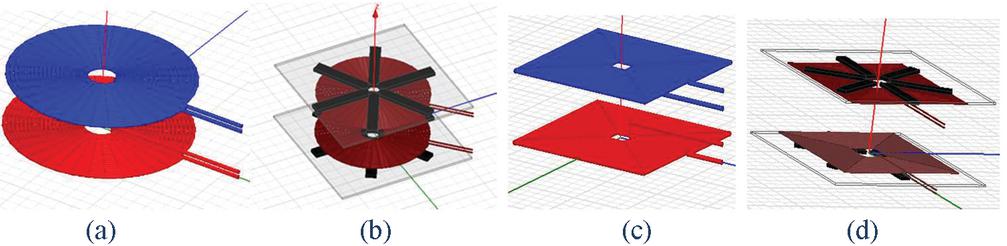

Figure 5 FEM simulation inductive pad setups, (a). Spiral circular inductive power pads without core, (b). Spiral circular inductive power pads with core and chassis, (c). Spiral square inductive power pads without core, (b). Spiral square inductive power pads with core and chassis.

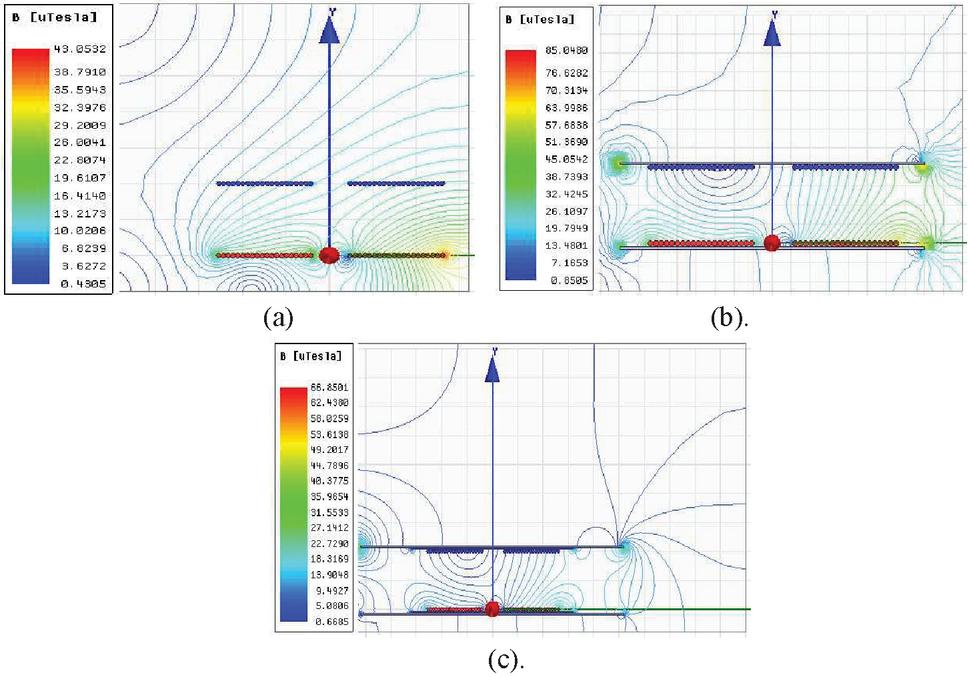

Figure 6 Magnetic flux density delivery among the inductive power pads at 100 mm distance with perfect alignment, (a) With Ferrite core, (b) With Ferrite core and chassis.

3 Investigation of Mutual Inductance Of The Inductive Pads

3.1 Mutual Inductance of the Inductive Pads Using FEM

ANSYS Maxwell 14.0.0 3-D FEM tool has been used for computing the MI between the inductive power pads and all the imitations are performed in 2-D modelling. The inductive power pad setups established in the FEM simulation is exposed in Figure 5. The magnetic flux intensity lines at different distances are given in the following figures. The Figure 6. depicts the flux density circulation among the spiral circular inductively inductive power pads at 100 mm vertical distance for different misalignments conditions. The Figure 6(a) provides magnetic flux density delivery between the spiral circular inductive pads without any core, similarly Figure 6(b), and 6(c) shows with core, with core & steel chassis, respectively. It observed that the receiver inductive power pad moves away from the transmitter inductive power pad, the flux linkages will decrease as a consequence there will be reduction in MI.

3.2 Experimental Investigation of Mutual Inductance

The experimental arrangement given in Figure 7, is established for validating the MI. It consists of circular spiral inductive power pads, an Arduino microcontroller, and a MOSFET H-bridge inverter. The circular spiral coils are made up of 0.1 mm/1500 strands Litz wire and manually created misalignments of the spiral circular inductive power pads. The inverter converts DC into High-frequency (HF) AC which is fed to the inductive power pads. The open-circuit voltage (OCV) of the receiver inductive power pad at several positions are measured. The mutual inductance is calculated from the OCV [26], and it is given in Equation (15).

M I = \frac{V_{2 o c}}{ω M I_{1}}

(14)

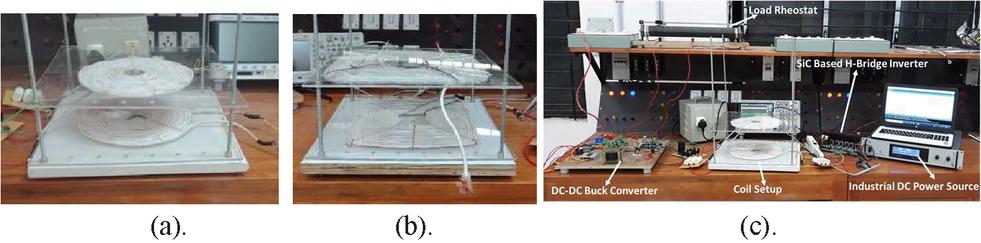

Figure 7 Experimental laboratory model, (a). Validated setup for WIPT system, (b). Spiral circular inductive pad setup, (c). Spiral square inductive pad setup.

3.3 Mutual Inductance Analysis

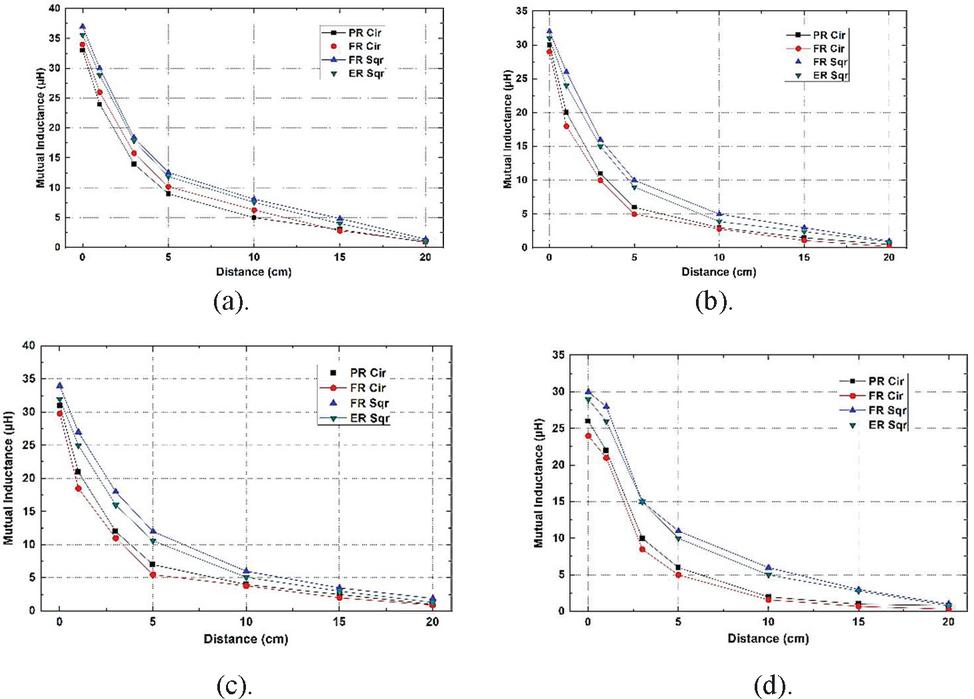

The MI values are graphically denoted in Figure 8 for all possible positions without core environment. Hereby taking the vertical distance (VD) as a parameter, the MI values are analyzed for all misalignments of the inductive power pads. The VD is speckled from 0 to 200 mm. From Figure 8 the Mutual inductance is high in spiral square pads compare to spiral circular pads in all misalignment conditions. Tables 1 and 2 provides the MI values of spiral circular and spiral square inductive pads with core at various angular misalignments (AM) depict for the inductive pads. The results FR indicates the finite element modelling values, and ER presents the experimental values.

Figure 8 Mutual inductance without core (a). 0 mm horizontal misalignment, (b). 50 mm horizontal misalignment, (c). 15 $^{\circ}$ angular misalignment, (d). 45 $^{\circ}$ angular misalignment.

Table 1 MI Values at 0 mm horizontal misalignment with ferrite core for spiral square pads

	0 mm Horizontal Misalignment
Vertical	AM (0 $^{\circ}$ )	AM (15 $^{\circ}$ )	AM (30 $^{\circ}$ )	AM (45 $^{\circ}$ )
Distance (mm)	FER	ER	FER	ER	FER	ER	FER	ER
25	56.26	53.23	52.27	50.05	51.21	48.45	47.15	45.85
50	53.41	51.05	51.13	48.12	48.29	45.43	45.21	42.65
75	50.89	47.71	48.01	45.47	45.53	42.82	41.54	38.12
100	40.89	37.61	35.32	32.47	33.68	31.32	28.78	24.98
125	28.65	26.21	25.14	23.65	22.56	21.41	19.29	16.56
150	23.53	20.24	19.45	16.55	17.12	14.78	11.89	8.12
175	20.47	17.45	15.13	13.65	12.59	10.54	8.86	6.67
200	17.21	15.78	14.10	11.28	10.57	9.23	7.41	5.30

Table 2 MI Values at 0 mm horizontal misalignment with ferrite core for spiral circular pads

	0 mm Horizontal Misalignment
Vertical	AM (0 $^{\circ}$ )	AM (15 $^{\circ}$ )	AM (30 $^{\circ}$ )	AM (45 $^{\circ}$ )
Distance (mm)	FER	ER	FER	ER	FER	ER	FER	ER
25	53.32	52.12	50.45	48.63	47.23	44.51	43.12	38.74
50	52.54	49.55	48.65	45.34	44.12	41.61	40.43	35.40
75	49.41	46.49	46.11	43.51	42.31	39.14	37.84	33.24
100	39.65	36.65	35.12	32.54	30.44	27.43	26.78	23.75
125	27.56	24.85	23.14	20.41	18.65	15.44	14.55	12.44
150	22.54	19.57	17.56	14.57	13.74	10.54	9.44	7.64
175	20.14	17.84	16.77	12.22	12.45	8.27	7.37	5.22
200	17.73	15.22	14.31	11.47	10.54	7.41	6.46	4.11

4 Losses in Series/Series Resonant IWPT System

4.1 Power Converter Losses

The power loss in the resonant IPT system consist of loss due to high frequency (HF) inverter coil loss, DC-DC converter and diode bridge rectifier loss. The HF inverter switches produce conduction and switching losses during its operation. The analytical calculation of the inverter MOSFET switch conduction and switching losses can be computed using Equations (15) and (16) respectively. The body diode of the MOSFET also products reverse recovery losses (P $_{rr}$ ) and conduction losses (P $_{CD}$ ), their respective equations are given in Equations (17) and (18).

$P_{C m o s} = I_{m o s}^{2} r_{d s o n}$	(15)
$P_{s w} = \frac{1}{2} I_{m o s o f f} (t_{r i} + t_{f u}) V_{s w} f_{s w}$	(16)
$P_{C D} = V_{f} I_{D R M S}$	(17)
$P_{r r} = \frac{1}{4} Q_{r r} V_{d c} f_{s w}$	(18)

Where, $I_{m o s}$ is RMS value of the MOSFET forward current, $I_{m o s o f f}$ is the MOSFET current while turn off, $r_{d s o n}$ is MOSFET drain to source ON state resistance. In the operation of high-frequency inverter for cycle two MOSFET conduct at a time. Hence, the total MOSFET losses can be calculated as:

P_{t o t a l} = 2 (P_{C m o s} + P_{s w} + P_{C D} + P_{r r})

(19)

The receiver side of the resonant IWPT system consists of a diode bridge and DC-DC buck converter; hence these two converters produce losses. The diode bridge rectifier produces reverse recovery and conduction loss. The reverse recovery losses will be zero because the diodes will be turned ON and OFF at zero current. The conduction losses of the rectifier are given by Equation (20)

P_{r e c t} = V_{f r} I_{r e c t}

(20)

where I $_{rect}$ is the current flowing through diodes and V $_{fr}$ is the forward voltage drop across the diode.

The losses in the DC-DC buck converter are the sum of loss in the inductor and semiconductor switch loss.

$P_{b u c k}$	$= P_{C} + P_{S} + P_{L} + P_{c o r e L}$
	$= I_{b m o s}^{2} r_{d s o n} + \frac{1}{2} I_{b m o s o f f} (t_{r i} + t_{f u}) V_{s w} f_{s w} + Q_{r r} V_{d c} f_{s w}$
	$+ \frac{1}{2} I_{B m o s o f f} (t_{r u} + t_{f i}) + \frac{1}{4} Q_{r r} V_{d c} f_{s w} + I_{L b u c k}^{2} r_{d s o n}$	(21)

4.2 Inductive Pad (Coil) Losses

Three different losses occur in inductive pads such as skin effect losses, Proximity losses and core losses. The system’s operating frequency is in the kHz range. The skin effect becomes noticeable at these frequencies, and hence the losses can be computed calculated using following equations,

$P_{s k i n} = n R_{d c} k (f_{o}) {(\frac{\hat{I}}{n})}^{2}$	(22)
$P_{p} = R_{d c} k_{p} (f_{o}) \hat{H_{e}^{2}}$	(23)
$P_{c o r e} = k f_{o}^{α} B^{β}$	(24)

where H $_{e}$ is the peak value of the magnetic field and k, $α$ , $β$ are the Steinmetz parameters of the core material.

4.3 Loss Analysis in Experimental Resonant IWPT System

The total loss in the series resonant IWPT system is calculated by measuring power at each stage of the system. Figure 9 provides total losses of the system at different losses, and from the figure, it is clear that as misalignment distance increases total power losses in the system increases hence, which results in the reduction of the overall efficiency of the system. Figures 9(a) and 9(b) shows the series IWPT system losses at spiral circular and square structure, respectively.

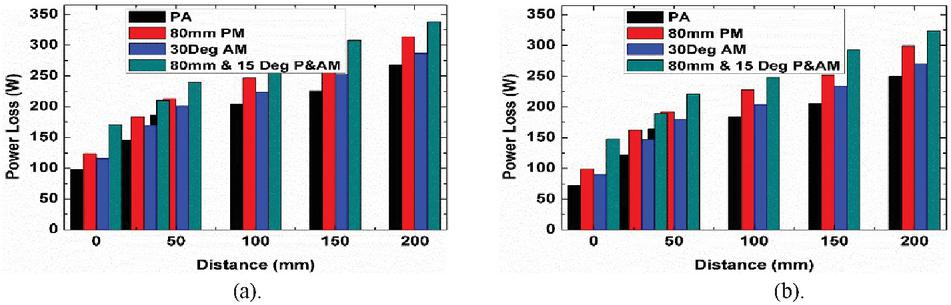

Figure 9 Bar diagram loss analysis of the resonant IWPT system with different misalignment, (a) circular structure, (b) square structure.

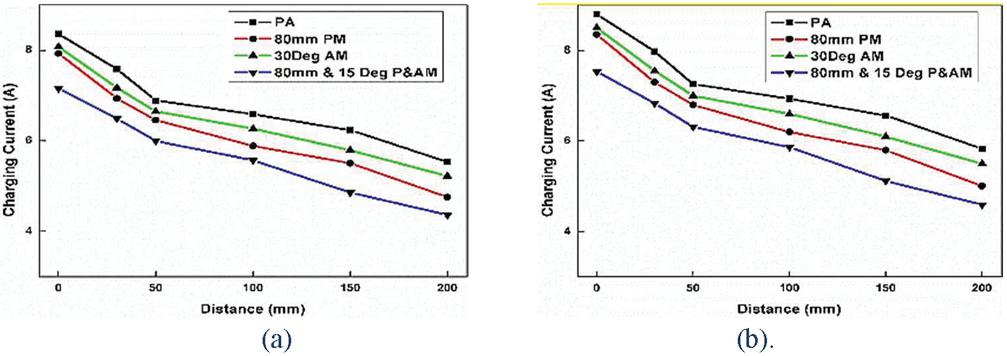

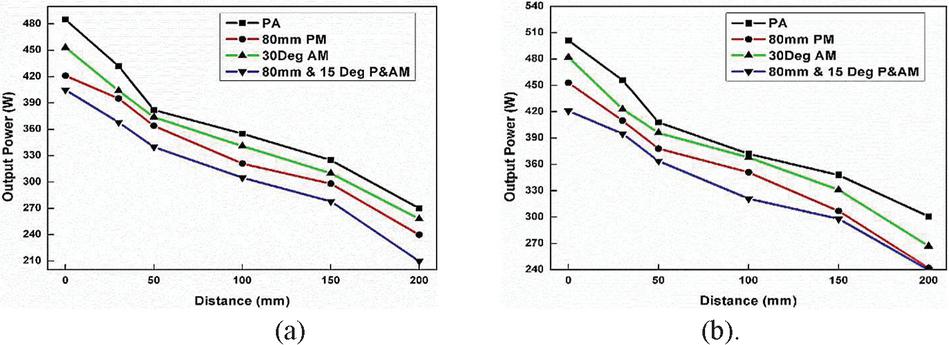

Figure 10 Series resonant IWPT battery charging current at different misalignment, (a) circular structure, (b) square structure.

Figure 11 Series resonant IWPT battery charging power at different misalignment, (a) circular structure, (b) square structure.

4.4 Analysis of Battery Charging Voltage, Current and Overall System Efficiency

The output battery charging voltage is maintained at a constant 60 volts. The current and power analysis of the series resonant IWPT system is shown in Figures 10 and 11, respectively. It is clear that at perfect alignment, the system is supplying the charging current with square coupled inductive power pad to the battery is 8.6 A. The output power at different misalignments of the system is presented in Figure 10. The overall system efficiency is shown in Figure 12. However, the prototype system was built, as proof of concept, using comparatively at low output, input voltages. Subsequently, the efficiency that was achieved in the sample system is quite low. The measured overall DC-DC efficiency of the proposed system at different misalignments and different vertical displacement condition is shown in Figures 12(a) and 12(b) respectively for circular and square structures. Figure 13 shows the individual components and over the efficiency of the series resonant IWPT system at 100 mm vertical distance and perfectly aligned square inductive coupled coils of the system.

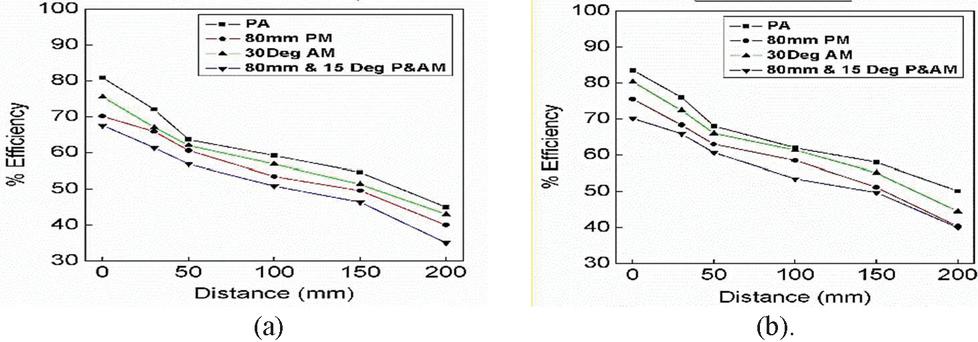

Figure 12 Overall efficiency (DC-DC) vs distance between the coupled coils with different misalignments at, (a) circular structure, (b) square structure.

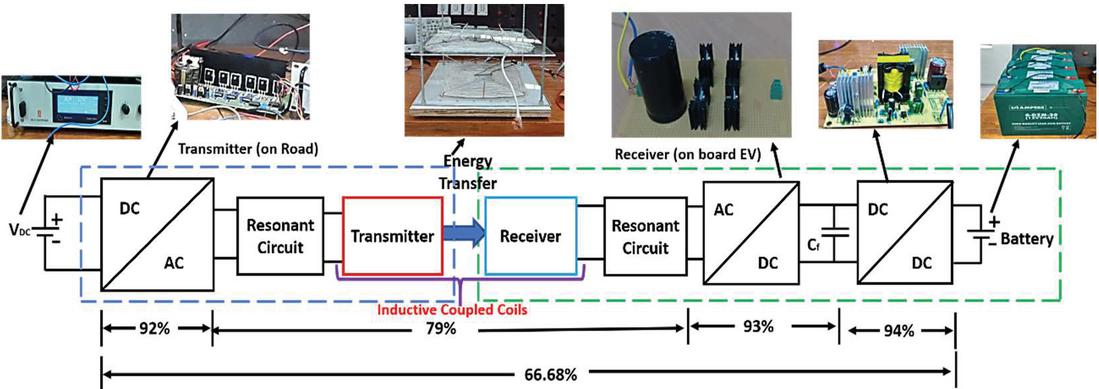

Figure 13 Representation of the overall efficiency (DC-DC) of series resonant IWPT system at 100 mm vertical distance 0 mm horizontal alignment with square structure.

Table 3 Parameters of the system

Parameter		Specification
Number of turns	Circular Coil	20
Coil Diameter		26 cm
Inner Radius of the coil		4 cm
Conductor Diameter		0.55 cm
Self-inductance of circular coil		56.46 $μ$ H
Internal Resistance of circular coil		0.4 $Ω$
Number of turns	Square Coil	20
Inner Length		4 cm
Conductor Radius		0.55 cm
Self-inductance of square coil		80.05 $μ$ H
Internal Resistance of square coil		0.321 $Ω$

5 Conclusions

The implementation of series resonant IWPT system with the circular and square structure for EV battery charging is analyzed. The coupling characteristics of spiral circular and square inductive pads of the system are investigated. The battery charging current and battery charging power at different misalignments are described, and the power loss analysis of the resonant IWPT system is also provided. From the analysis, it is vibrant that the movements between the coil increases the charging current decreases which results in a reduction of charging power, hence the charging time of the battery increases.
