Research on Supervision System of Power Safety Tools and Equipment Based on Internet of Things Technology

Ping He¹, Zhengyi Zhu¹, Xuyan Wang¹, Can Zhang¹, Wei Yuan¹ and Junhua Hao^2,*

¹State Grid Nanjing Power Supply Company, Nanjing 210019, Jiangsu, China
²Yijiahe Technology Co., Ltd, Nanjing 210012, China
E-mail: 80096757@qq.com; 723499614@qq.com; zhouye521630@163.com; zhangcan1013@126.com; 2667467624@qq.com; junhuahao1245@outlook.com
*Corresponding Author

Received 10 December 2021; Accepted 20 January 2022; Publication 16 May 2023

Abstract

A power-system protection device built using Internet-of-Things (IoT) technologies in an intelligent environment. IoT supports electrical and physical parameters monitoring. One of the characteristics that must be checked is electricity usage from electronic gadgets. It is a complex problem to design energy-efficient IoT methods. IoT gets more complicated because of its vast size, and current wireless sensor network approaches cannot be used directly to IoT. Information gathering on the area is monitored by intelligent cellular terminals, intelligent security tools, and other multi-source sensing equipment. That is the foundation for the combined analysis and evaluation of security risk extensive data by cloud computing and edge computing. The IoT-based Power safety tools management (IoT-PSTM) system has been developed to integrate it into intelligent settings, such as smart homes or smart cities, to safeguard electrical equipment. It is meant to increase power security by quickly disconnecting in failure events such as leaking current. The system allows for real-time monitoring and alerting of events using a sophisticated data-concentration architecture communication interface. The goal is to progress and merge several technologies technically and integrate them into a personal safety system to increase security, preserve their availability, eliminate mistakes, and reduce the time required for scheduled or ad hoc interventions. Real-time data transmission, instant data processing from diverse sources, local intelligence in low-power embedded systems, interaction with many on-site users, sophisticated user interfaces, portability, and wearability are the main difficulties for the research project. This article offers a comprehensive explanation of the design and execution of the proposed system and the test findings. The results denote the higher performance of the suggested IoT-PSTM system with IoT module and enhanced performance of 94.7%.

Keywords: Power safety, IoT, equipment, electrical system, cloud computing.

1 Introduction to Power Safety Tool Management

Policy and execution of risk assessment reduce and eliminate fatal and not-fatal risks in various contexts [1]. The clamor for null loss time injuries, deaths, and financial losses companies need, through increased Health, Security and Environmental processes (HSE), for attracting and retaining small- too big contracts [2, 3]. It is much more than always a fundamental component to initiate and accomplish any small to large manufacturing project. The requirement for comprehensive calculation has become crucial due to increased accounting for avoidable HSE deaths worldwide [4]. Measuring performance can be accomplished by using performance indicators, also known as KPIs. Using key performance indicators (KPIs), one may determine whether or not a company or a particular activity is succeeding. KPIs can be used to define goals and monitor progress toward those goals, which is a key part of managing these metrics. With KPIs, it’s common for managers to focus on improving leading indicators that will lead to lagging benefits in the long run. Leading indicators point to the organization’s potential for success in the future while lagging indications demonstrate its track record of attaining goals.

Economic management and review integrate electronic, architectural, technology, processes, and personnel with techniques and software to construct a technology to manage and track progress in industrial operations to optimize profits for an ideally safe workplace [5, 6]. Lately, the emergence of the COVID-19 pandemic has enhanced health and safety precautions via new forms of contact and connection for people, machinery, and data [7]. The differentiated protection system can also be implemented with a simple LED circuit to monitor current flow. However, all real data handlings are done on the core microcontroller chip. Once the sensor data have been gathered, it looks for any data overflow.

IoT diverse processes, gadgets, and platforms can converge. The word ‘things’ includes physical items and non-physical objects such as equipment, animal/humanity, and sensor readings [8]. Automation enables damage to equipment, procedure failures, and human mistakes to maximize and remove them from operations using Internet of things methods and optimization algorithms [9, 10]. Since 2001 global system for mobile (GSM) in Nigeria has been gradually used, giving rise to expanding the nation’s cellular connections and services, offering several chances to deploy IoT-based solutions [11]. Qualitative data revealed that inadequate infrastructure, government policy inconsistency, high import levies and various taxes, land disputes, vandalism, security, and unhealthy competition hampered GSM carriers’ potential to provide high-quality services at reasonable prices.

Such established methods have simplified interaction and are possible in many country regions by efficient industrial output and aggressive security and management. Such uses Industrial internet of things in industry, transit, schools, global health, and other activities are quickly employed [12, 13]. A significant element of the power plant is a sub-station. A standard sub-station comprises several machinery items such as inverters, interrupters, relays, flares, converters, isolators, condensers, and so forth [14]. Using Internet of Things technologies and optimization algorithms, automation maximises and eliminates damage to equipment, procedure failures, and human errors. IoT-based solutions can now be implemented in Nigeria because of the steady adoption of the global system for mobile (GSM), which has resulted in an increase in cellular connections and services.

Sub-station is the mounting of devices for changes in specific characteristics of electrical supply such as voltages AC to DC, amplitude, speed, power density, etc. The sub-stations are often manually watched and operated or through costly programmable logical control (PLC) and SCADA systems, requiring more work and significant maintenance costs [15]. Under traditional transformer security, the relief typically needs pilot wires, which entails higher capital costs and an abrupt stoppage of the relaying operations, particularly distribution transformers [16].

The Internet-of-things surveillance and management sub-stations represent a possible solution with a fully autonomous system to overcome the drawbacks listed, assuring a higher degree of dependability with more efficient use of devices, thereby increasing system efficiency [17, 18]. In brief, IoT is made of ‘internet’ or ‘items’ where ‘items’ relate to any gadget based on the Internet. The Web refers to the interconnection of interconnected data transfers, the ability to move and manipulate items, animals, or humans with identification, and the capacity to transmit information over a public with no humans or human communication [19, 20].

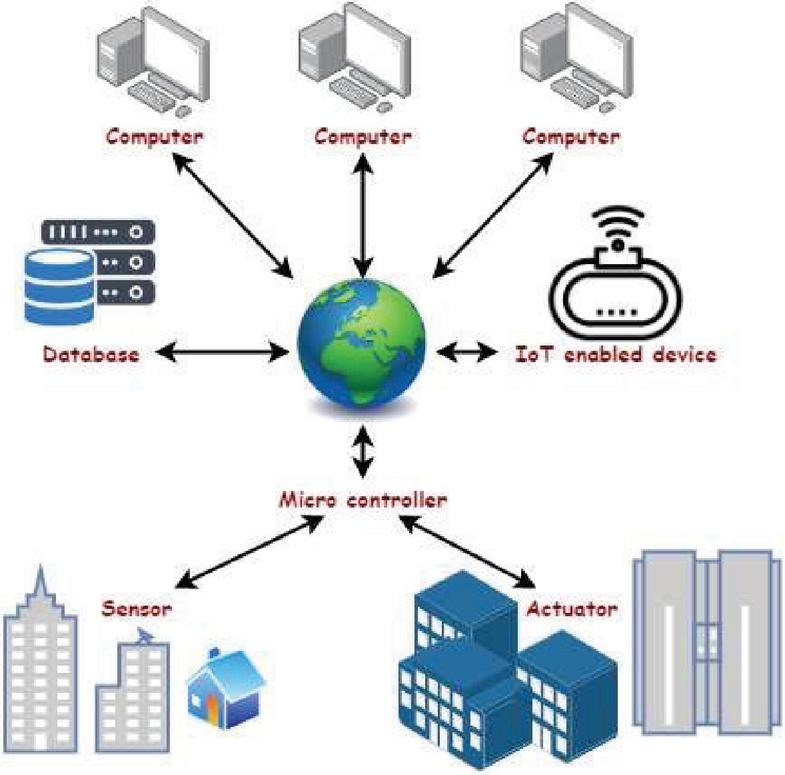

Figure 1 Overview of power safety management.

The study’s primary goal is to build a fully autonomous Internet-of-things sub-station. Related hardware can only be secured, inspected, and operated at very cheap costs by authorized staff from anywhere globally. When building an intelligent sub-station structure, the main issues include the reliability and reductions of the workforce utilizing IoT technologies. From the above Figure 1 supervisory systems monitor and track data from manufacturing processes and physical installations. Sensors and actuators, a communication network, and remote and central monitoring stations are all part of a supervisory system’s physical setup. An important part of the Internet of Things (IoT) energy management is analysing and monitoring energy consumption patterns across various sectors. The rest of the research is as follows: Section 2 illustrates the background to the power tool management tools. The proposed IoT-based Power safety tools management (IoT-PSTM) system is designed and analyzed in Section 3. The software analysis and performance are depicted in Section 4. Section 5 enumerates the conclusion and future scope.

2 Background to the Power Safety Management Tools

Many studies and actual progress in IoT technologies were linked to power industry infrastructures during the last decade. Several significant cloud computing studies were summarised in this article. Modern applications for power production and domestic electricity billing systems were developed globally in the smart meter [21]. Much research on energy crisis improvement has been done by renewable electricity in the energy industry.

Scholars further show that numerous IoT-based gadgets have been created for electricity conservation and management. The development of an intelligent electricity network from isolated places was also envisaged in IoT technology. In addition, IoT technology was being suggested to improve and regulate the system’s alternative power [22]. Websites, power usage, and IoT network-based charge surveillance of current lines necessary to activate and load forecasts were more prominent every day. Automating transformer and electrical devices surveillance systems using the Concept of the Internet of things from a faraway place was also a widespread issue.

The authors sought to address the continuous assessment of the surroundings’ temperatures, moisture, and absorption. Hashim et al. suggested an IoT – enabled electricity distribution grid architecture for performance monitoring and alert system [23]. The design displayed supervising points for the department of environment heat, water, and aquatic systems data records for transmission lines, like real-time surveillance of allocation network systems, early alert system and automatic emergency and thievery discovering by implementing door magnet sensors at controls including a cable station, a cable deck, a ring connectivity enclosure, a transfer sensor [24]. Supervisory systems can monitor and track information from manufacturing processes and physical installations. Remote and central monitoring stations and sensors and actuators make up the physical infrastructure of a supervisory system.

Li et al. developed a concept to create a distribution-lines surveillance network system based on the IoT [25]. In the meantime, the communication protocol was optimized by applying low-cost control, including taking care of the low energy requirements of the node devices. Marten et al. created an Internet-based model of the self-management power structure distribution and conversion equipment [26]. It contained problematic electric device alarms, extensive equipment diagnostics, and electrical wiring lifetime assessments.

A SCADA system had been created by the creator(s) to require control of customer use, error handling, energy quality standards, and pole transformers’ condition [27]. It was coupled with fog enabling electricity distribution automation. The fog computing of actual streaming analyses supports this. That reduced the throughput and delay for instant control action. Further research was done by Rafique et al. in charge of regulating home devices and designed for elderly individuals in a connected home medical system [28]. The study was taken in four Asian nations on 252 older individuals over 50.

The analysis of this topic involved the modeling of Structural Equilibrium from the lowest incomplete square. The premise of this research was the development and exploration of future geriatric IoT technologies. Mao et al. used sensor modules and intelligent packaging as IoT systems to build the telemedicine system for service efficiency [29]. The research evaluated the range and the structure of healthcare IoT devices. Hayakawa et al. suggested connecting with an intelligent grid suitable to home computer architecture [30]. The proposed equipment/software method allowed the utilities and residents over a public phone service to connect with household devices.

Safety must be further developed to safeguard the microgrid in grid-based mode and insulated mode [31]. Among numerous problems, the central issue was to avoid failures in the microgrid. If the loss happens in the power network, the situation in the microgrid should conversely be separated from the power network. The protective system must be dependable in both phases of operation [32]. Novel defensive approaches are necessary to recognize the failures due to the many renewable distributions that interface with recent microgrid conversions.

Grouping was among the most used approaches for inferential statistical analysis, which provides a picture of the database table [33]. Finding groups similar for data in the same group, but the datasets in various clusters varied greatly. Implementation was dependent on the selection of the similarity metric to be employed. The analyses of sets can be performed based on features in which divisions’ commonalities are attempted.

K-means was used for an illustration of analysis. K-means was among the most basic and most common unattended algorithms for learning machines [34]. In general, unmonitored algorithms conclude large datasets utilize input vectors alone without reference to known or labeled outcomes. The objective of K-means was simplistic to collect identical pieces of data and find a hidden pattern. K-means was thereby searching for a certain number (k) of groups in a given data. The clustering method referred to gathering collected data elements due to specific commonalities. The K-means was data moderation; that was the appropriate statistical indication found [35].

The above-stated methods were utilized to translate sensor information into subject matter expertise by the artificially intelligent element of the Pocket technology. A commercial version was the first device to demonstrate the feasibility of data collection from electronic gadgets in a natural setting. Here was a complicated electronic gadget capable of efficiently and rationally regulating the electricity output from sustainable and non-renewable resources to satisfy household or industrial users’ partial, or entire, energy requirements.

Yu, L. et al. [38] proposed the selection and positioning of monitoring stations in a smart power monitoring system. Debugging of system functions is accomplished through the construction of an experimental platform.

Abdulla et al. [39] here the significance of people-friendly technologies is explored in this paper. The Internet of Things (IoT) has become an essential part of modern living. In recent years, the Internet of Things (IoT) technology has been used to assist and facilitate the monitoring of appliances to improve the availability of numerous gadgets for home automation and tough security in a smart city.

As indicated above, the Pocket technology’s artificially intelligent component used these ways to convert sensor data into subject matter expertise. An electronic device that could efficiently and rationally regulate the output of power from renewable and non-renewable resources to meet the needs of households and businesses was shown.

The main contributions of the paper,

• Intelligent cellular terminals, intelligent security tools, and other multi-source sensing devices monitor the region.

• The Internet of Things-based Power Safety Tools Management System (IoT-PSTM) was created for electrical safety for integration into intelligent settings such as smart homes or smart cities.

• Using a complex data-concentration architectural communication interface, the system allows for event monitoring and alerting in real-time.

3 Proposed IoT-based Power Safety Tools Management (IoT-PSTM) System

This suggested method offers appropriate data to an administrator in a distant location to identify the disruptor’s oil’s grade and current volume. This technology allows the supervisor to execute circuit protection operations and relay pluck/transformer tape changer without becoming visible at this location. An alert message is sent to the operators in any frightening conditions with which remedial measures are performed. Every individual allowed to do the same job is also to browse the official homepage of the electricity system.

Table 1 Parameter description

Symbols	Functions
$V_{src} (x)$	The tension from the sine source
$Z_{equ}$	Equivalent input resistance
$V_{maximum}$	The maximum input value
$w$	Frequency of the input signal
$c (x)$	The current source
$V_{src}$	Source voltage
$Z_{sum}$	The total impedance
$R_{equ}$ , and $R_{out}$	The equivalent resistance and output resistance
$X_{equ}$ , and $X_{out}$	The equivalent and output
$c_{li} (x)$	The limited current
$c_{Rea} (0)$	The initial reactor current
$v_{src} (x)$	The initial reactor current
$D_{li}$	The limited data function
$R_{src}$	The sum of source resistance
$R_{li}$	Line resistance
$R_{fb}$	Feedback resistance
$R_{F}$	The forward resistance
$D_{li}$	The limited data
$c_{Rea} (0)$	The initial reactor current
$R_{load}$	The load resistance
$R_{Rea}$	The reactor resistance
$R_{li}$ , $R_{src}$ and $R_{fb}$	The line resistor, the supply, and the
$c_{li} (x)$ and $c_{Rea} (x)$	Power and power lines
$D_{Rea}$ and $D_{equ}$	DC reactors capacitance and lines and supply

3.1 Architecture of the Proposed IoT-PSTM System

This method offers an alternate approach to supply divergent safety, in addition to monitoring and regulating, where the gap between adjacent sides of the apparatus does not affect system efficiency.

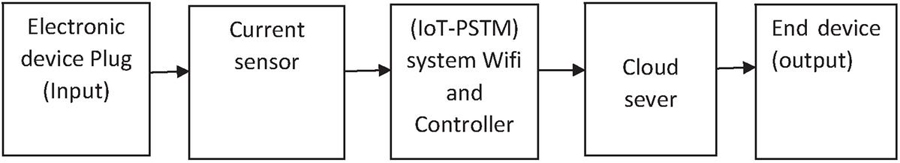

Figure 2 Workflow of the suggested IoT-PSTM system.

The workflow of the suggested IoT-PSTM system is depicted in Figure 2. The data from the infrared source is identified using the transmission medium. The optical component is used for light signal transmission—the detector in the receiver is used for signal processing. When communicating devices successfully with the network, the procedure takes effect by scanning the virtual server commands and ending with the servers uploading through Wi-Fi. The proposed system is programmed in line with the essential estimated different sensors readings for a reasonable level in the Arduino microcontroller. A detector is positioned almost 12 cm just above the surface exposed to determine the quantity of oil in the transformers. The distance is calculated among its levels and the oil layer (12 cm) in such a situation. This article developed a Smart Approach for measuring and evaluating distances at all substations that is more reliable, user-friendly, and cost-effective than the present method. This study proposes the IoT-PSTM system for managing power safety tools. All of the oil performance and oil stage checks are performed by the transmitter circuit breaker, while two secondary electrical circuits are continuously monitored.

If the oil value drops, it raises its emptiness. Depending on the system capacities, the maximum permissible condition was established. This detection system has reacted satisfactorily. The oil degradation sensor has read new soybean oil and brown or black gasoline oil. The outcomes were deemed to have deteriorated correspondingly from 0 to 100 percent and estimated then an acceptable state. This sensor was highly accurate, and the results observed were excellent. The main components of the system are described in a concise way below.

• Sensor

The sensor measures the quality and quantity of oil of the transformer and communicates data. The power of the distribution transformer is also sensed.

• Transformer oil level sensor

An ultrasonic sensor is frequently used to measure the transformer oil pressure. Ultrasound sensors are a gadget capable of measuring the distance from an item using sound waves. It calculates the space in a specific frequency by using acoustic waves and listening to this acoustic source to recover quickly. It is feasible to detect the length from the ultrasonic sensors and the item by recording the delayed period between the acoustic waves created and the noise wave rebounding back. The distance is determined by analyzing the round trip miles covered by the acoustic waves because the noise passes through the atmosphere at 340 meters. A round trip time indicates that the sonic boom traversed the object twice as much as the length before the detector was identified and comprised a ‘trip’ from ultrasonic sensors to the item and a journey from the thing to the Infrared (IR) sensors.

• Transformer oil quality sensor

The Infrared sensor is used for the measurement of the inverter oil content. IR Sensors are essentially electronic circuits used to detect environmental circumstances. Colour, temperature, humidity, sound, hot, etc., could be the alteration. They feel the transformation and function appropriately. Emission and detectors are available in the Infrared sensor. The emitters produce rays of infrared and are detected in the sensor.

In conclusion, the IR receiver and IR transmitters are located in a gasoline vessel that feels the amount of degradation of the oil. The primary products of power transformer breakdown are hydrogen, CO $_{2}$ , steam, and carbon. Oil color varies with the degradation from bright to dark. The converter, acquired by the IR receivers, transfers the infrared sent by the IR transmitter. The signal obtained by the IR device diminished with the degradation of the fuel.

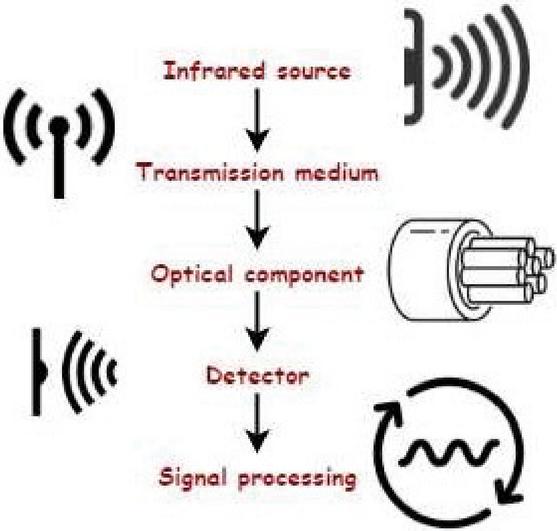

The accompanying block diagram provides a typical setup for infrared radiation detection is depicted in Figure 2.

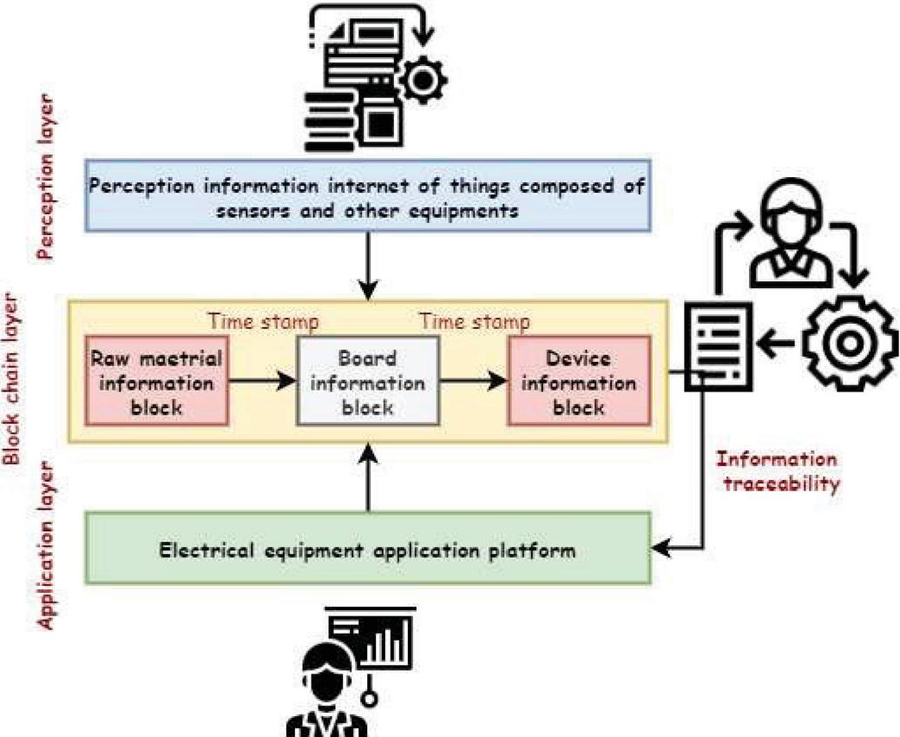

Figure 3 The layered architecture of the suggested IoT-PSTM system.

The layered architecture of the suggested IoT-PSTM system is depicted in Figure 3. It has three layers such as perception layer, blockchain layer, and application layer. It has database and information processing modules for the analysis of the system.

• Actuator

The actuator executes the operator’s responsibilities in a distant area. As an actuator, the Microcontroller directly acts. The input and output (I/O) devices attached to it are commanded to do a specific task. Servo engine coupled to a microcontroller spins at a certain angle, changing the position of the transformers taps or relaying plug per the instruction of the controller. The micro-controller connection relay conducts start operations.

• IoT based safety mechanism

Although differential security for electrical items is one of the finest protection systems, this security system is unapplicable for each system since pilot wire costs increase the influence of pilot wire capacity on framework activity to improve the pilot number of hops. Difference security based in Cloud computing is an intelligent approach where two components provide the recent supplementary information to a web application. When data from input junctions inside the protected area varies over the allowed limits, the server then sends commands to a website module that begins a system protection action. That is how the issue in the pilot wire is avoided.

• Microcontroller

The Microcontroller receives the sensing data and transmits it to the Wi-Fi device sequentially via a TXD pin. The Wi-Fi module also retrieves the serial communication via receive pin. The Microcontroller activates the appropriate I/O device linked to it. It sends an instruction to that computer to conduct the needed action according to these data received from the remote server through the Wi-Fi modules.

• Wi-Fi Module

The Wireless network, via a serial connection, connects with Microcontroller. If it links to a Broadband provider, it also browses the Web. This Module collects and sends data from the given website to the Microcontroller. That also updates the information supplied to the given website from the microcomputer.

• Web Server

An Internet-linked machine that keeps and distributes the information is a web browser. Clients can order this or that data component, but the customer’s perspective returns the correct data or files. Queries are performed using separate protocols. The HyperText Transfer Protocol (HTTP) is excellent for websites, photo uploads, etc., but it’s very sluggish. For IoT, it is preferred to use the MQTT protocol. It’s a beautifully compact system to broadcast and subscribe, where everyone posts and receives notifications.

• Publish/Subscribe

Messaging Querry Telemetry Transmission refers to MQTT. MQTT is a compact message protocol publicly release. MQTT is quickly becoming the primary IoT technology. All devices subscribing to a subject are referred to as clients under the MQTT protocol. All customers can post and subscribe (receive). Communication to a dealer about a subject is assigned. Communications are the data among the gadgets it would like to communicate, regardless of an order or information. Topics are about how it indicates interest in communication systems or defines where the data should be published.

Mostly, the broker received all communications, filtered the contents, decided who was interested around them and then published the information to every subscribing customer. MQTT’s role is to analyze and deliver the information to users, depending on the content. A publication and a subscription have no direct link. The recipient’s address is not necessary to submit information to a customer. A customer can receive notifications only through the same operator subscription to this subject.

• Control and monitoring system

A device connected to the primary website management & surveillance evaluates the present state of substations and regulating gear from any Web. The user should check for passwords accessibility to the official website.

3.2 The Analytical Study

Considering the comportements of IoT-PSTM, the analysis studies demonstrate the circuitry for the behaviors of IoT-PSTM, both in faults transitory and in a normal constant state, without a controlled electrical component.

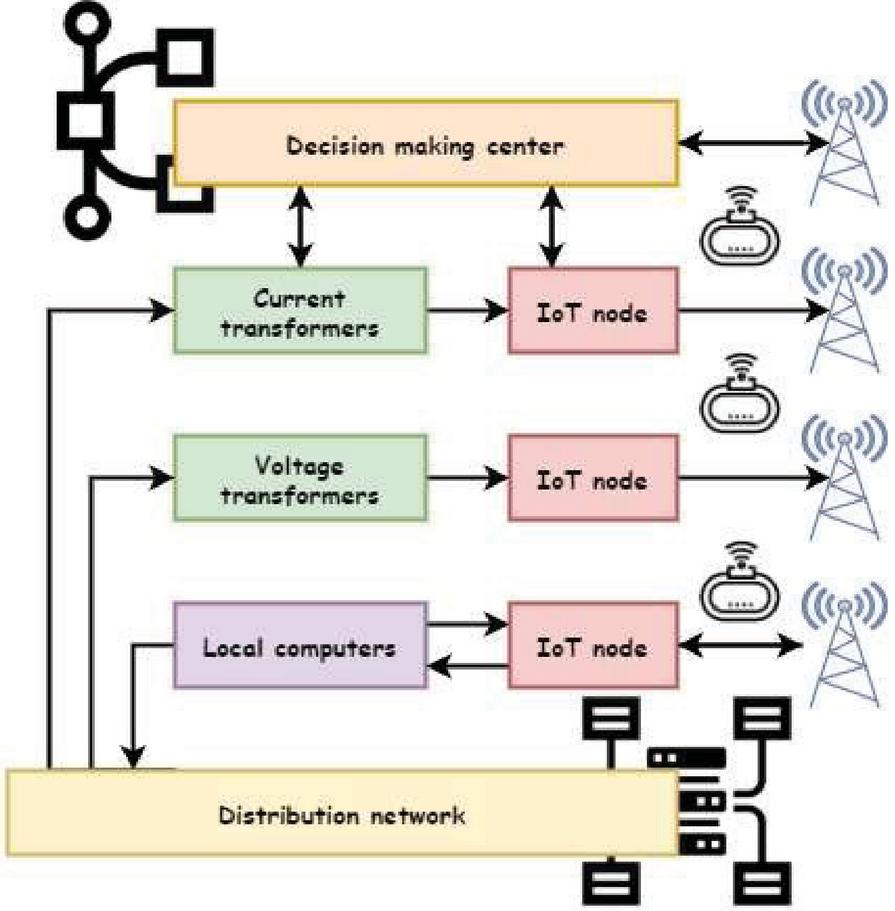

Figure 4 The decision-making model for the electrical power tools.

The decision-making model for the electrical power tools is depicted in Figure 4. It uses a distribution network, decision-making center, and IoT module for the calculation. It shows $Z_{equ}$ as the equivalent input resistance and the lines represented in serial and $V_{src}$ is the tension from the sine source. In the following sections, the scientific model of the project suggested is provided.

• Line current without fault occurrence

In this scenario, the networks and current flowing are considered to be in constant no error. The DC converter bypasses the rectifying bridge, and the voltage dropping is insignificant. The source voltage is denoted in Equation (1). An extremely low impedance current path is created when a failure occurs. This results in large current demand from the supply, causing relays to trip and destroying insulation and components of the device. An over-current, under-voltage, misalignment of the phases, reversed power, and high-voltage surge is all caused by defects in the electrical grid. This results in network outages, device failures, and electrical fires, among other things. Conductor failure is the primary cause of these issues. These systems assume no room for error regarding networks and current flow. Because the rectifying bridge is bypassed, the voltage drop is minimal. Supply, bars and load reactance all affect how much current is flowing through the lines in this phase during normal operating procedures; it shows current changes and DC reactor voltage drop.

V_{src} (x) = V_{maximum} \sin (w x)

(1)

The maximum input value is denoted $V_{maximum}$ . The frequency of the input signal is denoted $w$ . The reactor input is denoted in Equation (2)

V_{Rea} (x) = \frac{d c (x)}{d c} = 0

(2)

It gives the impression of more certainty and long-term viability. The overall structure will never fall apart because of the damage to the core node. In the conventional IoT, a base station simultaneously adjusts data collection and management.

The current source is denoted $c (x)$ . the limited current source is denoted in Equation (3)

c_{li} = \frac{V_{src}}{Z_{sum}}

(3)

The source voltage is denoted $V_{src}$ and the total impedance is denoted $Z_{sum}$ . The sum of the impedance is denoted in Equation (4)

Z_{sum} = R_{equ} + R_{out} + i (X_{equ} + X_{out})

(4)

The equivalent resistance and output resistance are denoted $R_{equ}$ , and $R_{out}$ . The reactance of the equivalent and output are denoted $X_{equ}$ , and $X_{out}$ . The current magnitude of the lines in this phase varies with the supply, bars, and load reactance. It displays current modifications and DC reactors voltage decrease in regular operational methods.

• Line current in a fault state

The power of the DC reactors must be equivalent to the highest power line under the fault conditions. The failure current rapidly increases at the time of failure; however, the IoT-PSTM controls the leakage current by a consistent value of the reactors. The compliance of IoT-PSTM in this section is investigated in AC systems without the controller. The reactor current is denoted in Equation (5)

c_{Rea} (0) = maximum (c_{li} (x))

(5)

The limited current is denoted $c_{li} (x)$ , and the maximum function is used for the reactor current calculation. The modified reactor current is denoted in Equation (6)

c_{Rea} (x) = c_{Rea} (0) + maximum (\frac{v_{src} (x)}{R_{equ}}) \exp^{- (\frac{R_{equ}}{D_{li}}) x}

(6)

The initial reactor current is denoted $c_{Rea} (0)$ , the source voltage is denoted $v_{src} (x)$ , and the equivalent resistance is denoted $R_{equ}$ . Mathematicians classify functions according to the sort of equation that describes their relationship. Algebraic functions are used in some cases. Another class of functions, the so-called trigonometric ones, include f(x) $=$ sin x. These are only a few of the many functions classed as logarithmic or exponential. Root functions and rational functions are examples of algebraic functions. Functions are logical. Root functions are power functions of the type f(x) $=$ x1/n, where n is a positive integer bigger than one. The limited data function is denoted $D_{l i}$ . The equivalent resistance is denoted in Equation (7). According to the definitions of these functions, the squareroot and cuberoot is the same. Both vocabulary and notation confuse the connection between unobserved variables and statistical difficulties. They may, for example, be absent from the sample because respondents refuse to reply or are unavailable, or their responses are lost in the process of conducting a survey.

R_{equ} = R_{src} + R_{li} + R_{fb}

(7)

In the event of a power outage, the DC reactors must have the same power as the highest power line. The IoT-PSTM controls the leakage current by a constant value of the reactors at the time of failure, but the failure current increases rapidly. AC systems without a controller are used in this section to test the IoT conformance.

During a power breakdown, the IoT-PSTM controls the leakage current by maintaining a constant value of reactors. The IoT conformance of AC systems without a controller is tested in this section.

The equivalent resistance is denoted as the sum of source resistance $R_{src}$ , line resistance $R_{li}$ , and feedback resistance $R_{fb}$ . The reactor current is denoted in Equation (8)

c_{Rea} (x) = c_{Rea} (0) \exp^{- (\frac{R_{F}}{D_{li}}) x}

(8)

The forward resistance is denoted $R_{F}$ , the limited data is denoted $D_{li}$ . The initial reactor current is denoted $c_{Rea} (0)$ . The forward resistance is denoted in Equation (9)

R_{F} = R_{load} + R_{src} + R_{Rea}

(9)

The load resistance is denoted $R_{load}$ , the source resistance is denoted $R_{src}$ , and the reactor resistance is denoted $R_{Rea}$ . The limited current is denoted Equation (10)

c_{li} (x) = \frac{v_{src} (x) - v_{Rea} (x)}{R_{equ} - D_{equ}}

(10)

The line resistor, the supply, and the defect are $R_{li}$ , $R_{src}$ and $R_{fb}$ . The impedance of the transistors and the DC reactors is $R_{load}$ and $R_{Rea}$ . The power and power lines of the DC reactors are $c_{li} (x)$ and $c_{Rea} (x)$ . $D_{Rea}$ and $D_{equ}$ are DC reactors capacitance and lines and supply equivalent inductor, correspondingly. The analysis is separated into two sections in the event of the defect. In the first portion, the current lines are proportional to the DC reactors’ sum and are not overridden by the diodes working in a system. It shows the existing lines in the defective state. This chart shows that, without remote control, the operating delay of IoT-PSTM is close to zero. The current flowing grows depending on the DC reactor’s time constants, and unregulated IoT-PSTM removes the initial fault current maximum.

It is essential to adjust for the latency in communication networks. The line current changed suitably by regulating the management pulses and taking into account the loading and unloading of a DC reactor’s wind. The transmitted pulse can safeguard the electricity network by understanding the relative maximum level for every IoT-PSTM in the coordinating system. Therefore, it is also possible to protect the IoT-PSTM with a specific pattern or synchronized pulse amplitude pattern regulating the electricity network.

3.3 Framework Design

Blockchain’s technique utilizes asymmetric cryptographic algorithms, as a developing data interface tech, to secure its non-treatability and employ time stamp innovation to assure its traceability. The decentralized blockchain technology is more secure than the old technology, and it has a higher semblance of certainty and durability to conversion. Due to the harm to the core node, the overall structure will never collapse. At the exact moment, a base station in the conventional IoT modifies the gathering and administration of all data. An unchangeable identifiable database solves data monitoring and counterfeit issues throughout information gathering, transit, and exchange to prevent the danger of disclosure or manipulation. The IoT intelligent platforms for electrical items construct a Product Specifications Programming Model for electronic systems, where both Internet and blockchain technologies are merged and utilized.

The identity and confidence of IoT systems, like radio frequency (RF) card readers, Code numbers, detectors, etc., can be achieved by founding equations to describe device connections. They can be affected by several sensors to transfer merchandise prices and product quality control and assurance details to the Blockchain database layer. At the exact moment, Blockchain cryptographic protocols are being implemented to prevent the manipulation and assessment by supplier businesses of product details and quality control and assurance data. In particular, materials, plating, and entire machinery for electrical devices are also sent in the blockchain control system; the corporate data is then incorporated into Cloud computing. Time-stamping technologies are used in blockchain systems to create simple monitoring agencies’ data.

3.3.1 IoT based system design

The voltage and current data are transformed into electronic signals and sent to the communications system in the recorder. Each sensor includes the pseudo-code indicated with code ‘A,’ which produces an analogue scanner’s digital information. The variable ‘X’ specifies the number of clocks by kind of sensor.

• Data analysis

Information captured is evaluated with the standard value for detecting the defect and its position. An evaluation function was found by correlating voltage levels with the slope and current voltages, defining synchronized packets.

• Fault pulse series

Standard operation summarizes the main components to connect the electrical power components after detecting the problem, and the correct pulse width has been matched. The system relays the equipment and architecture utilized in the communications system in this stage. Code ‘C’ contains a signal comparing pulses sequence, fault near position, and fault form data package.

• Fault correction validating

This phase verifies not if the defect is rectified or the network defect is handled. It’s again done using the process of comparing. Structures are the standard form of transportation signal. If the software recognizes that the connection is returned to the usual mode, it changes to standard outputs, but the call is checked with the pattern. The software is trying to determine if the problem in the networking is rectified or not if the criteria are not satisfied.

If the signal fits one sequence, the defective network has a fixed state. If the comparison outcome is valid, the signs correspond to one of the signals, such that the program continues to deliver the prior signal. The software also executes a function to locate the closest pattern if not. This technique looks for a suitable structure for the system failures and adds its signals to a new show of failure pulse.

Figure 5 Experimental structure of the proposed IoT-PSTM system.

The experimental structure of the proposed IoT-PSTM system is depicted in Figure 5. It uses sensors and actuators to sense the environment. Microcontroller to control all the sensor-based operations. The IoT-enabled devices and databases are used to access and store the collected data. The data is computed using a computer on the admin side.

3.3.2 Application design

Given that the safety and personal privacy of transmitting data and transfer are progressively improving, this paper examines emerging innovations considered a challenge as Blockchain and recommends a secure and reliable decentralized structure and modeling techniques for knowledge exchange and integration. This article employs blockchain technologies in the managed services layer to enhance the interchange and usage of data from electronic systems to replace the shared data center. Based on preserving the benefits of own security surveillance, a different type of gateway has been created, specifying a multi-source technique to interchange large datasets and optimizing it to provide protection and privacy. Various methods are offered for design improvement. This paper offers, based on this design, a blockchain Internet architecture for data exchange. This architecture’s significant elements include decentralizing the services datatype network structure, providing accessibility to the particular node in the plant, and highly independent nodes.

Reliably stored data accessibility records. The overall system still operates normally, even if access points fail. Different perspectives and technologies cooperatively manage the platform’s data and synchronize it using the blockchain consensus protocol to ensure data integrity. It allows a secure and stable management board to guarantee that data is processed safely among professions and platforms only by authorized users. The network data is exchanged and engaged in a standardized style, which many parties share. Once there is a data breach, these data are analyzed to locate the weak point.

To address cross-disciplinary difficulties of compatibility of cross-system file formats, data management problems, disputes, and other challenges, a source data sharing format and a technically potential to establish forms. The joint framework for information exchange between market forces connections at building projects, construction, approval, and design. Supplier evaluation can be developed based on the joint authority function using the collecting data center to document and track effective communications performance execution.

In the platform, intelligent IoT data is split into general information and specific information. The particular information comprises an examination of raw materials, data on quality control, and factory test results. These data are used as a core value in associating the information, such as materials code and date, appropriate production amount, or internal company ID. Public variables involve sales transactions, production plans, manufacturing, cycle route, methods, monitoring information, etc. It is used as a common information correlation value, including sales attached invoice, number, billing address, or other information. In this way, the proposed IoT-PSTM is designed with Blockchain and safety and secured power monitoring system.

4 Software Analysis and Evaluation

The best performance is based on the soundtrack of circuits and the correct organization of the circuit parts. A servo engine was driven, and the transformer’s oil was put into a vessel during this experimental operation. A rudimentary circuit has also been built with lamps to detect the current flow to implement the differentiated protection system. The core microcontroller chip has all of the actual data handlings, though. Once the sensor data are collected, it examines any breach of the data limit. If a breach occurs, the specified conclusion is reached, and appropriate measures are taken. Then all data is sent over the Wi-Fi component to the website. When there is no breach of the data allowance, the information is only transmitted to Wi-Fi.

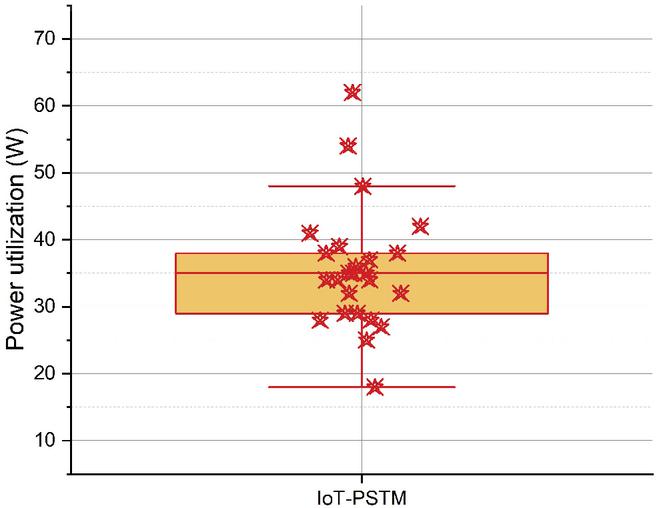

Figure 6(a): Power utilization analysis of the suggested IoT-PSTM system.

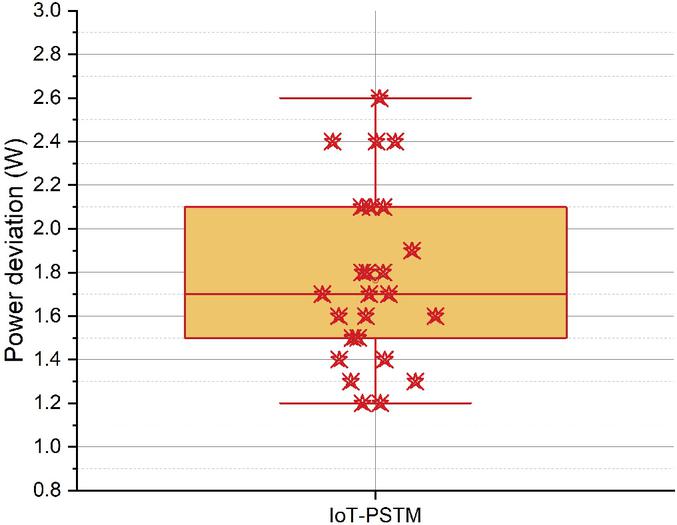

Figure 6(b): Power deviation analysis of the suggested IoT-PSTM system.

The power utilization analysis and power deviation analysis of the suggested IoT-PSTM system are shown in Figures 6(a) and 6(b). The suggested IoT-PSTM system is analyzed for one month, and the respective current usage and the deviation in the utilized power and the monitored readings are monitored and plotted. The suggested IoT-PSTM system with IoT module and enhanced cloud technology for easy access of stored data simplifies the suggested IoT-PSTM system and enhances the overall system performance. The suggested IoT-PSTM system with lesser deviation assures higher effectiveness. The differentiated protection system can also be implemented with a simple LED circuit to monitor current flow. However, all real data handling is done on the core microcontroller chip. Once the sensor data have been gathered, it looks for any data overflow.

Table 2 Simulation outcome analysis of the suggested IoT-PSTM system

Method	Security (%)	Reliability (%)
PCA	68	57
LDA	75	64
DT	59	54
SVM	42	46
RF	64	69
IoT-PSTM	89	87

Table 2 shows the simulation outcome analysis of the suggested IoT-PSTM system. The simulation outcomes such as security and reliability of the suggested IoT-PSTM system is analyzed, and the results are compared with the existing models such as principal component analysis (PCA), linear discriminant analysis (LDA), decision tree (DT), support vector machine (SVM) and random forest (RF) models. The suggested IoT-PSTM system outperforms the existing models with the help of an enhanced processing model and IoT devices. The higher security and reliability assures higher user information safety.

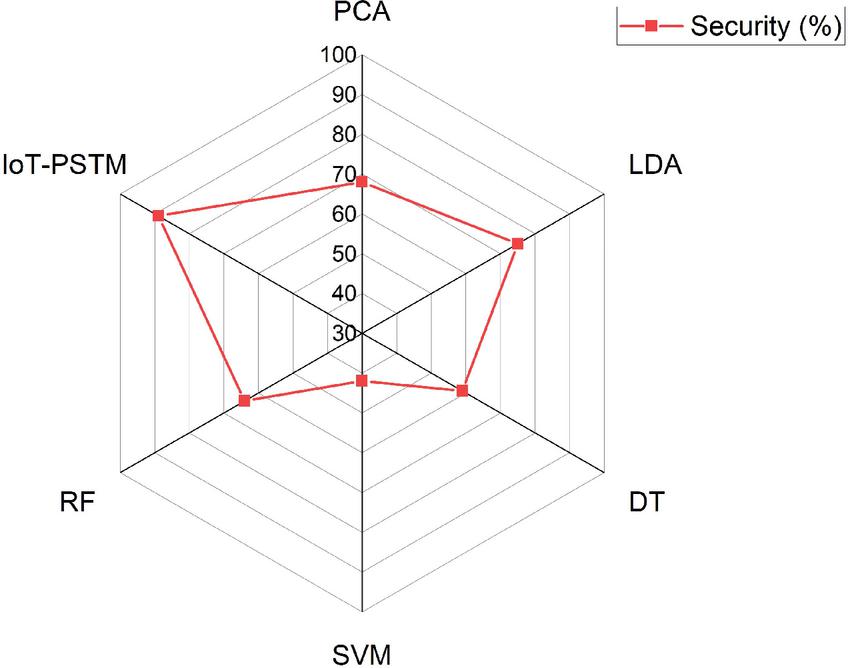

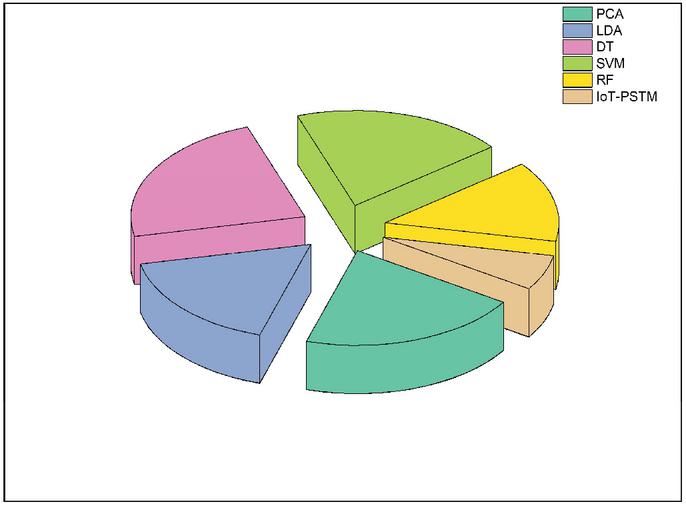

Figure 7(a): Security analysis of the suggested IoT-PSTM system.

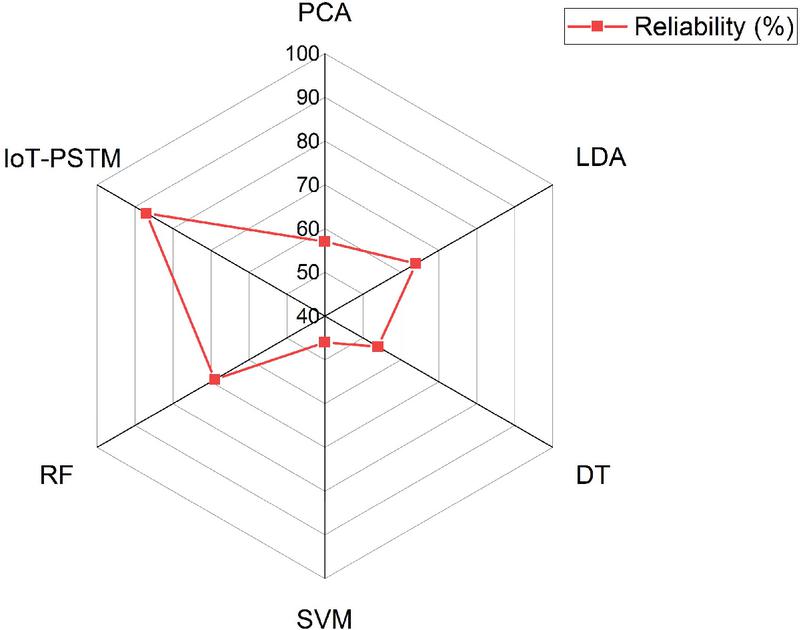

Figure 7(b): Reliability analysis of the suggested IoT-PSTM system.

Figures 7(a) and 7(b) show the security and reliability analysis of the suggested IoT-PSTM system, respectively. The suggested IoT-PSTM system is analyzed, and the simulation outcomes of each user are stored in the cloud database. The daily utilization and hourly utilization data are stored separately. The suggested IoT-PSTM system with a higher processing rate, learning rate, and IoT model enhance system outcomes and connectivity. The higher connectivity assures the most secure data, which results in higher simulation results. The existing models fail in accessing data with higher accuracy and faster speed.

Table 3 Simulation findings of the suggested IoT-PSTM system

Method	RMSE (%)	MAPE (%)
PCA	41	51
LDA	38	42
DT	59	57
SVM	46	49
RF	57	34
IoT-PSTM	12	15

Table 3 denotes the simulation findings of the suggested IoT-PSTM system. The simulation outcomes such as root mean squared error (RMSE) and maximum average to peak error (MAPE) of the proposed IoT-PSTM system are analyzed. The simulation outcomes are compared with the existing models such as PCA, LDA, DT, SVM, and RF. The suggested IoT-PSTM system with IoT module ensures higher connectivity. The cloud-based processing and storing model assures faster computation and faster delivery of results. The more straightforward design of the suggested IoT-PSTM system makes the design process more manageable.

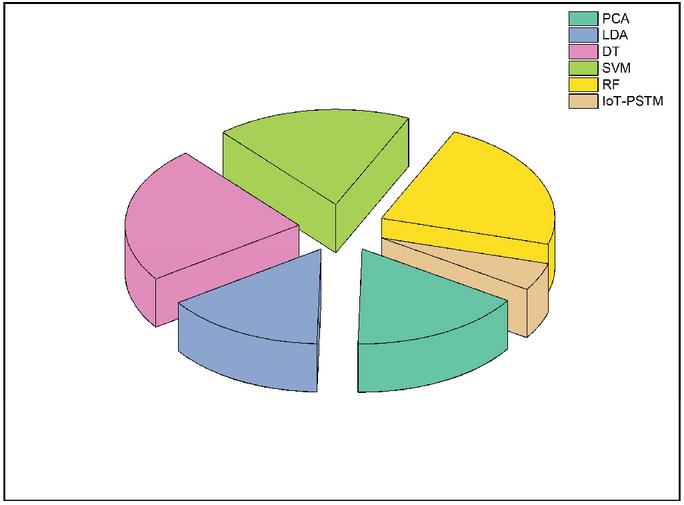

Figure 8(a): RMSE analysis of the suggested IoT-PSTM system.

Figure 8(b): MAPE analysis of the suggested IoT-PSTM system.

Figures 8(a) and 8(b) show the RMSE and MAPE analysis of the suggested IoT-PSTM system, respectively. The software outcome analysis of the suggested IoT-PSTM system is monitored continuously, and the simulation findings are compared with the existing models such as PCA, LDA, SVM, etc. The suggested IoT-PSTM system with a simpler architecture, design structure, and IoT module enhances the overall system performance with lesser complexity. The suggested IoT-PSTM system with a higher processing rate enhances the computation time and results faster than existing methods.

The suggested IoT-PSTM system is designed, analyzed and the simulation outcomes are compared in this section. The software findings such as accuracy, reliability, security, RMSE, and MAPE are analyzed, and the results of the suggested IoT-PSTM system are compared with existing models. The results denote the higher performance of the suggested IoT-PSTM system with IoT module and enhanced processing model. The results denote the higher performance of the suggested IoT-PSTM system with IoT module and enhanced performance of 94.7%.

5 Conclusion and Future Scope

This article created a Smart Approach, which is highly dependable, user-friendly, and cost-effective than an existing method, for all substations’ distance measurement and evaluation. The IoT-based Power safety tools management (IoT-PSTM) system is suggested in this research. This developed scheme is an entirely automatic, self-checks of oil performance and oil stage from the transmitter circuit breaker, and a prolonged detection of 2 secondary electrical circuits. A failure, such as a leakage current, electrical arc, excessive current or voltage or an overcurrent, is rapidly cut off to protect the electrical equipment that’s connected. The system’s sophisticated communication interface and data concentrator architecture enable real-time monitoring and notification of problems. The transmission of information to the remote server, storage, and website showcase data and the transmission to a web subsystem for the given project of starting procedure, tap change. A sample system was developed and evaluated using accurate data to assess system efficiency. There are fewer employees needed to run the proposed model as well as lower operational costs, making it more efficient and self-contained. On top of all that, this sophisticated technology is used in all aspects of the power supply chain, from generating electricity to distributing it. In the future, using artificial intelligence could improve the system’s performance by 94.7%. Both mathematical models and actual findings provide a unique method to creating an intelligent sub-station that significantly overcomes the problems of the standard scheme with IoT-based networking strategies. Protective equipment, notably the smart public lighting system, will soon feature LoRa (Long Range Wide-area network) capability as an option. Because short circuits that create higher currents than the SSR can tolerate can damage the SSR (Solid State Relay), researchers are exploring replacing it with a component that can handle higher current levels. In addition, this technology only allows an approved operator to manage from distant communities and to communicate and change the tap orientation of the transformers over the new website, therefore avoiding unauthorized intervals. Finally, the proposed model runs more efficiently autonomously, with fewer requirements for people and fewer operational costs expense.

Last but not least, as an ever-evolving technology, this intelligent technology is widely used in all power network activities, starting with electricity production, transport, distribution, and use. Including artificial intelligence can enhance the performance of the system in the future. According to the data, the proposed IoT-PSTM system with an IoT module has a 94.7 percent improvement in performance over the current system.

Fund

State Grid Corporation Headquarters Technology Project: Large-scale Plug and Play Distribution Terminal Automatic Configuration and Intelligent Operation and Maintenance Technology Research Project Code: 5400-202018108A-0-0-00.

References

[1] Zhang, J., Fu, J., Hao, H., Fu, G., Nie, F., and Zhang, W. (2020). Root causes of coal mine accidents: Characteristics of safety culture deficiencies based on accident statistics. Process Safety and Environmental Protection, 136, 78–91.

[2] Utne, I. B., Rokseth, B., Sørensen, A. J., and Vinnem, J. E. (2020). Towards supervisory risk control of autonomous ships. Reliability Engineering & System Safety, 196, 106757.

[3] Manogaran, G., Saravanan, V., and Hsu, C. H. (2021). Information-Centric Content Management Framework for Software-Defined Internet of Vehicles Towards Application Specific Services. IEEE Transactions on Intelligent Transportation Systems.

[4] Qu, J., He, L., Tang, N., and Lee, C. K. (2020). Wireless power transfer using domino-resonator for 110-KV power grid online monitoring equipment. IEEE Transactions on Power Electronics, 35(11), 11380–11390.

[5] Nguyen, T., Liu, B. H., Nguyen, N., Dumba, B., and Chou, J. T. (2021). Smart Grid Vulnerability and Defense Analysis Under Cascading Failure Attacks. IEEE Transactions on Power Delivery, 1–1.

[6] Kuthadi, V. M., Selvaraj, R., Baskar, S., Shakeel, P. M., and Ranjan, A. (2021). Optimized Energy Management Model on Data Distributing Framework of Wireless Sensor Network in IoT System. Wireless Personal Communications, 1–27. https://doi.org/10.1007/s11277-021-08583-0

[7] Zhang, X., Manogaran, G., and Muthu, B. (2021). IoT enabled an integrated system for green energy into smart cities. Sustainable Energy Technologies and Assessments, 46, 101208.

[8] Gao, J., Wang, H., and Shen, H. (2020, May). Smartly handling renewable energy instability in supporting a cloud datacenter. In 2020 IEEE international parallel and distributed processing symposium (IPDPS) (pp. 769–778). IEEE.

[9] Amudha, G. (2021). ACDS—Assisted Cooperative Decision-Support for Reliable Interaction based Navigation Assistance for Autonomous Vehicles. Microprocessors and Microsystems, 104241.

[10] Yılmaz, İ. H., Mwesigye, A., and Göksu, T. T. (2020). Enhancing the overall thermal performance of a large aperture parabolic trough solar collector using wire coil inserts. Sustainable Energy Technologies and Assessments, 39, 100696.

[11] Amudha, G., and Narayanasamy, P. (2018). Distributed location and trust-based replica detection in wireless sensor networks. Wireless Personal Communications, 102(4), 3303–3321.

[12] Sharma, P., Shankar, A., and Cheng, X. (2021). Reduced PAPR Model Predictive Control based FBMC/OQAM signal for NB-IoT paradigm. International Journal of Machine Learning and Cybernetics, 1–15.

[13] Shanmugam, L., Mani, P., and Joo, Y. H. (2020). Stabilisation of event-triggered-based neural network control system and its application to wind power generation systems. IET Control Theory & Applications, 14(10), 1321–1333.

[14] Gunasekaran, N., Thoiyab, N. M., Muruganantham, P., Rajchakit, G., and Unyong, B. (2020). Novel global robust stability analysis results for dynamical delayed neural networks under parameter uncertainties. IEEE Access, 8, 178108–178116.

[15] Collazos, J. D., Gaona-García, E. E., Gaona-García, P. A., Montenegro, M. C. E., and Gómez-Acosta, A. (2020, June). Prediction model for energy consumption and generation based on artificial neural networks. In 2020 15th Iberian Conference on Information Systems and Technologies (CISTI) (pp. 1–6). IEEE.

[16] Khamparia, A., Singh, S. K., Luhach, A. K., and Gao, X. Z. (2020). Classification and analysis of users review using different classification techniques in an intelligent e-learning system. International Journal of Intelligent Information and Database Systems, 13(2–4), 139–149.

[17] Indukuri, C. L., and Kottursamy, K. (2021). Advanced Accident Avoiding, Tracking, and SOS Alert System Using GPS Module and Raspberry Pi. In Artificial Intelligence Techniques for Advanced Computing Applications (pp. 167–178). Springer, Singapore.

[18] Billah, M. F. R. M., Saoda, N., Gao, J., and Campbell, B. (2021, May). BLE Can See A Reinforcement Learning Approach for RF-based Indoor Occupancy Detection. In Proceedings of the 20th International Conference on Information Processing in Sensor Networks (co-located with CPS-IoT Week 2021) (pp. 132–147).

[19] Do, D. T., Van Nguyen, M. S., Nguyen, T. N., Li, X., and Choi, K. (2020). Enabling multiple power beacons for the uplink of noma-enabled mobile edge computing in wirelessly powered IoT. IEEE Access, 8, 148892–148905.

[20] Abouloula, K., Ou-Yassine, A., Krit, S. D., and Elhoseny, M. (2021). Artificial Intelligence–Based Methods of Financial Time Series for Trading Experts in a Relational Database to Generate Decisions. In the Internet of Everything and Big Data (pp. 101–114). CRC Press.

[21] Choi, C., Esposito, C., Wang, H., Liu, Z., and Choi, J. (2018). Intelligent power equipment management based on distributed context-aware inference in smart cities. IEEE Communications Magazine, 56(7), 212–217.

[22] Liu, Y. (2019, October). The Influence of Smart Grid on Electric Power Automation. In International Conference on Advanced Intelligent Systems and Informatics (pp. 1036–1043). Springer, Cham.

[23] Hashim, M. S., Yong, J. Y., Ramachandaramurthy, V. K., Tan, K. M., Mansor, M., and Tariq, M. (2021). Priority-based vehicle-to-grid scheduling for minimization of power grid load variance. Journal of Energy Storage, 39, 102607.

[24] Fan, M., and Zhang, X. (2019). Consortium blockchain-based data aggregation and regulation mechanism for smart grid. IEEE Access, 7, 35929–35940.

[25] Li, L., Ren, X., Yang, Y., Zhang, P., and Chen, X. (2018). Analysis and recommendations for onshore wind power policies in China. Renewable and Sustainable Energy Reviews, 82, 156–167.

[26] Marten, A. K., Akmatov, V., Sørensen, T. B., Stornowski, R., Westermann, D., and Brosinsky, C. (2018). Kriegers flak-combined grid solution: coordinated cross-border control of a meshed HVAC/HVDC offshore wind power grid. IET Renewable Power Generation, 12(13), 1493–1499.

[27] Mao, D., Gao, Z., and Wang, J. (2019). An integrated algorithm for evaluating plug-in electric vehicle’s impact on the state of power grid assets. International Journal of Electrical Power & Energy Systems, 105, 793–802.

[28] Rafique, S. F., Shen, P., Wang, Z., Rafique, R., Iqbal, T., Ijaz, S., and Javaid, U. (2018). Global power grid interconnection for sustainable growth: concept, project and research direction. IET Generation, Transmission & Distribution, 12(13), 3114–3123.

[29] Mao, D., Tan, J., and Wang, J. (2020). Location planning of PEV fast charging station: an integrated approach under traffic and power grid requirements. IEEE Transactions on Intelligent Transportation Systems, 22(1), 483–492.

[30] Hayakawa, N., Maeno, Y., and Kojima, H. (2018). Fault current limitation coordination in electric power grid with superconducting fault current limiters. IEEE Transactions on Applied Superconductivity, 28(4), 1–4.

[31] Zecchino, A., and Marinelli, M. (2018). Analytical assessment of voltage support via reactive power from new electric vehicles supply equipment in radial distribution grids with voltage-dependent loads. International Journal of Electrical Power & Energy Systems, 97, 17–27.

[32] Ilyushin, P. V. (2018). Analysis of the specifics of selecting relay protection and automatic (RPA) equipment in distributed networks with auxiliary low-power generating facilities. Power Technology and Engineering, 51(6), 713–718.

[33] He, Y., Xiong, W., Yang, B., Yang, H. Y., Zhou, J. F., Cui, M. L., and Li, Y. (2021). Combined game model and investment decision-making of power grid-distributed energy system. Environment, Development, and Sustainability, 1–24.

[34] Ding, L., Shi, Y., He, C., Dai, Q., Zhang, Z., Li, J., and Zhou, L. (2021). How does the satisfaction of solar PV users enhance their trust in the power grid?-Evidence from PPAPs in rural China. Energy, Sustainability and Society, 11(1), 1–19.

[35] Adetokun, B. B., and Muriithi, C. M. (2021). Impact of integrating large-scale DFIG-based wind energy conversion system on the voltage stability of weak national grids: a case study of the Nigerian power grid. Energy Reports, 7, 654–666.

[36] Babu, D. V., Saravanan, V., Kumar, P., and Singh, S. (2015). Automated robotic receptionist with embedded touch screen. Journal of Chemical and Pharmaceutical Sciences, 415–417.

[37] Xue, M., Al-Turjman, F., and Saravanan, V. (2021). A Labor Safety Performance and Involvement of Workers in Accident Reduction and Prevention. Aggression and Violent Behavior, 101560.

[38] Yu, L., Nazir, B., and Wang, Y. (2020). Intelligent power monitoring of building equipment based on Internet of Things technology. Computer Communications, 157, 76–84.

[39] Abdulla, A. I., Abdulraheem, A. S., Salih, A. A., Sadeeq, M. A., Ahmed, A. J., Ferzor, B. M., …and Mohammed, S. I. (2020). Internet of things and smart home security. Technol. Rep. Kansai Univ, 62(5), 2465–2476.

Biographies

Ping He (1981.01–), who received a bachelor’s degree from Wuhan University of water resources and electric power in 2002, is now the deputy director of the operation and maintenance department of Nanjing power supply company of State Grid. Her research interests include smart grid, power system automation, etc.

Zhengyi Zhu (1987.10–), who received a doctorate from Shandong University in 2018, is now an engineer in the operation and maintenance department of State Grid Nanjing power supply company. His research interests include smart grid, power Internet of things, energy Internet, etc.

Xuyan Wang (1982.10–), who received a master’s degree from Newcastle University in 2007, is now a senior engineer in the operation and maintenance department of State Grid Nanjing power supply company. His research interests include smart grid, distribution automation, etc.

Can Zhang (1989.10–), who obtained a master’s degree from Zhejiang University in 2014, is now an engineer in the operation and maintenance department of State Grid Nanjing power supply company. His research interests include intelligent distribution network, intelligent operation inspection of distribution network, etc.

Wei Yuan (1991.05–), who obtained a bachelor’s degree from Southeast University in 2014, is now an engineer in the operation and maintenance department of State Grid Nanjing power supply company. His research interests include intelligent distribution network, intelligent operation inspection of distribution network, etc.

Distributed Generation & Alternative Energy Journal, Vol. 38_4, 1223–1254.
doi: 10.13052/dgaej2156-3306.3847
© 2023 River Publishers
