Fundamental MHD Creeping Flow and Electric Potential for a Conducting Fluid Bounded by Two Parallel Plane Walls

A. Sellier

LadHyX. Ecole Polytechnique. 91128 Palaiseau Cédex. France
E-mail: sellier@ladhyx.polytechnique.fr

Received 05 March 2019; Accepted 30 May 2019;
Publication 05 August 2019

Abstract

This work determines the MHD fundamental viscous flow and electric potential induced by a concentrated force, with arbitrary strength s, immersed in a conducting Newtonian liquid bounded by two motionless, parallel and plane no-slip walls. The walls are perfectly conducting or insulating surfaces normal to the imposed uniform ambient magnetic field B. Each fundamental quantity (velocity component, pressure, electric potential) is the analytical one prevailing in the absence of walls plus another ‘confinement’ quantity due to the walls. By performing direct and inverse two-dimensional Fourier transforms, each such confinement quantity is obtained in closed form solely in terms of one-dimensional Bessel-type integrals. The resulting fundamental flow and electric potential are found to depend upon the concentrated force location, the wall-wall gap, the properties of the walls and the problem Hartmann layer thickness d = (μσ)|B| where μ and σ > denote the liquid uniform viscosity and conductivity, respectively. For a force normal to the walls there the electric potential vanishes and the fundamental velocity components and pressure are independent of the nature of the walls and also receive tractable closed forms. These properties remain true for the fundamental pressure and velocity component normal to the walls in case of a force tangent to the walls. In contrast, the electric potential and the velocity component tangent to the walls admit quite involved closed forms and deeply depend upon the nature of the walls when the concentrated force is parallel with the walls.

Keywords: MagnetoHydrodynamics, Viscous flow, Fundamental solution, Parallel plane walls, 2D Fourier transform

1 Introduction

The determination of the coupled flow (velocity u and pressure p), electric potential ϕ and magnetic field B about a solid body moving in a conducting Newtonian liquid, with uniform conductivity σ > 0 and viscosity μ, is a very challenging problem encountered in MagnetoHydrodynamics [2, 15, 24]. In getting (B, u, p,ϕ) one indeed must simultaneously solve the Maxwell equations and the non-linear Navier-Stokes equations subject to the Lorentz body force fL = j B with j the current density. These equations, even when supplemented with the well-established linear Ohm’s law j = σ(u B -ϕ), are tremendously-involved.

Depending upon the range of the problem dimensionless Reynolds magnetic number Rem, Reynolds number Re and Hartmann number Ha, simplifications can fortunately occur. For body length scale a, flow velocity typical magnitude V > 0, magnetic field scale B > 0 and a liquid with uniform magnetic permeability μm > 0 and density ρl the previous numbers are defined as Rem = μmσV a, Re = ρlV aμ and Ha = ad where d = (μσ)B is the so-called Hartmann layer thickness [9]. Note that for applications, Rem Re. Neglecting henceforth inertial effects, i.e. assuming that Re 1, then gives Rem 1 and therefore, if the body has the same uniform magnetic permeability μm > 0 as the liquid, shows that B is uniform in the entire liquid domain (taking the ‘ambient’ uniform value it adopts far from the body). Because B is uniform, the charge conservation property .j = 0 becomes Δϕ = .(u B). This relation and the body force j B in the Stokes equations in general couple the unknown electric potential ϕ and flow (u, p).

As shown by [3], considering an axisymmetric insulating body translating parallel with both B and its axis of revolution brings considerable simplifications to the previous viscous (Re 1) MHD problem. Then, (u, p) is axisymmetric with no swirling velocity and therefore Δϕ = 0 in the liquid. In absence of electric field far from the insulating body, it follows that ϕ = 0 in the entire liquid [3, 5, 6]. Thus, the axisymmetric problem reduces to the determination, versus the Hartmann number Ha = a/d, of the creeping flow (u, p) driven by the body motion and the Lorentz force σ(u B) B. There is a huge literature (see, for instance, the standard textbooks [8, 12]) for the ‘pure’ Stokes case (d ; i.e. Ha = 0) of a body migrating in absence of magnetic field. For Ha > 0 (d finite) the problem is more involved and therefore much less has been done. However, for a sphere translating parallel with B one can cite [3] for Ha 1, [4] for Ha 1 and also [22] for the entire range Ha > 0.

One should note that [22] resorts to a new boundary formulation to deal for arbitrary Hartmann number Ha with the viscous axisymmetric flow (u, p) about the sphere. This efficient approach appeals to two fundamental axisymmetric viscous flows produced by distributing force points on a circular ring normal to the magnetic field B. These flows are obtained by [21] using the coupled electric potential and viscous flow produced in an unbounded liquid by a concentrated force and analytically determined by [18]. This approach has been recently extended by [20] to the case of a sphere translating normal to a plane solid no-slip wall normal to the ambient uniform magnetic field. A key step in [20] employs the fundamental coupled MHD viscous flow and electric potential produced by a concentrated force located near a plane insulating or perfectly conducting wall. Such a bounded fundamental solution, obtained by [19], is more general than the axisymmetric solutions given in [25, 26]. Of course, the flow obtained in [19] matches, as d , the fundamental ‘pure’ Stokes flow bounded by a no-slip motionless plane wall and derived by [1].

Nowdays, especially in Microfluidics, many basic applications also concern strongly confined (liquid in a tube or between two parallel flat walls,...) viscous flows. The relevant fundamental flow produced by a Stokeslet in the ‘pure’ Stokes flow case (d ) are given by [14] for a cylindrical tube and also, in different forms, by [10, 13] for the two-wall geometry. Note that [23] and [16] implemented in a boundary element approach the form given by [13] and [10], respectively. In contrast, the form of the solution obtained by [14] for a circular tube is so involved that it has not yet, to the author’s very best knowledge, received such a boundary element implementation. The present work looks, for a finite Hartmann layer thickness, at the fundamental MHD solution (u, p, ϕ) produced by a concentrated force located in a conducting Newtonian liquid bounded by two parallel plane walls. The point force location and strength are arbitrary. Moreover, each wall is solid, no-slip, motionless, normal to the ambient uniform magnetic field B and either insulating or perfectly conducting.

The paper is organized as follows. The addressed MHD fundamental problem together with two basic properties and a fruitful decomposition are given in §2. The axisymmetric case of a force normal to the walls is solved in §3. Three solutions for a force parallel with the walls and different natures of the walls (insulating or perfectly conducting surfaces) are established in §4. Finally, a few concluding remarks close the paper in §5.

2 Addressed MHD Problems and Basic Properties

This section gives the MHD problem governing the coupled fundamental creeping flow and electric potential produced by a point force located in a conducting liquid bounded by the two parallel flat walls. It also gives two basic properties and introduces the auxiliary regular MHD flow and electric potential which are obtained in §3 and §4.

2.1 Governing Fundamental MHD Problem

As illustrated in Figure 1, we consider a concentrated force, with arbitrary strength s, placed at the point M0 in a conducting liquid domain occupying the 0 < z < h domain 𝒟.

images

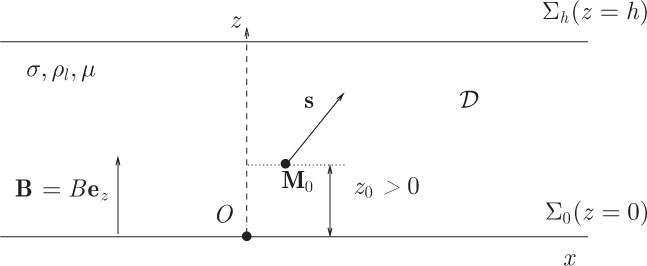

Figure 1: A concentrated force, with strength s, located at a point M0 in the 0 < z < h liquid domain 𝒟 bounded by two motionless, plane and parallel no-slip walls Σ0(z = 0) and Σh(z = h). The prescribed ambient magnetic field B is uniform and normal to the walls.

The flat surfaces Σ0(z = 0) and Σh(z = h > 0) are motionless and no-slip. Cartesian coordinates (O, x, y, z), with associated unit vectors (ex,ey,ez) and origin O on Σ0, are employed. Then, each point M in the liquid is located by the vector x = OM. Accordingly, x0 = OM0. Inertial effects are neglected and therefore (see the introduction) the magnetic field B in the liquid is uniform. Here, B = Bez is normal to the walls with prescribed magnitude B > 0. The liquid uniform viscosity μ and conductivity σ > 0 are given and therefore so is the Hartmann layer thickness d [9] defined as d = (μσ)B. The concentrated force produces, at each point xx0 in the liquid, coupled electric potential ϕ and viscous flow with velocity u and pressure p. Owing to Ohm’s law, the current density j in the liquid is j = σ(u B -ϕ). The steady flow (u, p) obeys the creeping flow equations with the Lorentz body force j B. Finally, the liquid is quiescent and free from electric field far from the point source M0. Requiring the charge conservation property .j = 0, the fundamental quantities (u, p, ϕ) then obey the MHD problem μ2u=p + σBϕ ez - σB2(u ez) ez - δ(x - x0)s forxx0in𝒟, (1) .u=0andΔϕ = B.(u ez)forxx0in𝒟, (2) (u,p,ϕ)(0,0,0)farfromx0 (3)

with Δ and δ the usual three-dimensional Laplacian operator and Dirac delta pseudo-function, respectively. The problem (1–3) must be supplemented with boundary conditions on the walls complying with the far-field behaviours (3)1. On the no-slip walls u = 0 and, therefore, j = -σϕ. Moreover, on a (perfectly) conducting or insulating surface, with unit normal n, it is required [15] that j n = 0 or j.n = 0, respectively. On the plane walls n ez = 0 and the boundary conditions complying with (3) thus are

u = 0andϕ = 0(conducting)orϕ.ez = 0(insulating)onΣ0,Σh. (4)

Clearly, the problem (1–4) is linear in s. Thus, its solution (u, p, ϕ) writes

u(x) = G(x,x0).s 8πμ ,p(x) = P(x,x0).s 8π ,ϕ(x) = BV(x,x0).s 8πμ (5)

with second-rank velocity tensor G, pressure vector P and potential ‘vector’ V to be determined. These tensor and vectors solely depend upon the vector (x -x0) ez, the coordinates z = x.ez,z0 = x0.ez and the given wall-wall gap h and Hartmann layer thickness d.

2.2 Basic Properties

This subsection shows that there is no electric potential when the force is normal to the walls and also gives, whatever the force orientation, a key symmetry property for the velocity tensor G.

2.2.1 Axisymmetric Case

For s parallel with ez (case of a force normal to the walls) the flow (u, p) is axisymmetric about the (M0,ez) axis and without swirl velocity component. Thus, the second Equation (2) becomes Δϕ = 0. Using the far-field behaviour (3) and the boundary conditions (4) on the walls then shows that ϕ = 0 in the liquid. Accordingly, the vector V in (5) satisfies V.ez = 0.

2.2.2 Symmetry Property

Consider the solution (u, p, ϕ) to (1–4) for a concentrated force, of strength s, placed at point x0x0 . Denoting by σ and σ the stress tensors for the flows (u, p) and (u, p), the Equations (1–2) rewrite

.σ + j B=-δ(x - x0)s,.u = 0,Δϕ = .(u B), (6) .σ + jB=-δ(x - y0)s,.u = 0,Δϕ = .(uB). (7)

Since the stress tensors are symmetric and the flows are divergence-free,

u.(.σ) - u.(.σ) = .(σ.u-σ.u). (8)

Moreover, using Ohm’s law for the currents j and j and the identities

.(ϕu B)=ϕ.(u B) + ϕ.(u B), (9) .(ϕu B)=ϕ.(u B) + ϕ.(u B) (10)

in which the last scalar products on the right-hand sides are expressed, from (6–7), in terms of Δϕ and Δϕ also yields

u.(j B) - u.(j B) = .(ϕj- ϕj). (11)

Taking the first Equations (6–7) and using (8) and (11) finally gives

.(σ.u-σ.u + ϕj- ϕj) = δ(x - x0)(u.s) - δ(x - x0)(u.s)in𝒟. (12)

Integrating (12) over the liquid domain (exploiting the far-field behaviours (3)) for the considered fundamental solutions and recalling the definition (5) of the velocity tensor G then shows that

s.G(x0,x0).s- s.G(x0,x0).s = 8πμ0hJdS, (13)
J = (σ.u).n - (σ.u).n + ϕj.n - ϕj.n (14)

where n denotes the unit normal on the walls directed into the liquid. The boundary conditions (4) have not been employed in establishing (13). These conditions dictate the value of the flux J, defined by (14), and thereby the properties of the velocity tensor G. Using the usual tensor summation convention for repeated indices l and t in {x,y,z}, this tensor reads G = Gtlet el. Inspecting (4) readily shows that J = 0 on both walls Σ0 and Σ1. Thus, (13) yields the following key symmetry property

Gtl(x0,x0) = Glt(x0,x0)fort,lin{x,y,z}. (15)

The property (15), of importance for the present work, deserves a few comments:

  1. (i) this symmetry property has already been noticed for the case of a single plane wall in [19] but after the determination of G. It can be easily proved for this single wall case by mimicking the above treatment.
  2. (ii) even in the absence of magnetic field, i.e. for the usual ‘pure’ Stokes case (d ), the property (15) is not necessarily true. For instance, while it holds for a Stokeslet close to a no-slip plane wall (see [1] and also [17]) it is not valid any more for a Stokeslet close to a porous slab (see [11]).
  3. (iii) owing to (15), it is sufficient to determine in this work the components
    Gxz(x,x0),Gyz(x,x0),Gzz(x,x0),Gxx(x,x0),Gyx(x,x0). (16)

2.3 Free-space Solution and Regular Auxiliary MHD Problem

A solution to (1–3) in absence of walls (unbounded liquid), termed the free-space solution and denoted by (u,p,ϕ), has been analytically obtained by [18]. It is expressed in terms of a function H = H (x,x0) solution to the problem

Δ(ΔH) - 1d2 2H z2 = δ(x - x0)forxx0andH(x,x0) 0farfromx0 (17)

with d = (μσ)B the Hartmann layer thickness. Here, it is no use giving H which is available in [19, 21]. As shown by [18], the flow (u,p) reads

u = 1μ{ ( [Hs])},p = Δ[.(Hs)] - 1d2 z[H(s.ez)]. (18)

For further purpose, some useful Cartesian components of the free-space (recall (5)) velocity tensor G, pressure vector P and ‘potential’ vector V are given in Appendix A.

By superposition, the solution (u, p, ϕ) to (1–3) and (4) is sought as

u = u + U,p = p + Q,ϕ = ϕ + Φ. (19)

Clearly, the auxiliary viscous flow (U, Q) and electric potential Φ, regular in the entire liquid domain 𝒟, obey the MHD problem

μ2U=Q + σBϕ ez - σB2(u ez) ezin𝒟, (20).U=0andΔΦ = B.(U ez)in 𝒟,(u,P,Φ) (0,0,0)farfromx0, (21) U=-uandΦ = -ϕorΦ.ez = -ϕ.ezonΣ0,Σh. (22)

The solution (U, Q, Φ), due to the walls, is linear in the force stength s. More precisely, setting G = G + Gw,P = P + Pw and V = V + Vw gives

U(x) = Gw(x,x0).s 8πμ ,Q(x) = Pw(x,x0).s 8π ,Φ(x) = BVw(x,x0).s 8πμ . (23)

Recall that G fulfills the symmetry property (15). As noticed in Appendix A, the free-space tensor G also obeys (15). Hence, Gw = Gtlwet el satisfies

Gtlw(x0,x0) = Gltw(x0,x0)fort,lin{x,y,z}. (24)

3 Point Force Oriented Normal to the Walls

This section considers the case s = ez of a force normal to the walls.

3.1 Advocated Form of the Auxiliary MHD Viscous Flow

The point force, with strength s = ez, is located at M0(x0,y0,z0) with x0 = OM0 and 0 < z0 < h. As noted in §2.2.1 and in Appendix A, ϕ = ϕ = 0 while (u, p) and (u,p) are axisymmetric about the (M0,ez) axis and without swirl. Accordingly, Φ = 0 and (U, Q) is axisymmetric about the (M0,ez) axis and without swirl. Following [24], U = Ulel and Q are then sought as

μUx(x)= 2Fxz(x,x0),μUy(x) = 2Fyz(x,x0), (25) μUz(x)=-2Fx2 + 2Fy2 (x,x0),Q(x) = z ΔF - Fd2 (x,x0) (26)

with F(x,x0) an unknown function. As the reader may check, (U, Q) is found to obey the Equations (20–21) with Φ = 0 as soon as F satisfies

(F) = 0for0 < z < h;(F): = Δ(ΔF) - 1d2 2Fz2 . (27)

Moreover, from (25–26), the far-field behaviours (2) require that

2Ftz0, 2Fx2 + 2Fy2 0, z ΔF - Fd2 0 if|x - x0|;t = x,y. (28)

Injecting s = ez in (18) shows that (u,p) is obtained from the function H by relations similar to (25–26). Thus, the no-slip boundary conditions (4) read

2tz[F + H](x,x0) = 2x2 + 2y2 [F + H](x,x0)forz = 0,h;t = x,y. (29)

In summary, the task reduces to the determination of F solution to (27–29).

3.2 Associated Problem in Two-dimensional Fourier Space and Its Solution

Inspecting (27–29) shows that F(x,x0) = F(t1,t2,z,z0) with t1 = x - x0 and t2 = y - y0. This suggests using the two-dimensional Fourier transform, f̂, of a function f(t1,t2) given by

f̂(q) = 12π--f(t1,t2)eiq.tdt1dt2, f̂ x = -iq1f̂, f̂ y = -iq2f̂ (30)

with q = q1ex + q2ey the vector in the two-dimensional Fourier space and i the usual complex square root of -1. Omitting its dependence upon z0, the Fourier transform of F is denoted by F̂(q,z). Setting q =q— and taking the Fourier transform of (27) yields for F̂ the linear differential equation

q4F̂ -2q2 + 1d2 2F̂ 2z + 4F̂4 = 0for0 < z < handq 0. (31)

Seeking solutions of (31) of the form A(q)eαz easily provides four different real values for α. These values are α1 < α2 < 0 < -α2 < -α1 and such that

α1 = -α0 - 12d,α2 = -α0 + 12d,α0 = (q2 + 14d2)12, (32)α12 + α1 d - q2 = 0,α22 -α2 d - q2 = 0,α1α2 = q2. (33)

Accordingly, the general form of the solution F̂ to (31) is

F̂(q,z) = A1(q)e-α1z + A2(q)eα1z + A3(q)e-α2z + A4(q)eα2z. (34)

The unknown functions (A1,A2,A3,A4) are determined by enforcing the two dimensional Fourier transform of each velocity boundary conditions (29).2 Denoting by Ĥ(q, z) the Fourier transform of the free-space function H(x,x0) = H(t1,t2,z - z0), then gives the linear system A 1 + A 2 + A 3 + A 4 = - H ^ ( q ,0 ) , (35) A 1 e - α 1 h + A 2 e α 1 h + A 3 e - α 2 h + A 4 e α 2 h = - H ^ ( q , h ) , (36) - α 1 A 1 + α 1 A 2 - α 2 A 3 + α 2 A 4 = - [ H ^ z ] ( q ,0 ) , (37) - α 1 A 1 e - α 1 h + α 1 A 2 e α 1 h - α 2 A 3 e - α 2 h + α 2 A 4 e α 2 h = - [ H ^ z ] ( q ,0 ) . (38) The right-hand sides of (35–38) are analytically obtained from the Appendix A (use (106) and also the property α1α2 = q2 ). It is immediately found that Ĥ(q,0)=d[α2eα1z0 - α1eα2z0] 8πq2α0,

Ĥ(q,h)=d[α2eα1(h-z0) - α1eα2(h-z0)] 8πq2α0 , (39) Ĥ z (q,0)=d eα2z0 - eα1z0 8πα0 , Ĥ z (q,h)=d[eα1(h-z0) - eα2(h-z0)] 8πα0 . (40)

The problem (35–40) is analytically solved using Maple algebra software. After many manipulations and exploiting the identity α1α2 = q2 both functions F̂ and F̂z have been cast into the following condensed closed forms

F̂(q) = F̂(q)=d f11α1 + f21α2 + (f13α13 + f23α23)q2 8πα0q2D(α1,α2,q,h) , (41) F̂ z (q)=F̂ z (q) = d f00q2 + f12α12 + f22α22 8πα0q2D(α1,α2,q,h) (42)

with dimensionless functions D and fmn analytically given in Appendix B. The pressure Fourier transform Q̂, obtained by taking the Fourier transform of the second relation (26), is given by (45). Exploiting (33–34) yields

Q̂(q,z) = q2 d A1(q)e-α1z - A2(q)eα1z - A3(q)e-α2z + A4(q)eα2z. (43)

Injecting the solution (A1,A2,A3,A4) into (43) the Maple software then gives

Q̂(q) = (p11α1 + p21α2)q2 + p13α13 + p23α23 8πα0q2D(α1,α2,q,h) (44)

with dimensionless functions pmn still analytically displayed in Appendix B.

3.3 Obtained Auxiliary Flow and Pressure

The Fourier transform of (25–26) immediately provides the relations μÛx = -iq1F̂ z ,μÛy = -iq2F̂ z ,μÛz = q2F̂,Q̂ = 3F̂ z3 - (q2 + 1d2 )F̂ z .

(45)

Since each function F̂,F̂z and Q̂, derived in §3.2, depends upon the vector q soley through its magnitude q the inverse Fourier transform of (45) is obtained from Appendix C. Setting ρ = {(x - x0)2 + (y - y0)2}12 and recalling (23) yields

G t z w ( x , x 0 ) = d ( x x 0 ) . e t ρ 0 [ f 00 q 2 + f 12 α 1 2 + f 22 α 2 2 ] J 1 ( ρ q ) d q α 0 D ( α 1 , α 2 , q , h )   i f   t = x , y     ( 46 ) G z z w ( x , x 0 ) = d 0 [ f 11 α 1 + f 21 α 2 + ( f 13 α 1 3 + f 23 α 2 3 ) / q 2 α 0 D ( α 1 , α 2 , q , h ) ] ( 47 ) q J 0 ( ρ q ) d q , P z ( x , x 0 ) = 0 [ ( ρ 11 α 1 + ρ 21 α 2 ) q 2 + ρ 13 α 1 3 + ρ 23 α 2 3 α 0 q D ( α 1 , α 2 , q , h ) ] J 0 ( ρ q ) d q , V z ( x , x 0 ) = 0     ( 48 )

in which J0 and J1 denote the usual Bessel functions. In summary, the auxiliary flow (U, Q) has been analytically expressed in terms of three one-dimensional Bessel-type integrals for the case s = ez.

4 Point Force Oriented Parallel to the Walls

This section considers the case s = ex of a force parallel with the walls. The case s = ey will follow immediately and is therefore let to the reader.

4.1 Auxiliary Pressure and Velocity Component Normal to the Walls

From (20–21) and the scalar product of (20) with ez the auxiliary velocity component Uz and the pressure Q obey (recall the definition (27) of )

(Uz) = 0,(Q) = 0,μΔUz = Qz for0 < z < h. (49)

Taking (18) with e = ex gives for the free-space velocity Cartesian components

μux = -2Hy2 + 2H z2 ,μuy = 2Hxy,μuz = 2Hxz. (50)

Thus, on the walls the condition U = -v and the property .U= 0 read

μUz = - x H z ,μUz z = - x 2H z2 forz = 0,h. (51)

It appears from (49) and (51) that both Uz and Q are independent of the walls properties (insulating or perfectly conducting walls). Invoking (49) and the two first properties (33), the (two-dimensional) Fourier transforms Ûz and Q̂ write

μÛz=-iq1{G1(q)e-α1z + G2(q)eα1z +G3(q)e-α2z + G4(q)eα2z}, (52) Q̂=-iq1{G1(q)e-α1z + G2(q)eα1z -G3(q)e-α2z + G4(q)eα2z}d, (53)

with unknown functions (G1,G2,G3,G4) dictated by the Fourier transform of the conditions (51). Such conditions yield the linear system

G1 + G2 + G3 + G4 = -Ĥ z (q,0), (54) G1e-α1h + G2eα1h + G3e-α2h + G4eα2h = -Ĥ z (q,h), (55) -α1G1 + α1G2 - α2G3 + α2G4 = -2Ĥ z2 (q,0), (56) -α1G1e-α1h + α1G2eα1h - α2G3e-α2h + α2G4eα2h = -2Ĥ z2 (q,h), (57)

which is analytically solved by Maple algebra software using (40) and also, from the result (106) in Appendix A, the identity

2Ĥ z2 (q,z) = d[α1eα1|z-z0|- α2eα2|z-z0|] 8πα0 ]for0 z h. (58)

After many manipulations the following condensed results are obtained

μÛz = iq1df̃00q2 + f̃12α12 + f̃22α22 8πα0q2D(α1,α2,q,h) ,Q̂ = -iq1p̃00q2 + p̃12α12 + p̃22α22 8πα0q2D(α1,α2,q,h) (59)

with new functions p̃mn given in Appendix D while f̃mn is obtained from the function f̃mn, encountered in (42) and defined in Appendix B, by switching z and z0. In other words, f̃mn(α1,α2,h,z,z0) = fmn(α1,α2,h,z0,z). Exploiting this property and taking the inverse Fourier transform of (59) immediately recovers the symmetry property 8πμUz = Gzxw(x,x0) = Gxzw(x0,x) theoretically predicted in §2.2.2. Using the second identity (115) also easily yields

Px(x,x0)=8πQ = -(x - x0).ex ρ 0[p̃00q2 + p̃12α12 + p̃22α22]J1(pq)dq α0D(α1,α2,q,h) (60)

4.2 Auxiliary Electric Potential and Velocity Tangent to the Walls

The determination of the velocity components (Ux,Uy), tangent to the walls, and of the electric potential Φ is a bit tricky. As shown in [19], for s = ex the free- space electric potential is ϕ = (Bμ)[Hy]. Recalling (50), the boundary conditions (22) require that on each plane wall μÛy = q1q2Ĥ and

Φ̂=iq2 BĤ μ (conducting)or Φ̂ z =iq2 Bμ Ĥ z (insulating)onΣ0,Σh. (61)

Moreover, (20–21) show that, recalling (27), (Ux) = (Uy) = (Φ) = 0. The Fourier transform of these Equations (see also (34)) and the previous boundary conditions on the walls (in which Ĥ and Ĥz depends upon q = q1e1 + q2e2 only through q =q—) then suggest to write

μÛx=𝒰1(q)e-α1z + 𝒰2(q)eα1z + 𝒰3(q)e-α2z + 𝒰4(q)eα2z, (62)μÛy=q1q2{W1(q)e-α1z + W2(q)eα1z + W3(q)e-α2z + W4(q)eα2z}, (63) Φ̂=iq2 Bd μ {ψ1(q)e-α1z + ψ2(q)eα1z + ψ3(q)e-α2z + ψ4(q)eα2z}. (64)

Taking the Fourier transform of the identity ΔΦ = B.(U ez) (second Equation (21)) and using the two first properties (33) easily provides

𝒰1 = q12W1 - α1ψ1,𝒰2 = q12W2 - α1ψ2, (65) 𝒰3 = q12W3 + α2ψ3,𝒰4 = q12W4 + α2ψ4. (66)

These relations reveal that, in contrast to the functions Wm and ψm, the functions 𝒰m do not solely depend upon q. Taking the Fourier transform of the Equation .U = 0 yields relations involving the functions Gm (see (52)) determined in the previous section for the axisymmetric case s = ez. These relations are

𝒰1 = α1G1 - q22W1,𝒰2 = -α1G2 - q22W2, (67) 𝒰3 = α2G3 - q22W3,𝒰4 = -α2G4 - q22W4. (68)

Combining (65–66) with (67–68) and using the links q2 = q12 + q22 = α1α2 gives

ψ1 = -G1 + α2W1,ψ2 = G2 + α2W2, (69) ψ3 = G3 - α1W3,ψ4 = -G4 - α1W4. (70)

On both walls (z =0, h) the divergence-free condition and the no-slip requirements Uy = -uy and Ux = -ux have been already combined to obtain the second condition (51). Therefore, the required functions (W1,W2,W3,W4) are obtained by enforcing on the walls four conditions: the ones (61) for Φ̂ and the additional ones μÛy = q1q2Ĥ for z = 0, h.3 These latter conditions read

W1 + W2 + W3 + W4 = Ĥ(q,0), (71)

W1e-α1h + W2eα1h + W3e-α2h + W4eα2h = Ĥ(q,h) (72)

with the right-hand sides given by (39). The two linear Equations (71–72) for (W1,W2,W3,W4) have to be supplemented with two relations obtained by expressing (61), using (64) and (69, 70). These relations depend upon each wall nature (insulating or conducting surface). Inspecting (62, 64) and (67–70) suggests the decompositions Ux = Ux(1) + Ux(2) and Φ = Φ(1) + Φ(2) with the following Fourier transforms

μÛx(1)=α1G1e-α1z - α1G2eα1z - α2G3e-α2z - α2G4eα2z, (73) Φ̂(1)=iq2 Bd μ {-G1e-α1z + G2eα1z + G3e-α2z - G4eα2z}. (74)

The functions μÛx(1) and Φ̂(1) are gained from the solution (G1,G2,G3,G4) derived in §4.1 for Ûx(1) and by recalling (53) and (59) for P̂. It is found that

Φ̂(1)=-iq2Bd2(p̃00q2 + p̃12α12 + p̃22α22) 8πμα0q2D(α1,α2,q,h) , (75) μÛx(1)=d (c11α1 + c12α2)q2 + c13α13 + c23α23 8πα0q2D(α1,α2,q,h) (76)

with each previously-encountered function p̃nm and new function cnm given in Appendix D. Accordingly, the required quantities Ux(1) and Φ(1) are

Ux(1)= d8πμ0 (c11α1 + c12α2)q2 + c13α13 + c23α23 qα0D(α1,α2,q,h) J0(ρq)dq, (77)Φ(1)= -(y - y0) ρ Bd28πμ0p̃00q2 + p̃12α12 + p̃22α22 8πμα0D(α1,α2,q,h) J1(ρq)dq. (78)

The velocity Ux(1) and the electric potential Φ(1) do not depend upon the walls properties. In contrast, the solution (Ux(2),Uy,Φ(2)) is, as the quantities (W1,W2,W3,W4), sensitive to each wall nature. It is obtained from the relations

μÛx(2)=-q2Ŵ,μÛy = q1q2Ŵ,Φ̂(2) = iq2BdT̂μ, (79) Ŵ= L̂1 + L̂2,T̂ = α2L̂1 - α1L̂2, (80) L̂1=W1e-α1z + W2eα1z,L̂2 = W3e-α2z + W4eα2z (81)

which, from Appendix C, readily yield the following solutions

Uy=(x - x0)(y - y0) μρ2 0q3ŴJ2(ρq)dq, Φ(2)=Bd(y - y0) μρ 0q2T̂J1(ρq)dq, (82) Ux(2)=(y - y0)2 μρ2 0q3ŴJ2(ρq)dq - 1μρ0q2ŴJ1(ρq)dq. (83)

As shown below, it is possible to analytically obtain the required functions L̂1 and L̂2 (see (81)) for the considered insulating or conducting flat walls Σ0 and Σh. Combining (77–78) with (82–83) finally provides the desired quantities (recall (23))

Gxxw(x,x0) = 8πμ{Ux(1) + Ux(2)},V xw(x,x0) = 8πμ{Φ(1) + Φ(2)}. (84)

4.2.1 Solution for Two Conducting Walls

For two conducting walls the first condition (61) is enforced for z = 0,h. Using (64) and (69–70) thus yields the Equations

α2W1 + α2W2 - α1W3 - α1W4 = S1 + Ĥ(q,0)d, (85)α2W1e-α1h + α2W2eα1h - α1W3e-α2h - α1W4eα12h = S2 + Ĥ(q,h)d, (86) S1= G1 - G2 - G3 + G4, S2= G1e-α1h - G2eα1h - G3e-α2h + G4eα2h. (87)

It has been possible to cast S1 and S2 into the following condensed forms

Sj = dS̃j64πα0q2D(α1,α2,q,h),S̃j = s00(j)q2 + s12(j)α12 + s22(j)α22forj = 1,2 (88)

with functions smn(j) given, versus (α1,α2,h,z0), in Appendix D. Still using Maple software algebra in solving the linear system made of (71–72) and (85–86) provides in closed form both (W1,W2,W3,W4) and also, from (81), L̂1 and L̂2 . The Fourier transforms L̂1 and L̂2, expressed in terms of (S̃1,S̃2) and (α1,α2,q,h,z,z0), are also given in Appendix D.

4.2.2 Solution for Two Insulating Walls

This time (71–72) are supplemented with two equations obtained from the second condition (61) on each wall. These equations are

q2[-W1 + W2 + W3 - W4] = D1 + [(Ĥz)(q,0)]d, (89) q2[-W1e-α1h + W2eα1h + W3e-α2h - W4eα2h] =D2 + [(Ĥz)(q,h)]d, (90) D1=α2[G3 + G4] - α1[G1 + G2], (91) D2=α2[G3e-α2h + G4eα2h] - α1[G1e-α1h + G2eα1h]. (92)

This time, Dj admits for j = 1, 2 the condensed form

Dj= dD̃j64πα0q2D(α1,α2,q,h), D̃j=(d11(j)α1 + d12(j)α2)q2 + d13(j)α13 + d23(j)α23 (93)

with functions dmn(j) still given, versus (α1,α2,h,z0), in Appendix D. Solving (71–72) and (89–90) provides (W1,W2,W3,W4) for the case of two insulating walls. The resulting quantities L̂1 and L̂2 are displayed in Appendix D.

4.2.3 Solution for One Conducting Wall and a Second Insulating Wall

For symmetry reasons, the attention is restricted to a perfectly conducting z = 0 wall and an insulating z = h wall. Accordingly, (W1,W2,W3,W4) is obtained by solving (71–72), (85) and (90). The resulting needed Fourier transforms L̂1 and L̂2 are again available in Appendix D.

5 Conclusions

The fundamental MHD viscous flow and electric potential produced by a concentrated force located in a conducting liquid bounded by two parallel solid plane no-slip walls has been analytically obtained whatever the point force location and orientation. It has been achieved, assuming a prescribed uniform ambient magnetic field normal to either perfectly conducting or insulating walls, by using a two-dimensional Fourier transform. The obtained results, expressed in terms of one-dimensional Bessel-type integrals, agree with a key symmetry property established for the fundamental velocity field without solving the problem. For a force normal to the walls there is no electric potential and the axisymmetric pressure and velocity receive a tractable form which is independent of the nature (insulating or perfectly conducting) of the walls. The same property holds for the pressure and velocity component normal to the walls when the concentrated force is parallel to the walls. In addition, when the force is tangent to the walls the results for each velocity component tangent to the walls and for the electric potential are pretty involved and strongly depend upon the properties of the walls.

The derived analytical fundamental fields will be used in future to investigate the migration of a solid sphere immersed in the conducting liquid and translating normal to the walls. As shown in [22] for the unbounded liquid case and recently in [20] for a liquid bounded by one solid plane wall, this issue can be tackled by numerically inverting a suitable boundary-integral equation on the sphere surface only. The key step in such an efficient procedure is the determination of the axisymmetric MHD viscous flows produced by distributing on a circular ring, located in a plane immersed in the liquid and parallel with the walls, some point forces. These flows comply with the boundary requirements on the walls (no-slip and additional relevant condition for the current), and can be built using the results established in the present work. However, such a task requires many additional efforts and is therefore postponed to future investigations.

A. Free-space Solution

The free-space solution (u,p,ϕ), analytically determined by [18], is given in [19, 21] versus R = x - x0,R = |R| and the Hartmann layer thickness d. The free-space velocity tensor G = Gtlet el, pressure vector P = Plel and ‘potential’ vector V = V lel are then deduced. The tensor G is found to obey the symmetry property (15). Moreover,

  1. taking l = z (case s = ez) gives V z(x,x0) = 0 and Gyz(x,x0) = sinh z - z0 2d 1 + 2dR R.et R e-R(2d) R ift = x,y;V z(x,x0) = 0, (94) Gzz(x,x0) = cosh z - z0 2d + sinh z - z0 2d 1 + 2dR z - z0 R e-R(2d) R , (95)Pz(x,x0) = 1d sinh z - z0 2d + cosh z - z0 2d 1 + 2dR z - z0 R e-R(2d) R . (96)
  2. taking l = x (case s = ex) gives Gxx(x,x0) = 2cosh z - z0 2d e-R(2d) R + d[T1(x,x0) - (x - x0)2T2(x - x0)], (97) Gyx(x,x0) = -d(x - x0)(y - y0)T2(x,x0), Gzx(x,x0) = Gxz(x0,x), (98) Px(x,x0) = 1dcosh z - z0 2d 1 + 2dR x - x0 R e-R(2d) R , (99) V x(x,x0) = -d(y - y0) 2(x - x0)2 + (y - y0)2 -e-|x-x0|(2d) |x -x0| e(z-z0)(2d)|x -x0|- (z - z0) + e-(z-z0)(2d)|x - x0| + z - z0 , (100)

with the following definitions

T1(x,x0)=e-R(2d) R e(z-z0)(2d)R - (z - z0) + e-(z-z0)(2d)R + (z - z0) - 2R2 - (z - z0)2, (101) T2(x,x0)=e-R(2d) R2 R + 2d 2dR e(z-z0)(2d)R - (z - z0) + e-(z-z0)(2d) R + z - z0 + e(z-z0)(2d)[R - (z - z0)]2 + e-(z-z0)(2d)[R + z - z0]2 - 4[R2 - (z - z0)2]2. (102)

The free-space function H, solution to (17), reads H(x,x0) = H(t1,t2,t3) with t1 = x - x0,t2 = y - y0,t3 = z - z0. Thus, Ĥ = Ĥ(q,t3). Setting q = |q|, the two-dimensional Fourier transform of (17) yields the equation

2t32 - q2 2Ĥ - 1d2 2Ĥt32 = δ(t3) 2π (103)

which is solved by introducing the one-dimensional Fourier transform ĥ, on the variable t3, of Ĥ. Using (103) and the definitions (32) of α1 and α2 gives

ĥ(s)=-Ĥ(q,t3)eist3 2π dt3,Ĥ(q,t3) =-ĥ(s)eist3 2π ds, (104)ĥ(s)= 1(2π)32[s2d2 + (s2 + q2)2] = 1(2π)32(s2 + α12)(s2 + α22)]. (105)

Injecting (105) into the second equality (104) provides Ĥ(q,t3) in terms of a one-dimensional integral analytically given in [7] (page 409). Dropping the dependence in z0 and using the defintion (32) of α0, the result for Ĥ(q, z) is

Ĥ(q,z) = d[α2eα1|z-z0|- α1eα2|z-z0|] 8πq2α0 (106)

B. Auxiliary Material for the Axisymmetric case s = ez

The functions D and fmn arising in the result (41) for F̂ are defined as

D(α1,α2,q,h)=cosh(α1h)cosh(α2h) -sinh(α1h)sinh(α2h) α12 + α22 2q2 - 1, (107) f11(α1,α2,h,z,z0)=-cosh[α2(z - z0)]{1 - eα2hcosh(α1h)} +sinh(α2h){cosh[α1(h - z - z0)] +eα1hcosh[α1(z - z0)]}2 -sinh(α2z0)cosh(α1z) - sinh(α2z)cosh(α1z0) -cosh[α1(h - z0)]sinh[α2(h - z)] -sinh[α2(h - z0)]cosh[α1(h - z)], (108) f13(α1,α2,h,z,z0)=sinh(α1h) 2 cosh[α2(h - z - z0)] -cosh[α2(z - z0)] e-α2h (109)

and by the additional identities f21(α1,α2,h,z,z0) = -f11(α2,α1,h,z,z0) and f23(α1,α2,h,z,z0) = -f13(α2,α1,h,z,z0). The functions fmn appearing in (42) for F̂z are

f00(α1,α2,h,z,z0)=cosh(α2z0)cosh(α1z) - cosh(α1z0)cosh(α2z) +sinh[α1(z - z0)]{1 - eα1hcosh(α2h)} -sinh[α2(z - z0)]{1 - eα2hcosh(α1h)} +cosh[α1(h - z0)]cosh[α2(h - z)] -cosh[α2(h - z0)]cosh[α1(h - z)], (110) f12(α1,α2,h,z,z0)=sinh[α2(h - z0)]sinh[α1(h - z)] -sinh(α2z0)sinh(α1z) - sinh(α2h) {sinh[α1(h - z - z0)] - eα1hsinh[α1(z - z0)]}2 -sinh(α1h){sinh[α2(h - z - z0)] +eα2hsinh[α2(z - z0)]}2 (111)

and f22(α1,α2,h,z,z0) = -f12(α2,α1,h,z,z0). Finally, the functions pmn for the formula (44) are

p11(α1,α2,h,z,z0)=cosh[α2(h - z)]cosh[α1(h - z0)] +sinh(α2z0)sinh(α1z) - sinh[α2(h - z0)] sinh[α1(h - z)] - cosh(α2z)cosh(α1z0) -sinh[α2(z - z0)] + sinh(α2h) {sinh[α1(h - z - z0)] - eα1hsinh[α1(z - z0)]}2 +eα2hcosh(α1h)sinh[α2(z - z0)], (112) p13(α1,α2,h,z,z0)=sinh(α1h){sinh[α2(z + z0 - h)] -eα2hsinh[α2(z - z0)]}2 (113)

while

p2k(α1,α2,h,z,z0) = p1k(α2,α1,h,z,z0)fork = 1,3.

C. Two-dimensional Inverse Fourier Transform

Recalling (30), the inverse Fourier transform f of a function f̂ is defined by

f(t1,t2) = 12π--f̂(q)e-iq.tdq1dq2. (114)

Consider for ĥ(q) = ĥ(q) the functions h,hk,hkl defined as hk ̂(q) = iqkĥ(q) and hkl ̂(q) = qkqlĥ(q) for k and l in {1, 2}. Introducing the usual functions J0,J1 and J2 then gives the useful relations

h(t)=0qĥ(q)J0(tq)dq, hk(t)=tk t 0q2ĥ(q)J1(tq)dqfort > 0, (115) h12(t)=h21(t) = t1t2 t2 0q3ĥ(q)J2(tq)dqfort > 0, (116) hkk(t)=1t0q2ĥ(q)J1(tq)dq -tk t 20q3ĥ(q)J2(tq)dqfort > 0. (117)

Since J0(u) 1 - u24 and J1(u) u2 - u316foru 0 it also follows that

hk(0) = h12(0) = 0,h(0) =0qĥ(q)dq,hkk(0) =0q3ĥ(q) 2 dq. (118)

D. Auxiliary Material for the Asymmetric Case s = ex

The dimensionless functions p̃00,p̃12 and p̃22 in (59) are defined as p̃22(α1,α2,h,z,z0) = p̃12(α2,α1,h,z,z0) and

p̃00(α1,α2,h,z,z0)=-cosh[α1(h - z0)]sinh[α2(h - z)] -cosh(α1z0)sinh(α2z) -cosh[α2(h - z0)]sinh[α1(h - z)] -cosh(α2z0)sinh(α1z) -cosh[α2(z - z0)]{1 - eα2hcosh(α1h)} -cosh[α1(z - z0)]{1 - eα1hcosh(α2h)}, (119) p̃12(α1,α2,h,z,z0)=sinh(α1z0)cosh(α2z) +sinh[α1(h - z0)]cosh[α2(h - z)] -sinh(α1h){cosh[α2(h - z - z0)] +eα2hcosh[α2(z - z0)]}2 +sinh(α2h){cosh[α1(h - z - z0)] -eα1hcosh[α2(z - z0)]}2. (120)

The coefficients cnm occurring in (76) for the quantity μÛx(1) are

c13(α1,α2,h,z,z0)=sinh(α2h){cosh[α1(z + z0 - h)] -eα1hcosh[α1(z - z0)]}2, (121) c11(α1,α2,h,z,z0)=-sinh(α1z)cosh(α2z0) - sinh(α1z0)cosh(α2z) -sinh[α1(h - z)]cosh[α2(h - z0)] -sinh[α1(h - z0)]cosh[α2(h - z)] +sinh(α1h){sinh[α2(z - z0 - h)] +eα2hcosh[α2(z - z0)]}2 +cosh[α1(z - z0)]{eα1hcosh(α2h) - 1}, (122) c23(α1,α2,h,z,z0)=-c13(α2,α1,h,z,z0), (123) c21(α1,α2,h,z,z0)=-c11(α2,α1,h,z,z0). (124)

In expressing in closed form the required Fourier transforms L̂1 and L̂2 it is convenient to adopte the following notations and property

F = d8πα0q2,D = D(α1,α2,q,h),α1 = α2,α2 = α1,α1α2 = q2. (125)
  1. Material for two conducting walls:

    The functions smn(j), introduced in (88), depend upon (α1,α2,h,z0). Dropping the dependence upon (h,z0), one gets

    s00(j)(α1,α2) = t0(j)(α1,α2) + t0(j)(α2,α1), s22(j)(α1,α2) = s12(j)(α2,α1), (126) t0(1)(α1,α2) = -8cosh(α1z0) + 4e(α1-α2)h-α1z0 +4eα1(h+z0)cosh(α2h) - 4eα1(z0-h)sinh(α2h), (127) t0(2)(α1,α2) = 4e-α1z0 [e2α1hcosh(α2h) - sinh(α2h)] -8cosh[α1(h - z0)] + 4eα1z0-α2h, (128) s12(1)(α1,α2) = 8sinh(α1z) + 8cosh(α2h)cosh[α1(h - z0)] -4eα2(h-z0)sinh(α1h) - 4eα1z0 sinh(α2h)cosh(α1h) -4eα2z0 sinh(α1h)cosh(α2h), (129) s12(2)(α1,α2) = 8sinh(α1z0)cosh(α2h) - 8sinh(α1h)cosh(α2z0) +8sinh[α1(h - z0)] + 2sinh(α1h)e-α2z0 [1 - e2α2h] +2sinh(α2h)e-α1z0 [1 - e2α1h] (130)

    Elementary algebra then provides L̂j for j = 1, 2. The results read

    L ̂j = F(α1 + α2)sinh(αjh) sinh[αj(h - z)]S̃1 + sinh(αjz)S̃2 8D(-1)j+1 + (-1)j[E00cc(αj,αj)q2 +E11cc(αj,αj)αj2] - [E00cc(αj,αj)αj + E11cc(αj,αj)αj]d (131)

    with new functions E00cc and E11cc given by

    E00cc(α,β) = cosh[α(h - z - z0)] - cosh[α(z - z0)]eαh, (132) E11cc(α,β) = sinh[α(h - z)]eβz0 + sinh(αz - βz0)eβh. (133)
  2. Material for two insulating walls:

    The functions dmn(j), introduced in (93), solely depend upon (α1,α2,h,z0). Dropping again the dependence upon (h, z0), it is found that

    d21(j)(α1,α2) = d11(j)(α2,α1), d23(j)(α1,α2) = d13(j)(α2,α1)forj = 1,2 (134) d13(1)(α1,α2) = 4sinh(α2h){eα1hsinh(α1z0) - sinh[α1(h - z0)]}, (135) d13(2)(α1,α2) = 4sinh(α2h){sinh(α1z0) - eα1hsinh[α1(h - z0)]}, (136) d11(1)(α1,α2) = 8sinh(α1z0) - 8cosh(α2z0) + 2eα2(h+z0)sinh(α1h) +4eα2(h-z0)cosh(α1h) + 4eα1(z0-h)sinh(α2h) -4eα1(h+z0)cosh(α2h) + 4e(α1-α2)h-α1z0 +3eα2z0-(α1+α2)h, (137) d11(2)(α1,α2) = 8cosh[α2(h - z0)] - 8sinh[α1(h - z0)] -4e-α1z0 sinh(α2h) - 4eα2z0 cosh(α1h) -2eα2(2h-z0)sinh(α1h) + 4eα1(2h-z0)cosh(α2h) +4eα1z0-α2h - eα1h-α2z0 - 3e-α1h-α2z0 . (138)

    After many elementary manipulations, it is then found that (for j =1, 2)

    L ̂j = F(eα1h - e-α2h)(eα2h - e-α1h) (-1)j+1[E11ii(αj,αj)α1 + E21ii(αj,αj)α2] + E00ii(αj,αj)d + (-1)j+1 8Dq2 (sinh[αj(h - z) - αjh] - sinh(αjz))D̃1 + (-1)j+1 8Dq2 (sinh(αjz + αjh) + sinh[αj(h - z)])D̃2 (139)

    with the following definitions

    E00ii(α,β) = (eαh - e-βh){cosh[α(h - z - z0)] + eβhcosh[α(z - z0)]} +(e-αh - eβh){cosh[β(z - z0)]eαz + cosh(βz0)eα(h-z)}, (140) E11ii(α,β) = (e-αh - eβh){sinh(βz0)eα(h-z) +sinh[α(h - z0)]eαz}, (141) E21ii(α,β) = (eαh - e-βh){cosh[α(h - z0)]eβh -cosh[α(h - z - z0)]}. (142)
  3. Material for a conducting wall and an insulating wall:
    For j = 1, 2 it has been found, in such circumstances, that L̂j = F(α1 + α2)sinh[(α1 + α2)h] E11ci(αj,αj)αj + E21ci(αj,αj)αj + d(-1)j+1 E00ci(αj,αj)q2 +E12ci(αj,αj)αj2 + E22ci(αj,αj)(αj)2 + (-1)j+1 8Dq2 (α1 + α2)sinh(αjz)sinh(αjh)D̃2 +(-1)j+1 8D {sinh(αjz) + sinh[αj(h - z) + αjh]}S̃1 (143)

with the following definitions

E00ci(α,β)=eαz0 sinh[α(h - z) + βh] + sinh(αz){sinh(βh)eα(h-z0) +2sinh(βz0) + e-βz0 [1 - e2βh]2}, (144) E11ci(α,β)=eβz0 sinh[α(h - z) + βh] + sinh(αz){sinh(βh)eα(h-z0) -2sinh(βz0) - e-βz0 [1 + e2βh]2}, (145) E21ci(α,β)=eαz0 {sinh[α(h - z) + βh] + sinh(αz)} +sinh(αz){sinh(βh)eα(h-z0) + e-βz0 [1 - e2βh]2}, (146) E12ci(α,β)=-eβz0 {sinh[α(h - z) + βh] -sinh(αz)e-βz0 [1 + e2βh]2}, (147) E22ci(α,β)=sinh(αz){cosh(βh)eα(h-z0)-eαz0 } (148)

References

[1] Blake, J. R. A note on the image system for a Stokeslet in a no-slip boundary. Proc. Camb. Phil. Soc. 70 (1971), 303–310.

[2] Branover, G. G., and Tsinober, A. B. Magnetohydrodynamic of incompressible media. Moscow: Nauka, 1970.

[3] Chester, W. The effect of a magnetic field on Stokes flow in a conducting fluid. J. Fluid Mech. 3 (1957), 304–308.

[4] Chester, W. The effect of a magnetic field on the flow of a conducting fluid past a body of revolution. J. Fluid Mech. 10 (1961), 459–465.

[5] Gotoh, K. Magnetohydrodynamic flow past a sphere. Journal of the Physical Society of Japan 15, 1 (1960), 189–196.

[6] Gotoh, K. Stokes flow of an electrically conducting fluid in a uniform magnetic field. Journal of the Physical Society of Japan 15, 4 (1960), 696–705.

[7] Gradshteyn, I. S., and Ryzhik, Y. I. M. Tables of Integrals, Series, And Products. Academic Press, Inc., San Diego, 1965.

[8] Happel, J., and Brenner, H. Low Reynolds number hydrodynamics. Martinus Nijhoff Publishers, The Hague, 1983.

[9] Hartmann, J. Theory of the laminar flow of an electrically conductive liquid in a homogeneous magnetic field. Det Kgl . Danske Videnskabernes Selskab. Mathematisk-fysiske Meddelelser XV (6) (1937), 1–28.

[10] Jones, R. B. Spherical particle in poiseuille flow between planar walls. The Journal of Chemical Physics 121 (2004), 483–500.

[11] Khabthani, S., Sellier, A., Elasmi, L., and Feuillebois, F. Motion of a solid particle in a shear flow along a porous slab. J. Fluid Mech. 713 (2012), 271–306.

[12] Kim, S., and Karrila, S. J. Microhydrodynamics. Principles and selected applications. Martinus Nijhoff Publishers, The Hague, 1983.

[13] Liron, N., and Mochon, S. Stokes flow for a stokeslet between two parallel flat plates. J. Eng. Math. 10 (2004), 287–303.

[14] Liron, N., and Shakar, R. Stokes flow due to a stokeslet in a pipe. J. Fluid Mech. 86 (1978), 727–744.

[15] Moreau, R. MagnetoHydrodynamics. Fluid Mechanics and its Applications Kluwer Academic Publisher, 1990.

[16] Pasol, L., and Sellier, A. Gravitational motion of two-particle cluster between two parallel plane solid walls. Comptes-Rendus Mcanique 334, 2 (2006), 105–110.

[17] Pozrikidis, C. Boundary integral and singularity methods for linearized viscous flow. Cambridge University Press, 1992.

[18] Priede, J. Fundamental solutions of MHD Stokes flow. arXiv: 1309.3886v1. Physics. fluid. Dynamics (2013).

[19] Sellier, A. Fundamental mhd creeping flow bounded by a motionless plane solid. European Journal of Computational Mechanics 26, 4 (2017), 411–429.

[20] Sellier, A., and Aydin, S. H. Axisymmetric MHD viscous flows bounded by a solid plane normal to a uniform ambient magnetic field: fundamental flows and application to a solid sphere translating normal to the wall. European Journal of Computational Mechanics 27, 5–6 (2018), 443–468.

[21] Sellier, A., and Aydin, S. H. Fundamental free-space solutions of a steady axisymmetric mhd viscous flow. European Journal of Computational Mechanics 25, 1–2 (2016), 194–217.

[22] Sellier, A., and Aydin, S. H. Creeping axisymmetric MHD flow about a sphere translating parallel with a uniform ambient magnetic field. Magnetohydrodynamics 53 (2017), 5–11.

[23] Staben, M. E., Zinchenko, A. Z., and Davis, R. H. Motion of a particle between two parallel plane walls in low-reynolds-number poiseuille flow. Physics of Fluids 15 (2003), 1711–11.

[24] Tsinober, A. B. MHD flow around bodies. Fluid Mechanics and its Applications. Kluwer Academic Publisher, 1970.

[25] Tsinober, A. B. Axisymmetric magnetohydrodynamic Stokes flow in a half-space. Magnetohydrodynamics 4 (1973), 450–461.

[26] Tsinober, A. B. Green’s function for axisymmetric MHD Stokes flow in a half-space. Magnetohydrodynamics 4 (1973), 559–562.

Biographies


A. Sellier is Professor of Fluid Mechanics at Ecole Polytechnique, Paris, France. He belongs to LadHyX, the fluid laboratory hosted by this Institution and develops there research works devoted to creeping flows, suspensions and MHD.

Abstract

1 Introduction

2 Addressed MHD Problems and Basic Properties

2.1 Governing Fundamental MHD Problem

images

2.2 Basic Properties

2.2.1 Axisymmetric Case

2.2.2 Symmetry Property

2.3 Free-space Solution and Regular Auxiliary MHD Problem

3 Point Force Oriented Normal to the Walls

3.1 Advocated Form of the Auxiliary MHD Viscous Flow

3.2 Associated Problem in Two-dimensional Fourier Space and Its Solution

3.3 Obtained Auxiliary Flow and Pressure

4 Point Force Oriented Parallel to the Walls

4.1 Auxiliary Pressure and Velocity Component Normal to the Walls

4.2 Auxiliary Electric Potential and Velocity Tangent to the Walls

4.2.1 Solution for Two Conducting Walls

4.2.2 Solution for Two Insulating Walls

4.2.3 Solution for One Conducting Wall and a Second Insulating Wall

5 Conclusions

References

Biographies
