Machine Learning Approach for Detection of nonTor Traffic

Elike Hodo¹, Xavier Bellekens², Ephraim Iorkyase¹, Andrew Hamilton¹, Christos Tachtatzis¹ and Robert Atkinson¹

¹University of Strathclyde, Scotland
²University of Abertay Dundee, Scotland

E-mail: {elike.hodo; ephraim.iorkyase; andrew.w.hamilton; christos.tachtatzis; robert.atkinson}@strath.ac.uk; x.bellekens@abertay.ac.uk

Received 3 November 2017; Accepted 7 November 2017;
Publication 24 November 2017

Abstract

Intrusion detection has attracted a considerable interest from researchers and industry. After many years of research the community still faces the problem of building reliable and efficient intrusion detection systems (IDS) capable of handling large quantities of data with changing patterns in real time situations. The Tor network is popular in providing privacy and security to end user by anonymizing the identity of internet users connecting through a series of tunnels and nodes. This work identifies two problems; classification of Tor traffic and nonTor traffic to expose the activities within Tor traffic that minimizes the protection of users in using the UNB-CIC Tor Network Traffic dataset and classification of the Tor traffic flow in the network. This paper proposes a hybrid classifier; Artificial Neural Network in conjunction with Correlation feature selection algorithm for dimensionality reduction and improved classification performance. The reliability and efficiency of the propose hybrid classifier is compared with Support Vector Machine and naïve Bayes classifiers in detecting nonTor traffic in UNB-CIC Tor Network Traffic dataset. Experimental results show the hybrid classifier, ANN-CFS proved a better classifier in detecting nonTor traffic and classifying the Tor traffic flow in UNB-CIC Tor Network Traffic dataset.

Keywords

Artificial neural network
support vector machines
intrusion detection systems
Naïve Bayes
Tor and nonTor
UNB-CIC Tor Network Traffic dataset

1 Introduction

The computing world has changed over the past decade due to the rapid development of internet and new privacy enhancement technologies to circumvent internet censorship. Tor which is popular in fighting internet censorship has been deployed to serve thousands of users transferring terabytes of data daily [1, 2].

Tor is an overlay network designed to provide privacy and anonymity over the internet for TCP based applications like browsing. It operates by anonymizing the identity of users connecting through a series of tunnels and nodes. A user browses the web firstly by sending a request anonymously to Tor routers from one of the directory servers [2, 3]. Once a connection is established, traffic is relayed to the first router also called the Entry Guard. A session key is then generated between the client and the Entry Guard using Deffie-Hellman key exchange [4]. The same process is repeated on one router (hop) at a time to extend the circuit each time with established session keys for the previous routers. The last hop called the exit router communicates directly with the destination as a proxy [1]. With the establishment of three routers, the circuit is ready for internet traffic. The design of TOR network which includes the use of three hops and session keys helps to maintain anonymity through a concept called ‘perfect forward secrecy’[2, 5].

Tor networks are created to give internet users their privacy, freedom of speech, illegal tapping traffic and surveillance of network threatening users’ personal identity [6]. Besides Tor network being used for good, greater portion of its traffic are port scans, hacking attempts, exfiltration of stolen data and online criminality [2].

Over the last decade, Tor traffic classification has advanced in its applications in systems like quality of service (QoS) tools or Security information and Event management (SIEM) [7]. A considerable interest have been attracted from researchers and the industries to the study of these technologies and developing classification techniques [7–9].

To this effect intrusion detection system (IDS) plays an important role in Tor networks. Intrusion Detection Systems are placed on the networks to monitor and detect anomalies [10]. In general IDS can be categorized into two components, based on the detection technique. Signature-based and Outlier-based IDS. Most IDs employ a signature-based detection approach where the network traffic is monitored and compared against database rules or signature of known anomaly in network traffic, [10]. An alarm is raised on detection of a mismatch. Signature based is the most common as they do not necessarily have to learn the network traffic’s behavior. Although it is effective in detecting known anomalies, it cannot detect unknown anomalies unless the signature and rules are updated with new signatures [13, 14]. Signature based is known to have a significant time lapse between detection of an attack and activation of its corresponding signature [12]. Signature based techniques are mainly human-dependent in creating, testing and deploying signatures.

The outlier technique is a behavioral based detection system. It observes changes in normal activity of network traffic and builds a profile of the network traffic being monitored [15, 16]. An alarm is raised whenever a deviation from the normal behavior is detected. It has the ability to detect unknown anomalies. However outlier detection based IDS have the disadvantage of being computational expensive because the profile generated over a period needs to be updated against each system activity [12, 17]. Machine learning techniques have the ability to learn the normal and anomalous patterns automatically by training a dataset to predict an anomaly in network traffic. One important characteristic defining the effectiveness of machine learning techniques is the features extracted from raw data for classification and detection. Features are the important information extracted from raw data. The underlying factor in selecting the best features lies in a trade-off between detection accuracy and false alarm rates. The use of all features on the other hand will lead to a significant overhead and thus reducing the risk of removing important features. Although the importance of feature selection cannot be overlooked, intuitive understanding of the problem is mostly used in the selection of features [18].

This paper analyses the performance of Artificial neural network (ANN) and Support vector machines (SVM) in terms of overall accuracy in detecting nonTor traffic in a Tor network traffic dataset data from the University of New Brunswick (UNB), Canadian Institute for cyber security (CIC) using a hybrid anomaly based approach. As part of the work, the results are compared with the results of [7] being the only study published to the best of our knowledge using the UNB-CIC Tor Network Traffic dataset. A. Lashkari et al. [7] extracted 23 time based features from the dataset. A combination algorithm Cfs-SubsetEval + BestFirst (SE + BF) and Infogain + Ranker (IG + RK) was used to reduce the number of features from 23 to 5. The results from the feature selection algorithm was used to test different machine learning algorithms (ZeroR, C4.5 and KNN) using 10 fold cross validation and measured the weighted average precision and recall. Their results showed C4.5 was the best classifier.

In the proposed approach 10 features are selected out of the 28 features of the dataset using Correlation based feature selection (CFS) for training and testing the classification algorithm.

The rest of the paper is organized as follows: Section 2 describes intrusion detection systems, Section 3 describes the UNB-CIC Tor Network Traffic dataset, Section 4 introduces Artificial neural network, Support vector machines and Naïve Bayes classification algorithms used in the experiment respectively, Section 5 discusses experiments and analysis of experimental results, conclusion and future works are presented in Section 6.

2 Intrusion Detection System

Intrusion detection system is a software application or a device placed at strategic places on a network to monitor and detect anomalies in network traffic [19, 20] as shown in Figure 1. The main features of IDS are to raise an alarm when an anomaly is detected. A complementary approach is to take corrective measures when anomalies are detected, such an approach is referred to as an intrusion Prevention System (IPS) [21]. Based on the interactivity property of IDS, it can be designed to work either on-line or off-line. On-line IDS operates on a network in real time by analysing traffic packets and applying rules to classify normal and analogous traffic. Off-line IDS operates by storing data and after processing to classify normal and anomaly.

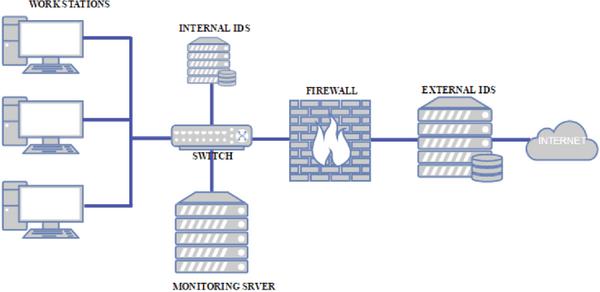

Figure 1 Intrusion Detection System model.

3 UNB-CIC Tor Network Traffic Dataset

The UNB-CIC Tor Network Traffic dataset [22] is a representative dataset of real-world traffic defined as a set of task. Three users were set up for browser traffic collection and two users for the communication parts such as chat, mail, p2p etc. from more than 18 representative applications such as Facebook, skype, Spotify, Gmail etc. The dataset contains 8 types of Tor traffic as shown in Table 1 and non-Tor traffic. The dataset contains 8044 (11.86%) records of Tor traffic and 59790 (88.14%) records of nonTor traffic. The non-Tor traffic captured in the dataset contains unique characteristics differentiating it from the Tor traffic. These characteristics are called features. The UNB-CIC Tor Network Traffic dataset contains a total of 28 features listed in Table 2.

Table 1 Description of UNB-CIC Tor Network Traffic

Type of Traffic	Description
Browsing	HTTP and HTTPS traffic generated by users while using Firefox and chrome.
Email	Traffic samples generated using a Thunderbird client and two other accounts holders. Mails were delivered through SMTP/S and received using POP3/SSL in client 1 and IMAP/SSL in client 2.
Chat	Instant messaging applications were identified under the chat label. The label was associated with Facebook and hangouts through web browser, skype and IAM and ICQ using an application called pidgin.
Audio-Streaming	Traffic was captured from Spotify identifying audio applications that require a continuous and steady stream of data.
Video-Streaming	Traffic was captured from YouTube and Vimeo services using Chrome and Firefox identifying video applications that require a continuous and steady stream of data.
File Transfer	This traffic was generated from skype file transfers, FTP over SSH (SFTP) and FTP over SSL (FTPS) traffic sessions identifying the traffic applications sending or receiving file documents.
Voice over Internet Protocol (Voip)	This is the traffic generated by voice applications using Facebook, Hangouts and Skype.
P2P	This traffic was generated from torrent files from the Kali linux distribution to identify file sharing protocols.

Table 2 Description of captured features

Feature Name	Feature Description
Source IP	IP address sending packets to destination
Source Port	Port sending packets from source
Destination IP	IP address receiving packets from source
Destination Port	Port receiving packets
Protocol	Type of the protocol used
Flow Duration	Length of connection in seconds
Flow Bytes/s	Number of data bytes
Flow Packets/s	Number of data packets
Flow IAT Mean	Packets flow inter arrival time Mean
Flow IAT Std	Packets flow inter arrival time Standard deviation
Flow IAT Max	Packets flow inter arrival time Max.
Flow IAT Min	Packets flow inter arrival time Min.
Fwd IAT Mean	Forward inter arrival time, the time between two packets Sent forward direction Mean.
Fwd IAT Std	Forward inter arrival time, the time between two packets sent forward direction Standard deviation.
Fwd IAT Max	Forward inter arrival time, the time between two packets sent forward direction Max.
Fwd IAT Min	Forward inter arrival time, the time between two packets sent forward direction Min.
Bwd IAT Mean	Backward inter arrival time, the time between two packets sent backward Mean.
Bwd IAT Std	Backward inter arrival time, the time between two packets sent backward Standard deviation.
Bwd IAT Max	Backward inter arrival time, the time between two packets sentbackward Max.
Bwd IAT Min	Backward inter arrival time, the time between two packets sentbackward Min.
Active Mean	The amount of time a flow was active before becoming idle mean.
Active Std	The amount of time a flow was active before becoming idle Standard deviation.
Active Max	The amount of time a flow was active before becomingidle Max.
Active Min	The amount of time a flow was active before becoming idle Min.
Idle Mean	The amount of time a flow was idle before becoming active Mean.
Idle Std	The amount of time a flow was idle before becoming active Std deviation.
Idle Max	The amount of time a flow was idle before becomingactive Max.
Idle Min	The amount of time a flow was idle before becoming active Min.

3.1 UNB-CIC Tor Network Traffic Dataset Description

The features were generated by a sequence of packets having the same values for {source IP, source Port, destination port and protocol (TCP and UDP)}. All Tor traffic was TCP since the flow does not support UDP. The generation of flows was done by a new application, the ISCX Flow Meter which generates bidirectional flows [7]. The overview of network traffic of the UNB-CIC dataset is shown in Figure 2. The overview gives the percentage of the particular records of network traffic in the dataset.

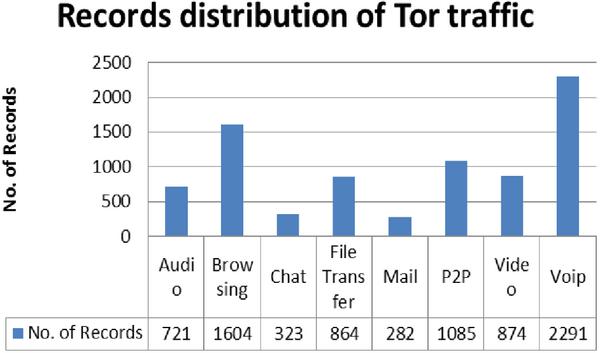

Figure 2 Records distribution of Tor Traffic.

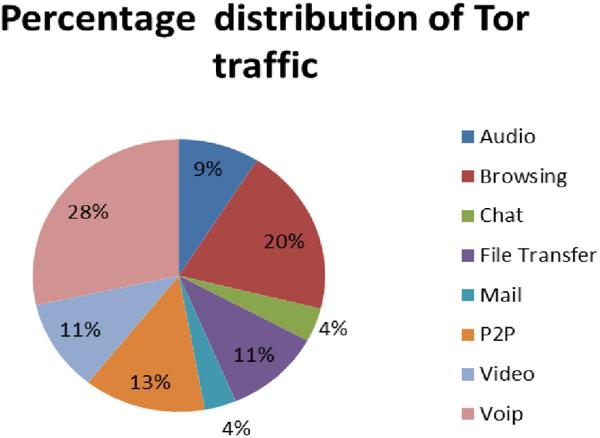

Figure 3 Percentage of Tor Traffic types.

4 Classification Algorithms

4.1 Artificial Neural Network

Artificial neural network (ANN) consists of information processing elements known to mimic neurons of the brain.

In this experiment, the neural network which is a Multilayer perceptron (MLP) is presented with a labelled training set which it uses to learn a mapping from input features listed in Table 2 represented as xin Figure 2 to outputs as yin Figure 2 given a labelled set of inputs-output pairs

d = {(x_{i}, y_{i})}_{i = 1}^{N} (1)

Where, d is called the training set and Nis the number of training examples. It is assumed that y_i is a categorical variable from some infinite set, y_i ∈{1…C} [23]. The technique used to train the MLP neural network is the Back Propagation hence the name MLP-BP.

The MLP-BP neural network is consists of layers of non-linear elements which form complex hypotheses. Each node takes an element of a feature vector. The structure of the ANN consists of three layers feed-forward neural network as shown in Figure 4. Nodes labelled x₁……x_n have been used to represent the input feature vectors to the ANN.

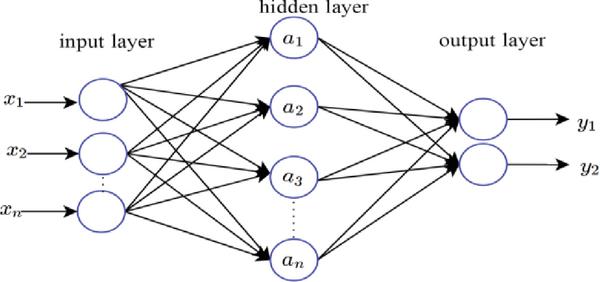

Figure 4 Artificial Neural Network Model used in experiment.

Hidden inner nodes a₁……a_n make up the hidden layer with an output layer of y₁……y_n nodes denoting different output classes. The interconnection between the nodes is associated with scalar weights with an initial weight assigned to the connection. During training, the weights are adjusted. Evaluating the hypotheses is done by setting the input modes in a feed-back process and the values are propagated through the network to the output. At this stage gradient descent is used so as to push the error in the output node back through the network by a back propagation process in order to estimate the error in the hidden nodes. The gradient of the cost – function is then calculated [24].

4.2 Support Vector Machines

Support Vector Machines (SVM) are a class of learning algorithms that learn to classify data using points labelled training examples falling into two or more classes. Binary classification is the most frequently employed approach [25]. For multi-class classification, a model is defined that comprises k Models of SVM, where k denotes the number of classes (Tor and NonTor). x₁ and y₂ SVM represented as lth SVM is trained with all the examples in the lth class labelled 1 and the other labelled 0.

Where, x_i ∈ R^d,y_i ∈{1,0},i = 1……N and y_i ∈{1……k} is a class of x_i. Introducing a slack of positive variables ξ_i, that measures the extent of constraint in a non-linear situation. The prima Optimisation problem becomes [26]:

\begin{matrix} \begin{matrix} \min_{w^{l}, b^{l}, ξ^{l}} \frac{1}{2} (^{w^{l}) T} w^{l} + C \sum_{i = 1}^{N} ξ_{i}^{l} \\ (^{w^{l}) T} ϕ (_{x) i} + b^{l} \geq 1 - ξ_{i}^{l}, i f y_{i} = N, \\ (^{w^{l}) T} ϕ (_{x) i} + b^{l} \leq - 1 + ξ_{i}^{l}, i f y_{i} = N, \\ ξ_{i}^{l} \geq 0, i = 1 \dots \dots N, \end{matrix} & (2) \end{matrix}

Where the training set x_i are mapped into higher dimensional space by the function ϕ and C, where C is a parameter which trades off wide margin with small number of margin failures. Minimisation of (w^l)^Tw^l implies maximising , which is the margin between the two data points. The SVM then searches for a balance between the regularisation term (w^l)^Tw^l and the errors in training the dataset. Solving (2) gives k decision functions:

\begin{matrix} \begin{matrix} (^{w) 1^{T}} ϕ (x) + b^{1} \\ ⋮ \\ (^{w) k^{T}} ϕ (x) + b^{k} \end{matrix} & (3) \end{matrix}

where x is the class having the largest value of the decision function:

x \equiv a r g m a x_{l \equiv 1 \dots k} ({(w^{l})}^{T} ϕ (x) + b^{l}) (4)

The dual problem of (2) having the same number of variables as the number of data in (2). Thus k N-variable quadratic programing problems are solved.

4.3 Naïve Bayes Networks

Naïve Bayes (NB) is a graphical modelling tool used to model the probability of variables of interest. It is a directed acyclic graph where each node represents a discrete random variable of interest. Each node contains the states of the random variable in a tabular form representing the conditional probability table (CPT). The CPT specifies the conditional probability of the domain variable with other connected variables [27, 28]. The probability is computed based on the Bayes theorem and assumes the predictions are conditional independent given the class labels [29]. The Naïve Bayes algorithm estimates the densities of the predictors in each class and models the posterior probabilities based on the Bayes rule expressed as:

P (c_{i} | A) = \frac{P (A | c_{i}) . P (c_{i})}{P (A)} (2)

Where c_i corresponds to a random variable in the class index. A is the total evidence on attributes nodes where A can be grouped into smaller evidence say, a₁,a₂,…,a_n relative to the features A₁,A₂,…,A_n respectively.

Since in Naïve Bayes network it is assumed the these features are independent (given the parent node), their combined probability is:

P (c_{i} | A) = \frac{P (a_{1} | c_{i}) . P (a_{2} | c_{i}), \dots, P (a_{n} | c_{i}) . P (c_{i})}{P (A)} (6)

The algorithm makes use of the estimation of the posterior probability of each class to classify an observation and assigns the observation to the class with maximum posterior probability.

5 Experiments and Results Analysis

5.1 Results Evaluation Metrics

The effectiveness of a classification algorithm requires high Overall accuracy (ACC), high Recall (Rc), high Precision (Pr), a high F-measure (F1) as well as low false positive rate (FPR). The performance of IDS in general is evaluated in terms of overall accuracy, detection rate and false positive rate. The confusion metrics shown in Table 3 is used to evaluate these parameters.

Table 3 Confusion Metrics

		Target	Output
Output		Negative	Positive
Predicted output	Positive	TP	FP
	Negative	FN	TN

Where, True Negative (TN): a measure of negative records correctly classified.

True Positive (TP): a measure of positive samples classified rightly.

False Positive (FP): a measure of negative records incorrectly classified as positive.

False Negative (FN): a measure of positive records incorrectly classified as negative.

Accuracy: This is the proportion of total number of records correctly classified correctly as positive or negative.

Accuracy (ACC) = \frac{T P + T N}{T P + T N + F P + F N}

Recall Rate: The proportion of the positive records classified correctly to the total number of the negative that are classified correctly positive or incorrectly as negative.

Recall Rate (Rc) = \frac{T P}{T P + F N}

False Positive Rate: It gives a measure of the proportion of negative records that are correctly classified

False Positive rate (FPR) = \frac{F P}{F P + T N}

Precision: The proportion of positive records correctly classified to the total number of records that are classified as positive.

Precision (Pr) = \frac{T P}{T P + F P}

F-Measure: This is the harmonic mean of precision and recall and gives a better indication performance of an unbalance dataset.

F-Measure (F1) = \frac{2 \times R e c a l l \times P r e c i s i o n}{R e c a l l + P r e c i s i o n}

5.2 Feature Selection Algorithm

This paper proposes correlation based feature selection (CFS) to select the relevant features out of the 28 features.

CFS is a filtering algorithm using a correlation based heuristic evaluation function to rank feature subsets. A good set of features are highly correlated with the class (target) and at the same time uncorrelated to each other. Redundant features are ignored because they have low correlation with class and will turn to highly correlated with one or more of the remaining features. A feature is accepted based on the extent it predicts classes in areas of the instance space which has not been predicted by other features.

Equation (7) shows the CFS feature subset evaluation function.

M_{s} = \frac{k \bar{r_{c f}}}{\sqrt{k + k (k - 1) \bar{r_{f f}}}} (7)

Where M_s is heuristic “merit” of a feature subset s containing k features, r_cf is the average feature class correlation. The numerator can be thought of as giving an indication of how predictive a group of features are; the denominator of how much redundancy there is among the features [30].

The CFS algorithm reduces the dimensionality of the dataset, reduces overfitting and gives a shorter training time. Table 4 shows the 10 selected features based on the appropriate correlation measure and heuristic search strategy.

Table 4 CFS features selection

No.	Feature Name	No.	Feature Name
1	Destination Port	6	Idle Min
2	Bwd IAT Mean	7	Flow Bytes/s
3	Idle Max	8	Flow IAT Std
4	Fwd IAT Min	9	Source IP
5	Source Port	10	Destination IP

5.3 Experiments

To verify the performance of the proposed hybrid algorithm two scenarios, A and B is considered. In Scenario A, the focus was on detecting nonTor traffic and in Scenario B, the focus was to classify the generated flows in the TOR traffic. The experimental model involves two phases: the classification training phase and validation phase as shown in Figure 5. In the training phase, the algorithm learns the distribution of the features with corresponding classes. During the validation phase, the trained model is applied to a test set which has not been previously seen by the training phase.

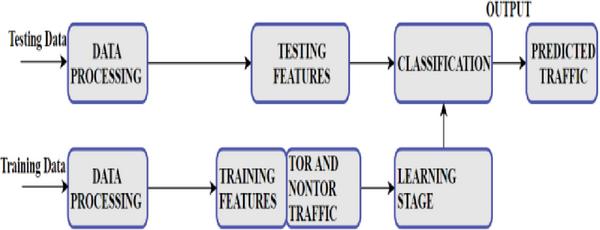

Figure 5 Experimental Model.

Scenario A: The dataset was created by A. Lashkari et al. by merging Tor traffic dataset [7] and a public dataset of encrypted traffic generated by Draper-Gil et al. [31] which included the same application on the same network. The Tor traffic dataset flows were labelled Tor and all flows from Draper et al. [31] as nonTor. The experiment was performed by training ANN, ANN-CFS, SVM, SVM-CFS, NB and NB-CFS with UNB-CIC Tor and nonTor Network Traffic dataset to detect nonTor Traffic in a Tor network. The classification is a binary task where the output indicates the system’s certainty that the given observation is a nonTor or Tor. In the first set of experiment, the classifying algorithms were trained with all 28 features of the dataset. The ANN model used in the experiment had 20-hidden neurons and trained with Levenberg-Marquardt (trainlm) training function. The SVM model used in the experiment uses a Gaussian kernel. The Naïve Bayes model was a kernel density estimation which is a non-parametric density estimate for classification. In the second set of experiment the classification algorithms were trained with 10 features selected using CFS algorithm based on the appropriate correlation measure and heuristic search strategy. The ANN hidden neurons were reduced to 6 with Levenberg-Marquardt training function (trainlm) for learning. The SVM and Naïve Bayes models remained unchanged.

Scenario B: The Tor traffic dataset [7] flows which were labelled according to the application type (Audio, browsing, chat, filetransfer, mail, P2P, video, voip) executed on the work station was used in Scenario B. The results were obtained by applying ANN-CFS, SVM-CFS and NB-CFS classification algorithms to the UNB-CIC Tor traffic dataset. The aim of the experiment was to compare the classification performance of the three hybrid classification algorithms as a multi class classifier. The classification is a multiclass classification where a one-vs-All technique was implemented. The training model for SVM and NB classifying algorithms remained the same as in Scenario A. In the case of ANN-CFS the hidden neurons were increased to 10.

5.4 Results Analysis

In this section, an analysis of the validation process is discussed and presented in detail.

5.4.1 Scenario a results analysis

The performance of the classifiers on Scenario A dataset were evaluated and measured using the following metrics: False positive rate (FPR), Accuracy (ACC), Precision (Pc), Recall (Rc) and F-measure (F1). The dataset was divided into 70% training set, 15% test set and 15% validation set.

Table 5 Performance metrics of classification algorithms

Performance	ANN	CFS-ANN	SVM	CFS-SVM	NB-CFS	NB-CFS	C4.5 [7]
Rc (Tor) %	93.7	98.8	67	98.4	96.74	98.6	93.4
Rc (nonTor) %	99.2	100	98	99	97.62	95.9	99.4
Pc (Tor) %	98.3	99.8	79	80	84.5	76.6	94.8
Pc (nonTor) %	99.8	99.8	96	88	99.6	99.8	99.2
FPR (Tor) %	0.21	0.03	2.3	1.8	0.02	0.04	-
FPR (nonTor) %	1.6	1.2	32.8	2.6	0.03	0.01	-
F1 (Tor)	0.95	0.99	0.72	0.88	0.9	0.86	-
F1 (nonTor)	0.99	0.99	0.97	0.93	0.98	0.97	-
Overall ACC. %	99.1	99.8	94	96.1	97.52	96.26	-

Table 5. shows the classification performance metrics of the ANN, ANN-CFS, SVM, SVM-CFS, NB and NB-CFS classification algorithms in classifying Tor and nonTor traffic. The results show ANN-CFS presents the best results in all the performance metrics used to determine the classification performance of the classifying algorithms. It can be seen in Table 6. that NB-CFS shows an FPR of 0.01% for non-Tor detection as compared to ANN-CFS recording 1.2%. Also, NB shows 0.02% in the detection of Tor as compared to ANN-CFS recording 0.03% Regarding ANN-CFS FPR for detecting nonTor, 1.2% of its alarm associated with a true security event is an acceptable percentage for an efficient IDS under normal conditions. A. Lashkari et al. [7] proposed a hybrid C4.5 Decision tree algorithm in classifying Tor and non-Tor traffic using only the time based features of the dataset. Comparing the Precision and Recall results in [7] to ANN-CFS shows ANN-CFS recorded 99.8% and 98.8% respectively for the detection of Tor traffic whilst A. Lashkari et al. recorded 94.8% and 93.4% respectively. Regarding nonTor traffic, the proposed hybrid algorithm (ANN-CFS) recorded 99.8% and 100% respectively for Precision and Recall whilst A. Lashkari et al. recorded 99.2 and 99.4 respectively for Precision and recall. The best values in detection accuracy, Recall, Precision, F-measure, and overall accuracy with a low false positive rate in the classification of Tor and nonTor traffic recorded by CFS-ANN makes it a promising detection system for nonTor traffic. The reduction in dataset size is an important factor in the run time for detection by the classifying algorithm. Figures 6 and 7 show a comparison of the performance metrics of the classification algorithms.

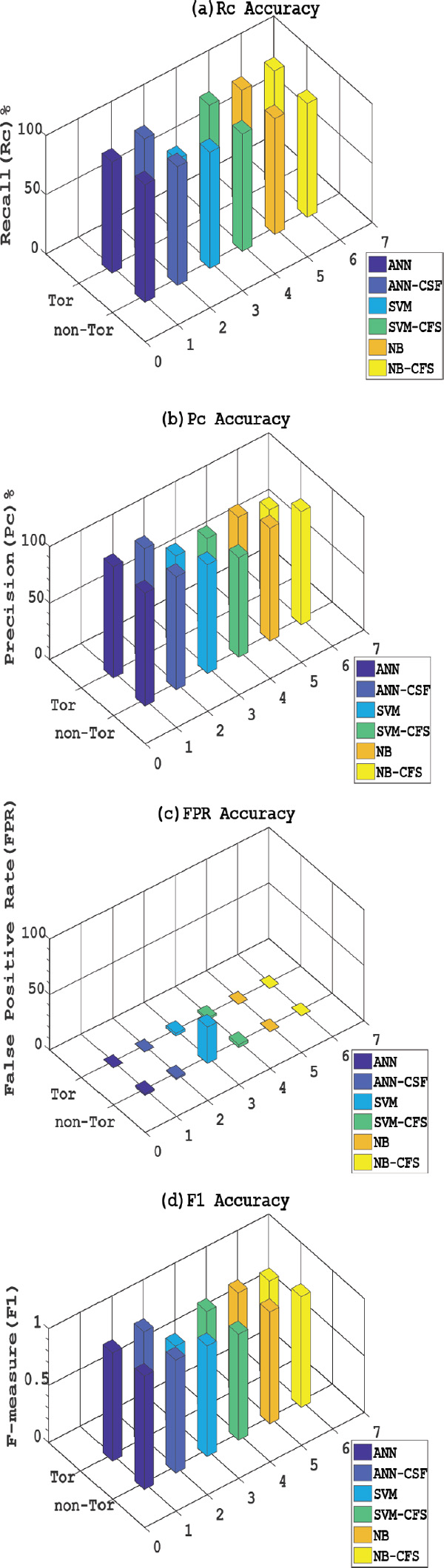

Figure 6 (a–d): Comparison of Rc, Pc, FPR and F1 accuracy classifying Tor and non-Tor traffic.

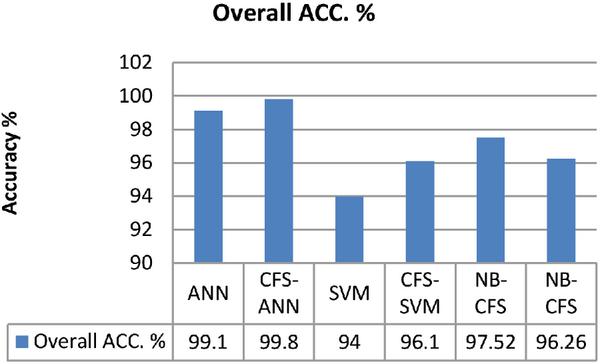

Figure 7 Comparison of Overall Accuracy classifying Tor and non-Tor traffic

5.4.2 Scenario B results analysis

In this section the performance of the proposed hybrid classification algorithm (ANN-CFS) is compared with SVM-ANN and NB–CFS classification algorithm to classify 8 different types of traffic in the Tor dataset. In this classification, we are being faced with a multi class problem involving a One vs All classification where one class is considered with the others taken as a single alternative class. The problem is then simplified to a binary classification task for each particular class. The results are presented as a weighted average of F-measure, Precision and Recall.

Considering the three performance metrics, F-measure is considered the most important in Scenario B. F1 which is the harmonic mean of Precision and Recall gives a better presentation of the prediction performance of unbalanced dataset. The best value of F1 is at 1 and the worse is at 0. Figure 8 shows the results of One vs All weighted average performance metrics for 8 different traffic in the Tor dataset using ANN-CFS, SVAN-CFS and NB-CFS classification algorithms. It can be observed that ANN-CFS presents the best overall results. Considering that ANN-CFS records F1 of 0.84 and an overall accuracy of 89.4 as compared to the other classifiers indicate that the proposed algorithm can classify unbalanced dataset with high accuracy.

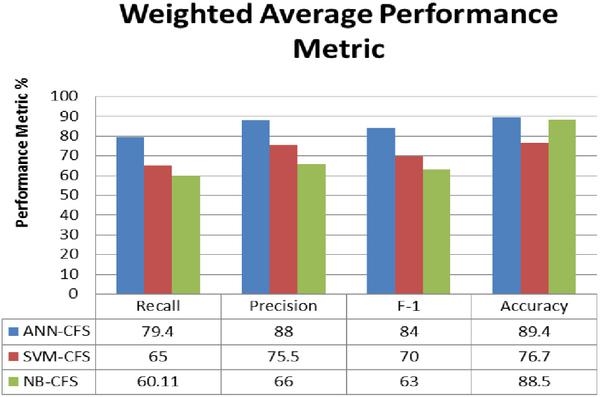

Figure 8 Weighted Average classification performance metrics.

6 Conclusions

This paper presents experimental study of two classification scenarios to evaluate the performance of a propose hybrid machine learning algorithm in detecting non-Tor traffic in UNB-CIC Tor Network Traffic dataset. The first scenario mainly focuses on detecting nonTor traffic in a representative dataset of real-world traffic to expose the activities within the Tor-traffic that downgrades the privacy of users. Experimental results show the proposed algorithm detects nonTor with an overall accuracy of 99.8%. The proposed algorithm performed better than SVM, SVM-CFS, NB, NB-CFS and a hybrid C4.5 decision tree proposed by A. Lashkari et al. [7]. The proposed hybrid classifier reduces the dimensionality of the data size by 65% removing the less effective features thereby lowering computational cost and training time. The second scenario demonstrates the application of the proposed algorithm in multi class classification. The results presented show that ANN-CFS performs better than SVM-CFS and NB-CFS with the best precision, Recall and F-measure. Additionally, F-measure value of the propose algorithm indicates that it can deal with unbalanced and noisy datasets. Considering the good performance of the proposed algorithm, investigations will be performed in future to explore its capabilities on datasets from critical infrastructures.

Acknowledgments

The authors would like to thank the Canadian Institute of Cyber Security, University of Brunswick for providing us with the dataset to carry out this work.

References

[1] Ling, Z., Luo, J., Wu, K., Yu, W., and Fu, X. (2015). “TorWard: Discovery, Blocking, and Traceback of Malicious Traffic Over Tor,” IEEE Trans. Inf. Forensics Secur., 10:2515–2530.

[2] Ghafir, I., Prenosil, V., and Svoboda, J. (2014). “Tor-based malware and Tor connection detection,” in International Conference on Frontiers of Communications, Networks and Applications (ICFCNA 2014 – Malaysia).

[3] Doswell, S., Aslam, N., Kendall, D., and Sexton, G. (2013). “Please slow down!,” in Proceedings of the Third ACM workshop on Security and privacy in smartphones & mobile devices – SPSM ’13, 87–92.

[4] Diffie, W., and Hellman. (1976). “New directions in cryptography,” IEEE Trans. Inf. Theory, 22, 644–654.

[5] Dingledine, R., and Syverson, P. (2004). “Tor: The Second-Generation Onion Router.” Naval Research Lab Washington DC.

[6] Saputra, F. A., Nadhori, I. U., and Barry, B. F. (2016). “Detecting and blocking onion router traffic using deep packet inspection,” in 2016 International Electronics Symposium (IES), 283–288.

[7] Lashkari, A. H., Gil, G. D., Mamun, M. S. I., and Ghorbani, A. A. (2017). “Characterization of Tor Traffic using Time based Features,” 253–262.

[8] Nguyen, T., and Armitage, G. (2008). “A survey of techniques for internet traffic classification using machine learning,” IEEE Commun. Surv. Tutorials, 10, 56–76.

[9] Hill, G. D., and Bellekens, X. J. A. (2017). “Deep Learning Based Cryptographic Primitive Classification,” arXiv preprint arXiv:1709.08385.

[10] Ishitaki, T., Oda, T., Matsuo, K., Barolli, L., and Takizawa, M. (2015). “Performance Evaluation of a Neural Network Based Intrusion Detection System for Tor Networks Considering different Hidden Units,” in 2015 18th International Conference on Network-Based Information Systems, 620–627.

[11] Roesch and Martin. (1999). “Snort – Lightweight Intrusion Detection for Networks,” in Proceedings of the 13th USENIX conference on System administration, 229–238.

[12] Subba, B., Biswas, S., and Karmakar, S. (2012). “A Neural Network based system for Intrusion Detection and attack classification,” in 2016 Twenty Second National Conference on Communication (NCC), 1–6.

[13] Haidar, G. A., and Boustany, C. (2015). “High Perception Intrusion Detection System Using Neural Networks,” in 2015 Ninth International Conference on Complex, Intelligent, and Software Intensive Systems, 497–501.

[14] Bellekens, X. J. A., Tachtatzis, C., Atkinson, R. C., Renfrew, C., and Kirkham, T. (2014). “A Highly-Efficient Memory-Compression Scheme for GPU-Accelerated Intrusion Detection Systems,” Proc. 7th Int. Conf. Secur. Inf. Networks – SIN ’14, 302–309.

[15] Mittal, N. K. (2016). “A survey on Wireless Sensor Network for Community Intrusion Detection Systems,” in 2016 3rd International Conference on Recent Advances in Information Technology (RAIT), 107–111.

[16] Shun, J., and Malki, H. A. (2008). “Network Intrusion Detection System Using Neural Networks,” 2008 Fourth Int. Conf. Nat. Comput., 5, 242–246.

[17] Hodo, E., Bellekens, X., Hamilton, A., Dubouilh, P.-L., Iorkyase, E., Tachtatzis, C., and Atkinson, R. (2016). “Threat analysis of IoT networks using artificial neural network intrusion detection system,” in 2016 International Symposium on Networks, Computers and Communications, ISNCC 2016, 1–6.

[18] Biglar Beigi, E., Hadian Jazi, H., Stakhanova, N., and Ghorbani, A. A. (2014). “Towards effective feature selection in machine learning-based botnet detection approaches,” in 2014 IEEE Conference on Communications and Network Security, 247–255.

[19] Rozenblum, D. (2001). “Understanding Intrusion Detection Systems,” PC Network Advisor, 122, 11–15.

[20] Hodo, E. Bellekens, X., Hamilton, A., and Tachtatzis, C. (2017). “Shallow and Deep Networks Intrusion Detection System: A Taxonomy and Survey.” [Online]. Available at: https://arxiv.org/ftp/arxiv/papers/1701/1701.02145.pdf [Accessed: 31-Mar-2017].

[21] Sekar, R., Guang, Y., Verma, S., and Shanbhag, T. (1999). “What it is Network intrusion detection system? — COMBOFIX.” [Online]. Available at: http://www.combofix.org/what-it-is-network-intrusion-detection-system.php [Accessed: 10-Dec-2015].

[22] “Tor-nonTor — Datasets — Research — Canadian Institute for Cybersecurity — UNB.” [Online]. Available at: http://www.unb.ca/cic/research/datasets/tor.html [Accessed: 18-Apr-2017].

[23] Murphy K. (2015). “Machine learning: a probabilistic perspective,” Chance encounters: Probability in … ,. [Online]. Available at: http://link.springer.com/chapter/10.1007/978-94-011-3532-0_2 [Accessed: 06-Jan-2015].

[24] Alsheikh, M. A., Lin, S., Niyato, D., and Tan, H.-P. (2014). “Machine Learning in Wireless Sensor Networks: Algorithms, Strategies, and Applications,” IEEE Commun. Surv. Tutorials, 16, 1996–2018.

[25] Burges, C. J. C. (1998). “A Tutorial on Support Vector Machines for Pattern Recognition,” Data Min. Knowl. Discov., 2, 121–167.

[26] Hu, W., Liao, Y., and Vemuri, V. R. (2003). “Robust Support Vector Machines for Anomaly Detection in Computer Security.” In ICMLA.

[27] Jemili, F., Zaghdoud, M., and Ben Ahmed, M. (2009). “Intrusion detection based on ‘Hybrid’ propagation in Bayesian Networks,” in 2009 IEEE International Conference on Intelligence and Security Informatics, 137–142.

[28] Jensen, T. D., Jensen, F. V., and Nielsen. (2001). “Bayesian networks and decision graphs,” Springer, Berlin.

[29] Amor, N. B., Benferhat, S., and Elouedi, Z. (2003). Naive bayesian networks in intrusion detection systems. In Proc. Workshop on Probabilistic Graphical Models for Classification, 14th European Conference on Machine Learning (ECML) and the 7th European Conference on Principles and Practice of Knowledge Discovery in Databases (PKDD), Croatia.

[30] Hall, M. A. (1999). “Correlation-based Feature Selection for Machine Learning,”. Available at: https://www.lri.fr/∼pierres/donn%E9es/save/these/articles/lpr-queue/hall99correlationbased.pdf

[31] Draper-Gil, G., Lashkari, A. H., Mamun, M. S. I., and Ghorbani, A. A. (2017). “Characterization of Encrypted and VPN Traffic using Time-related Features,” in Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), 407–414.

Biographies

images

Elike Hodo is a Ph.D. student in the Department of Electronics and Electrical Engineering at the University of Strathclyde, Glasgow UK since October 2014. He attended the Deggendorf University of Applied Sciences, Germany where he received his M.Eng. in Electrical Engineering and Information technology in 2007.

His Ph.D. work centres on application of Machine Learning algorithms in cyber security.

images

Xavier Bellekens received the Bachelor Degree from Henallux in Belgium; the Masters degree in Ethical Hacking and Computer Security from the University of Abertay Dundee and the Ph.D. in Electronic and Electrical Engineering from the University of Strathclyde in Glasgow in 2010, 2012 and 2016 respectively. He is currently a Lecturer in Security and Privacy and the acting head of the Machine Learning Group at the University of Abertay in Dundee within the Department of Cyber Security. He is the general chair of the IEEE Cyber Science Collocated conferences and an editorial board member of the Open Access IJCSA journal. He is also a regular contributor on the radio and newspapers both in Belgium and the UK on cyber-security issues. His current research interests include machine learning for cyber-security, autonomous distributed networks, the Internet of Things, massively parallel algorithms and critical infrastructure protection. He is a member of IEEE, ACM and IET.

images

Ephraim Iorkyase received the B.Eng. in Electrical and Electronic Engineering and the M.Eng. in Communication Engineering from University of Agriculture Makurdi, Nigeria (2004) and Federal University of Akure, Nigeria (2010) respectively. He is currently pursuing his Ph.D. at the department of Electronic and Electrical Engineering, University of Strathclyde, Glasgow, U.K. His main research interests include application of machine learning techniques in radio location of partial discharge, condition monitoring, intrusion detection and classification, signal processing, fault location and communication applications.

images

Andrew Hamilton received his M.Eng. in civil engineering (2009) and Ph.D. in wind energy systems (2015) from the University of Strathclyde. He joined the Centre for Intelligent Dynamic Communications (CIDCOM) at the Univ. of Strathclyde in 2013 as a Research Associate to work on the development of smart tooling through distributed control for aerospace composite manufacturing. His other research interests include IoT for manufacturing technology, renewable energy systems and condition monitoring.

images

Christos Tachtatzis is a Lecturer Chancellor’s Fellow in Sensor Systems and Asset Management, at the University of Strathclyde. He holds a BEng (Hons) in Communication Systems Engineering from University of Portsmouth in 2001, an MSc in Communications, Control and Digital Signal Processing (2002) and a Ph.D. in Electronic and Electrical Engineering (2008), both from Strathclyde University. Christos has 12 years of experience, in Sensor Systems ranging from electronic devices, networking, communications and signal processing. His current research interests lie in extracting actionable information from data using machine learning and artificial intelligence.

images

Dr. Robert C Atkinson is a Senior Lecturer in the Department of Electronic and Electrical Engineering, University of Strathclyde. He has applied a range of signal processing and machine learning algorithms to a range of fields as diverse as: radiolocation of partial discharge, intrusion detection systems, 4G handover optimization, game theory applied to radio access network selection, prognostics for gearboxes, condition-based maintenance of water pumps, internet of things, smart cities, smart buildings, and image analysis for pharmaceutical crystals. He is the author of over 80 scientific papers, published in internationally recognised conferences and journals. He is a Member of the IET and a Senior Member of the IEEE.
