Sign Language Recognition for Deaf and Dumb People Using Convolution Neural Network

Nourdine Herbaz^*, Hassan El Idrissi and Abdelmajid Badri

Laboratory of Electronics, Energy, Automation & Information Processing(LEEA&TI), Faculty of Sciences and Techniques Mohammedia, Hassan II University of Casablanca, 28830, Morocco
E-mail: herbaznourdine@gmail.com; idrissi99@yahoo.fr; abdelmajid_badri@yahoo.fr
*Corresponding Author

Received 16 March 2022; Accepted 11 April 2022; Publication 10 August 2022

Abstract

Gesture recognition is an open phenomenon in computer vision, and one of the topics of current interest. Gesture recognition has many applications in the interpretation of sign language in deaf-mutes, one is in human-computer interaction, and the other is in immersive game technology.

For this purpose, we have developed a model of image processing recognition of gestures, based on Artificial Neural Networks, starting from data collection, identification, tracking and classification of gestures, to the display of the obtained results. We propose an approach to contribute to the translation of sign language into voice/text format.

In this paper, we present a Moroccan sign language recognition system using a Convolutional Neural Network (CNN). This system includes an important data set of more than 20 files. Each file contains 1,000 static images of each signal from several different angles that we collected with the camera. Different Sign Language models were evaluated and compared with the proposed CNN model. The proposed system achieved 99.33% and achieved the best performance with an accuracy rate of 98.7%.

Keywords: Sign language, convolutional neural networks, deaf-mutes people, image processing, real time.

1 Introduction

In recent years, gestures are a basic way of communication. The main objective is to recognize these gestures with the help of innovative technologies. At present, the number of deaf-mutes who use gestures as a means of communication is very large [1]. It will be very interesting for people who do not use this language to understand the sign language of deaf mutes. Despite the achievements of modern science in this direction, sign language remains one of the least studied areas [1]. Modern advances in the field of neural networks and deep learning, as well as the increase in computing power, allow for the development of innovative solutions that facilitate the adaptation of people with hearing impairments in society. To solve this problem in our research, we proposed a CNN and a very important dataset for image classification. Figure 1 shows some hand gestures of n Arabic Sign Language Alphabets with the meaning of each gesture. Our goal is to translate sign language into text.

Figure 1 Arabic sign language alphabets [2].

In this paper, we present an approach to improve the performance of hand gesture recognition using a camera. The document is composed of five sections. In Section 2, we start with an overview of related works, the methodology we propose for our solution is presented in Section 3. Section 4 focuses on the obtained results. In Section 5 we ended our paper with a conclusion with perspectives.

2 Related Work

In light of the rapid changes in the field of technology and the varying conditions in understanding and studying languages, sign language faces many challenges. Many researchers have taken on this challenge by developing methods to understand sign language symbols. In principle, we say that sign language is an obstacle when deaf-mute people try to adapt to society, which leads to their marginalization.

Work on hand gesture recognition was originally seen as a method of human-computer interaction, with [3] exploring three different gesture feature extraction applications, Scale Invariant Feature Transform (SIFT), Local Binary Pattern (LBP), and Histogram of Oriented Gradients (HOG). Most applications have been developed on static gesture recognition, i.e., geometric feature extraction, the number of fingers lifted in a gesture, the distance from the center of the palm of the hand to the fingertips and the valley between the fingers [4]. Method [5] lifted some of these restrictions, but required data augmentation to improve the accuracy of deep CNNs. Binary Image methods are often based on fitting “HU moments” for feature extraction and classification using the KNN algorithm “HU moments” (e.g., [8]) and show excellent accuracy. The effect of hyper-parameters on each hand gesture presented in [6] is also one of the means used by the authors to decode hand gestures from EMGs data recorded in 18 subjects regarding hand gestures using the implementation of convolutional neural networks. Sidig et al. [7] presented a model to collect a database for ArSL using Microsoft Kinect-V2.

With the technological revolution and artificial intelligence, the recognition of sign language based on Convolutional Neural Networks (CNN) has become the main focus of research, giving rise to many applications based on CNN. The feature extraction technique Oriented FAST and Rotated BRIEF (ORB) [9] used many different pretreatment techniques such as gradient histogram, LBP and Principal Component Analysis (PCA) on the same dataset, then it uses Support Vector Machine to classify them. Method [11] uses a set of geometric characteristics of the hand silhouette based on Fisher Vector’s compact representation to define the hand posture. In [15], authors used Support Vector Machine and Convolutional Neural Network to detect and recognize American sign language, the authors achieve accuracy of 98.5%.

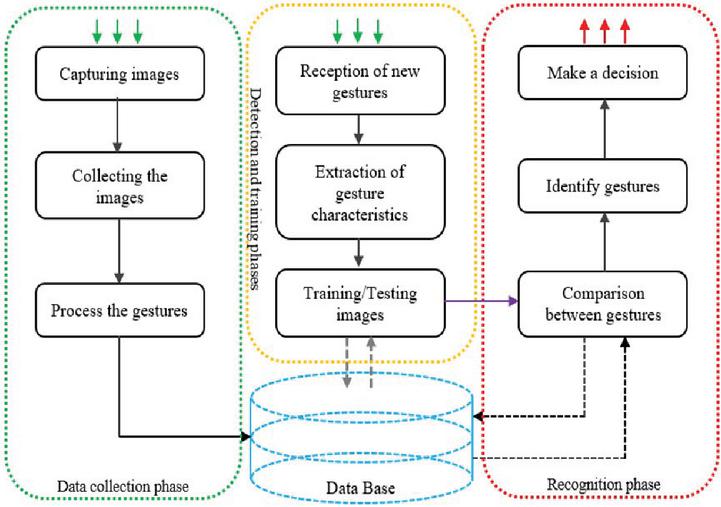

Figure 2 Block diagram of the system.

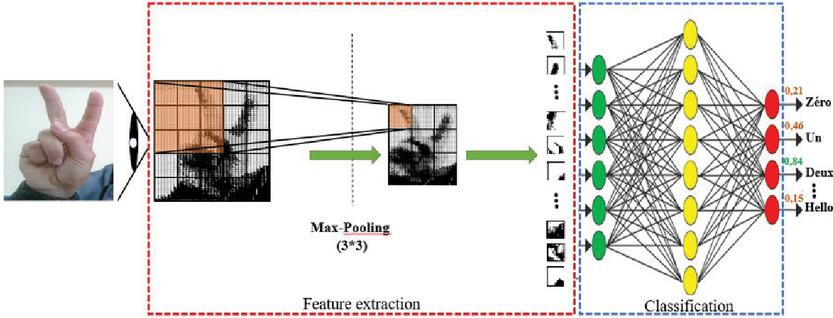

Figure 3 A Convolution Neural Network sequence to classify gestures.

3 Methodology

The proposed static gesture recognition methodology consists of three phases as shown in Figure 2. These three phases deal with hand gesture collection, image training, classification and gesture detection. The hand area is recognized from image processing using the transformation of an RGB image to a binary image. The resulting hand image is then segmented into two areas: the white area consisting of the palm and fingers and the outer area of the hand with the color black which is the hand’s environment. The black area does not play any role in distinguishing the different gestures. The following features are extracted: orientation of the hand and number of fingers present in the gesture. Finally, the extracted features are given to the input of a convolutional neural network sequence for gesture classification as shown in Figure 3.

3.1 System Architecture

Our classification architecture is classical, combining convolution and Max Pooling. However, to obtain a fast classification allowing real-time classification and localization, we have chosen a lightweight network. Figure 4 shows the six layers of our convolutional network: the first layers are used to identify simple shapes (vertical, horizontal, oblique lines, etc.); the next ones pool this information to recognize more complex shapes; and the last ones, called “classifier”, are able to classify information and make a “decision” (our example, “gesture recognition”). Finally, the extracted features are given to the input of a convolutional neural network sequence for gesture classification.

To recognize the hand gesture we used a CNN, Figure 5 shows the CNN Processus. We have in input an original image of hand Gesture, Who will cross many operations (Convolution, ReLU, Pooling …) to extract the informations of sign languages to make decision in output.

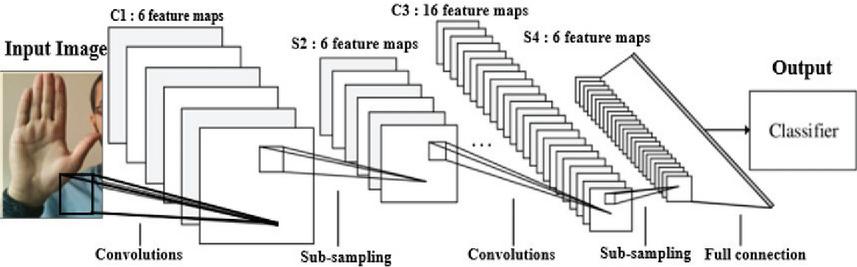

Figure 4 Architecture of convolutional neural networks.

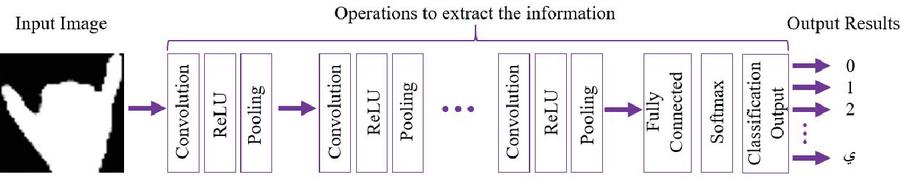

Figure 5 Convolution neural network processus.

3.2 Dataset

To evaluate our system, we used a database containing hand gestures with meanings, Figure 6 represents some images from our database before converting them into binary:

Figure 6 Images of the gestures in our database.

Figure 7 Gesture images from our database converted to binary.

3.3 Equations

In each evolution of the image during a CNN sequence, our objective is to reduce the size of the selected image as shown in Figure 3, for this we need to reduce the dimensions of the output feature map, relative to the input using the following general formula (1):

Size of the future image = (\frac{n + 2 p - f}{s} + 1) (\frac{n + 2 p - f}{s} + 1) .

(1)

With, n: size of the input image p: padding amount f: filter size s: stride (number of pixels shifted on the input image)

Figure 8 Vector transformed binary image for neural network system adaptation.

In Figure 8 we use in the input layer the values calculated previously, we then add from 1 to an infinity of hidden layers to our network, finally, we add in the output layer the number of adequate neurons (ex. 20 neurons if we wish that our network predicts the probability that the image belongs to gesture 1, gesture 2 …or gesture 20).

Z_{i} = x_{i} * W_{i} + b .

(2)

The $Z_{i}$ is input of the layer $i$ . It is performed by remembering the long-term information and deciding which value to pass to the other time step block, with $W_{i}$ and $b$ are the weights and bias parameters associated with each $Z_{i}$ Gate. These parameters are used to minimize the error of our training data as shown in Equations (2) and (3).

y (i) = a (i) = σ (w^{T} x + b) = \frac{1}{1 + e^{- (w^{T} x + b)}} .

(3)

The sigmoid function $σ (Z)$ is used as an activation function in neural networks. A weighted sum of inputs passes through an activation function and this output serves as input to the next layer as shown in Equation (4).

σ (Z) = \frac{1}{1 + e^{- (Z)}} .

(4)

In our solution, there are generally four evaluation measures used [13, 14]. These are accuracy, recall, precision and F-measure. Confusion matrix corresponding to false negative ( $F N$ ), true negative ( $T N$ ), true positive ( $T P$ ) and false positive ( $F P$ ) is used to measure the above parameters of the classifier. The following formulas define each of the metrics:

$T P$ : is a positive example that correctly predicts the positive class.

$T N$ : refers to the negative that is properly characterized as negative.

$F P$ : refers to a negative example that is incorrectly characterized as positive.

$F N$ : refers to the positive example that is imperfectly characterized as negative.

$P r e c i s i o n$ : precision is a measure of the accuracy of detection.

$A c c u r a c y$ : it defines the ratio of predicted positives that are real positive

P r e c i s i o n = \frac{T P}{T P + F P} .

(5)

Recall: it defines that the number of positives recognized correctly.

R e c a l l = \frac{T P}{T P + F N} .

(6)

F-measurement: it defines the voice means of Recall and Precision.It is calculated by the formula below which takes both false positives and false negatives into account using the following Equation (7):

F - m e s u r e = \frac{2 T P}{2 T P + F P + F N} .

(7)

Accuracy: is a measure of the accuracy of the detection.

A c c u r a c y = \frac{T P + T N}{T P + T N + F P + F N} .

(8)

3.4 Flow Chart

The first step is to capture the images from the webcam. The video is divided into images (300 images per second), each of which is converted into a binary image. In addition, the transformation of the images into binary is aligned to normalize some parts of the noisy images as shown in Figure 9. After the transformations, the hand in the image is searched using gesture detection, and then the gesture features are detected to further establish the type d and orientation of the gestures. After training, the system can recognize hand gestures. Figure 9 shows the working process of the hand gesture recognition system for interpreting sign language for the deaf.

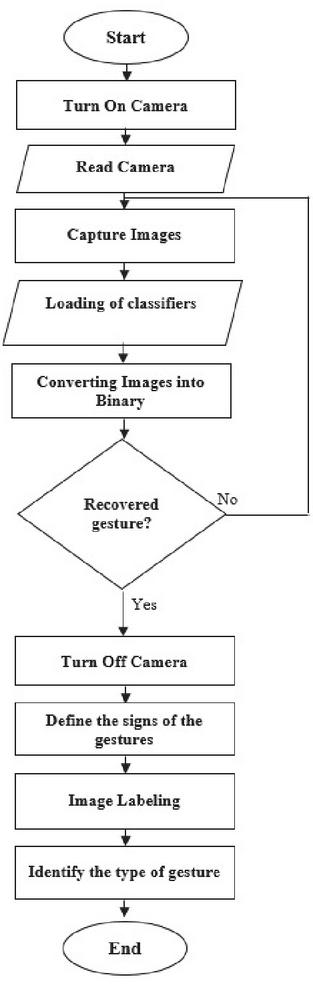

Figure 9 Flow chart of the gesture recognition model.

4 Results

A total of 20 signs have been stored in our database, which is carefully tested with our convolution model. The system successfully takes signs as input and translates them each to their meaning as a letter or number.

The input image has been converted from an RGB color space to a grayscale image. The first image with noise and then configured to obtain the clear image, through which the hand gesture is extracted from the binary image and used for further processing as shown in Figure 10.

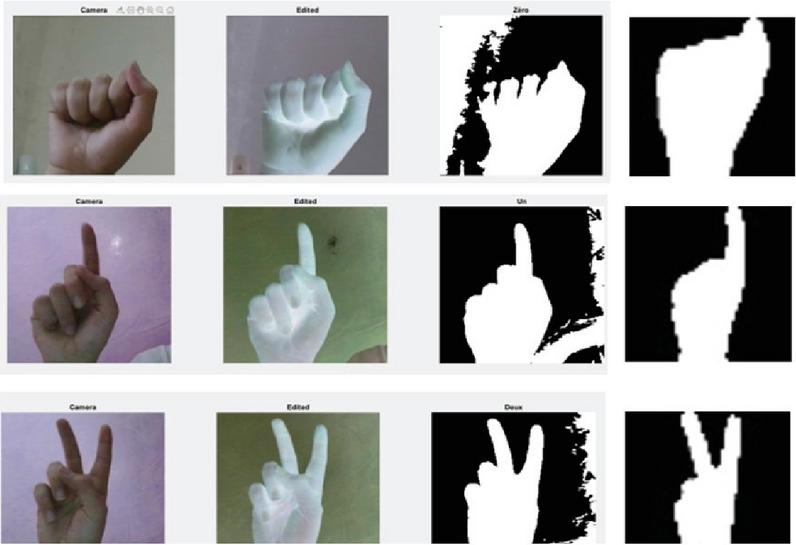

Figure 10 Color image converted to binary via grayscale image, binary image with noise and filtered binary image.

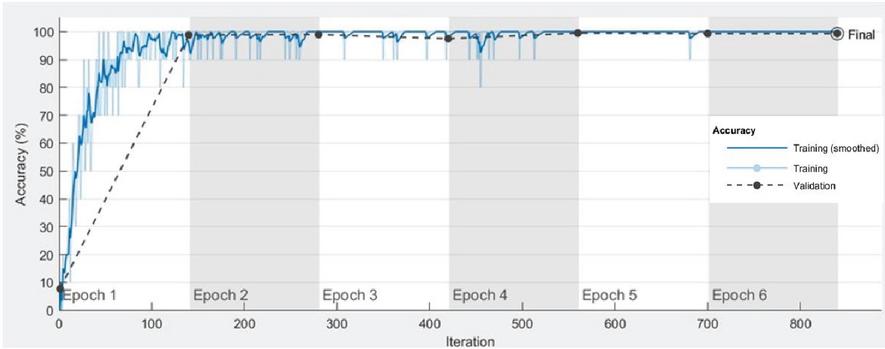

Figure 11 Accuracy performance.

After 6 epoch, the accuracy value increase. Training accuracy is the value of calculating the accuracy of the training dataset and predictions from the model as shown in Figure 11.

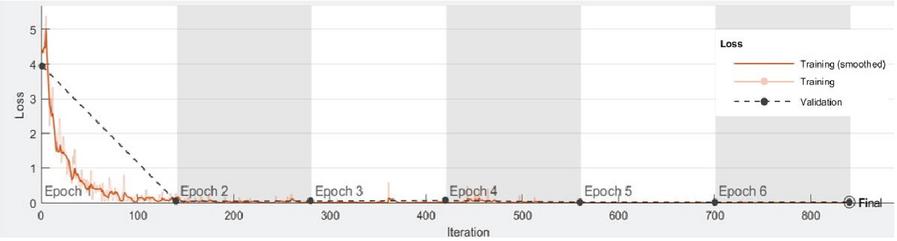

Figure 12 Loss fonction.

In Figure 12, we see after 6 epochs that the loss value decreases because it is minimized by the convolution neural network. Based on the above loss model chart, it can be seen that training loss keeps decreasing with increasing epoch.

Table 1 Comparison between Our proposed model and other methods

Methods	No. of Gesture	Accuracy (%)
Gaussien SVM [4]	10	95.7
Double layer CNN [15]	25	98.5
Our CNN Model	20	98.7

Table 1 gives the comparison results for our model with a series of state-of-the-art accuracy. It should be noted that if we used a poor dataset, the classification accuracy will be reduced, thus achieving an unsatisfactory result. Then the experimental results achieved is satisfactory.

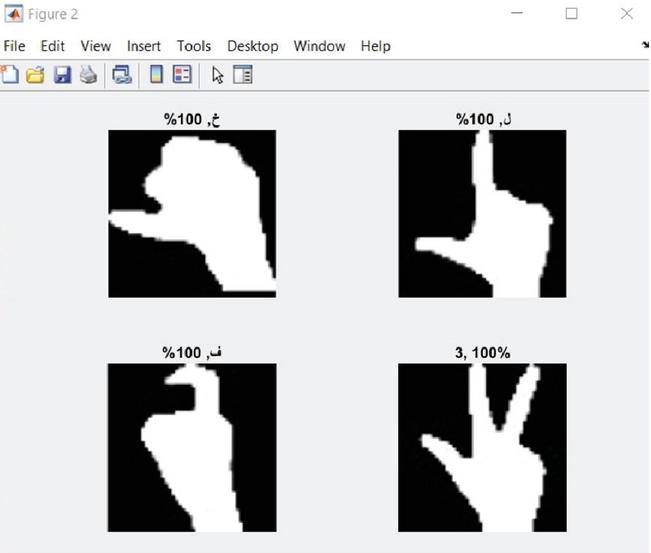

Figure 13 Final results with accuracy rate of each gesture.

The system successfully takes signs as input and translates them each to their meaning as a letter or number with a rate of learning very important as shown in Figure 13.

5 Conclusion

This paper has realized a solution for real-time detection of hand gestures captured by our camera. In order to improve the efficiency and accuracy, we use convolutional neural networks to process and extract the meaning of the gesture. Finally, we compared our results with related works. The results obtained by our CNN model are satisfactory. Our method has achieved the best performance with an accuracy rate of 98.7%.

In perspective, we can improve our solution to build understandable sentences and send them as text or speech.

6 Future Directions

The interpretation of the gestures of the deaf mute to communicate remains incomprehensible for a population not suffering from this handicap. Our main objective is to contribute to helping the ‘non-deaf mute’ to decode and interpret the gestures emitted by the deaf mute, using artificial intelligence techniques. We are thinking of developing an application performing the desired interpretation, from static or dynamic images taken using a camera, or from information received from flex sensors implanted on a glove. Optimization and interpretation in real time remains a considerable asset.
