5G: Past and Future

Seizo Onoe

NTT DOCOMO, INC and DOCOMO Technology, Inc., Japan

E-mail: onoe@nttdocomo.com

Received 3 February 2018;
Accepted 15 March 2018

Abstract

5G is gathering momentum and becoming a sort of boom. In this paper, the history of mobile communications is reviewed and what 5G will create is discussed with the background of the 5G boom. To gain more insight into 5G, the economics of 5G are also discussed, clarifying concerns from myths about 5G. Lastly the predictions are presented being derived from the two laws defined by the author: the law of previous generations’ boom just before the next and the law of great success only in even-numbered generations.

Keywords

Mobile communications
5G
LTE
6G
Economics

1 Introduction

5G is stimulating people’s imagination and expectations for a new world that it may bring about by the year 2020. 5G is aimed at meeting a wide range of requirements such as further enhanced mobile broadband, massive connections and extremely long battery life for Internet of Things (IoT), and reliable critical communications with low latency. Furthermore, it is highly expected to invent new business models and ecosystems across the industries. 5G discussion is gathering momentum and so heated that it is becoming a sort of boom, which is sometimes generating unintended misconceptions and myths.

This paper is based on the keynote presentation given by the author at the IEEE 5G Summit Tokyo held in September 2017. The presentation started with how 5G was booming by counting the number of buzz words on the headlines of the daily news of Mobile World Congress (MWC) to show the term “5G” has been No. 1 in recent years. The 5G boom is addressed in the subsequent sections.

In this paper, first the history of mobile communications is reviewed to predict the future. Next, what 5G would create is discussed with the background of the 5G boom, which is followed by the discussion on the 5G economics to clarify the concerns from myths about 5G. Lastly, predictions are introduced being derived from the two laws that the author defined. One is the law of previous generations’ boom just before the next and the other is the law of great success only in even-numbered generations.

2 History of Mobile Communications Technologies

The mobile communications industry has the history of technological transitions, where a new generation of technologies emerged every decade from 1^st generation to 4^th generation and this is expected to be repeated for the 5^th generation as shown in Figure 1. Note that, in this chronological table, each horizontal row represents each decade.

As shown in this figure, some activities including research for a new generation of technologies started just after the previous generation was launched, some outcomes were achieved within a few years and finally the new generation was launched almost 10 years later.

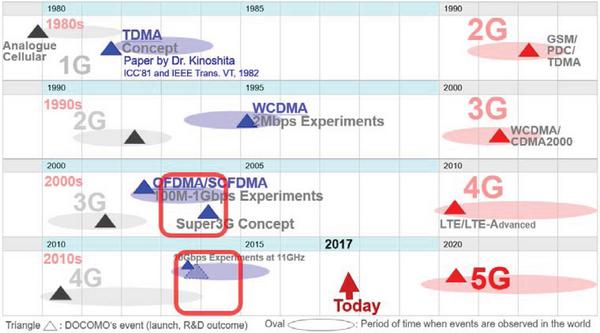

Figure 1 History from 1G to 4G and the Next.

The history repeated from 1G to 4G and is likely happen to 5G as well. However, some differences are observed with 5G.

Around 2013, 5G discussions were started with the term “5G” and it became a boom as discussed in the introduction section. The term “5G” has spread like wildfire. This is different from the state of 4G in early 2000s, when some outcomes were already achieved from 4G research; DOCOMO succeeded in 100Mbps data transmission in the outdoor field experiments in 2003 and 1Gbps data transmission achieved in 2004. At that time, however, in the early days of 3G, 3G was in a tragic situation in terms of business and not well accepted in the market. From this experience, DOCOMO learnt the importance of a smooth path to the next generation and proposed the concept of “Super 3G.” The Super 3G concept was designed with an intention to first evolve 3G and then build 4G on top of the evolved 3G in order to provide a smooth path to 4G. DOCOMO called the evolved 3G by the name it created “Super 3G” [1]. Although DOCOMO’s goal was 4G, to say the least, no one was interested in 4G at that time; frankly speaking, people did not like the term 4G. In fact, when a 3GPP study item that later became today’s 4G LTE was proposed by DOCOMO and other 25 co-source companies in December 2004[2], the study item document included neither the term 4G nor LTE; it touched upon the term “long-term evolution,” but just as a general expression. This study item finally became the today’s 4G LTE standard.

The following story used to be a secret but it is not anymore since it is more than a 10-year-old story and already has been mentioned in other presentation opportunities.

A slide for an internal use is shown in Figure 2 and it was one of the slides the author used for initiating the LTE standardization in a meeting with an influential vendor. This slide was created before March 2004. It presented what would happen in the future, and actually the things happened exactly as it shows: the standardization started in December 2004, the specifications were approved in 2007 and the development was completed in 2009. This slide had precisely predicted what actually happened.

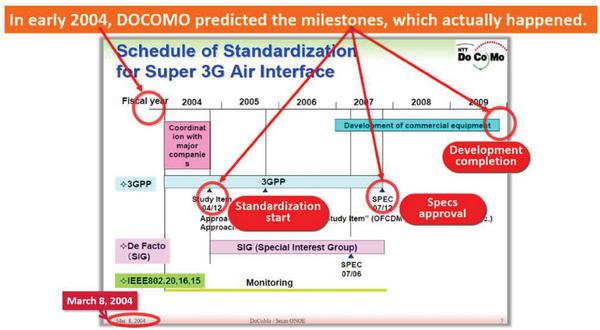

Figure 2 A Slide used for initiating the LTE standardization.

This proves authors’ ability to correctly predict the mobile communications market. Based on this proof of ability to predict, the author makes new predictions in Section 5.

3 What 5G Creates

5G is characterized by three features concerning capabilities and use cases: enhanced mobile broadband; massive machine type communications; and ultra-reliable, low-latency communications. DOCOMO made a video that shows typical 5G use cases and what 5G will provide and create by taking advantage of these three key features. The 5G features the author explained during the presentation were shared as a common understanding with other speakers in the previous sessions.

Another aspect was also brought into focus in the presentation. 5G has been a kind of boom started in recent years as described in the introduction. The author felt irritated with this 5G boom in many occasions, where people were talking about 5G even though what they discussed had nothing to do with 5G. This prompted the creation of the slide shown in Figure 3, which was shared in some presentation opportunities. This slide was fairly well received by the audience. There were many favourable comments posted in SNSs with its photos.

Figure 3 A Slide about 5G boom.

A friend of the author took a picture of the author presenting a slide of SNS posts on the podium. The friend proposed that the author use the picture for a next presentation and let someone take a picture of the slide with the author again and repeat it. The picture in Figure 4 was taken during the author’s presentation at the IEEE 5G Summit Tokyo and includes ten or more nested images of the author. The number of presentations shows global interest in 5G.

Figure 4 A picture at the IEEE 5G Summit Tokyo.

Originally the slide in Figure 3 was created to make people calm down. However, on the contrary, things went to the totally opposite direction. The 5G boom has continued to grow, and moreover, started involving other verticals. 5G has been attracting interest from a wide variety of industries. It is a good thing to have expanding business opportunities. Therefore, the author has changed the message of this slide. The new message is “Let’s get on the 5G bandwagon.” In addition to the three key features showing technical capabilities, the business aspect is another key feature as shown in Figure 5. In fact, DOCOMO has been collaborating with many partners in various industries: automotive, railway, construction machinery, entertainment and so on. In the presentation, it was announced that DOCOMO launched ‘5G Trial Sites’ and has been actively working with partners in various industries.

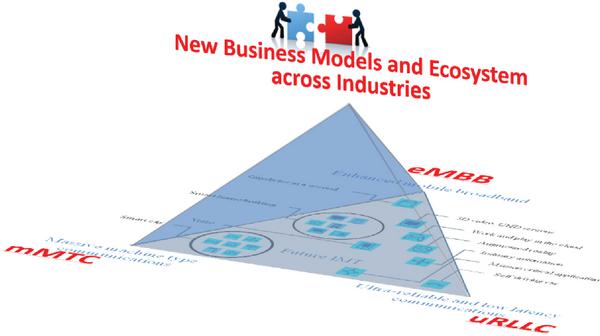

Figure 5 5G key features with a business aspect.

4 5G Economics

There are concerns about 5G investment. Some newspaper articles say 5G needs huge investment. Although this may be beneficial for the growth of the whole industry, it worries operators. Increasing investment without a revenue growth is not good for operators. An analysis has concluded that few operators might be able to expect a return on their 5G investment and that substantial CAPEX and OPEX are likely to be required for cell densification with small cells [3].

People tend to believe that the launch of new generation technology will lead to huge investment. Figure 6 shows DOCOMO’s CAPEX for the past 18 years. DOCOMO launched 3G and 4G LTE in 2001 and 2010 respectively. As shown in this figure, the launch of new generation technologies did not necessarily lead to a sharp ramp-up in investment.

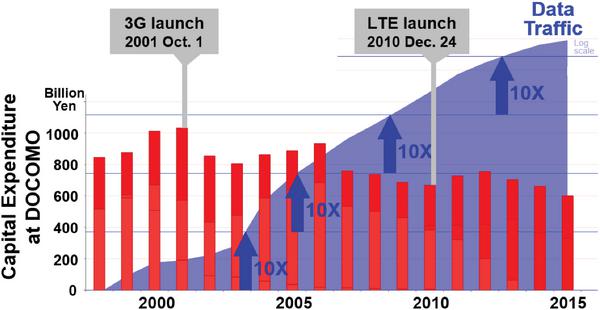

Figure 6 CAPEX and Data Traffic at DOCOMO.

The growth of data traffic volume is also shown in Figure 6 with a logarithmic scale while the CAPEX is shown with a linear scale. Several hundred- or thousand-fold capacity increase was achieved with no increasing trend in CAPEX. Capacity enhancement with significant improvement in cost per bit is an unquestionable rationale for introducing new generation technologies even when new services are uncertain. The data capacity enhancement with no upward trend in CAPEX can be one of the 5G killer services.

Most concerns come from a misunderstanding that 5G will use higher frequency bands such as millimetre waves and that it will result in a short coverage distance and a huge number of small cells. 5G will be deployed through the interworking between 5G new radio technology and enhanced LTE and with combinations of high and low frequency bands. 5G will not replace 4G systems overnight. 4G network equipment will be reused for 5G to the extent possible. Massive Multiple-Input Multiple-Output (Massive MIMO) will extend the coverage distance. Looking at such positive aspects, the author is encouraging the industry to tackle challenges to achieve a macro-cell based network even with millimetre waves.

5 Future Predictions

This section discusses two predictions in the form of laws defined by the author as a predictor based on observations of previous generations.

5.1 Law of Previous Generations’ Boom Just Before the Next

The first law is the law of previous generations’ boom just before the next generations. This means 4G regains popularity just before 5G launch. The phenomena of this law always happened in the previous generations. In the transition from 2G to 3G, Enhanced Data Rates for GSM Evolution (EDGE) flourished just before 3G W-CDMA launch. It was said that W-CDMA would not penetrate because of EDGE.

In the transition from 3G to 4G, High Speed Packet Access Plus (HSPA+) or enhanced 3G was booming just before 4G LTE launch. In 2008, two years before LTE launch, an article of a telecom magazine described that LTE would cover all over the world, but a year later in 2009 it said that HSPA+ had emerged suddenly and that LTE had become a minority in its report of MWC.

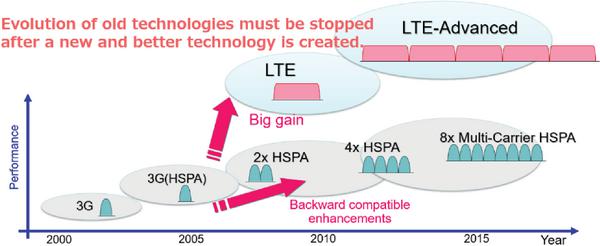

Figure 7 Evolution Path from 3G to 4G.

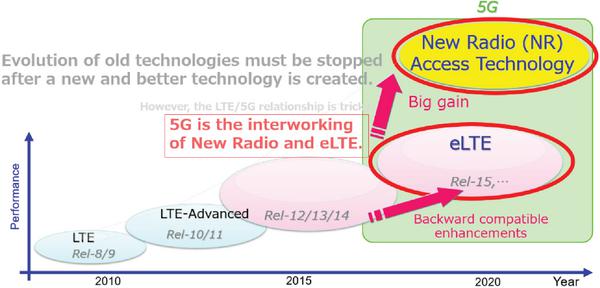

Figure 8 Evolution Path from 4G to 5G.

The standardization was also active for HSPA evolution. The author’s belief was that evolution of old technologies must be stopped after a new and better technology emerges. The author’s negative campaign against HSPA+ saying that HSPA+ was a means for vendors to get money from operators was shown in the presentation with a scene from the video that happened to be recorded during the Q&A in an MWC2009 event. The author’s official reason to stop HSPA evolution is that it would make things complicated [4]. However the standardization was continued and finally 8-carrier HSPA, which no one deployed, was specified in 3GPP as shown in Figure 7.

In general, the evolution of previous generations should be stopped after a new generation technology emerges. However, the 5G case is tricky, because 5G is based on the interworking of 5G New Radio and enhanced LTE as shown in Figure 8. In this transition, even if 4G regains popularity, the evolved 4G is likely to be called “5G” as a marketing gimmick.

5.2 Law of Great Success Only in Even-Numbered Generations

The second law is the law of great success only in even-numbered generations shown in Figure 9.

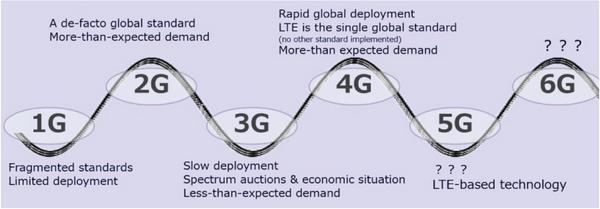

Figure 9 Law of Great Success Only in Even-Numbered Generations.

2G GSM was very successful as the first de-facto global standard. 4G LTE global deployment was remarkably quick while 3G deployment was relatively slow. As such, even-numbered generations, 2G and 4G, had great success. Applying this law to 5G, the industry will need to wait until 6G to see all of its expectations for 5G fulfilled. In other words, 6G will be the complete form of 5G, or 5G will be the final generation that will keep evolving ever after 2030.

This prediction was presented for the first time at an event in April, 2017. IEEE Spectrum reported the whole story of the event as given below [5].

High expectations for 5G were observed in the presentations at the event and speakers made grandiose statements about 5G. Such statements were punctuated by the author with the story of the law of great success. The author seemed to have a reputation for pouring cold water on 5G. The reputation came from another article about 5G myths [6].

The author did not intend to send a negative message. On the contrary, it was intended to be a positive message, asking the industry to be more realistic about the challenges it would face. The author made no statement to the effect that 3G was a failure nor 5G would be a failure or that they were not great successes but normal successes. The author emphasized that there must be something that would lift up 5G to a great success. Cross-industry collaboration will make 5G a great success against the downward trend predicted by the law as shown in Figure 10.

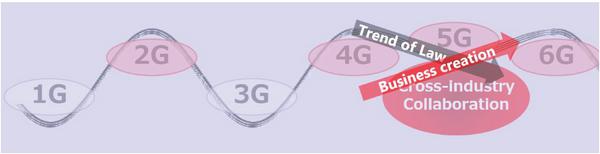

Figure 10 Key to a Great Success for 5G against Trend of Law.

6 Conclusion

The history of mobile communications, what 5G will create and the economics of 5G were discussed. The author believes 5G will bring in favourable economics while there are still many concerns among operators. 5G will be successful definitely. To make 5G a great success rather than a normal success, cross-industry corroboration will be the key. 5G is now attracting interest from the wide variety of industries. This will create new opportunities for business and ecosystems. The paper concludes with a positive message: “Let’s get on the 5G bandwagon together.”
