LTE Signal Fingerprinting Device-Free Passive Localization in Changing Environments

Giovanni Pecoraro*, Ernestina Cianca, Mauro De Sanctis and Simone Di Domenico

Department of Electronic Engineering, University of Rome “Tor Vergata” Via del Politecnico, 1, 00133 Rome, Italy

E-mail: giovanni.pecoraro@uniroma2.it

* Corresponding Author

Received 19 August 2019; Accepted 24 January 2020; Publication 24 February 2020

Abstract

This paper proposes a fingerprinting-based device Free Passive localization system based on the use of the LTE signal and it is robust to environment changes. The proposed methodology uses as fingerprints descriptors calculated on the CSI vectors rather than directly CSI vectors. The paper shows the performance of the proposed methods also assuming that the monitored environment might be different from the one characterized during the training phase as some equipment may be moved. Moreover, the paper compares the proposed method with signal fingerprinting approaches based on RSSI or direct CSI vectors. Experimental results, which consider one single LTE receiver in the monitored room, show the effectiveness of the proposed solution.

Keywords: Localization, device-free, fingerprinting, CSI, LTE.

1 Introduction

The need for accurate indoor localization, pushed also by many emerging applications such as shopper analytics and smart home, has called for the development of localization techniques not based on the use of Global Navigation Satellite Systems but rather on the analysis of radio signals that can be transmitted by dedicated sensors or by opportunistic sources such as WiFi Access Points (APs) or cellular Base Stations (BSs) [1]. One of the possible approach is the so called signal fingerprinting localization, where the location of a target is achieved by comparing the signal pattern received from transmitters to a predefined database of signal patterns [2, 3]. Most of the proposed techniques are device-based, i.e., the target must be equipped with a communication device that can send out radio signals or is able to receive the radio signals of interest. In this paper, the focus is on Device-free Passive (DfP) localization, which allows to detect, track, and identify people that do not carry any device, nor participate actively in the localization process. Since the pioneering work of Youssef [4], DfP localization has attracted extensive research interest. Some proposed DfP approaches are based on bistatic or multistatic radars [5]. Other approaches are based on the use of signal of opportunity, such as FM radio [6] or WiFi signals [7, 8], which are widely available indoor without deploying an additional dedicated infrastructure. Ambient radio signals transmitted by BSs of a cellular systems or by radio broadcasters have been also considered, but mainly for outdoor applications, using GSM [9] or UMTS [10]. Recently, also Long Term Evolution (LTE) signals have been considered for signal fingerprinting localization techniques [11–13]. The mentioned works use as fingerprints vectors of Channel State Information (CSI) rather than the RSSI, more commonly in previously proposed systems. A novel approach in the use of CSI and LTE signals for indoor localization has been presented in [14]. In [14], the fingerprints are vector containing a number N of features calculated on CSI vectors, rather than the direct CSI vectors. However, the system proposed in [14] is device-based. Moreover, it does not face one of the main problem related to fingerprinting approaches based on the use of CSI, which is the fact that room environment might change with respect to the training phase performed to build the database of fingerprints. Some very recent works have investigated the accuracy degradation of RSSI-based DfP fingerprinting due to the changes in the environment [15–18]. This paper proposes a DfP localization system based on the use of LTE and CSI descriptors as in [14] and shows, through experimental results, the robustness of the proposed approach when the environment changes (e.g., furniture is moved) with respect to an approach based on direct CSI vectors or RSSI.

The paper is organized as follows: Section 2 shows how CSI is extracted from the LTE receiver; the proposed signal fingerprinting DfP localization method is presented in Section 3; Section 4 describes the experimental setup; results are shown in Section 5 and conclusions are drawn in 6.

2 Theoretical Background

The CSI represents a fine-grained channel measurement which is performed by the modern Orthogonal Frequency-Division Multiplexing (OFDM) receivers. In detail, the CSI is employed for channel equalization since it represents the vector of complex channel gains for all subcarrier. In this Section it is explained how these channel gains have been extracted by an LTE receiver. First of all, only the LTE Frequency Division Duplexing (FDD) mode, where the uplink and downlink channels are separated in frequency, has been analyzed. In the LTE standard, the information data is transmitted over a time-frequency grid. The radio frame represents the largest time unit in this grid with a duration of 10 ms. It can be subdivided into 10 subframes of 1 ms, each of which can be further split into 2 slots of 0.5 ms. According to the length of the cyclic prefix, each slot can contain 6 or 7 OFDM symbols. In the frequency domain, instead, the subcarriers are reciprocally spaced by 15 kHz. The smallest resource unit is the Resource Element (RE), which corresponds in the frequency domain to an OFDM subcarrier and in the time domain to an OFDM symbol. The Resource Block (RB) consists of a group of 12 contiguous subcarriers (180 kHz) over a time interval of a slot and is the minimum resource unit which is allocable to a User Equipment (UE). In the LTE standard, it has also been introduced the concept of antenna port. Downlink symbols transmitted via the same antenna port are subject to the same channel conditions therefore an eNodeB c can map its logical antenna ports to T_c physical transmitting antennas in order to take advantage of spatial diversity.

If we consider an eNodeB transmitting a vector of complex symbols x_c over N subcarriers from one among all the antennas, the received complex vector y_c after the N-point FFT at the receiver can be expressed as:

$${\mathbf{y}}_{\mathbf{c}}\mathrm{<mo>=</mo>}{\mathbf{X}}_c{\mathbf{h}}_c+\mathbf{w}$$

(1)

where X_c is the transmitted diagonal complex matrix, h_c is the vector containing the channel complex gains per subcarrier and w is a complex white Gaussian random process modeling the noise and the inter-cell interference. The subcarrier channel gains are estimated by the receiver using the Cell Specific Reference Signals (CRS), which are inserted in specific OFDM symbols and subcarriers within every slot. In one slot there are 4 CRSs per antenna, as shown in Figure 1, where different antenna ports are represented by different colors. In this work, it is possible to assume that the channel is rather stationary over a slot (0.5 ms), i.e., the coherence time is equal or greater than its duration. Following this assumption, for each antenna we can align at the same instant the CRSs in different positions in the same slot, doubling the size of the CRS resulting vector. Since we are analyzing 10 MHz-bandwidth LTE signals, 50 RBs are available, resulting in a vector of N = 50*2*2 = 200 (50 RBs × 2 CRSs × 2 positions) complex channel gains for 200 different OFDM subcarriers. This complex vector represents the result of the channel estimation process and it is what we call CSI vector in the following. An LTE receiver can extract a CSI vector ${\widehat{\mathbf{h}}}_{c,t}$ for each eNodeB that is received in a specific position and for all its transmitting antenna ports:

$${\widehat{\mathbf{h}}}_{c,t}=[{\widehat{h}}_{c,t}(0),\dots ,{\widehat{h}}_{c,t}(n),\dots ,{\widehat{h}}_{c,t}(N-1)],\forall c,\forall t\in T_c$$

(2)

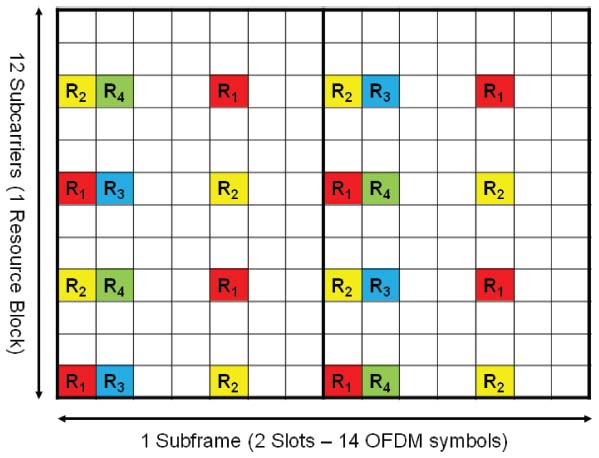

Figure 1 Layout of the Cell Specific Reference Signals for 4 antenna ports within 1 Resource Block over 2 consecutive slots.

In this paper, it has also been performed a comparison with other LTE signal measurements applied to fingerprinting, such as RSSI and Reference Signal Received Power (RSRP). The RSRP is defined as the average power of the CSI over the entire bandwidth, so it can be calculated for each transmitting antenna port on the vectors ${\widehat{\mathbf{h}}}_{c,t}$ as follows:

$${\text{RSRP}}_{c,t}=\frac{1}{N}{\displaystyle \sum _{n=0}^{N-1}}|{\widehat{h}}_{c,t}(n){|}^2,\forall c,\forall t\in T_c$$

(3)

The RSSI, instead, represents the measurement of the average RE received power relative to the whole OFDM symbols containing CRSs for antenna port 0 (symbols 0 and 4 in a slot). For this reason, the RSSI includes the power from co-channel serving and non-serving cells, adjacent channel interference and the thermal noise:

$${\text{RSSI}}_c=\frac{1}{L}{\displaystyle \sum _{l=0}^{L-1}}|{\mathbf{X}}_c(l,l){|}^2$$

(4)

where L is the overall number of available subcarriers, that in case of 10 MHz signal bandwidth (50 RBs) is equal to L = 50 ∗ 12 = 600.

3 Device Free LTE Signal Fingerprinting

Device free signal fingerprint-based localization techniques are based on the concept that persons/objects in a given position modify the radio signal, which is received by one or more receiver, differently with respect to other positions. Therefore, it is possible to associate to each position a specific signal pattern, which is built by the signal received by one or more receivers not carried by the person. As any fingerprint-based localization technique, it consists of the following phases:

• Fingerprint Database Building – The purpose of this phase is to build up the offline fingerprint database, which stores for each Reference Point (RP) a fingerprint. The fingerprint is obtained by properly processing some measurements of the received signals. Signals might be transmitted by an AP or a BS of a cellular system. Let us denote with RF_r the reference fingerprint in the RP r.
• Fingerprint Acquisition – For each Test Point (TP), whose position is unknown, the fingerprint is calculated using the same measurements on the received signal. Let us denote with TF the fingerprint in a TP.
• Fingerprint Matching – This phase consists of associating to the fingerprint measured in the TP the fingerprint stored in the built database which is closest to the measured one according to a predefined matching rule. The user location is then calculated as the location of the RP corresponding to the found fingerprint.

Table 1 The offline fingerprint database storing fingerprints relative to RPs

RP	Coordinates	Cell 1	...	Cell c	...	Cell C
1	(x1, y1)	R1,1	...	R1,c	...	R1,C
2	(x2, y2)	R2,1	...	R2,c	...	R2,C
⋮	⋮	⋮		⋮		⋮
r	(xr, yr)	Rr,1	...	Rr,c	...	Rr,C
⋮	⋮	⋮		⋮		⋮
R	(xR, yR)	RR,1	...	RR,c	...	RR,C

The RP $\overline{r}$, that is associated to the TP whose fingerprint is TF, in case of Nearest Neighbor (NN) matching, is the RP that minimizes a deterministic function called Fingerprint Distance (FD):

$$\overline{r}:\text{FD}({\mathbf{RF}}_{\overline{r}},\mathbf{TF})\le \text{FD}({\mathbf{RF}}_r,\mathbf{TF}),\forall r\ne \overline{r}$$

(5)

then the location (x, y) of the TP is calculated through the following association:

$$(x,y)\Rightarrow (x_{\overline{r}},y_{\overline{r}})$$

(6)

The basic signal measurements extracted from the LTE receiver are the vectors h_c of N = 200 elements as described in Section 2. From these vectors, computed by the same receiver on the LTE signals transmitted by different antennas relative to multiple eNodeBs, a database as the one shown in Table 1 can be built. In Table 1, for each RP r, and for each eNodeB c (denoted as Cell), whose signal is received in the RP, a reference fingerprint R_r,c is calculated.

In the traditional deterministic RSSI-based fingerprinting localization the reference fingerprint R_r is simply given by the average RSSI values measured from all the available eNodeBs, where RSSI_c(s) represents the measured value in a single time slot:

$${\text{R}}_{r,c}\mathrm{<mo>=</mo>}{\overline{RSSI}}_c\mathrm{<mo>=</mo>}\frac{1}{N_{\text{slot}}}{\displaystyle \sum _{s\mathrm{<mo>=</mo>0}}^{N_{\text{slot}}-1}}{\text{RSSI}}_c\mathrm{<mo\; stretchy="false">(</mo>}s\mathrm{<mo\; stretchy="false">)</mo>}$$

(7)

$${\mathbf{RF}}_r\mathrm{<mo>=</mo><mo\; stretchy="false">[</mo>}{R}_{r,1},\dots ,R_{r,c},\dots ,R_{r,C}\mathrm{<mo\; stretchy="false">]</mo><mo>=</mo><mo\; stretchy="false">[</mo>}{\overline{\text{RSSI}}}_1,\dots ,{\overline{\text{RSSI}}}_c,\dots ,{\overline{\text{RSSI}}}_C\mathrm{<mo\; stretchy="false">]</mo>}$$

(8)

The fingerprint distance metric FD in case of RSSI comparison is chosen equal to:

$$\text{FD}({\mathbf{RF}}_r,\mathbf{TF})=\frac{1}{C}{\displaystyle \sum _{c=1}^C}\left[d(R_{r,c},{\text{TF}}_c)\right]=\frac{1}{C}{\displaystyle \sum _{c=1}^C}|{\text{R}}_{r,c}-{\text{TF}}_c|$$

(9)

where d is the magnitude of the difference between the reference and the test RSSI.

On the other hand, traditional approaches based on CSI use as fingerprints CSI vectors incoherently averaged over a time interval of N_slot to remove noise and undesired channel fluctuations:

$$\begin{array}{l}{\mathbf{h}}_{c,t}=\frac{1}{N_{\text{slot}}}{\displaystyle \sum _{s=0}^{N_{\text{slot}}-1}}[|{\widehat{h}}_{c,t}(s,0)|,\dots ,|{\widehat{h}}_{c,t}(s,n)|,\dots ,|{\widehat{h}}_{c,t}(s,N-1)|]\hfill \\ =[h_0,\dots ,h_n,\dots ,h_{N-1}]\hfill \end{array}$$

(10)

R_r,c is a vector directly containing all vectors h_c,t, which are the CSIs estimated on the signal received from the cell c and the antenna port t. Therefore, considering again the c-th eNodeB with T_c = 4 antennas, R_r,c is given by:

$${\mathbf{R}}_{r,c}=[{\mathbf{R}}_{r,c,1},{\mathbf{R}}_{r,c,2},{\mathbf{R}}_{r,c,3},{\mathbf{R}}_{r,c,4}]$$

(11)

where:

$${\mathbf{R}}_{r,c,t}={\mathbf{h}}_{c,t}=[h_0,\dots ,h_n,\dots ,h_{N-1}]$$

(12)

Obviously, the same procedure is followed for every test fingerprint TF and the fingerprint distance metric in case of direct CSI comparison has been chosen equal to:

$$\text{FD}({\mathbf{RF}}_r,\mathbf{TF})=\frac{1}{C}{\displaystyle \sum _{c=1}^C}\left[\frac{1}{T_c}{\displaystyle \sum _{t=1}^{T_c}}d({\mathbf{RF}}_{r,c,t},{\mathbf{TF}}_{c,t})\right]$$

(13)

where d is again the Euclidean distance between two vectors, that is now computed between vectors relative to the same antenna port of the same eNodeB and then averaged.

Another signal metric related to the channel frequency response of the channel and that can be used as fingerprint is the Reference Signal Received Power (RSRP). In this case, the fingerprint R_r,c is linked to the vector RSRP_c,t, which represents the sequence of the values of the reference signal received power from the cell c and the antenna port t. Therefore, considering the c-th eNodeB with T_c = 4 antennas, R_r,c is given by:

$$R_{r,c}\mathrm{<mo>=</mo><mo\; stretchy="false">[</mo>}{\text{R}}_{r,c,1},{\text{R}}_{r,c\mathrm{,2}},{\text{R}}_{r,c\mathrm{,3}},{\text{R}}_{r,c\mathrm{,4}}\mathrm{<mo\; stretchy="false">]</mo>}$$

(14)

where:

$${\text{R}}_{r,c,t}\mathrm{<mo>=</mo>}{\overline{RSRP}}_{c,t}\mathrm{<mo>=</mo>}\frac{1}{N_{\text{slot}}}{\displaystyle \sum _{s\mathrm{<mo>=</mo>0}}^{N_{\text{slot}}-1}}{\text{RSRP}}_{c,t}\mathrm{<mo\; stretchy="false">(</mo>}s\mathrm{<mo\; stretchy="false">)</mo>}$$

(15)

and then the whole reference fingerprint:

$${\mathbf{RF}}_r\mathrm{<mo>=</mo><mo\; stretchy="false">[</mo>}{\mathbf{R}}_{r,1},\dots ,{\mathbf{R}}_{r,c},\dots ,{\mathbf{R}}_{r,C}\mathrm{<mo\; stretchy="false">]</mo>}$$

(16)

3.1 RSRP and CSI Descriptors (F-DESCRIPTORS)

This work presents a signal fingerprinting DfP localization method that employs as fingerprints vectors of specific features calculated on the CSI or RSRP.

In particular, R_r,c is a vector containing F features calculated on the vectors RSRP_c,t or h_c,t and each feature is a number which is somehow related to the statistics of the RSRP (Table 2) or to the “shape” or statistics of the CSI (Table 3).

Table 2 RSRP statistical descriptors

Descriptor	Formula	Description
Mean	$\mu =\frac{1}{N_{\text{slot}}}{\displaystyle \sum _{s=0}^{N_{\text{slot}}-1}\text{RSRP}[s]}$	The arithmetic mean of the RSRP.
Standard Deviation	$\sigma =\sqrt{\frac{1}{N_{\text{slot}}-1}{\displaystyle \sum _{s=0}^{N_{\text{slot}}-1}{(\text{RSRP}[s]-\mu )}^2}}$	The standard deviation of the RSRP.
Fano Factor	$\text{FF}=\frac{{\sigma }^2}{\mu }$	The ratio between the variance of the RSRP and its arithmetic mean.

Table 3 CSI statistical and shape descriptors

Descriptor	Formula	Description
Mean	$\mu =\frac{1}{N}{\displaystyle \sum _{n=0}^{N-1}{h}_n}$	The arithmetic mean of the CSI.
Standard Deviation	$\sigma =\sqrt{\frac{1}{N-1}{\displaystyle \sum _{n=0}^{N-1}{(h_n-\mu )}^2}}$	The standard deviation of the CSI.
Fano Factor	$\text{FF}=\frac{{\sigma }^2}{\mu }$	The ratio between the variance of the CSI and its arithmetic mean.
Spectral Centroid	fn = (3n – 6RB)15 kHz $\text{SC}=\frac{{\displaystyle {\sum }_{n=0}^{N-1}}{h}_n{f}_n}{{\displaystyle {\sum }_{i=0}^{N-1}}{h}_i}$	The “center of mass” calculated as the weighted mean of the frequency values with CSI normalized magnitudes as weights.
Spectral Lambda	$\lambda =-\frac{1}{N-1}{\displaystyle \sum _{n=1}^{N-1}\frac{h_n-h_{n-1}}{f_n-f_{n-1}}+\frac{2}{h_n+h_{n-1}}}$	The mean of the derivative function for the CSI.
Spectral Entropy	$\text{SE}={\displaystyle \sum _{n=0}^{N-1}\frac{h_n}{{\displaystyle {\sum }_{j=0}^{N-1}}{h}_j}{\log }_2\frac{h_n}{{\displaystyle {\sum }_{i=0}^{N-1}}{h}_i}}$	The amount of information contained in the CSI.
Spectral Flatness	$\text{SF}=\frac{\sqrt[N]{{\displaystyle {\prod }_{n=0}^{N-1}}}{h}_n}{\frac{1}{N}{\displaystyle {\sum }_{n=0}^{N-1}}{h}_n}$	A measure used in digital signal processing to quantify how noise-like the CSI is.
Spectral Slope	$\text{SSL}=\frac{{\displaystyle {\sum }_{n=0}^{N-1}}(f_n-{\overline{f}}_n)(h_n-\mu )}{{\displaystyle {\sum }_{n=0}^{N-1}}{(f_n-\overline{f})}^2}$	A measure of the slope of the spectral shape of CSI.
Spectral Moment	${\eta }_j=\frac{{\displaystyle {\sum }_{n=0}^{N-1}}{h}_n{f}_n^j}{{\displaystyle {\sum }_{i=0}^{N-1}}{h}_i}$	The j-th order spectral moment of the CSI.
Spectral Central Moment	${\xi }_j=\frac{{\displaystyle {\sum }_{n=0}^{N-1}}{h}_n{(f_n-SC)}^j}{{\displaystyle {\sum }_{i=0}^{N-1}}{h}_i}$	The j-th order spectral central moment of the CSI.
Spectral Spread	$\text{SSP}=\sqrt{\frac{{\displaystyle {\sum }_{n=0}^{N-1}}{h}_n{(f_n-\text{SC})}^2}{{\displaystyle {\sum }_{i=0}^{N-1}}{h}_i}}$	A measure of how the spectrum is distributed around its centroid.
Spectral Kurtosis	$\text{SKU}=\frac{{\displaystyle {\sum }_{n=0}^{N-1}}{h}_n-T_n^4}{{\displaystyle {\sum }_{i=0}^{N-1}}{h}_i},T_n=\frac{f_n-SC}{\sqrt{{\xi }_2}}$	A measure of the “tailedness” of the CSI.
Spectral Skewness	$\text{SSK}=\frac{{\displaystyle {\sum }_{n=0}^{N-1}}{h}_n-T_n^3}{{\displaystyle {\sum }_{i=0}^{N-1}}{h}_i}$	A measure of the asymmetry of the CSI about its spectral centroid.

Descriptors are heterogeneous quantities and can assume values in widely different intervals. In order to perform deterministic classification, it is necessary to balance the contributions of all the involved descriptors during distance calculation. For this reason, a min–max normalization approach is applied to both reference and test fingerprints:

$${\widehat{\mathbf{R}}}_{r,c,t}=\frac{{\mathbf{R}}_{r,c,t}-{\min }_{r,c}[{\mathbf{R}}_{r,c,t}]}{{\max }_{r,c}[{\mathbf{R}}_{r,c,t}]-{\min }_{r,c}[{\mathbf{R}}_{r,c,t}]},\forall t$$

(17)

$${\widehat{\mathbf{T}}}_{r,c}=\frac{{\mathbf{T}}_{r,c}-{\min }_{r,c}[{\mathbf{R}}_{r,c,t}]}{{\max }_{r,c}[{\mathbf{R}}_{r,c,t}]-{\min }_{r,c}[{\mathbf{R}}_{r,c,t}]},\forall t$$

(18)

and then the fingerprint distance is calculated as the vector distance between the normalized fingerprints:

$$FD({\widehat{\text{RF}}}_r,\widehat{\text{TF}})=d({\widehat{\text{RF}}}_r,\widehat{\text{TF}})$$

(19)

The descriptor approach has essentially two fundamental advantages with respect to the direct CSI method, in fact it reduces the amount of data that must be stored in the database and the computational complexity associated to the matching phase. A similar approach has already been successfully employed in [12] and [14] to perform device-based localization and in [19] for DfP crowd counting and occupancy estimation by using WiFi. In particular, in [12] it has been shown that the proposed method achieves an accuracy in meter of around 1m in a living room 5×7 wide. In the following, experimental results show the robustness of the proposed method to the environment changes.

4 Experimental Setup

The experimental phase was conducted in a medium-size room of 5 m × 4 m. The experiments have been performed to prove the feasibility of the proposed device-free localization approach and assess its robustness to the changes that might occur in the area of interest. Therefore, 5 different positions inside the room have been considered, corresponding to the empty room case (position 0) and to other 4 different positions, as shown in Figure 2 by the green crosses. Moreover, 5 different configurations for the room have been considered, as shown again in Figure 2: standard configuration (Scenario A), first displacement of a chair (Scenario B), second displacement of a chair (Scenario C), third displacement of a chair (Scenario D) and then displacement of the sofa (Scenario E).

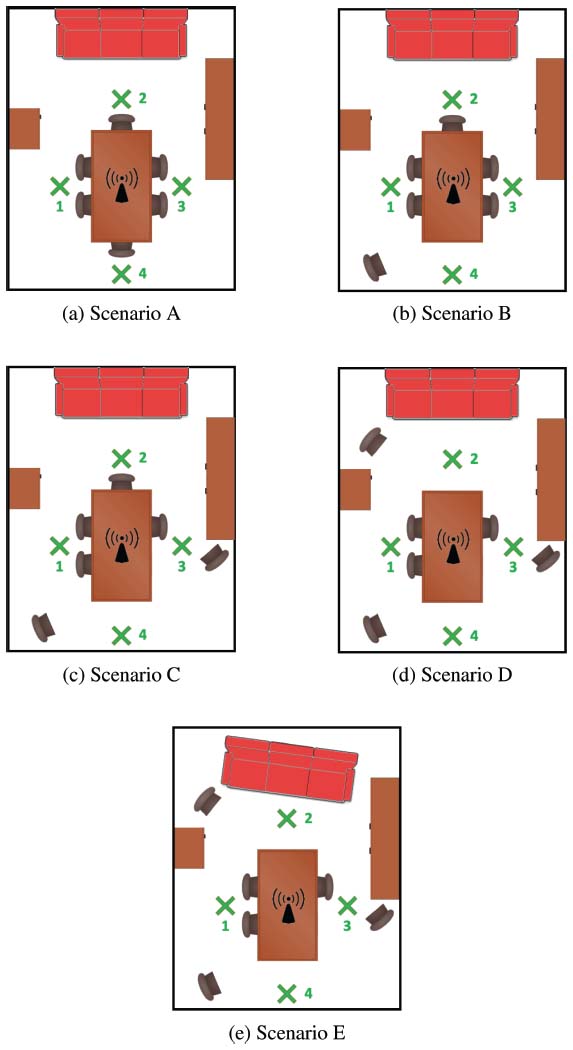

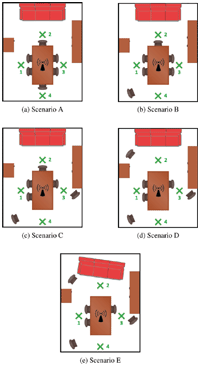

Figure 2 The 5 different configurations of the experimental scenario: (a) base configuration (Scenario A), (b) displacement of a chair (Scenario B), (c) displacement of another chair (Scenario C), (d) displacement of a further chair (Scenario D) and (e) displacement of the sofa (Scenario E).

During the training and test phases, each test position have been occupied by a 1.70 m-tall standing man. The man was not forced to be still, in fact he could freely gesticulate and move around the green cross to simulate a real-life situation. The receiver employed for data acquisition is the Great Scott Gadget HackRF, which is able to capture up to 20 MSamples/s with 8-bit resolution, equipped by an ANT500 omni-directional antenna. The receiver was placed on the table, approximately in the center of the room. The RF amplifier and AGC were disabled, the IF gain was set to 40 dB and the baseband gain to 30 dB in order to avoid distortions due to variable gains. The sampling frequency and the receiving bandwidth were respectively set to 15.36 MS/s and to 10 MHz in order to directly extract 50 RBs.

The IQ raw samples of the LTE signal were collected while the user was in each position for a duration of 20 seconds and stored as binary files. Signal dataset acquisitions for each user position were repeated for each one among the aforementioned scenarios (A, B, C, D and E). Binary files were then processed through an LTE software receiver, which performed the channel estimation process providing RSSI, RSRP and CSI vectors. The estimated channel vectors are then used to calculate the descriptors as in Tables 2, 3. The localization analysis was performed in MATLAB environment, where a fraction of the collected data was employed to train the localization algorithm, while the remaining part was used as test data. In particular, for each position only 1 training fingerprint was included in the database, while 250 equally spaced in time fingerprints were used for testing. In both cases, a time interval of 1 s, corresponding to N_SLOT = 2000 slots, was selected to incoherently average the captured RSSI, RSRP and CSI. As a performance metric we chose the Localization Accuracy, which represents the probability of correctly matching between the actual location of the human in the test phase and the location estimated by the fingerprinting system. If we define with N_corr the number of position correctly matched and with N_tot the number of total considered test positions, the location accuracy is defined as:

$$\mathbf{accuracy}=\frac{N_{\mathit{corr}}}{N_{\mathit{tot}}}100\%$$

(20)

5 Experimental Results

The purpose of the experimental results shown in this Section is to prove the feasibility of the proposed method for DfP localization and assess its robustness with respect to changes that might occur in the room. Therefore, the training phase has been done in one scenario (i.e., room furniture configuration) and tests have been performed in the same scenario as well as in the other 4 considered scenarios. First of all, Table 5 reports the accuracy of RSSI, RSRP, direct CSI and descriptors when both the training and the testing phase are performed in the same room configuration. Figure 3 represents a bar chart of the values shown in Table 5, where the x-axis reports all the possible training scenarios and the y-axis the localization accuracy, and graphically demonstrates that the approach based on RSSI performs very poorly if compared to the others. RSRP exhibits a slightly better behavior, but CSI and descriptors clearly outperform both of them. In detail, RSSI provides an accuracy always below 50%, while CSI-methods, in particular direct CSI and descriptors, are around 100%.

Table 4 shows the average accuracy of all the proposed deterministic methods for all the combinations of training and testing scenarios. The descriptors combination was chosen through an exhaustive search by fixing the training scenario (A, B, C, D or E) and maximizing the average localization accuracy for all testing scenarios (A, B, C, D and E). No more than 4 descriptors were considered in the fingerprint since a further increase in their number has not provided any additional accuracy improvement.

From Table 4, it is evident that all methods show a performance degradation with respect to the simple case of training and testing in the same scenario. The maximum accuracy of the method using direct CSI (and not descriptos) for scenario A is 100% and falls to 20% in case of testing in scenario E. Similar performance degradation was observed in paper [17], where due to the opening of doors or windows, the localization accuracy drops to 40% up to 18%.

Table 6 and Figure 4 report the average localization accuracies for different training room configurations (the ones indicated in the x-axis), where the average is calculated over all possible testing configurations. It is important to outline that the Scenario A and E are rather different from each other and hence, in these cases, all methods show worst performance. Generally, the average performance of the direct CSI and descriptors are comparable and clearly much better than both RSSI and RSRP. In general, CSI methods, both direct CSI and descriptors are shown to be rather robust to environment changes in most scenarios (A–D). This is related to the fact that CSI is more tightly related to the size (not only the position) of the scatterers and, at the chosen bandwidth, the person as a scatterer has more impact on the CSI than a smaller scatterer such as a chair. When the static scatterer that is moved is bigger, such as in case of scenario E, also direct CSI shows much worst performance. In this case, CSI descriptors, which only catches the main characteristics of the channel frequency response, likely impressed by the bigger scatterer such as the person, has still a good behavior also in scenario E. In particular, its performance ranges from 85% to 70% while direct CSI localization accuracy drops down to 60% in case of training in Scenario A.

Table 4 Localization accuracy of proposed deterministic approaches for all combinations of training and testing scenarios

Training Scenario	Fingerprint Type	Test Scen. A Accuracy [%]	Test Scen. B Accuracy [%]	Test Scen. C Accuracy [%]	Test Scen. D Accuracy [%]	Test Scen. E Accuracy [%]
A	RSSI	38	39	38	39	32
	RSRP	76	58	46	52	20
	CSI	100	96	47	80	20
	3-DES.	100	80	100	79	85
	4-DES.	100	80	100	78	88
B	RSSI	23	49	45	36	39
	RSRP	63	93	52	43	37
	CSI	98	100	100	100	35
	3-DES.	100	93	95	80	67
	4-DES.	100	100	80	98	80
C	RSSI	30	34	46	39	27
	RSRP	51	49	76	70	40
	CSI	80	100	100	100	60
	3-DES.	99	84	100	80	60
	4-DES.	100	87	99	80	60
D	RSSI	32	36	21	42	26
	RSRP	57	45	41	84	40
	CSI	91	100	96	100	40
	3-DES.	80	100	69	100	95
	4-DES.	80	100	73	100	100
E	RSSI	22	40	21	21	36
	RSRP	40	40	43	40	79
	CSI	80	80	86	79	100
	3-DES.	93	77	60	50	94
	4-DES.	97	75	61	51	98

Table 5 Localization accuracy in case of training and testing in the same scenario

Fingerprint Type	Training Scen. A Accuracy [%]	Training Scen. B Accuracy [%]	Training Scen. C Accuracy [%]	Training Scen. D Accuracy [%]	Training Scen. E Accuracy [%]
RSSI	38	49	46	42	36
RSRP	76	93	76	84	79
CSI	100	100	100	100	100
3-DES.	100	93	100	100	94
4-DES.	100	100	99	100	98

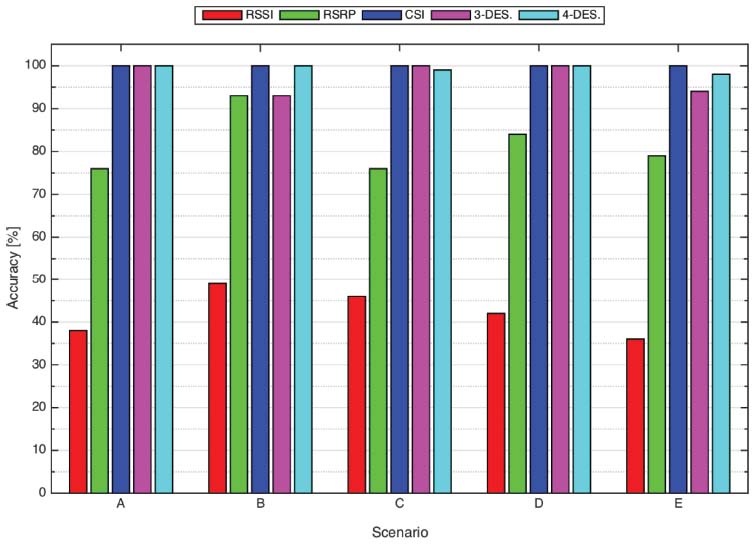

Figure 3 Localization accuracy in case of training and testing in the same scenario.

Table 6 Average localization accuracy in case of training in one scenario and testing in scenarios A, B, C, D and E

Fingerprint Type	Training Scen. A Accuracy [%]	Training Scen. B Accuracy [%]	Training Scen. C Accuracy [%]	Training Scen. D Accuracy [%]	Training Scen. E Accuracy [%]
RSSI	37	38	35	31	28
RSRP	50	58	57	53	48
CSI	69	87	88	85	85
3-DES.	89	87	85	89	75
4-DES.	89	92	85	91	76

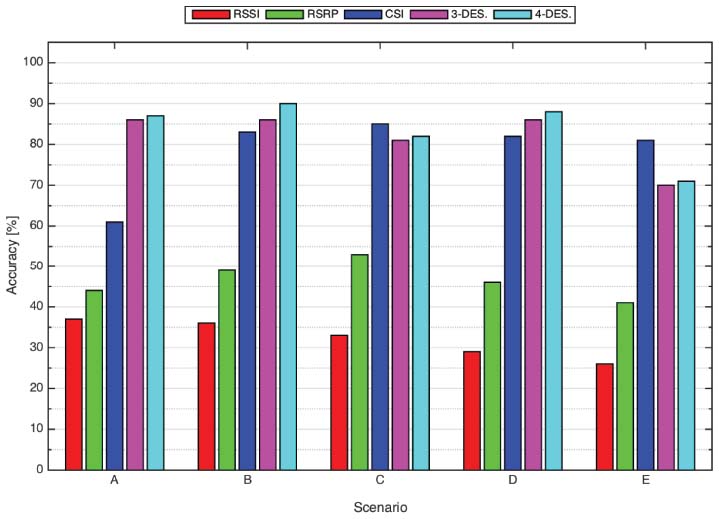

Figure 4 Average localization accuracy in case of training in one scenario and testing in all the others.

6 Conclusion

This paper proposes a DfP localization system based on the use of LTE signals and a fingerprinting, which is shown to be robust to changes in the environment of interest, such as changes in the forniture. The experimental set-up includes a single LTE receiver in the monitored room and 4 different test positions plus the empty room case. Through experimental results the performance of the proposed approach are compared to LTE signal finger-printing approaches based on RSSI, RSRP or direct CSI vectors. From the experimental results it is possible to conclude that:

1. RSSI-based method provides very poor DfP localization accuracy even if training and testing are performed in the same scenario.
2. RSRP is more accurate with respect to RSSI in case of training and testing in the same scenario, but the localization accuracy deeply reduces if some furniture is moved.
3. Direct CSI and descriptors provide very good average accuracy in both cases.
4. CSI descriptors reduce the memory occupancy and computational complexity of the fingerprint database and also exhibit, on average, a more stable behavior when the room configuration is changed (i.e., the performance degradation is maximum 15% against a 25% of performance loss in case of direct CSI).

The achieved results are promising and open the way to future works where more receivers per room can be considered and or to the application of the proposed methods also to the fine-grained DfP localization case.
