Research on Quantum Key, Distribution Key and Post-quantum Cryptography Key Applied Protocols for Data Science and Web Security

Kyu-Seok Shim, Boseon Kim and Wonhyuk Lee^*
Advanced Quantum Network Research Center, Div. of Science and Technology Digital Convergence, Korea Institute of Science and Technology Information, Daejeon, Korea
E-mail: kusuk007@kisti.re.kr; boseon12@kisti.re.kr; livezone@kisti.re.kr
*Corresponding Author

Received 20 May 2024; Accepted 22 July 2024

Abstract

Currently, data security is one of the most concerning research topics. The traditional RSA encryption system has become vulnerable to quantum algorithms such as Grover and Shor, leading to the development of new security systems for the quantum. As a result, quantum cryptography is gaining importance as a key element of future communication security. This study focuses on quantum key distribution protocols for data quantum encryption, aiming to achieve quantum robustness in all stages of quantum cryptography communication processes. Quantum cryptography communication requires robust quantum encryption not only between end-nodes but also between all components. Therefore, this study demonstrates the process of end-to-end data quantum encryption and proves the overall quantum robustness in this process.

Keywords: Quantum, key management system, PQC, data science, web security.

1 Introduction

Due to the rapid advancements in the field of quantum computing and its academic achievements, classical encryption algorithms and cryptographic systems are gradually revealing vulnerabilities. Quantum computing has the ability to exponentially reduce the time required to analyze and decrypt traditional encryption algorithms such as RSA and ECC. Consequently, research on security algorithms and systems resilient to quantum computers is actively underway [1–4]. Security systems resilient to quantum computers are being actively researched in two main areas: quantum key distribution (QKD) and post-quantum cryptography (PQC).

QKD and PQC each have their own advantages and disadvantages. QKD is a cryptographic system that utilizes the quantum mechanical properties to securely distribute symmetric keys between Alice and Bob, which are then used for encrypting and decrypting data. The advantage of QKD lies in its mathematically proven security and the ability for users to detect any attempt at data theft due to the quantum mechanical properties. However, the disadvantages of QKD are that it is difficult for multiple users to use, there is a limited distance between Alice and Bob for key distribution, and the infrastructure costs, such as QKD equipment and dark fiber, are expensive.

PQC involves deploying a new foundation of security systems using new security algorithms that cannot be decrypted, even by quantum computing algorithms. Therefore, PQC can be implemented on existing network infrastructures without the need for additional installations, resulting in no additional costs. However, as it is a new foundation of cryptographic systems, it requires thorough security validation. Moreover, due to its more complex computational complexity compared to traditional cryptographic systems, there may be network latency issues.

This paper proposes a method to address the disadvantages of QKD by integrating PQC, utilizing the strengths of each methodology to securely manage quantum keys and establish an overall quantum-resistant quantum cryptographic network. The proposed method applies PQC algorithms to segments where QKD installation is not feasible, while utilizing quantum cryptographic keys for encryption in segments where QKD installation is possible. Consequently, it constructs a fully quantum-resistant network for end-to-end quantum data encryption, encompassing quantum key generation to data transmission.

2 Related Work

This paper proposes the use of various cryptographic systems to build a fully quantum-resistant network across all segments. It leverages quantum cryptographic communication based on QKD, which has proven quantum resistance, and incorporates a quantum key management system (QKMS), post-quantum cryptography (PQC) algorithms, the TLS protocol, and other measures [8–16].

QKD is a new cryptographic system developed after it was proven that traditional RSA algorithms can be quickly decrypted by quantum computers using Grover’s and Shor’s algorithms. It provides a secure communication method by utilizing the principles of quantum mechanics to share keys safely while simultaneously detecting and defending against eavesdropping. The process of QKD consists of key generation, key distribution, key verification, encryption, and decryption. In the key generation, special quantum states are generated using devices between Alice and Bob, designed to detect eavesdropping attempts. In the key distribution phase, keys are transmitted to the receiver through a secure communication channel, and Alice and Bob go through a process to verify the distributed keys. By measuring quantum states to ensure consistent results between endpoints, the integrity of the keys is ensured. Finally, using the generated keys, data is encrypted for transmission, and the recipient decrypts the data using the symmetric key [17–26].

PQC is a crucial technology for maintaining secure communication despite concerns over the vulnerability of existing encryption systems due to the advancement of quantum computing technology. In this context, PQC is developing various mathematical techniques that consider the characteristics of quantum computing to complement and replace existing encryption algorithms. The primary goal of PQC is to provide secure encryption solutions that can withstand the potential rapid decryption of traditional cryptographic systems by quantum computers. By doing so, it contributes to ensuring the protection of data into the future.

The method proposed in this paper constructs a quantum cryptographic network based on encrypting the generated cryptographic keys using QKD symmetric keys and PQC algorithms applied to TLS v1.3. The TLS protocol, which provides secure communication between two systems on a computer network, has been developed to enhance security, improve performance, and simplify protocols. TLS v1.3 represents an improved version of TLS v1.2. It can increase the flexibility of the protocol and enhance its functionality. The extension features used for applying QKD keys and PQC authentication and encryption algorithms include the following. First, the key share extension feature is utilized to support multiple key sharing, allowing clients to provide multiple encryption key sharing options to servers, enabling safer and more efficient key exchange than the traditional single key sharing method. The signature algorithms extension feature is used for clients to transmit a list of supported signature algorithms to servers, allowing servers to select the preferred signature algorithm of the client. This extension feature is utilized to apply PQC authentication algorithms [5–7].

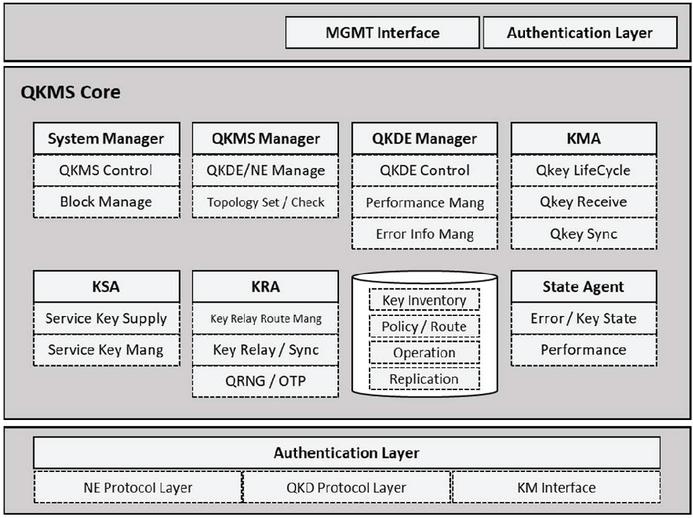

Figure 1 QKMS architecture.

3 Quantum Key Management System

The QKMS is structured as shown in Figure 1 to fulfill various roles in networking the quantum cryptographic network. The role of the QKMS is to efficiently utilize the keys generated in QKD, address the drawbacks of QKD, manage the lifecycle of symmetric keys, and provide information for network management. The QKMS performs key functions through modules such as a KMA (key management agent), KSA (key supply agent), and KRA (key relay agent), managing network operations and the lifecycle of symmetric keys. Additionally, the QKMS facilitates network management by transmitting component information to the centralized management system, Q-SDN-controller, to provide status and performance information.

In the proposed network architecture presented in this paper, a QKMS plays a crucial role by performing tasks such as PQC authentication, encryption/decryption, and QKD key provisioning. The authentication process of PQC and the key provisioning process of QKD are detailed in Section 4.

4 Network Structure

In this section, we propose a structure for the quantum cryptography network and demonstrate the quantum resilience of each segment through data flow. First, Figure 2 illustrates the process in which Alice and Bob exchange data using quantum cryptography keys. Initially, as the client, Alice sends a request to Bob for quantum cryptography communication and receives a response. Subsequently, Alice requests keys from the integrated QKMS.

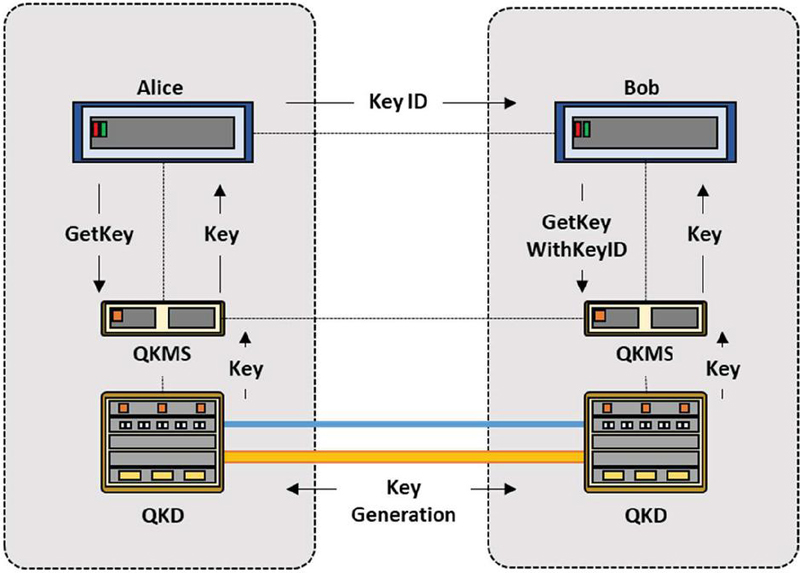

Figure 2 The process quantum cryptography keys.

The QKMS checks for the existence of stored keys with the QKMS associated with Bob. If a key is found, it immediately provides it to Alice. Otherwise, it waits until QKD generates a symmetric key. Receiving a Get-Key message according to the ETSI QKD 014 standard, Alice’s QKMS provides a symmetric key and then sends the Key ID of the received key to Bob. Bob uses the received Key ID to send a Get-Key-With-Key-ID message to the QKMS, obtaining the same key as Alice. Subsequently, Alice and Bob verify if they both received the same key, encrypt data using this key, transmit it, and decrypt the encrypted data.

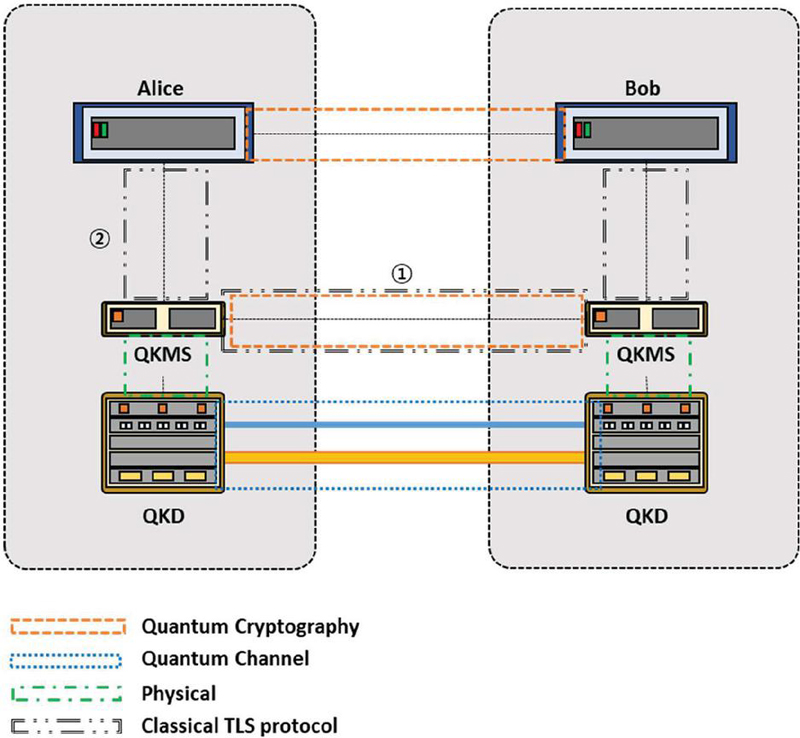

Figure 3 The cryptographic systems utilized in each segment.

Figure 3 illustrates the cryptographic systems utilized in each segment. The orange box represents the data transmission between Alice and Bob, where encryption and decryption using QKD keys occur, constituting the quantum-resilient segment. The blue box denotes the QKD-QKD segment responsible for generating and distributing QKD keys, employing quantum channels to ensure quantum resilience even if eavesdropping occurs. The green box signifies the QKD-QKMS segment, where keys are directly supplied from QKD to the QKMS, accessible only to authenticated administrators due to physical security boundaries. Lastly, the black box indicates the TLS encryption and decryption segment. The first black box utilizes TLS for transmitting non-critical or integration-related information, while employing a protocol based on QKD encryption for key exchange processes. The second black box involves direct key provisioning, currently utilizing TLS protocol due to the absence of defined procedures. However, extending physical security boundaries to users would greatly complicate the use of quantum cryptography. As a result, this cryptographic configuration introduces security vulnerabilities, which are addressed by employing PQC algorithms.

5 TLS Protocol Structure

The proposed network architecture utilizes the extension feature of the TLS v1.3 protocol to incorporate keys generated through PQC algorithms and QKD. The environment where the TLS extension feature is employed consists of functionalities that interface with QKMS. It establishes connections and provides quantum symmetric keys for TLS requests regarding quantum-resistant encryption services. This environment also integrates quantum-resistant encryption algorithms to derive quantum-resistant keys. The diagram below illustrates the segments where quantum-resistant TLS protocol is applied.

We have developed an interface to extend the TLS protocol to incorporate PQC encryption. This interface integrates the KCMVP (Korea Certification Mark Verification Program) cryptographic module and the PQC cryptographic module (Figure 4). It also includes ETSI 014 integration for communication with a QKMS (quantum key management system) and TLS 1.3 protocol handling for hybrid key derivation (Figure 5). Key Share, CipherSuites, and Signature fields in the TLS protocol messages are defined according to the cryptographic algorithms verified by KCMVP. Additionally, we extend and define Client Hello Extension and Server Hello Extension messages for TLS protocol using PQC algorithms, as well as for TLS protocol integrated with QKMS.

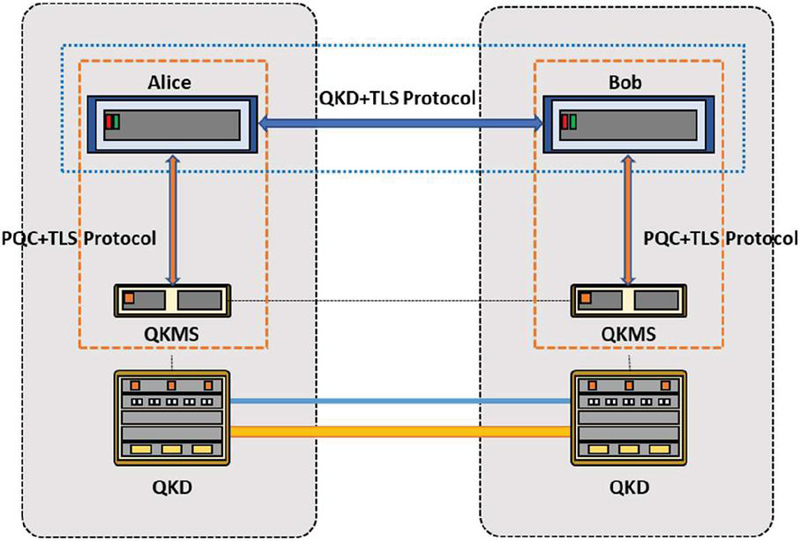

Figure 4 Section using the quantum cryptography protocol.

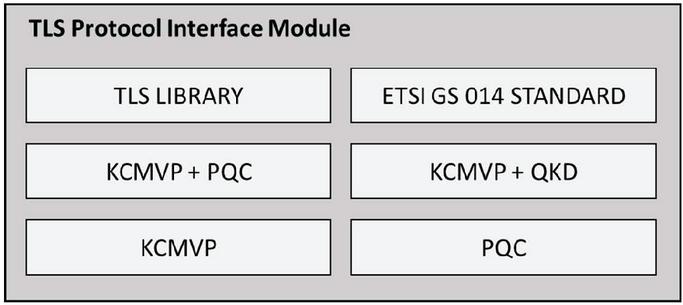

Figure 5 The architecture of TLS protocol interface module.

The method of storing PQC cryptographic key information via TLS Extension involves including PQC KEM information in the TLS v1.3 protocol’s Client/Server Hello messages and utilizing a hybrid of ECC and PQC keys for data encryption/decryption. This is achieved by extending the existing key_share Extension to define the pqc_key_share Extension and adding it to the Client/Server Hello messages (Extension: EXT_PQC_KEY_SHARE: 90). The PQC key exchange follows the flow depicted in Figure 6. The client generates a PQC key pair and sends the public key to the server. The server uses the received client public key to generate a secret and cipher, which are then transmitted to the client. The client decrypts the server’s cipher upon reception and generates the secret.

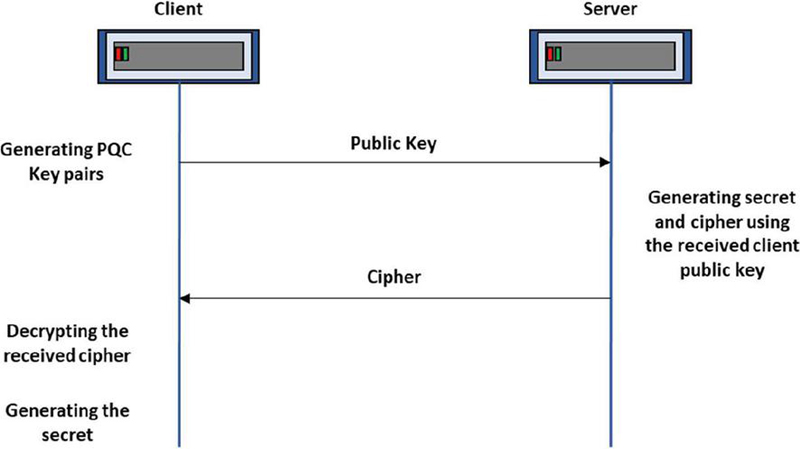

Figure 6 The processing PQC key exchange.

Using the TLS extension, the method of storing QKD cryptographic key information involves incorporating QKD cryptographic key information into the Client/Server Hello messages of the TLS v1.3 protocol and integrating ECC with quantum cryptographic keys to use as data encryption/decryption keys. This is achieved by extending the existing key_share extension to define the q_key_share extension and adding it to the Client/Server Hello messages. (Extension: EXT_Q_KEY_SHARE: 91) Quantum cryptographic key integration follows the flow depicted in Figure 7. First, the TLS client performs integration and receives a quantum cipher key according to the QKMS access control and policy. Next, it sends a Client Hello message including quantum cipher key ID information and generates an ECDH+Qkey Hybrid key upon receiving the Server Hello. Finally, after certificate verification, it engages in TLS encryption and decryption communication. The TLS server, on the other hand, receives the quantum cipher key ID included in the Client Hello message. Subsequently, it performs integration according to QKMS access control and receives the quantum key corresponding to the received key ID, then generates an ECDH+Qkey Hybrid key. Following this, it sends a Server Hello to the client, performs certificate verification, and engages in TLS encryption and decryption communication.

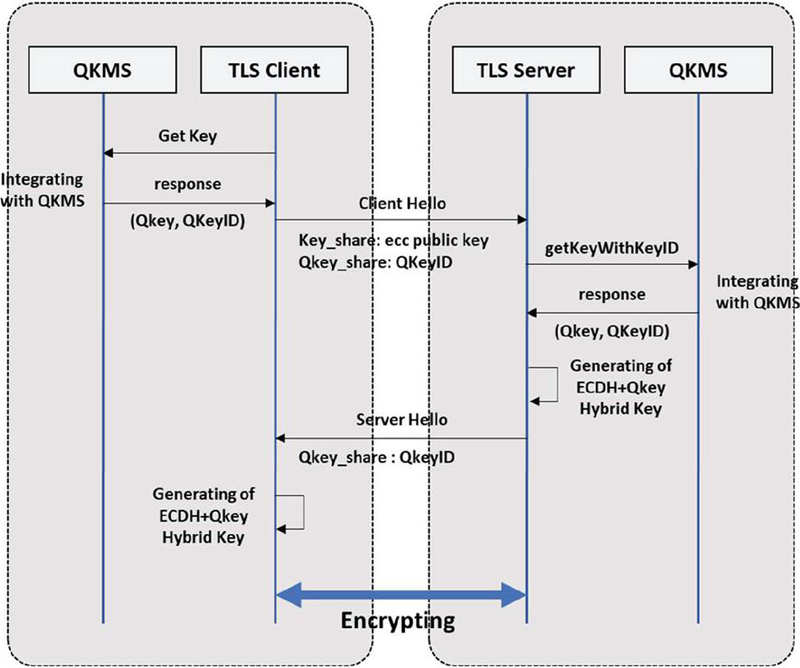

Figure 7 The processing QKD key exchange.

6 Simulation

To demonstrate the quantum resilience of this network, we verify three functionalities. Firstly, we check whether quantum resilience authentication is utilized between QKMS and users. Secondly, we verify if QKMS encrypts keys with quantum resilience before supplying them. Lastly, we confirm whether users, upon receiving the keys, encrypt data for transmission. The experimental setup consists of two QKD simulators and two QKMSs, configured to emulate the Alice–Bob quantum communication environment (Figure 8).

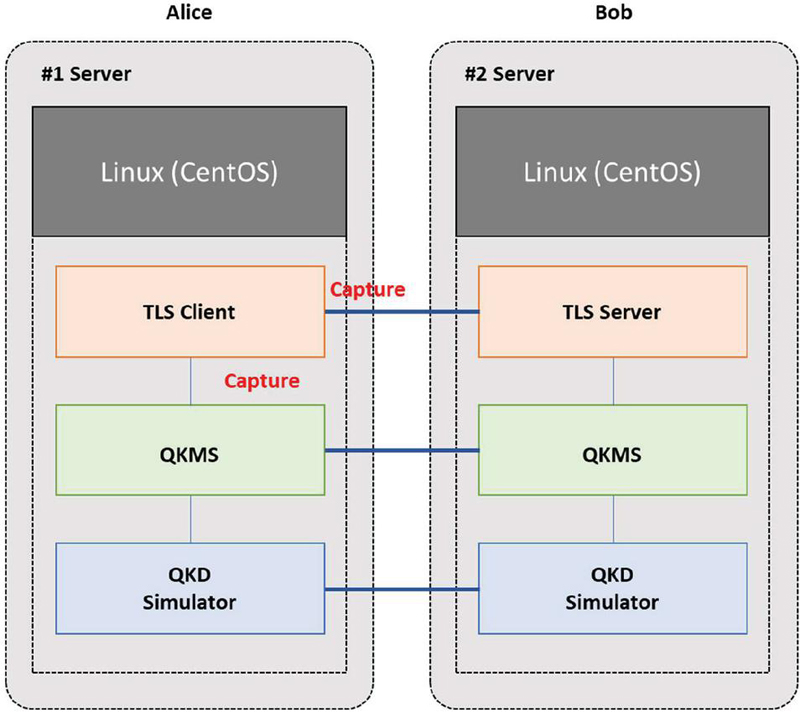

Figure 8 Traffic capture and verification points.

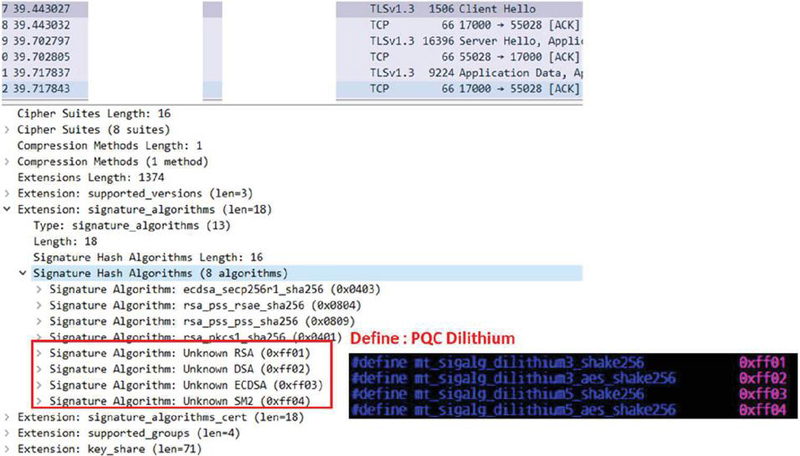

Figure 9 Verification of PQC authentication algorithms.

The PQC authentication algorithm used in this experiment is the Dilithium algorithm, and the encryption algorithm used is NTRU. Although the PQC algorithm standard has not been established, it is planned to be developed according to future standards. In this paper, the TLS protocol, which has been extended, uses PQC authentication and encryption algorithms, verifying the Client Hello message and Server Hello message during the TLS Handshake process. Figure 9 captures the Client Hello message captured by Wireshark during the process of supplying quantum keys from QKMS (Client) to the service user (Server). In the Client Hello message, the part parsed as Extension: signature_algorithms shows that it is defined as 0xff01, 0xff02, 0xff03, 0xff04. This indicates that an arbitrary Dilithium code is displayed because Dilithium content is not defined in Wireshark.

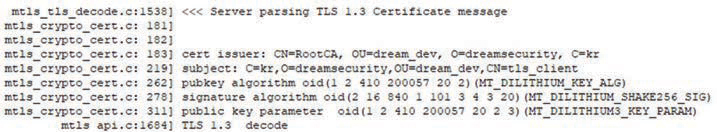

The following log message indicates authentication via PQC Dilithium from the server side, confirming the use of the Dilithium_Shake256 signature algorithm.

The usage of PQC cryptographic algorithms can also be identified in both the Client Hello message and the Server Hello message. Since PQC cryptographic algorithms are developed based on quantum computing standards, there’s a possibility they could be decrypted even with conventional computers. Therefore, to enhance security, a hybrid approach is adopted in this encryption process, utilizing both the conventional ARIA algorithm and the PQC algorithm NTRU. In the Client Hello message, although the Cipher Suite section is defined as “Unknown,” it contains the code for the arbitrarily defined ARIA algorithm. Additionally, in the extension section, a message including PQC Key Share is identified as “Unknown Type 90.” Furthermore, in the Server Hello message, the response Cipher Suite is designated as “Unknown (0xff02),” confirming encryption using the ARIA 256 algorithm (Figure 10).

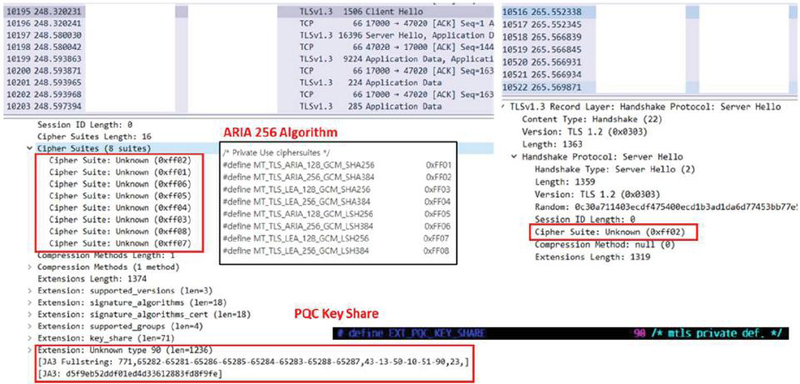

Figure 10 Verification of PQC encryption algorithms.

Finally, we verify the TLS encryption and decryption communication between the TLS Client and the TLS Server using QKD keys (Figure 11). The QKD keys are provided by the QKMS according to the ETSI QKD 014 standard, and are then applied to TLS v1.3 to perform hybrid encryption and decryption communication [27, 28]. When examining the Client Hello Message captured on the TLS Client side, it is possible to see the part defined as 0xff02 in the Cipher Suites section. This is the definition part for the ARIA algorithm, which appears as a defined code that Wireshark was unable to parse. The TLS client sends a message encrypted and decrypted in a hybrid form using the QKD key based on the ARIA algorithm to the server side.

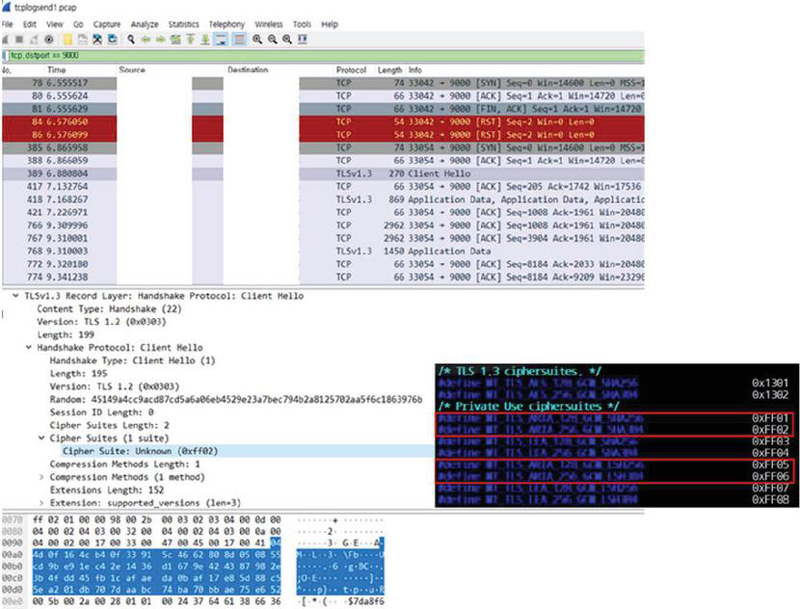

Figure 11 Verification of QKD key encryption.

7 Conclusion

In this study, we explored the implementation and verification of quantum key distribution (QKD) protocols as a cornerstone for achieving robust data encryption in quantum cryptography communications. Given the vulnerabilities of traditional RSA encryption to quantum algorithms like Grover’s and Shor’s, our research aimed to address these weaknesses by leveraging QKD to ensure quantum robustness across all communication stages.

Our findings indicate that QKD can effectively secure communications not only between end-nodes but also across all intermediary components, thereby reinforcing the integrity and security of the entire communication process. By demonstrating the end-to-end quantum encryption process, we validated the feasibility and efficacy of achieving comprehensive quantum robustness.

This research underscores the critical role of quantum cryptography in future communication systems and highlights the importance of integrating QKD protocols to safeguard data against emerging quantum threats. As quantum technologies continue to advance, the implementation of robust quantum cryptographic methods will be paramount in maintaining the security and reliability of communication infrastructures. Future work will focus on optimizing these protocols for broader applications and further enhancing the security measures to withstand the evolving landscape of quantum computing.

Acknowledgements

This research was supported by Korea Institute of Science and Technology Information (KISTI). (No. (KISTI) K24L4M1C2).

References

[1] Peter W. Shor. 1994. Algorithms for quantum computation: Discrete logarithms and factoring. In Proceedings of the 35th Annual Symposium on Foundations of Computer Science. IEEE Computer Society Press, 124–134. DOI: http://dx.doi.org/10.1109/SFCS.1994.365700.

[2] Frank Arute, et al 2019. Quantum supremacy using a programmable superconducting processor. Nature 574, 7779 (Oct. 2019), 505–510. DOI: http://dx.doi.org/10.1038/s41586-019-1666-5.

[3] Charles H. Bennett, Gilles Brassard et al. 1984. Quantum cryptography: Public key distribution and coin tossing. In Proceedings of the IEEE International Conference on Computers, Systems and Signal Processing, Vol. 175. 8. Retrieved from http://www.cs.ucsb.edu/chong/.

[4] Masahide Sasaki. 2011. Tokyo QKD network and the evolution to secure photonic network. In Proceedings of the Conference on Laser Applications to Photonic Applications (CLEO’11), Vol. 1. OSA, Washington, D.C., JTuC1. DOI: http://dx.doi.org/10.1364/CLEO\_AT.2011.JTuC1.

[5] Park, Man-Kyu, et al. “A Study of Future Internet Testbed Construction using NetFGA/OpenFlow Switch on KOREN/KREONET.” Journal of the Institute of Electronics Engineers of Korea TC 47.7 (2010): 109–117.

[6] KREONET web site, Retrieved Aug., 6, 2021, from http://www.kreonet.net/.

[7] Kim, Dongkyun, et al. “KREONET-S: Software-defined wide area network design and deployment on KREONET.” IAENG International Journal of Computer Science 45.1 (2018): 27–33.

[8] Ma, Xiongfeng, et al. “Quantum random number generation.” NPJ Quantum Information 2.1 (2016): 1–9.

[9] Krawczyk, Hugo, and Pasi Eronen. “Hmac-based extract-and- expand key derivation function (hkdf).” RFC 5869, May, 2010.

[10] Chip Elliott, David Pearson, and Gregory Troxel. 2003. “Quantum cryptography in practice”, In Proceedings of the Conference on Applications, Technologies, Architectures, and Protocols for Computer Communications (SIGCOMM’03). 227. DOI: http://dx.doi.org/10.1145/863981.863982.

[11] Chip Elliott and H. Yeh. 2007. “DARPA Quantum Network Testbed. Technical Report”, BBN Technologies Cambridge, New York, New York. Retrieved from http://oai.dtic.mil/oai/oai?verb=getRecord.

[12] Alexander Sergienko. 2005. “Quantum Communications and Cryptography.” Vol. 2005. CRC Press. Retrieved from http://books.google.com/books?hl=en.

[13] Thomas Langer. 2013. “The Practical Application of Quantum Key Distribution”. Ph.D. Thesis. University of Lausanne.

[14] M. Peev, C. Pacher, R. Alléaume, et al. 2009. “The SECOQC quantum key distribution network in Vienna”, New J. Phys. 11, 7 (July 2009), 75001. DOI: http://dx.doi.org/10.1088/1367-2630/11/7/075001.

[15] Shuang Wang, Wei Chen, et al. 2014. Field and long-term demonstration of a wide area quantum key distribution network. Opt. Expr. 22, 18 (Sept. 2014), 21739. DOI: http://dx.doi.org/10.1364/OE.22.021739.

[16] Qiang Zhang, Feihu Xu, Yu-Ao Chen, Cheng-Zhi Peng, and Jian-Wei Pan. 2018. Large scale quantum key distribution: Challenges and solutions [Invited]. Opt. Expr. 26, 18 (Sep. 2018), 24260. DOI: http://dx.doi.org/10.1364/oe.26.024260.

[17] Jane Qiu. 2014. Quantum communications leap out of the lab. Nature 508, 7497 (Apr. 2014), 441–442. DOI: http://dx.doi.org/10.1038/508441a.

[18] European Commission. 2017. China to launch world’s first quantum communication network. Retrieved from https://cordis.europa.eu/article/id/122516.trending-science-china-to-launch-worlds-first-quantum-communication-network/en.

[19] ChinaDaily. 2017. Quantum tech to link Jinan governments. Retrieved from http://www.chinadaily.com.cn/china/2017-07/11/content\_30065215.htm.

[20] Martino Travagnin and Adam Lewis. 2019. Quantum key distribution in field implementations. pp. EUR 29865 EN. Retrieved from https://op.europa.eu/en/publicationdetail/-/publication/e93e5bf9-efc3-11e9-a32c-01aa75ed71a1/language-en.

[21] Yong Zhao. 2019. The integration of QKD and security services. In Proceedings of the ITU QIT4N Workshop Shanghai. Retrieved from https://www.itu.int/en/ITU-T/Workshops-and-Seminars/2019060507/Documents/Yong.

[22] Teng-Yun Chen, Hao Liang, Yang Liu, Wen-Qi Cai, Lei Ju, Wei-Yue Liu, Jian Wang, Hao Yin, Kai Chen, ZengBing Chen, Cheng-Zhi Peng, and Jian-Wei Pan. 2009. Field test of a practical secure communication network with decoy-state quantum cryptography. Opt. Expr. 17, 8 (Apr. 2009), 6540. DOI: http://dx.doi.org/10.1364/OE.17.006540arxiv:0810.1264.

[23] F. X. Xu, W. Chen, S. Wang, Z. Q. Yin, Y. Zhang, Y. Liu, Z. Zhou, Y. B. Zhao, H. W. Li, D. Liu, Z. F. Han, and G. C. Guo. 2009. Field experiment on a robust hierarchical metropolitan quantum cryptography network. Chin. Sci. Bull. 54, 17 (2009), 2991–2997. DOI: http://dx.doi.org/10.1007/s11434-009-0526-3.

[24] Zheng-fu Han, Fang-Xing Xu, Wei Chen, Shuang Wang, Zhen-Qiang Yin, Yang Zhang, Yun Liu, Zheng Zhou, HongWei Li, Dong Liu, and Guang-Can Guo. 2010. An application-oriented hierarchical quantum cryptography network test bed. In Proceedings of the Optical Fiber Communication Conference. DOI: http://dx.doi.org/10.1364/OFC.2010.OTuK4.

[25] Shuang Wang, Wei Chen, Zhen-Qiang Yin, Yang Zhang, Tao Zhang, Hong-Wei Li, Fang-xing Xu, Zheng Zhou, Yang Yang, Da-Jun Huang, Li-Jun Zhang, Fang-Yi Li, Dong Liu, Yong-Gang Wang, Guang-Can Guo, and Zheng-Fu Han. 2010. Field test of wavelength-saving quantum key distribution network. Opt. Lett. 35, 14 (2010), 2454–2456. DOI: http://dx.doi.org/10.1364/OL.35.002454 arxiv:1203.4321.

[26] Kaoru Shimizu, Toshimori Honjo, Mikio Fujiwara, Toshiyuki Ito, Kiyoshi Tamaki, Shigehito Miki, Taro Yamashita, Hirotaka Terai, Zhen Wang, and Masahide Sasaki. 2014. Performance of long-distance quantum key distribution over 90-km optical links installed in a field environment of Tokyo metropolitan area. J. Lightw. Technol. 32, 1 (Jan. 2014), 141–151. DOI: http://dx.doi.org/10.1109/JLT.2013.2291391.

[27] Länger, Thomas, and Gaby Lenhart. “Standardization of quantum key distribution and the ETSI standardization initiative ISG-QKD.” New Journal of Physics 11.5 (2009): 055051.

[28] ETSI, “Quantum Key Distribution (QKD); Protocol and data format of key delivery API to Applications,” GS QKD 014, V1.1.1 (2018).
