Distributed Energy Transaction Model Based on the Alliance Blockchain in Case of China

Yongxiu He1, 2, Wei Xiong 1, 3, Bin-you Yang3, Rui Zhang3, Ming-li Cui4, Tian-tian Feng5, 6, 7,* and Yi-er Sun8,*

1School of Economics and Management, North China Electric Power University, Changping Beijing, China

2Beijing Key Laboratory of New Energy and Low-Carbon Development

(North China Electric Power University), Changping Beijing, China

3State Grid Hunan Electric Power Company limited, Changde Power Supply Company, Changde, Hunan, China

4School of Economics and Business Administration, Heilongjiang University, Harbin, China

5School of Economics and Management, China University of Geosciences,

Beijing, China

6Key Laboratory of Carrying Capacity Assessment for Resource and Environment, Ministry of Land and Resources, Beijing, China

7Key Laboratory of Strategic Studies, Ministry of Land and Resources,

Beijing, China

8School of Engineering, The Hong Kong University of Science and Technology, Hong Kong, China

E-mail: fengtiantian89@163.com; sunyier98sino@163.com

*Corresponding Author

Received 13 November 2020; Accepted 08 December 2020; Publication 09 March 2021


Distributed energy, mainly composed of new energy, plays an important role in promoting the development of new energy. At present, the development of distributed energy is greatly hindered by imperfect trading platform and unstable output of new energy. Blockchain is decentralized, autonomous and requires collaborative management. Its own technical characteristics have the inherent advantages of reconstructing the energy system. The alliance chain in the blockchain is more suitable for building a distributed energy trading platform. The paper constructs a distributed energy transaction model based on alliance blockchain, studies the integration mode of blockchain and distributed energy transaction, and explores the application of blockchain in distributed transaction. The paper provides a new idea for optimizing and reconstructing the traditional distributed energy trading platform, and providing decision support for promoting distributed energy trading.

Keywords: Blockchain, distributed energy trading, energy Internet.

1 Introduction

Distributed energy is mainly composed of new energy and plays an increasingly important role in the energy trading market [1]. Distributed energy can promote the development of new energy and carbon emission reduction. However, the development of distributed energy is hindered by the imperfect trading platform, the instability of new energy and the impact of new energy on the power grid [2]. The paper constructs a distributed energy trading model based on alliance chain, aiming to promote distributed energy trading and optimize energy system by building a more optimized trading platform. The future energy system will support the access of large-scale distributed generation and energy storage system based on Internet technology, which can realize energy sharing in a wide area sense [3]. Accelerating energy flow through energy conversion equipment can significantly improve energy efficiency [4]. In the future, China’s electricity market tends to be more diversified, convenient, and flexible [5, 6].

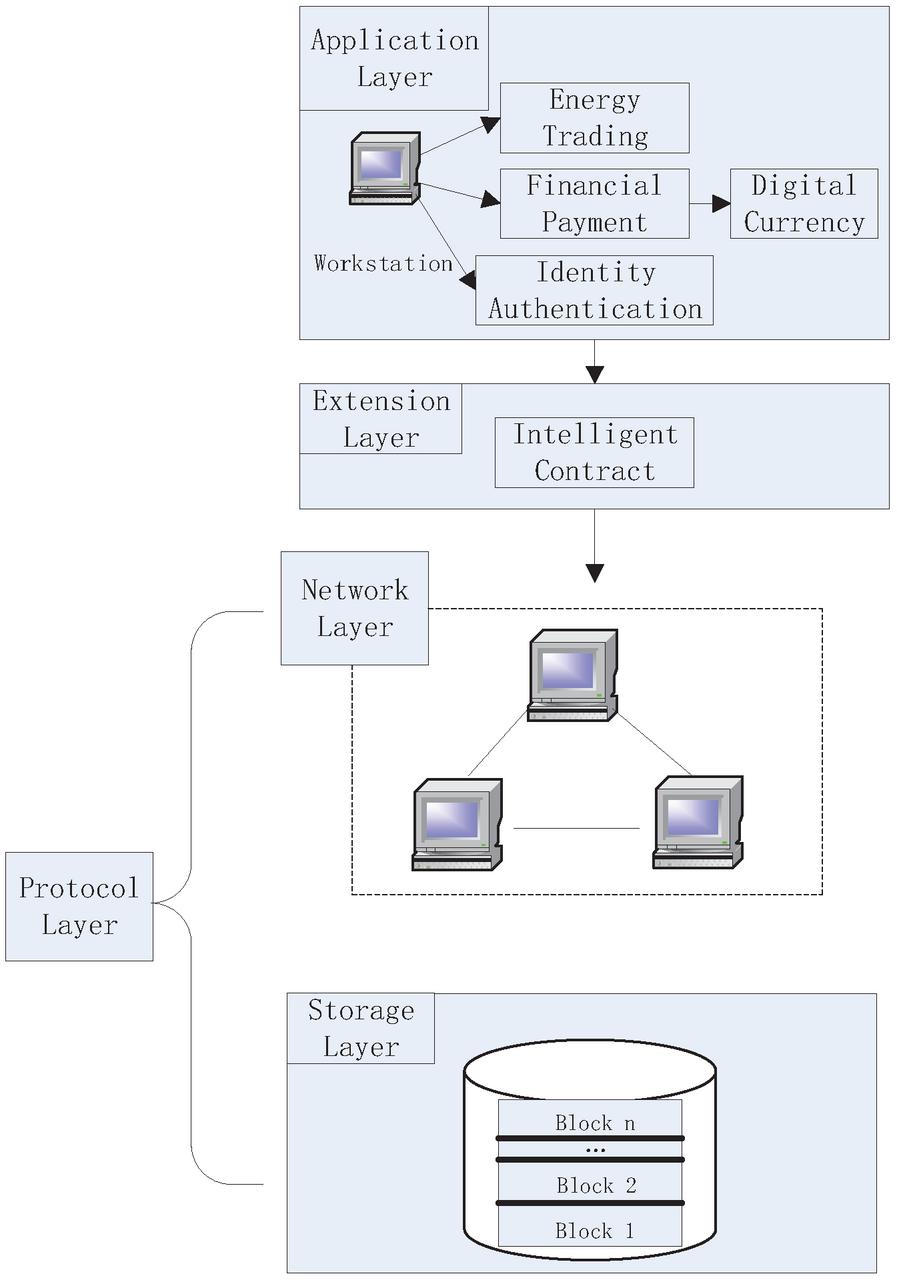

Figure 1 Hierarchical architecture of the block chain.

So far, many experts and scholars have studied blockchain and its application. Blockchain has four main characteristics: decentralization, transparency, contract execution automation and traceability [7]. Its core technologies mainly include distributed storage technology, cryptography, consensus mechanism and smart contract [8]. The hierarchical structure of blockchain is shown in Figure 1. The three most significant advantages of blockchain for data processing and analysis are: realizing automatic operation and transaction, reducing transaction and regulatory costs, and ensuring information security. Literature [9] proposes the framework of blockchain technology and its typical application in energy Internet. Literature [10] and [11] design the settlement smart contract of electricity market transaction, analyse the key technical difficulties, and give the solutions. In Literature [12], an EV charging transaction model based on alliance chain is proposed, and the feasibility of the above method is verified by taking the actual distribution scenario of charging stations in some regions of Tianjin as an example. In Literature [13] and [14], the economic dispatch model of micro grid based on blockchain is studied, and the decentralized economic dispatch of micro grid is realized by using blockchain. In Literature [15], a multi energy complementary security transaction model of heterogeneous energy blockchain is proposed to solve the problem of distributed energy multi energy complementary and integrated transaction in the energy transaction system.

Blockchain can be divided into public chain, private chain, alliance chain, etc., whose application scenarios are various due to different attributes. Figure 2 shows the inclusion relationship of the three blockchains.

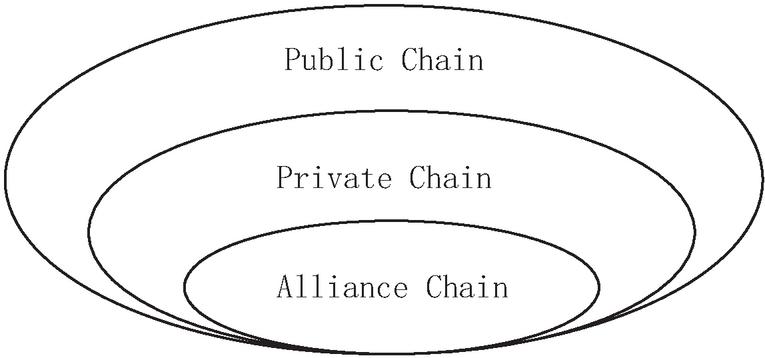

Figure 2 The inclusion relationships of three blockchains.

The public chain is open to all entity users, nodes can be joined at will, and transactions cannot be tampered with [16]. It is important to build consensus and form a decentralized energy trading mechanism in the unfamiliar network environment. literature [17] suggests that the public chain is of great application value, and has its own unique characteristics in terms of technology innovation direction, technology application form, and technology innovation mode. In literature [24], it is proposed that the public chain is open to the public, and users can freely access the network without registration or authorization. In literature [18], a distributed energy Internet system based on the public chain is proposed, which can support multi-user and distributed energy access, and ensure the automation of contract execution and the transparency, irreversibility, and traceability of transactions on the chain. In literature [19] presents a public blockchain-based solution for the digitization of land ownership in Bangladesh, which embodies the characteristics of public chain data synchronization and transparency, easy access, and immutable record management.

A private chain is a closed blockchain that is open to a single individual or entity, with only private parties involved in bookkeeping, maintenance, and governance, and does not require the issuance of passes to incentivize nodes. Private chains are characterized by fast transaction speed, low transaction costs, and high security. literature [20], it is proposed that a healthcare security network access control system based on Ethereum private chain has stronger data security and system stability. In literature [21], it is proposed that since network security in the power and energy sector is directly related to power supply and power security, network security and privacy security in the IoT environment should not be underestimated.

An alliance chain is a chain of members and a limited number of third parties for a group, which internally designates several pre-selected nodes as bookkeepers, and the generation of each block is determined jointly by all the pre-selected nodes. In layman’s terms, it is a semi-public blockchain, where only certain members can participate in bookkeeping privileges and maintenance governance, and can choose whether to issue a pass or not. In terms of security, an alliance chain is more secure than a public chain because it pays more attention to privacy and security, and in terms of trustworthiness, it is more trustworthy than a private chain because industries can monitor each other. In terms of cost, transactions in the alliance chain only need to be verified by a few trusted nodes with high arithmetic power, and there is no need for network-wide validation, so the transaction costs are lower. Literature [22], it is proposed that the use of Alliance blockchain technology can provide new ideas and methods for the copyright department to confirm the copyright of works and trace the source of piracy, which reflects the above-mentioned characteristics of the Alliance chain such as high controllability and non-disclosure of data by default. In literature [23], it is pointed out that the microgrid based on the alliance chain has the advantages of high efficiency and easy supervision. In literature [24], it is proposed that alliance chains can be open to the public according to application scenarios, and that their networks are jointly maintained by member institutions and nodes are accessed through the gateway nodes of the member institutions. In literature [25], a comparative analysis between the unquoted electricity trading mechanism of the alliance chain and existing blockchain electricity trading schemes show that the former scheme benefits both buyers and sellers, with lower economic costs and higher consensus efficiency. The literature [26] points out that the limited design of the alliance blockchain and the study of provincial-scale partial trading scenarios are used to explore the ways of faster application of blockchain technology for early application in energy trading. In literature [27], it is pointed out that blockchain technology plays an important role in the construction of energy internet and power system reform based on the current development status of blockchain technology in energy internet, the improvement of blockchain technology, and the trend of energy internet construction in the five fields of energy supply, transmission, distribution, consumption, and trading. In literature [28], a new electric vehicle charging system is proposed, in which billing information is managed and recorded because of the alliance blockchain, which is tamper-resistant and polycentric and provides convenience for energy trading and cooperation. The literature [29] proposed a smart meter privacy protection scheme for distributed smart home environment based on alliance blockchain, using blockchain alliance distributed storage of user data, solving the problem of single point of failure and data tampering, the scheme ensures user privacy, and has confidentiality and non-falsifiability. The literature [30] proposes that the integration of blockchain technology with the field of renewable energy is a new cross-cutting research area of increasing interest, with blockchain fuelling renewable energy sources and powering energy sustainability. The literature [31] proposes a blockchain energy smart trading strategy to secure the transmission of energy and information flows between users, which increases the share of clean energy in the electricity market and ensures the stability of the energy trading market. The literature [32] analysed the competitiveness of distributed energy in China using the five forces model, and analysed the joint development model of blockchain technology + distributed energy using the SWOT model, which revealed the feasibility of applying blockchain technology to distributed energy systems and provided a theoretical basis for blockchain technology to improve the competitiveness of distributed energy. Literature [33] points out that alliance chain is more suitable for energy trading than public chain, and designs a decentralized energy trading system based on alliance chain. In Literature [34], basing on alliance chain’s identity authentication protocol of the micro grid, the blockchain is applied to micro grids’ identity authentication; it is explained that the scheme can solve the identity authentication problem safely and reliably, and can make the performance consumption of micro grid nodes to the minimum through scheme comparison, performance analysis, security certification and analysis.

Based on the research results of experts and scholars, this paper constructs a distributed energy trading model based on alliance blockchain, studies the integration mode of blockchain and distributed energy trading, analyses the application of blockchain in distributed trading, and provides new ideas for optimizing and reconstructing distributed energy trading platform to promote the development of distributed energy. To build the integration mode of blockchain and energy Internet, it can start with distributed energy transactions. The paper can provide a theoretical and policy support for the construction of energy Internet, and provide ideas for the integration of blockchain and energy Internet.

2 Distributed Energy Transaction Model Based on Alliance Chain

The distributed energy trading model based on the consortium block chain (DER-CBC) has three vertical and horizontal levels respectively, which is shown in Figure 3. The vertical dimension includes physical structure, transaction process and alliance chain, while the horizontal dimension includes participants, alliance chain and smart contract.

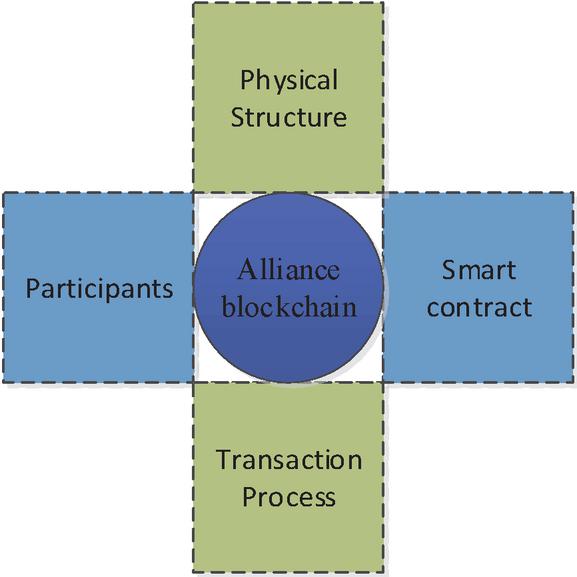

Figure 3 Vertical and horizontal hierarchy of the DER-CBC model.

2.1 Vertical Structure of DER-CBC

(1) Physical structure model of DER-CBC

The paper proposes a cross energy distributed energy transaction model based on the alliance chain and whose underlying physical structure is based on the electric energy transaction under the microgrid mode to meet the nearby consumption of distributed power. The model construction is shown in Figure 4.

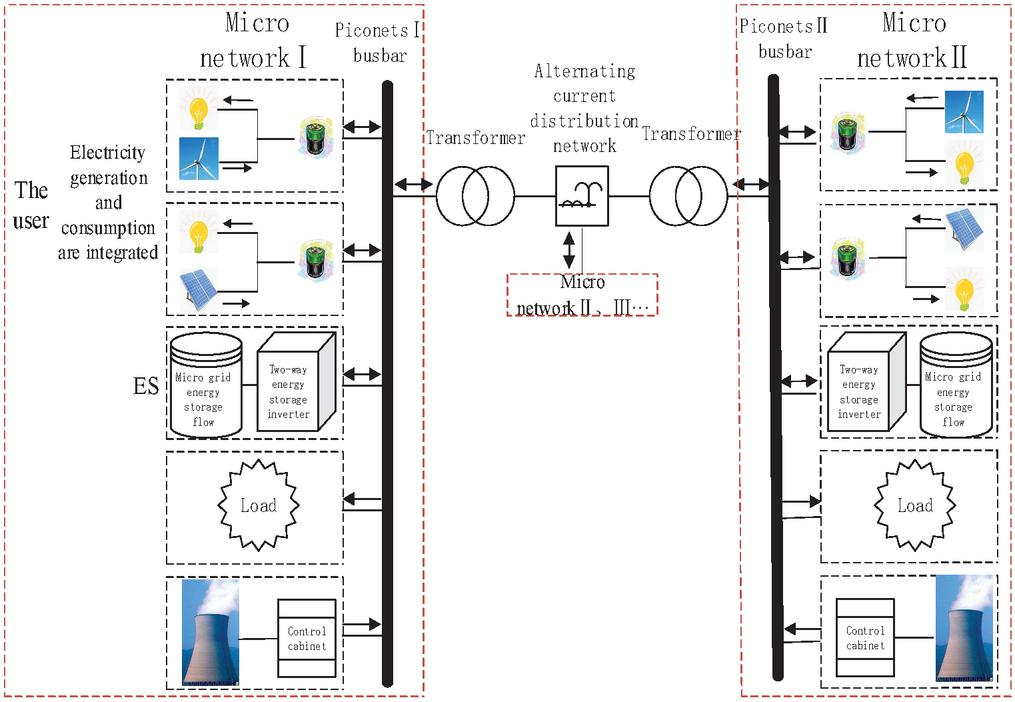

Figure 4 The physical structure of energy trading network.

In the distributed energy trading mode, microgrids are mainly composed of photovoltaic power generation users, wind power generation users, energy storage systems, conventional power generation systems and load. Small-scale photovoltaic and wind power generation users are often the users who combine power generation and consumption. The micro grid energy storage system relates to bus through inverter. Loads mainly include electric vehicles industrial and commercial power, residential power, etc. Some micro networks have small power plants. The micro networks are connected through the distribution network.

(2) Transaction process model of DER-CBC

If the combiner of production and consumption is an electric seller and there is a balance in the electric seller’s generation to meet its own demand, the power sale information (ID, power sale, power sale price, geographic information, etc.) can be published on the blockchain power sale platform. If the combiner of production and consumption is an electric buyer, the power demand information (ID, power demand, proposed electricity price, geographic information, etc.) should be released. Then through smart contract matching, the most suitable supplier and demander combination can be food. And then, send the transaction information to suppliers and the demanders. After confirmation, the online contract is signed to clarify electric quantities and prices. Contract parties shall perform according to the contract content. Credit mechanism is introduced to monitor the performance of contracts, including intelligent meter reading, real-time measurement, and electricity pricing. After the above steps are completed, both parties verify and complete the electricity fee settlement. Figure 5 shows the distributed transaction smart contract process.

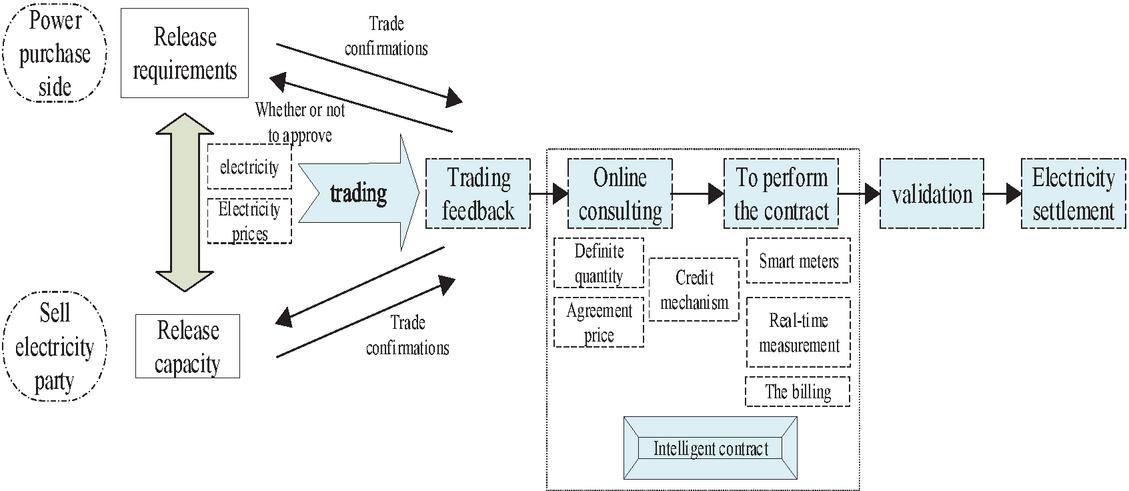

Figure 5 The flow chart of distributed transaction smart contract.

2.2 Horizontal Structure of DER-CBC

The horizontal structure model of DER-CBC includes.

(a) Participants: distributed energy users, power grid companies and regulators in the microgrid.

(b) Blockchain: user chain, power grid chain and energy chain. As shown in Figure 6.

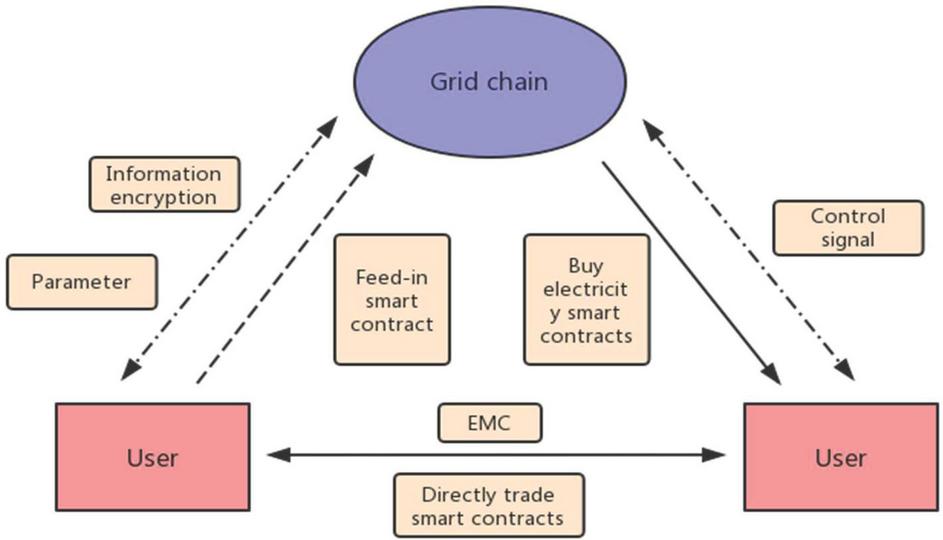

Figure 6 The distributed energy trading model based on consortium block chain.

The smart contract containing algorithms can extract information and calculate it automatically. After the calculation, the information will be stored in the blockchain. Transactions are automatically executed and updated in real time.

(i) User chain recording user information and transaction information, which is shown as formula (1).


Where: DG is the user chain; IDDG is the unique identification obtained after the user joined the der-cbc model and passed the authentication; MDG is the user’s power generation capacity; DDG is the user’s geographic information; GDG is the user’s energy type; IDG is the current user’s charging and discharging state.

(ii) The power grid chain information format (2).


Where PCC is the basic information of the public connection point; si is the node; IDPCC is the unique identity authentication of the public connection point; MPCC is the ability of the public connection point to exchange power with the grid; CPCC is the time-sharing price of the electricity selling company. The supply and demand prices between users should be as close as possible. When there is a new node si to join, it needs to submit information covering identity ID, power generation capacity, geographic information, and energy type, all of which should get authentication. After the authentication, it will be incorporated into the user chain and participate in the distributed energy transaction.

(iii) The energy chain records basic information about each member and the amount of power they supply. The chain is composed of hydroelectric, thermal, cogeneration, wind farm, photovoltaic, and other power generation companies, and is like the user chain in format (3).


where: EC is the energy chain; IDEC is the unique identifier obtained by the user after joining the DER-CBC model through authentication; MEC is the member’s generation capacity; DEC is the user’s geographic information; GEC indicates the user’s energy type.

(c) Trading strategy smart contract (TSSC). It consists of three parts: trading strategy smart contract, direct trading smart contract, online smart contract and power purchase smart contract. The work flow of TSSC is shown in Figure 7.

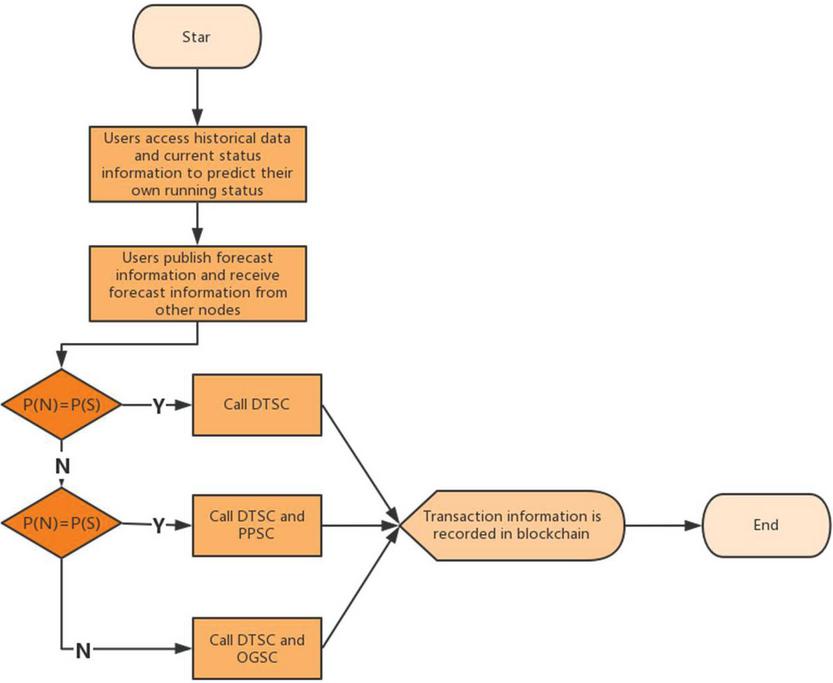

Figure 7 Work flow of TSSC single transaction.

(i) Directly trade smart contract (DTSC)

DTSC is used to define the direct transaction algorithm between users, which meets the following constraint shown in formula (4).

Dα=minwD (4)

Where WD is the distance weight [Heterogeneous Energy Blockchain for a Multi-Energy Complementary Secure Transaction Model], D is the electrical distance between the power supplier and the power user. According to the notice on launching the pilot market-oriented transaction of distributed generation issued by the National Development and Reform Commission and the National Energy Administration [35], the distributed power is consumed in the local network. When the total installed capacity of distributed generation projects in the network is less than the average power load of the previous year within the power supply scope, the network tariff shall be implemented in accordance with the network tariff standard within the same voltage level. It is approximately assumed that the network tariff is proportional to the transmission distance between the power supplier and the power user. The closer the electric distance is, the smaller the D is, the higher the distance coefficient Dα is, the higher the priority w is.

Energy supply consensus price chain (Ia) is shown in formula (5).

Iα=minwPN-PS (5)

Where w is the weight of consensus price difference; Ia is the price coefficient of energy supply consensus, which mainly reflects the expected price difference between the supplier and the purchaser in the transaction market. If the power price Ps issued by the power supplier is closer to the price PN accepted by the power purchaser, that is to say, the supply and demand prices are as close as possible, the higher the consensus agreement degree of transaction price is, the easier to reach a transaction contract. where WI is the weight of the consensus price difference.

(ii) On-grid smart contract (OGSC)

OGSC is used to define the transaction algorithm for the transaction of surplus electricity in the microgrid, which meets the following constraints shown in formula (6) and formula (7).

Gα=minwQ (6)

Where Ga is the green energy coefficient; WG is the weight of environmental friendliness of the power supplier; Q is the energy cleanliness factor. Setting the cleanliness factor can promote the consumption of new energy such as photovoltaic and wind power, and make new energy have priority to go online. In the paper, set the cleanliness factor of thermal power generation as 0.3, that of hydropower generation as 0.6, and that of photovoltaic and wind power generation as 0.8.

CMax=[ML(SG)] (7)

Where, CMax is the decision value to trade energy to the grid, which is a combination of clean environment, capacity value, energy consumption index and other factors; M is the energy produced by a certain power supplier (including each power plant, each distributed capacity unit and individual), and the trading model dispatches each power supply unit according to this capacity value and the power demand side to ensure the stable operation of the grid system, and the capacity of the supply side. The larger the energy consumption index, the lower the priority of matching; L is the energy consumption index of a distributed energy source; the larger the energy consumption index, the lower the energy efficiency ratio of the supplier, the less energy saving, and the lower the priority of matching; S is the stability factor of a distributed energy source; the better the quality of power delivered by the supplier, the higher the priority of matching.

(iii) Power purchase smart contract (PPSC)

PPSC is used to define the transaction algorithm of micro grid power purchase from large grid, and record the traditional transaction algorithm with smart contracts. In order to promote the development of distributed energy, higher priority is given to direct transactions between users, and when the supply and demand of electricity between users cannot satisfy each other, the purchase of electricity from power sellers is considered. The economic objectives of distributed trading are achieved on both day-ahead and real-time time scales, including day-ahead and intraday nonlinear economic optimization [14, 15]. In the day-ahead phase, users upload their own generation or load forecasts to form a day-ahead trading plan. Trading Strategies Smart Contracts (TSSC) determine whether to adopt a strategy of direct trading, feed-in or power purchase, and are stored in the energy chain. In the intra-day trading stage, users upload the intra-day ultra-short-term forecast results of their own power generation and load, combine them with the previous day’s trading plan, and use the deviation (the difference between the intra-day trading plan and the previous day’s trading plan) as an optimization variable to form the final trading plan, which is stored in the energy chain in the form of an alliance chain.

3 Case Analysis

3.1 Design of Algorithms

The case analysis is based on the blockchain smart contract developed by Ethereum platform, using the Python software to write and deploy smart contract [36–39].

Ethereum is currently one of the mainstream blockchain development platforms. The Ethereum blockchain system is a distributed system with a high degree of data redundancy, consisting of multiple peer nodes (called Ethereum nodes) in Ethereum. The Ethereum blockchain data is the core data in the Ethereum blockchain system, including block data, transaction data, account data, etc. The Ethereum blockchain data is the core data in the Ethereum blockchain system. The Ethereum blockchain data is stored in each Ethereum node and is maintained by all nodes. A device running an Ethereum client program and in the Ethereum blockchain system is an Ethereum node. A user can create a contract by initiating a transaction without a recipient account. The user serializes the contract code (including contract variable definitions, contract function code, etc.) and saves it to the transaction. When the transaction is recorded in the block, the Ethereum smart contract is successfully created and can be invoked by all users [40].

After successful model debugging, it is planned to conduct three smart contract tests first, and then change the parameter to test the DER-CBC model. After successful model debugging, it is planned to conduct three smart contract tests first, then change the parameter and test the model again.

In the case, the sales price is 0.657 yuan/(kWh) with reference to the flat price of 35kV large industrial users in Beijing; the purchase price of the grid for distributed power generation is set as 0.4 yuan/(kWh); agreed price and agreed network tariff refer to Literature [41]; assume the initial account balance as 100 yuan. In addition, other relevant parameters refer to the corresponding parameter values of Beijing in the third quarter of 2019.

3.2 Smart Contract Test

Three accounts are set up to represent electric customer 1# (power purchaser), distributed energy generator 2#, and electric-selling company respectively. Three smart contract tests are planned to be carried out. The scenario settings are shown in Table 1.

Table 1 Smart contract test scenario settings

Agreed Agreed Network Electricity Generation of
Price Volume Tariff Consumption of Generator 2#
Number (yuan/kWh) (kWh) (yuan/kWh) Customer 1# (kWh) (kWh)
1 0.55 200 0.02 200 200
2 0.54 200 0.02 220 200
3 0.56 200 0.02 180 200

The DER-CBC model test results are shown in Table 2.

Table 2 Test results of DER-CBC model smart contract

Payment Income Revenue Account Account Account
of of of Balance Balance of Balance Accumu-
Cust- Gener- Electric- of Generator of Electric- lated
omer ator selling Customer Customer selling Trading
1# 2# Company 1# 2# Company Volume
Number (Yuan) (Yuan) (Yuan) (Yuan) (Yuan) (Yuan) (kWh)
1 114 110 4 86 310 204 200
2 125.14 108 17.14 74.86 308 217.14 420
3 104.4 108.8 -4.4 95.6 308.8 195.6 600

In the first test, the electric consumption of customer 1# is equal to the generation of generator 2#. Through the judgment of TSSC, DTSC is automatically called to complete the transaction. And the electricity selling company only receives the network tariff.

In the second test, the electric consumption of customer 1# is more than that of generation of generator 2#. After judging by TSSC, DTSC and PPSC are automatically called to complete the transaction.

In the third test, the electric consumption of customer 1# is less than the generation of generator 2#. After TSSC judgment, DTSC and OGSC are called to complete the transaction.

The results of three tests are consistent with the calculated values of the DER-CBC model, and the DER-CBC model can operate normally.

3.3 Performance Test of DER-CBC

(1) User Distance

In order to test the performance of DER-CBC when its parameters change, the paper simulates and analyses the mining behaviour of market participants on Python platform (it can be understood as the probability of successful transaction [23]). The intelligent contract is used to automatically evaluate users and record them on the blockchain, which affects the mining difficulty of a miner. Set up 10 market entities. Based on Monte Carlo simulation, take the user distance D as an example to set different parameters. Test the ownership of each block in the mining process of 20 blocks in the distributed energy trading blockchain of the DER-CBC mode, and get the relationship between the user distance D and the probability of successful mining of the participants in the distributed energy trading.

The vertical axis of Figure 8 represents the probability of successful mining of market participants, and the horizontal axis represents the user distance D. According to the simulation results, successful mining probability of different users is obtained.

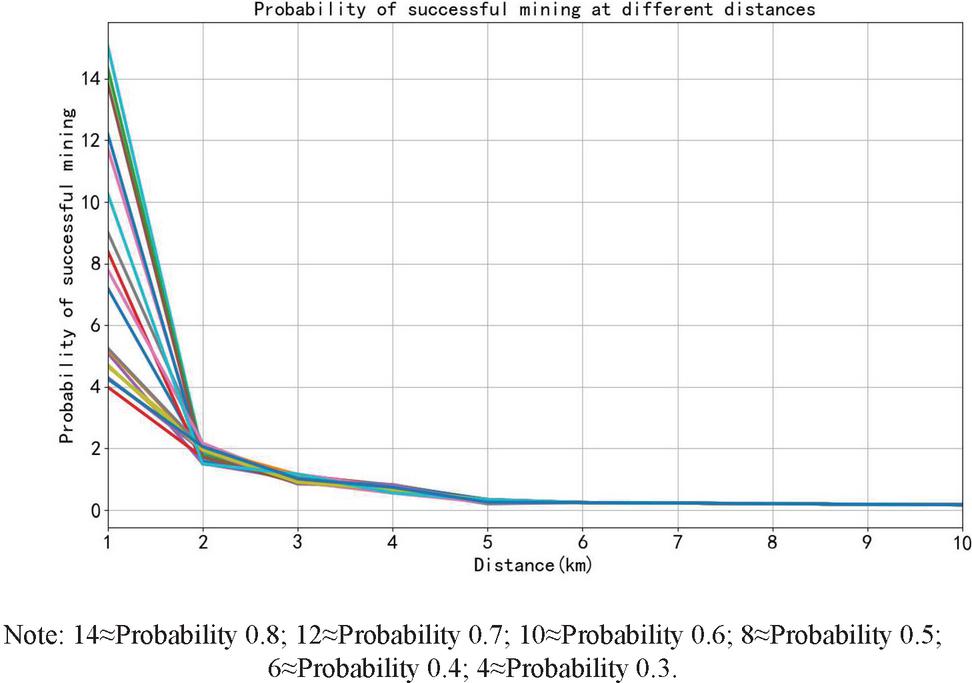

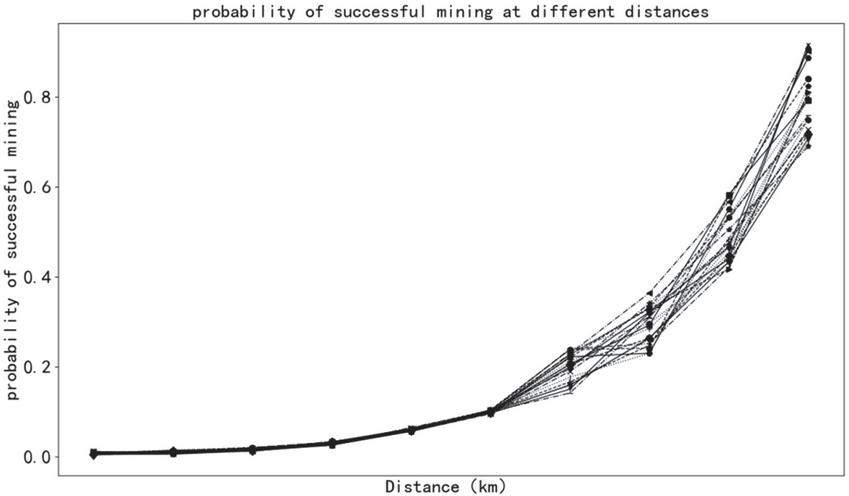

Figure 8 Relationship between successful mining probability of market participants and user distance D.
