Electrochemical Dechlorination of Trichloroethylene by Manganese Phthalocyanine: Performance and Mechanisms
Jia Deng1, Zheng Fang1,*, Yitao Dai2 and Lizhi Huang1
1School of Civil Engineering, Wuhan University, Wuhan, Hubei, 430072, China
2Department of Applied Chemistry, University of Science and Technology of China, Hefei, 230026, China
E-mail: zfang@whu.edu.cn
*Corresponding Author
Received 08 December 2021; Accepted 05 January 2022; Publication 25 January 2022
Abstract
Trichloroethylene (TCE) is one of the most abundant persistent organic pollutant in subsurface environment. TCE can be reduced electrochemically, but the extremely negative applied potential limits the application of this technology. Manganese phthalocyanine (MnPc) catalyst was used for the electrochemical reductive dechlorination of TCE. The results show that MnPc can be reduced by electrons attachment at 0.21 V, 1.22 V and 1.77 V, respectively. With the decrease of applied potential from 0.3 V to 1.8 V, the transformation from TCE to dichloroethylene (DCE) efficiency increased from 19.9% to 41.8% after 5 hours of reaction. Although the electron transfer ability was enhanced with applied potential decreasing, the intensive HER caused the electron selectivity decreased when MnPc attached more electrons. MnPc catalyze the electrochemical reduction of TCE, which has potential application on the remediation of TCE-contaminated groundwater.
Keywords: Electrochemical, dechlorination, TCE, MnPc, DFT.
1 Introduction
Trichloroethylene (TCE) is a common industrial solvents which is also abundant in environment due to the improper discharge [1]. TCE has a higher density than water and has a strong migration ability, which easily lead to the formation of TCE pollution plume in groundwater [2]. The presence of TCE brings serious hazard to human, because TCE was reported to have damages to the human nervous and reproductive system [3]. Thus, it is urgent to develop technologies for efficient removal of TCE.
Physical and chemical processes are very efficient for detoxifying TCE in groundwater [4]. TCE can be reduced electrochemically upon providing a reduction potential more negative than the dechlorination potentials of TCE [5]. However, the potential needed for direct electrochemical reduction of TCE is extremely low. Also, the low conductivity of groundwater limits the application of electrochemical technology in groundwater remediation. Precious metal such as Pd was used for electrochemical reduction of TCE, which can generate active hydrogen species with strong reduction ability at 0.6 V–1.2 V to efficiently attack TCE molecule [6]. However, the high cost and the instability of metal nanoparticles have brought huge challenges to the possible practical application. Therefore, various non-precious electrocatalysts are synthesized and used in the remediation of TCE-contaminated groundwater.
Microorganisms can dechlorinate TCE to dichloroethylene (DCE) and vinyl chloride (VC) in anoxic groundwater environment [7]. The active species of these anaerobic microorganisms are metal-porphyrin structure, such as coenzyme F430, cobalamin, heme, vitamin B12, etc. [8–10]. The centre metal atom of metal-porphyrin structure as the electron transfer active site is responsible for the dechlorination activity [11, 12]. Phthalocyanine is a synthetic compound of conjugated system and the centre porphyrin structure can complex divalent metal ions. Mn-phthalocyanine (MnPc) has unique redox properties, which is directly related to electron transfer and oxygen release in plant photosynthesis [13]. In addition, MnPc as a catalyst and photosensitizer was widely used in industrial manufacture [14, 15]. However, MnPc has been rarely used for electrocatalytic water purification.
In this work, MnPc as electrocatalysts was combined with electrochemical cathode for TCE reduction. Firstly, the electro-catalytic activity of MnPc towards TCE reduction was analysed by cyclic voltammetry. Subsequently, MnPc cathode was used for electrochemical TCE reduction at various applied potentials. Finally, the electron transfer process was characterized by electrochemical methods and analyzed though density functional theory (DFT) which reveal the catalytic mechanism.
2 Materials and Methods
2.1 Chemical Reagent
MnPc, trichloroethylene (TCE), tetrabutylammonium tetrafluoroborate (BuNBF), N,N-dimethylformamide (DMF), anhydrous sodium sulfate (NaSO) were purchased from Sinopharm Reagent Group Chemical Reagent Co., Ltd. Dichloroethylene (DCE) including cis-dichloroethylene, trans-dichloroethylene and 1,1-dichloroethylene were purchased from Aladdin Reagent (Shanghai) Co., Ltd. Nafion D520 (5%) solution was purchased from DuPont Chemical Co., Ltd. The reagents used in the experiment were all analytical grade, and ultrapure water (conductivity 18.2 M.cm) was used throughout the experiment.
2.2 Electrode Preparation
MnPc (0.020 g) was added into a 1.5 mL centrifuge tube consisting of 800 L of ultrapure water and 200 L of Nafion solution. The mixture was sonicated for 30 minutes to obtain a catalyst ink. Subsequently, the catalyst ink was drop casted on the surface of a glassy carbon electrode (2 cm 2 cm) with a catalyst loading of 1 mg/cm. Finally, the MnPc electrode was dried in the air. The procedure for the preparation of MnPc electrode is shown in Figure 1.

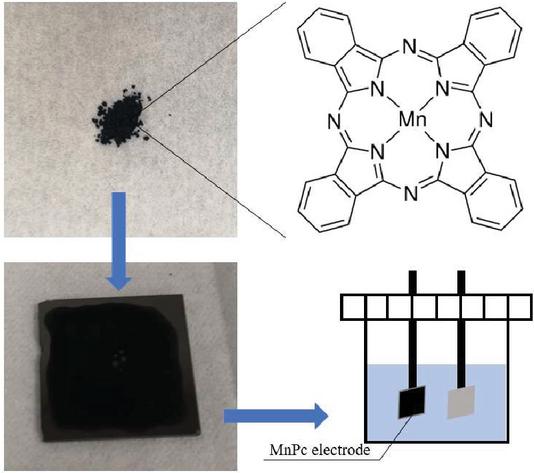

Figure 1 Procedure for the preparation of MnPc electrode.
2.3 Electrochemical Experiments
Electrochemical experiments were performed using an electrochemical workstation (CHI600E, Shanghai Chenhua Instrument Co., Ltd.). Cyclic voltammetry data was obtained on a disc glassy carbon electrode (1.2 cm) with scan rate of 20 mV/s. The supporting electrolyte was 0.1 M BuNBF solution in DMF.
The electrocatalytic dechlorination of TCE was carried in a 50 mL electrochemical cell. The reactor contained 30 mL reaction solution and 20 mL headspace. In order to simulate the groundwater environment, the reaction solution contained 2 mM NaSO and 25 M TCE, and the pH value of the reaction solution was 7.0 0.2. The working electrode was the as-prepared MnPc electrode [16]. The counter electrode was a Pt plate (2 cm 2 cm), and the reference electrode was a leak-free Ag/AgCl electrode, respectively. Electrochemical impedance spectra, Tafel curves and open circuit potentials of MnPc were determined in the same reactor using 0.5 M NaSO aqueous solution as the supporting electrolyte.
2.4 TCE and Products Detection
The concentration of TCE and its dechlorination products were determined by a gas chromatograph (GC, GC2010, Shimadzu Corporation) equipped with an electron capture detector (ECD) and a flame ionization detector (FID). An air-tight gas syringe was used to collect a volume of 200 L of headspace gas from the reactor for measurement.
2.5 DFT Calculation
The conformations of MnPc were optimized using Gaussian 09 software based on density functional theory (DFT) [17, 18]. DFT functional was B3LYP and a mixed basis including LANL2DZ for metallic elements and 6-31+G(d, p) for non-metallic elements were set [19, 20]. The implicit solvent-based solvation model (SMD) was used to simulate the aqueous environment [21]. The molecular orbital of MnPc was analyzed using Multiwfn software [22].

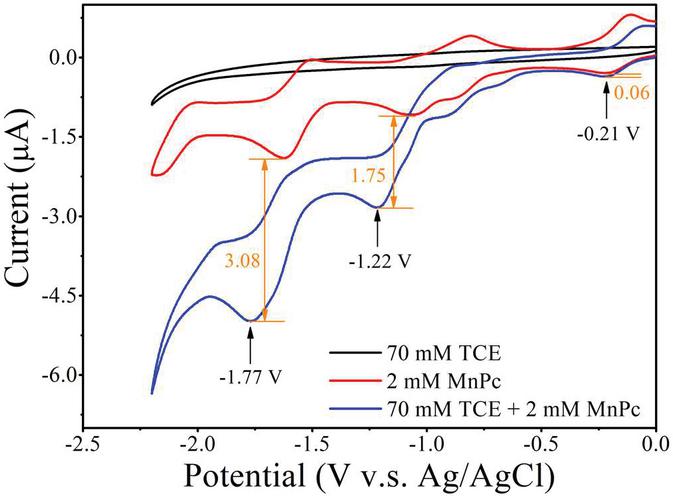

Figure 2 Cyclic voltammograms of TCE, MnPc and TCE/MnPc mixture.
3 Result and Discussion
3.1 Cyclic Voltammetry Analysis
Previous researches reported that the reductive dechlorination potential of TCE was more negative than 2.3 V [5]. Thus, no reduction peak for TCE was observed in the absence of MnPc (Figure 2), demonstrating TCE cannot be directly reduced by glassy carbon in the potential range from 0 to 2.2 V. MnPc showed three cathodic peaks corresponding to the reduction of MnPc after attaching electrons. When TCE was added into electrolyte, the three reduction peaks were located at 0.21, 1.22 and 1.77 V, respectively. Also, the relative reduction current increased 0.06, 1.75 and 3.08 A. This result demonstrated that the electrocatalytic activity of MnPc towards TCE reduction, and this catalytic activity was enhanced by applying more negative potentials. Therefore, controlled potential electrolysis at potentials where the cathodic peaks located was conducted.

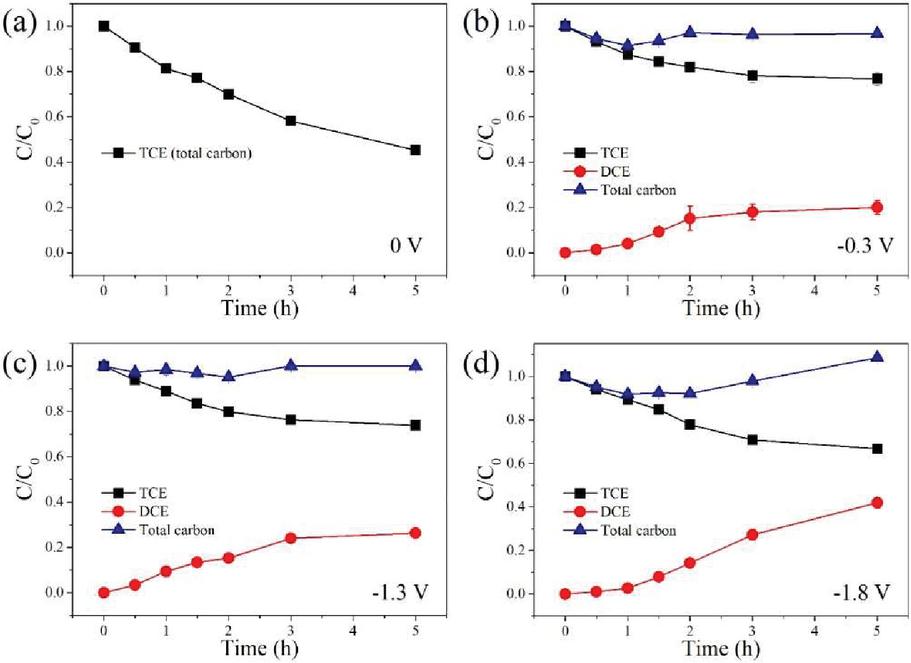

Figure 3 Electrochemical reduction of TCE by MnPc electrode at (a) 0 V, (b) 0.3 V and (c) 1.3 V and (d) 1.8 V vs. Ag/AgCl.
3.2 Electrochemical Reduction of TCE
The cathodic peaks for TCE reduction were located at 0.21, 1.22 and 1.77 V, respectively. In order to ensure the fully electron attachment of MnPc catalyst, the applied potential was set as 0.3, 1.3 and 1.8 V. TCE decreased without applied potential and no reduction products of TCE was detected (Figure 3(a)). This result indicated MnPc without applied potential had adsorption effect on TCE [23, 24]. When the applied potential was 0.3 V, 19.9% TCE was transformed to DCE after 5 hours of reaction (Figure 3(b)). The reduction efficiency of TCE reached to 26.2% at a potential of 1.3 V (Figure 3(c)). At 1.8 V, 41.8% TCE was reduced to DCE (Figure 3(d)). When negative potential was applied, the carbon balance during the electrolysis remained stable, indicating the transformation from TCE to DCE on MnPc electrode was fast. TCE contained three electronic rich Cl atoms. Electron-attached MnPc could repel TCE molecules via electrostatic repulsion, lead to the weakened adsorption when negative potentials were applied on MnPc electrode. With the applied potential become more negative, the reductive catalytic performance of MnPc increased which is in line with the CV analysis.

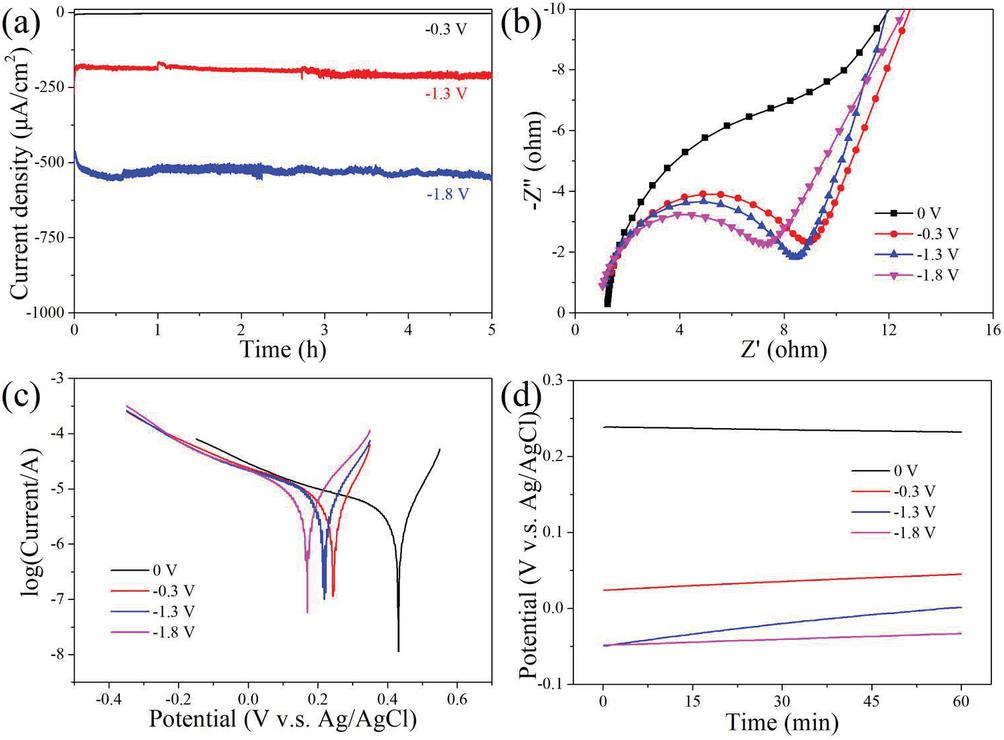

Figure 4 Electrochemical characterization of MnPc after applying different potentials. (a) i-t curves, (b) Electrochemical impedance spectra (c) Tafel curves and (d) open circuit potentials of MnPc.
As shown in Figure 4(a), the current density of MnPc at 0.3, 1.3 and 1.8 V which were 5, 200 and 520 A/cm. The stable current density proved the continuous reduction of TCE on MnPc electrode. In addition, the current density increased significantly with potential decreasing, indicating the electron transfer efficiency may be higher at more negative potential. The increase of MnPc’s catalytic performance was mainly attributed to the improved electron transfer efficiency. Thus, the electrochemical analysis of MnPc after electrolysis at different potentials was carried out. The arc radius in the EIS of MnPc became smaller with more negative potentials (Figure 4(b)), proving that electron attachment on MnPc was conducive to interfacial electron transfer [25]. The corrosion currents of MnPc (Table 1) can be obtained by fitting the Tafel curves (Figure 4(c)). The corrosion currents of MnPc increased if the potential become more negative, proving that the electron transfer process was enhanced after electrons attachment to MnPc. The open-circuit potentials of MnPc was more negative as the applied potential decreases (Figure 4(d)), which further confirmed that the electron transfer was enhanced when MnPc was attached with electrons [26].
Table 1 Corrosion current of MnPc after applying different potentials
| Potential | Corrosion Current (A) |
| 0 V | 2.72 10 |
| 0.3 V | 3.71 10 |
| 1.3 V | 6.20 10 |
| 1.8 V | 7.62 10 |

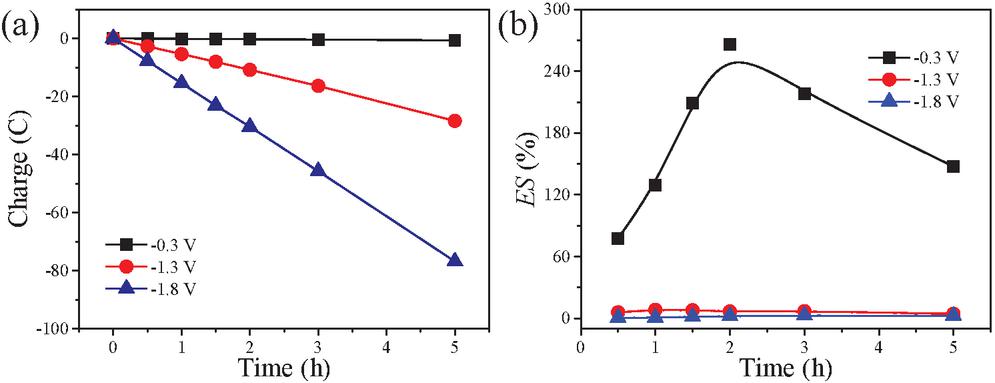

Figure 5 (a) The input charge corresponding to different applied potentials. (b) The electron selectivity during electrochemical reduction process.
Notably, the high electron transfer efficiency may result in the intensive hydrogen evolution reaction (HER), thereby causing the energy consumption. Therefore, the electron selectivity (ES) should be investigated which represents the proportion of electrons contributing on the dechlorination of TCE. The breakage of one C–Cl bond needs two electrons [27]. The electrons contributing on the dechlorination of TCE can be calculated according to TCE removal and DCE generation. The input charge corresponding to different applied potentials can be obtained in Figure 5(a). Hence, ES was calculated according to the ratio of the charge required for TCE-to-DCE conversion and the total input charge (Equation (1)). As shown as Figure 5(b), the ES value at 0.3 V was obviously higher than 1.3 V and 1.8 V. Although MnPc showed a high TCE reduction efficiency at 1.3 V and 1.8 V, most of the input charge was used for the HER and the reduction of MnPc. The value of ES was higher than 100% at 0.3 V demonstrating that the electrons of MnPc may be transfer to TCE.
| (1) |

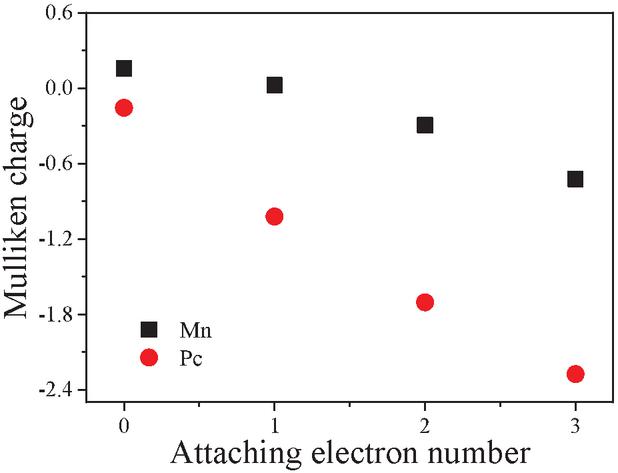

Figure 6 The change of mulliken charge on Mn and Pc when electrons are attached to MnPc.
3.3 DFT Analysis
In order to investigate the property of electron transfer on MnPc, the conformations of MnPc and electrons-attached MnPc were optimized by DFT. MnPc consist of the Mn center and the Pc structure. When electrons were attached on MnPc, the mulliken charge of Mn and Pc was changed (Table 2). Figure 6 showed the mulliken charge on Pc decreased faster than Mn, indicating the attached electrons was more intensively distributed on the Pc structure. Notably, the atomic charge will be re-distributed on MnPc when electron attached to MnPc. The spin density of MnPc attaching electrons also changed. The spin of MnPc was quartet indicating three unpaired electrons existed in MnPc [28]. With the electron attachment to MnPc, the unpaired electrons gradually decreased. Thus, the conformations of MnPc e and MnPc 2e had two and one unpaired electrons, respectively. When three electrons attached to MnPc, the conformation became closed shell state. As shown in Figure 7, the spin area increased when one electron attaching to MnPc conformation. The spin density was concentrated at the central Mn atom of MnPc and MnPc e conformation. However, the spin area decreased when two electrons attaching to MnPc and the spin disappeared on MnPc 3e conformation. Electronic spin reflects the electronic activity. MnPc at 0.3 V had the highest electron selectivity for TCE reduction, which may be attributed to the large spin area of MnPc e conformation.

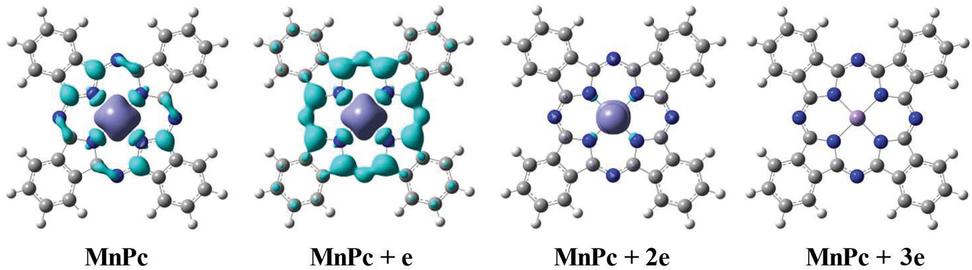

Figure 7 Spin density of MnPc and electrons-attached MnPc.
Table 2 The mulliken charge on Mn and Pc when electrons were attached to MnPc
| Mulliken Charge of Mn | Mulliken Charge of Pc | Total Charge | |
| MnPc | 0.157 | 0.157 | 0 |
| MnPc e | 0.023 | 1.023 | 1 |
| MnPc 2e | 0.295 | 1.705 | 2 |
| MnPc 3e | 0.724 | 2.276 | 3 |

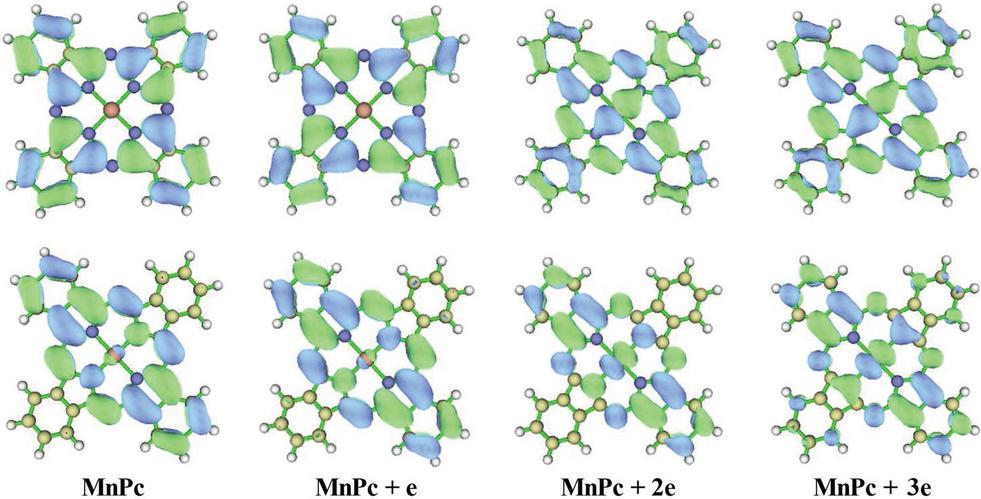

Figure 8 HOMO (up image) and LUMO (low image) of the MnPc conformation and the electrons-attached MnPc conformations.
Due to the electrons attachment, the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) of MnPc changed gradually (Figure 8). On the conformations of MnPc and MnPc e, HOMO orbitals concentrated towards the structure of Pc and the central Mn atom had the LUMO orbitals. As the catalytic site, Mn atom had the better catalytic activity when one electron attaching to MnPc due to the unbalance HOMO-LUMO. HOMO-LUMO orbitals was all concentrated the central Mn atom when two and three electrons attaching to MnPc. Although the conductivity of MnPc electrode increased with electrons attachment, the catalytic efficiency of MnPc electrode decreased with electrons attachment.

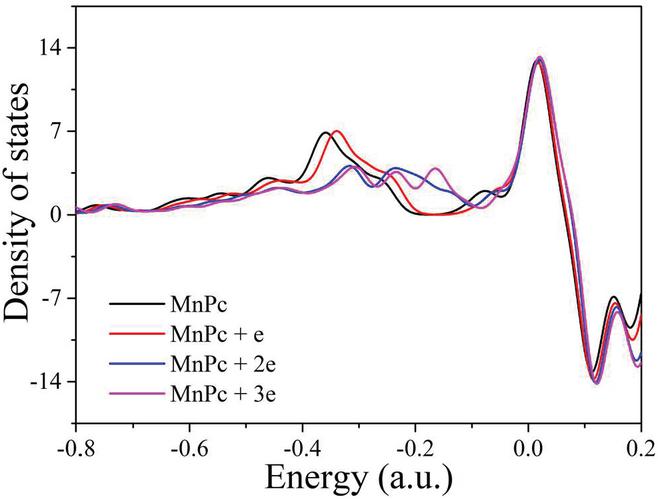

Figure 9 The calculated PDOS plots of Mn site on MnPc and electrons-attached MnPc.
We also calculated the partial density of states (PDOS) of Mn site on MnPc and electrons-attached MnPc. As shown in Figure 9, shows that the central Mn site of MnPc and MnPc e had a higher PDOS at 0.4–0.3 a.u than MnPc 2e and MnPc 3e. In the other energy range, these four conformations had the close PDOS. This result indicated the Mn site of MnPc e conformation had a better electrocatalytic activity than MnPc 2e and MnPc 3e conformations [11]. In summary, MnPc without applied potential had the adsorption effect to TCE which was attributed to the electrostatic effect. Mn site of MnPc is in divalent state which can lose electron to become Mn or higher valence. When one electron attached to MnPc at 0.3 V, Mn site of MnPc had the highest catalytic activity causing the dechlorination of TCE. With applied potential decreasing, the electron catalytic ability of the central Mn atom becomes weaker but the total electron input increased. Although the dechloriantion efficiency of TCE was higher at 1.8 V and 1.3 V, the electron selectivity was highest at 0.3 V.
4 Conclusion
MnPc can adsorb TCE and show electrocatalytic activity towards TCE reduction. With the applied potential becoming more negative, the reduction efficiency of TCE increased due to the enhanced electron transfer ability. However, the atomic charge will be re-distributed on MnPc when electron attached to MnPc. The conformation of MnPc e had the largest spin area and Mn site of MnPc e conformation had a better electrocatalytic activity than MnPc 2e and MnPc 3e conformations. Thus, the electron selectivity was highest at 0.3 V. This work provides a novel application on the remediation of TCE-contaminated groundwater.
